Valve Spring Material Specs for B2B Sourcing

RFQ Deep-Dive: Data That Prevents Misquoted Springs

A valve spring RFQ should describe the working condition of the part, not just its shape on the bench. The supplier needs installed height, open height, target loads, maximum valve lift, and allowable stress window to confirm whether the selected valve spring material and geometry are suitable. For dual springs, specify inner and outer springs separately and state the combined assembly load at working heights.

Recommended RFQ data set:

• Free length: tolerance is often ±0.3 mm to ±0.5 mm; tighter ±0.2 mm may require sorting or added inspection cost.
• Outer diameter and inner diameter: define the measurement point; common tolerance is ±0.15 mm to ±0.30 mm depending on wire size and coil geometry.
• Wire diameter: commonly controlled within ±0.02 mm to ±0.05 mm for engine spring wire; confirm whether this is incoming wire tolerance or finished-part verification.
• Installed load: state the load at installed height, commonly with ±5% tolerance; OE-style programs may request ±3% after capability review.
• Open load: state the load at maximum valve lift height and confirm that the spring does not reach solid height; maintain design clearance such as 0.8–1.5 mm or the customer-defined margin.
• Spring rate: include N/mm when matching a reference curve; require at least three load-height points when cam dynamics are sensitive.
• Squareness: specify maximum angular deviation or height variation under reference load, such as ≤2° or ≤1.5 mm depending on spring length.
• Parallelism: define end-face parallelism if seating stability is critical, often ≤0.3–0.8 mm after grinding.
• Coil count and active coil count: include end-coil configuration, closed-and-ground condition, and seating condition.
• Surface finish: define shot peening, polishing, phosphating, nitriding, paint, oil film, zinc-free coating, or other coating as applicable.
• Direction of winding: specify right-hand or left-hand winding when package clearance, dual-spring interference, or assembly equipment requires it.
• Packaging and identification: include anti-corrosion packing, part number, lot number, heat-number link, carton quantity, and pallet labeling.

When cross-referencing an existing part, buyers may provide samples, drawings, or OE-format references such as OE 06A… or OE 11251… when they are relevant to the project data. For sampling, send at least 5–10 reference pieces if possible: three for dimensional and load benchmarking, two for hardness and material checks, and extras for destructive sectioning if required. Driventus can review geometry against application requirements through custom manufacturing.

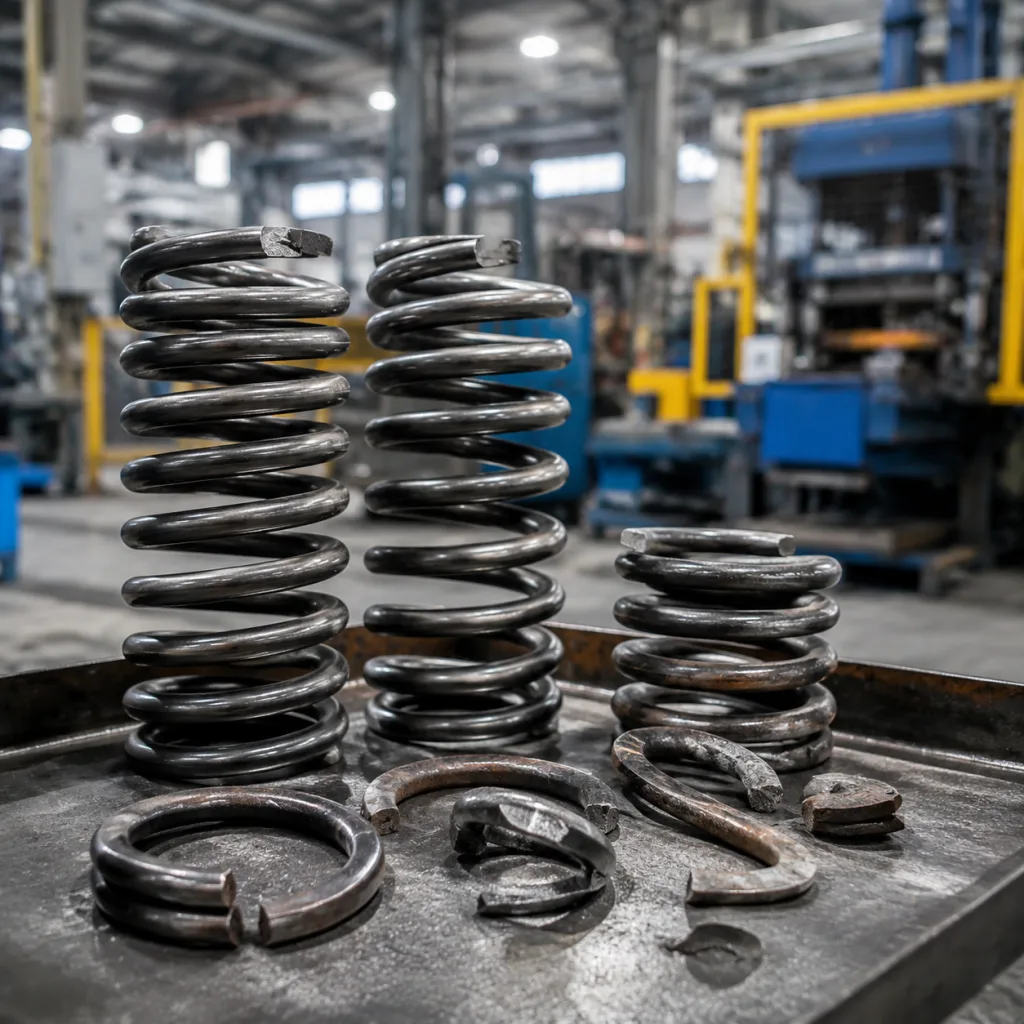

Failure Modes: Where Good Steel Still Loses Fatigue Life

The steel grade sets the potential. The process decides how much of that potential survives production. Coiling control, stress relief, shot peening, presetting, surface protection, and final load sorting all affect fatigue life and load stability. Buyers should require the supplier to document the approved sample route and repeat it in mass production unless an engineering change is approved.

Heat-treatment drift

Oil-tempered wire is quenched and tempered before coiling, but finished springs normally still need stress relief after forming. Typical stress-relief ranges for alloy valve springs are often around 350–450°C for 20–60 minutes. The correct recipe depends on wire grade, wire diameter, furnace type, and target properties.

Control the furnace. Record temperature, dwell time, belt speed, loading density, batch number, and atmosphere where relevant. Overheating can reduce spring load and tensile properties. Insufficient stress relief leaves residual forming stress, which can lead to early relaxation.

Surface damage and weak residual stress

Most fatigue cracks start at the surface. Shot peening introduces compressive residual stress and helps resist crack initiation, but only if coverage, intensity, media condition, and machine settings are controlled. Coverage is commonly specified as 100% minimum. Intensity should be agreed through Almen strip control or the supplier’s validated internal standard.

Surface seams, laps, handling marks, corrosion pits, grinding burn, and decarburization are not cosmetic issues. They are crack starters.

Typical process controls include:

• Stress relief after coiling with recorded furnace temperature, belt speed, dwell time, and batch number.
• 100% presetting or load setting, often compressed to near-solid height or a defined setting height, to reduce in-service relaxation.
• Shot peening coverage target, media type, intensity range, machine recipe, and media replacement control.
• End grinding with burn control; overheated blue or cracked ends should be rejected.
• Magnetic particle inspection, eddy-current inspection, or enhanced visual inspection where specified for severe-duty lots.
• Corrosion protection such as phosphate plus oil, electrophoretic coating, paint, oil film, or approved equivalent; define salt-spray hours only when relevant.
• Load sorting or statistical monitoring for installed and open load consistency, with Cpk targets agreed for OE-style programs.
• Batch traceability from wire coil to finished spring lot, including heat number, furnace lot, shot-peen lot, and final inspection lot.

For high valve lift, high exhaust temperature, aggressive cam profiles, or extended service intervals, retain process records and batch test reports for at least the warranty or service-support period.

Validation Evidence: What to Ask Before Approval

Do not treat a certification logo as proof that the spring will survive the engine. IATF 16949:2016 and ISO 9001:2015 support process discipline, but part performance still depends on product-specific validation and lot-level control. Separate sample approval from routine mass-production inspection so prototype tests are not mistaken for every-lot tests.

Relevant compliance and validation references may include REACH (EC) No 1907/2006 for restricted substances in materials and coatings, RoHS Directive 2011/65/EU when electrical or regulated assemblies are involved, and customer-specific PPAP documentation where required by OEM or Tier-1 sourcing teams. For engines supplied into emissions-regulated vehicle platforms, component consistency can indirectly support compliance programs associated with ECE R-83, but a valve spring itself is not certified under that regulation.

A practical inspection plan may include:

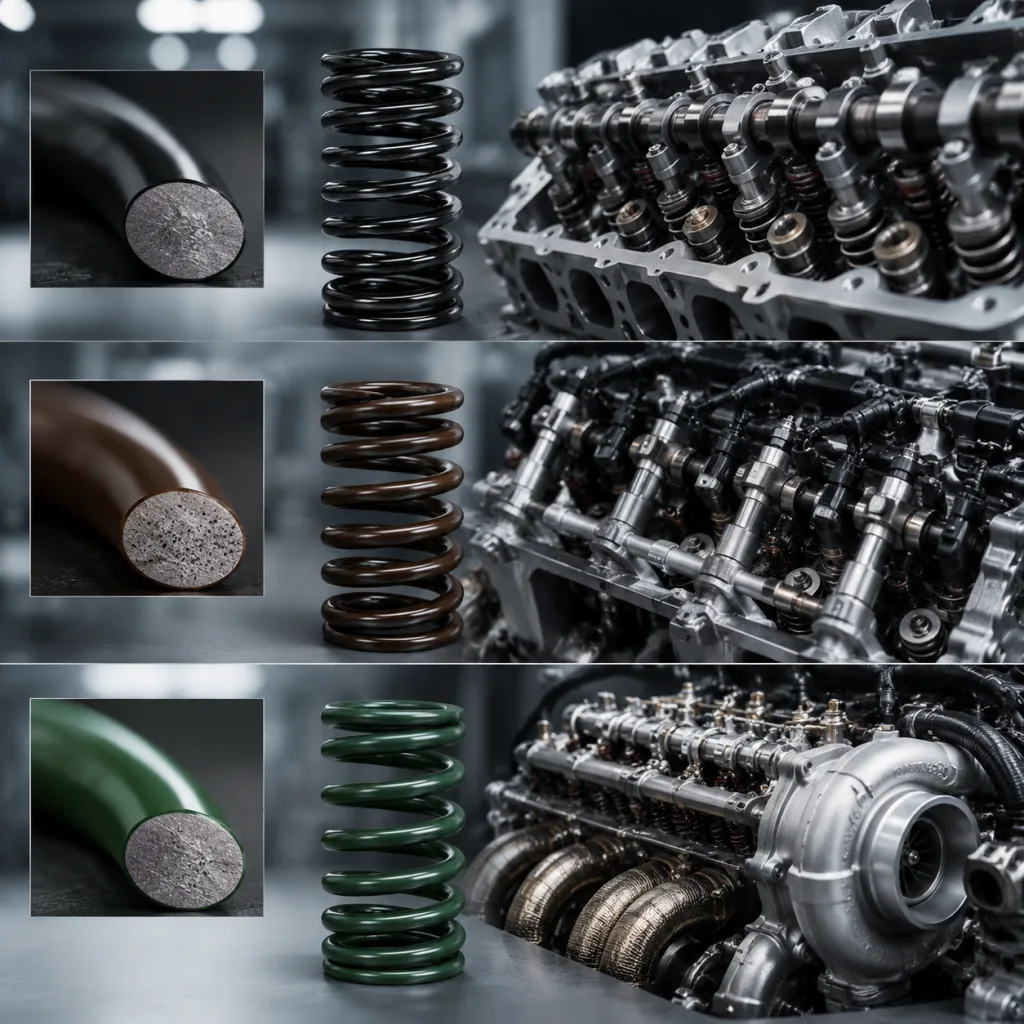

Scenario Comparison: Match Material to Engine Duty Cycle

Static load data can be misleading. A spring may pass at room temperature and still lose load in a hot, high-lift, high-rpm engine. Match the valve spring material to working temperature, spring stress, packaging limit, target mileage, warranty exposure, and price position.

For naturally aspirated passenger-car engines at moderate speed, chromium-silicon or chromium-vanadium steel is normally sufficient when paired with proper shot peening, stress relief, and presetting. For turbocharged engines, especially on the exhaust side, relaxation resistance and coating durability matter more. Ask for temperature-relaxation data, not only room-temperature load data.

Heavy-duty and fleet engines shift the calculation again. Downtime and warranty cost can outweigh a small unit-price saving, so buyers should focus on load retention, fatigue margin, corrosion protection, and traceable heat-treatment records. Performance or motorsport-style applications may justify super-clean wire, stricter surface inspection, nitriding or enhanced peening, and narrower load sorting. Cost and lead time usually increase.

A practical selection matrix:

Step-by-Step Sourcing Checklist Before Production Release

Lock the technical file before hard price negotiation. Otherwise, the cheapest quote may exclude load sorting, fatigue validation, special coating, PPAP paperwork, or the traceability level your program actually needs. Commercial terms should follow the specification level, not the other way around.

Use this checklist before approving production:

• Confirm application data: engine code, valve position, installed height, open height, maximum lift, target load, and expected operating temperature.
• Confirm spring design: wire diameter, free length, OD, ID, coil count, winding direction, end type, solid height, seating condition, and allowable tolerance.
• Confirm material: alloy family, grade standard, wire supplier, heat-number traceability, mill certificate requirements, tensile range, and cleanliness expectations.
• Confirm process: coiling, stress relief, end grinding, presetting, shot peening, load sorting, surface protection, and rework rules.
• Confirm validation: dimensional report, load test, hardness, fatigue test, relaxation test, surface inspection, and sample-retention requirement where needed.
• Confirm compliance: IATF 16949:2016, ISO 9001:2015, and REACH (EC) No 1907/2006 declarations where applicable.
• Confirm commercial logic: target annual volume, first order quantity, MOQ, sample quantity, tooling cost, inspection cost, and whether price is based on catalogue stock or made-to-order production.
• Confirm logistics: production lead time, carton labeling, palletization, export documents, anti-rust packing, mixed-SKU shipment plan, and spare-parts packaging needs.

Typical sourcing timing is 7–15 days for drawing or sample review and quotation, 20–35 days for initial samples when material and tooling are available, and 35–60 days for mass production depending on order quantity, coating, testing, and packaging. Catalogue or existing-tooling parts may support lower MOQ. Custom valve springs often require a first order that justifies wire procurement, tooling setup, heat-treatment batching, and inspection time.

Separate prototype price from mass-production price. Request price breaks by quantity, such as 1,000, 5,000, 10,000, and 50,000 pieces, because wire yield, setup amortization, sorting loss, and freight method can change the landed cost.

Driventus can quote standard catalogue springs or develop project-specific parts from drawings, samples, or performance targets. For new programs, share the working height and load requirements early so engineering can confirm whether the proposed valve spring material, stress level, and geometry are compatible before sampling.
