Tensioner Pulley Packaging Requirements for Export
Export packaging for tensioner pulleys is a quality control decision, not just a transport detail. The right pack protects bearing integrity, resists corrosion, preserves traceability, and speeds up receiving at destination. The wrong pack can look acceptable on arrival and still fail in service if a seal was disturbed, contamination entered the bearing, or the part shifted in transit. For buyers and import managers, the packaging spec should match the transport mode, destination climate, receiving process, and order economics. Driventus supplies engine and powertrain components from Taizhou, Zhejiang, and operates documented export controls under IATF 16949:2016 and ISO 9001:2015. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. Below is a practical export checklist for tensioner pulleys shipped to the EU, UK, US, Canada, Australia, and Brazil.
Start with the failure mode, not the carton
Export packaging works best when you define what it must prevent. For tensioner pulleys, the main risks are bearing contamination, corrosion, seal damage, carton crush, label loss, and movement inside the pack. A carton that survives transport but allows the pulley to rattle is still a weak pack. A moisture-safe bag that leaves machined surfaces exposed is also a weak pack.
A buyer standard should state measurable acceptance criteria. For example: no metal-to-metal contact, no free movement greater than 3 mm inside the inner pack, no carton collapse under normal stacking, and no label loss after wrap and transit abrasion. For ocean shipments, many buyers also require a moisture control target for corrugated packaging and a sealed inner barrier when the route exceeds 20 days or passes through humid transhipment hubs.
These limits give the supplier a target and give the importer a simple receiving check. If the part family includes different pulley diameters or bracket styles, use separate pack codes so the instruction matches the exact part number and revision. That reduces mix-ups and keeps packing tied to the approved configuration.
What the export pack should actually include
When you issue a packaging instruction, define the pack at three levels: unit, inner, and outer. Then add the performance details that decide whether the pack is usable in export.
Level
Requirement
Typical control
Unit pack
Prevent metal-to-metal contact
Poly bag, tray, or partitioned blister
Inner box
Hold the pulley without movement
Insert, foam, or formed pulp support
Outer carton
Survive stacking and transit
Double-wall corrugated carton
Pallet load
Maintain integrity in export handling
Stretch wrap, corner boards, strap bands
</tr></thead><tbody> </tbody></table>Recommended controls for export shipments:
Rust prevention: use VCI bagging or desiccant when the route or destination has high humidity.
Seal protection: keep bearing seals away from loose dust, cardboard fibres, and oil residue.
Marking: print part number, batch number, country of origin, quantity, and carton weight.
Stackability: design cartons for warehouse stacking without crushing the bearing area.
Traceability: keep lot codes visible on the inner and outer pack.
Void control: limit empty space so the pulley cannot shift in transit.
Weight control: keep gross carton weight within the buyer’s manual-handling limit unless pallet-only handling is agreed.
Palletisation: define the carton pattern, pallet height, and overhang tolerance; zero overhang is the cleanest export rule.
For product families with mixed applications, link the pack code to the drawing revision and bill of materials. That keeps final packing aligned with quality control and gives purchasing teams a clearer basis for MOQ and price negotiation.
Choose the lane before you choose the pack
Packaging changes with mode, distance, and customer handling. Ocean freight usually needs stronger moisture control and a tougher outer carton than air freight. Cross-border road freight tends to punish labels and pallet stability. Mixed-mode shipments need the highest protection level across every leg.
If you are buying for a regional warehouse network, ask for a pack specification that works for both pallet racking and parcel repacking. That helps avoid relabelling and reduces handling damage during redistribution. A useful commercial rule is to align pack quantity with lane economics: air freight often works best at 6 to 12 units per carton, while ocean freight often supports 12 to 24 units per carton when the carton strength, pallet pattern, and moisture control are validated.
For buyers comparing supply options, Driventus can support our catalog, quality system, and custom manufacturing requests when the packaging must align with a customer-owned standard. When quoting, it is common to separate the part price from the packaging premium, especially if the buyer requests VCI, molded inserts, barcode serialization, or reinforced pallets. That makes it easier to see whether cost is being driven by the part or the pack.
Specify the label once and avoid rework later
Export cartons should carry the information customs, warehousing, and incoming inspection teams need without opening the box.
Required or commonly requested data:
Part number and description
Quantity per carton and per pallet
Batch or lot number
Gross and net weight
Country of origin
Carton number, such as 1/20, 2/20
Handling marks, including keep dry where applicable
Carton dimensions in millimetres or inches
Purchase order number and supplier code if requested by the buyer
Document control should match the shipment file. Keep the packing list, commercial invoice, and carton count aligned. A buyer should reject any shipment where the packing list shows a different carton count from the physical pallet tally, or where the gross weight differs by more than the agreed tolerance, commonly ±2% to ±5% depending on the order size and pack type.
For EU customers, packaging materials may also need to support REACH (EC) No 1907/2006 expectations where restricted substances are relevant to package components. If barcode labels are required, specify the code format, label size, and scan grade up front; a practical commercial requirement is first-pass scan readability at 99% or better on outbound check. If the pulley is supplied as part of a system with related engine components, buyers may also ask for fitment references to OE part numbers, but these are for reference only and do not imply vehicle maker approval.

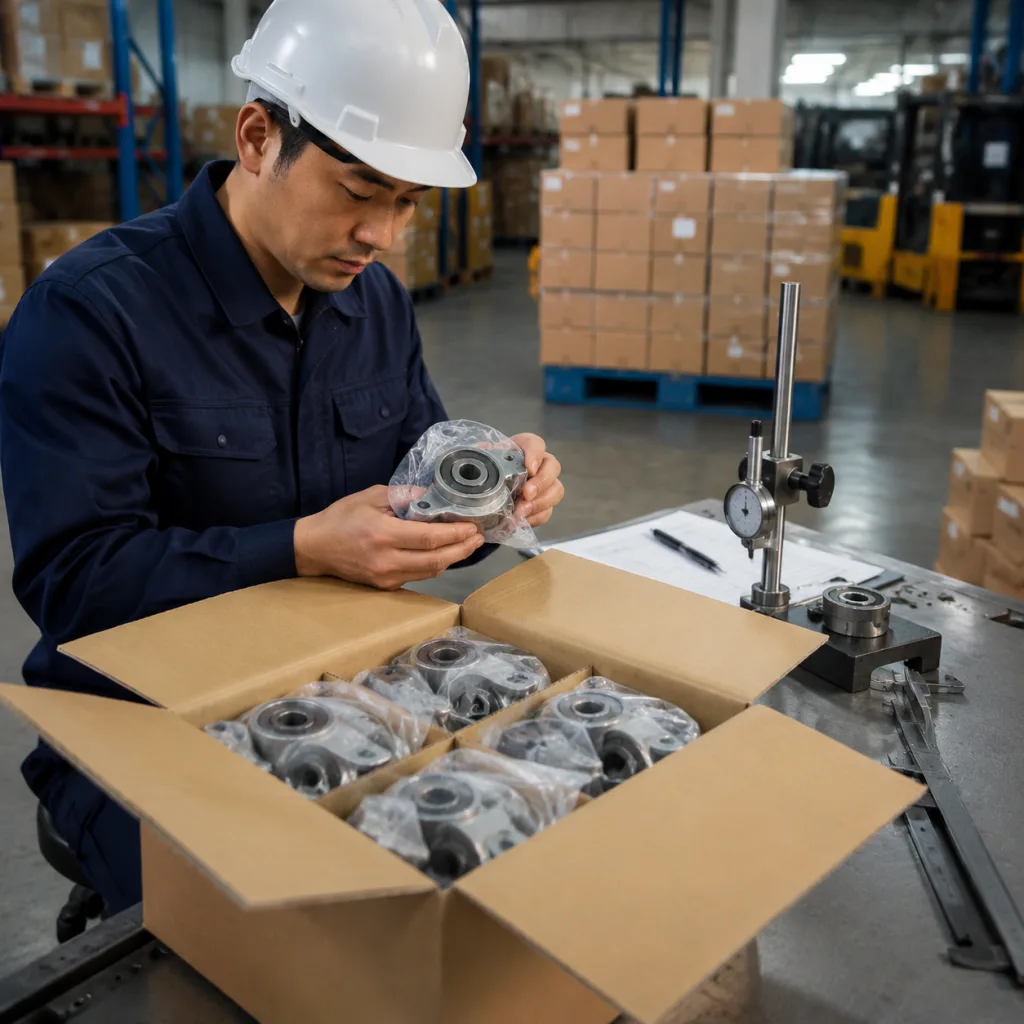

Release the shipment only after the pack passes a short check
Before export dispatch, check the pack at the same level the customer will receive it.
1. Confirm the pulley cannot move inside the inner box. 2. Check that the seal faces and machined surfaces are clean and dry. 3. Verify label readability after abrasion, stacking, and wrap. 4. Confirm the pallet load is square and banded. 5. Check carton counts against the shipping list. 6. Confirm the pack survives a drop or vibration check appropriate to the lane.
For a buyer-controlled release, add measurable criteria. Common acceptance points include no carton edge crush deeper than 10 mm, no open seams, no punctures, no loose desiccant, and no visible rust, oil contamination, or bearing noise when the unit is handled. If the supplier uses a sample approval process, the retained master sample should match the approved carton type, insert, label format, and pallet pattern exactly.
For parts sold into distributor and wholesaler channels, a simple pull test and carton drop review can prevent most receiving disputes. For OEM and Tier-1 programmes, add customer-specific packing approval, barcode format, and master carton rules to the release file. If needed, publish the pack standard alongside product drawings and the approved sample. Buyers should also tie the inspection result to a lot code so any complaint can be traced back to the exact packing run, shift, and date.
Use this baseline spec when you request a quote
Use the following baseline when requesting a quotation or issuing a packaging brief:
Unit pack: one pulley per protective bag or tray
Inner protection: insert to stop rotation and face contact
Outer carton: double-wall corrugated, moisture-resistant if routed by sea
Pallet: export-grade wooden pallet or customer-approved equivalent
Load security: stretch wrap plus corner protection and bands
Marking: part number, batch, quantity, gross weight, origin
Documentation: carton list matched to the packing list and invoice
Quantity target: 1 unit per inner pack, 8 to 24 units per outer carton depending on size and mass
Carton strength target: select a board grade that supports export stacking without visible crush under the agreed pallet height
Lead-time trigger: confirm packaging approval before mass production, because special inserts or printed cartons can add 5 to 15 working days to the order schedule
This format suits aftermarket distributors, wholesale importers, and repair-chain replenishment. It also supports rework-free receiving when the same pulley is sold under multiple fitment references. For sourcing teams, the key question is simple: does the packaging protect the part, preserve identification, and reduce handling time at destination? If the answer is yes, the pack is fit for export. Commercially, buyers should ask for three separate numbers in the quotation: part price, packaging cost per unit, and tooling or print setup if applicable. That makes MOQ decisions easier, because a low-volume order may justify a higher per-unit pack cost while a high-volume order can usually spread setup charges across the run. For a quote, please request a quote.
FAQ
How many pulleys should go in one carton? It depends on mass, carton strength, and route. One unit per inner pack is common, with outer carton quantity set by pallet stability and customer receiving rules. In practice, many buyers specify 6 to 12 units for air freight and 12 to 24 units for ocean freight, provided the carton passes stacking and drop testing.
Do tensioner pulleys need moisture protection for export? Yes, especially for ocean freight or humid destinations. Use VCI, desiccant, or sealed inner bags when corrosion risk is present. A practical rule is to require moisture protection if the shipment time exceeds 14 days, the route crosses humid zones, or the destination warehouse lacks climate control.
Can Driventus supply customer-specific packing? Yes. Packing can be matched to distributor, OEM-style, or warehouse requirements through documented aftermarket and OEM programmes. Buyers should share carton dimensions, barcode rules, pallet height, and any receiving standard at RFQ stage so the quote reflects the correct packaging cost and lead time.
Frequently asked questions
It depends on mass, carton strength, and route. One unit per inner pack is common, with outer carton quantity set by pallet stability and customer receiving rules. In practice, many buyers specify 6 to 12 units for air freight and 12 to 24 units for ocean freight, provided the carton passes stacking and drop testing.
Yes, especially for ocean freight or humid destinations. Use VCI, desiccant, or sealed inner bags when corrosion risk is present. A practical rule is to require moisture protection if the shipment time exceeds 14 days, the route crosses humid zones, or the destination warehouse lacks climate control.
Yes. Packing can be matched to distributor, OEM-style, or warehouse requirements through documented aftermarket and OEM programmes. Buyers should share carton dimensions, barcode rules, pallet height, and any receiving standard at RFQ stage so the quote reflects the correct packaging cost and lead time.
If you need a packaging spec aligned to your lane, carton count, or buyer standard, send the requirement sheet and we will review it with you. Start here: /contact.html
