RoHS Testing for Thrust Washer: Procurement Checklist
A RoHS certificate is easy to request and easy to misunderstand. In thrust washer sourcing, the harder question is whether the certificate proves anything about the washer you are buying: the same drawing revision, the same alloy, the same coating, the same batch, and the same production route. That is why RoHS testing for thrust washer procurement should be handled as a verification process, not a paperwork formality.
Thrust washers may be steel-backed bronze, aluminium alloy, copper alloy, polymer composite, plated steel, or multilayer bearing material. Each construction has a different restricted-substance risk. Lead in bearing alloys, chromium in passivation, phthalates in polymer layers, and undocumented material substitutions can all create approval problems if they are discovered after shipment.
This article gives sourcing engineers, quality teams, and import managers a practical way to decide what evidence is needed, which test methods fit the risk, how documents should connect to production lots, and how RoHS requirements affect MOQ, samples, lead time, and supplier approval. Driventus manufactures thrust washers and related engine components under IATF 16949:2016 and ISO 9001:2015 systems in Taizhou, Zhejiang, with export supply to more than 60 countries. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Start With the Decision: Does This Washer Need RoHS Evidence?
RoHS restricts certain hazardous substances in electrical and electronic equipment under Directive 2011/65/EU, as amended by Directive (EU) 2015/863. The limits are applied at homogeneous-material level, not by averaging the whole part. The usual maximum concentration is 0.1% by weight, or 1,000 ppm, for lead, mercury, hexavalent chromium, PBB, PBDE, DEHP, BBP, DBP, and DIBP. Cadmium is tighter: 0.01% by weight, or 100 ppm.
A loose engine thrust washer is often a mechanical part, not an electrical product by itself. That does not end the discussion. RoHS evidence may still be required when the washer is incorporated into regulated equipment, supplied to an OEM or Tier-1 with a restricted-substance policy, shipped into an assembly that contains electronics, or sold through a distributor that requires harmonised compliance files for EU, UK, or global customers.
Use this decision path before sampling:
- Is RoHS named in the RFQ, drawing, quality agreement, or distributor contract? If yes, treat it as mandatory.
- Will the washer enter an assembly covered by RoHS or a customer restricted-substance list? If yes, request part-specific evidence.
- Is the material construction simple or layered? Multilayer, coated, plated, bonded, or polymer-containing washers need deeper review.
- Is any exemption being claimed? If yes, confirm that it applies to the buyer’s product scope, market, and end use.
- Can the supplier link the declaration to the exact part number, revision, and production lot? If not, the document is weak.
Risk does not sit only in the base material. Buyers should check copper alloy layers that may contain lead, tin or zinc plating, phosphate, blackening, passivation, chromate conversion coatings, PTFE or resin overlays, pigments, plasticisers, adhesives, anti-corrosion oils, cleaning residues, labels, bags, and packaging when customer rules include them. Recycled metals and substitute raw materials also deserve attention because chemistry can vary between lots.
A one-page declaration with no part number, no material reference, no revision control, and no batch connection may be enough for a low-risk internal file. It is usually not enough for OEM, Tier-1, or multi-country aftermarket distribution.
Verification Workflow: From RFQ to Approved Lot
RoHS approval works best when it is built into the sourcing sequence. If it starts after the parts are packed, the buyer often pays for repeat testing, revised declarations, or delayed shipment.
1. Define the compliance scope. Confirm whether RoHS is required by law, contract, customer specification, or internal policy. Also check whether REACH (EC) No 1907/2006, UK RoHS, China RoHS, EAEU requirements, or other market rules are part of the same approval package. 2. Map the washer construction. Record the base metal, backing material, lining, bearing overlay, coating, heat treatment, cleaning process, preservation oil, and packaging specification where relevant. Examples include CuSn alloy, steel-backed bronze, aluminium-tin bearing material, and PTFE/polymer composite. 3. Freeze the engineering definition before testing. Confirm OD, ID, thickness, tab geometry, oil-groove profile, flatness, hardness, coating requirement, and surface roughness. Drawing-controlled checks may include thickness tolerance such as ±0.02–0.05 mm, flatness such as 0.03–0.08 mm, and Ra targets for bearing faces, depending on application. 4. Request a part-specific declaration. The declaration should reference Directive 2011/65/EU and Directive (EU) 2015/863, identify the exact part number, drawing revision, or approved part family, and be signed by an authorised quality or compliance representative. 5. Review material evidence. Ask for mill certificates, alloy certificates, plating or coating statements, polymer compound declarations, and records showing how material changes are controlled. 6. Select the test method. Use XRF screening for rapid risk detection on metals and coatings. Use wet chemical analysis or another suitable confirmatory method when XRF is inconclusive, when polymers are involved, when chromium valence matters, or when the customer demands third-party testing. 7. Tie results to the lot. Test reports should show sample description, lot or batch number, material, surface finish, test date, laboratory name, method, result units, detection limits, uncertainty where available, and applicable limits. 8. Create one approval file. Store the declaration, laboratory report, drawing revision, material specification, inspection report, and supplier approval record together. 9. Define retest triggers. Reassess after raw material source changes, coating or plating supplier changes, process changes, abnormal inspection results, customer requests, annual revalidation requirements, or regulatory updates.
Driventus can support documentation review during development through custom manufacturing, especially when buyers need a drawing-controlled thrust washer with defined material, coating, inspection, and compliance criteria.

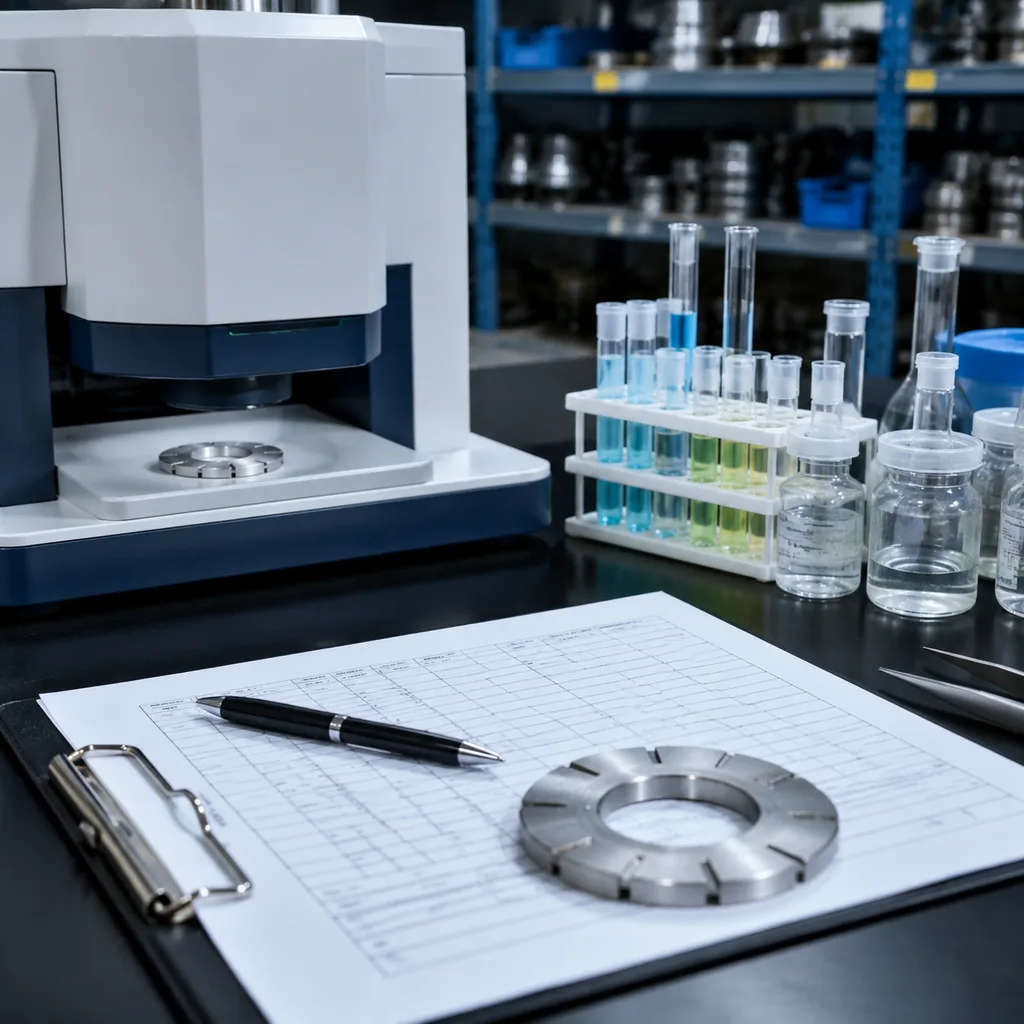

Test Method Deep-Dive: XRF, Wet Chemistry, and the Evidence Table
RoHS testing for thrust washer approval usually combines three layers of proof: supplier declaration, process/material control, and laboratory evidence. No single document does everything.
X-ray fluorescence (XRF) screening is fast and non-destructive for many metallic materials. It is useful for incoming checks, first sample review, and supplier risk ranking. But it has limits. XRF can detect total chromium; it cannot by itself prove whether chromium is hexavalent. It is also not the right standalone method for phthalates in polymeric materials, certain oils, adhesives, or other organic additives.
When the risk is higher, use confirmatory testing. ICP-OES or ICP-MS may be used for metal elements. UV-Vis or other suitable methods may be used for Cr(VI), depending on the substrate and standard. GC-MS is commonly used for phthalate concerns. The test plan should match the washer construction, not a generic checklist.
| Verification item | Typical evidence | Buyer check point |
|---|---|---|
| Supplier declaration | Signed RoHS conformity statement | Must reference the current RoHS scope and exact part number, drawing revision, or approved family |
| Raw material chemistry | Mill certificate, alloy certificate, or material test report | Check Pb, Cd, Hg, Cr and alloying elements against the washer construction and the 1,000 ppm or 100 ppm limits |
| Surface treatment | Plating, coating, passivation, blackening, or phosphate declaration | Confirm coating type, approximate thickness, supplier, and whether Cr(VI) or restricted additives are used |
| XRF screening | Internal or laboratory screening report, commonly to IEC 62321 screening principles | Verify sample ID, date, instrument reference, result units in ppm or %, detection limits, pass/fail thresholds, and measured points |
| Confirmatory testing | Wet chemical analysis or other qualified laboratory method, such as ICP-OES/ICP-MS, UV-Vis for Cr(VI), or GC-MS for phthalates | Use when XRF is inconclusive, for polymer risks, for chromium valence confirmation, or when a customer requires third-party evidence |
| Dimensional inspection | First-article report, CMM/height gauge/micrometer data, surface roughness record | Confirm the tested samples are the same revision and production route as the parts being approved |
| Change control | PCN, engineering change notice, or internal change record | Ensure retesting or document review after material, coating, process, or supplier changes |
