A loose timing chain timing chain complaint is not just a noise report from a workshop. For distributors, repair chains, and sourcing engineers, it can become a labour claim, catalogue dispute, or engine-damage exposure if chain wear is mixed up with guide failure, tensioner leakage, oil contamination, or a wrong kit configuration. Start by making the fault measurable: cold-start rattle duration, cam/crank deviation in degrees, oil pressure and viscosity, tensioner plunger extension, guide wear depth, chain pitch and link count, and kit content versus the OE timing-drive layout. Then apply the same discipline to sourcing: drawings, tolerances, samples or PPAP-style reports, MOQ, price breaks, lead times, packaging, and batch traceability. This article gives B2B buyers a practical framework for diagnosing loose timing chain timing chain complaints and controlling aftermarket timing chain kit supply. Driventus is an independent aftermarket manufacturer; brand names and OE references are used for fitment identification only.
Decision Framework: Noise, Slack, or System Mismatch?
A timing chain runs under controlled preload from its tensioner and guide system. When slack increases, the first clue is often cold-start noise because oil pressure has not yet stabilised the hydraulic tensioner. But noise alone is not a diagnosis.
Use the symptom pattern to decide what to investigate first:
Short cold-start rattle: metallic noise for 1–3 seconds after overnight parking can indicate delayed tensioner fill, oil drain-back, or early guide wear
Repeat rattle above 3 seconds: treat as high risk, especially with mileage history, poor oil records, or cam/crank deviation
Timing-cover noise at idle or deceleration: check chain path, guide contact faces, sprocket wear, and tensioner travel between 1,200–2,000 rpm
Correlation fault codes: review cam adaptation values, freeze-frame data, phaser function, wiring, sensors, and oil pressure before blaming the chain
Rough idle or delayed start: look for timing scatter, one-bank misfire concentration, jumped timing, or tensioner plunger near its stop
Visible guide or sprocket damage: grooves above 0.5–1.0 mm on high-load guide faces, cracked rails, hooked teeth, sharp flanks, or offset chain seating are strong evidence
For importers and repair networks, every loose timing chain timing chain report should carry context: engine code, production year, mileage, oil grade, oil-change interval, repair history, operating region, and ambient temperature at start-up. A complaint at 180,000 km after long oil intervals is not the same commercial case as early-life rattle at 15,000 km caused by a leaking tensioner seal, incorrect guide geometry, wrong link count, or mismatched oil-port position.
Traceability should be kit-level, not chain-only. The chain, guide rails, tensioner, sprockets, fasteners, seals, and small parts work as one timing system. A dimensionally correct chain can still create repeat failures if the guide material, tensioner oil control, sprocket profile, or installation hardware is wrong. For first supply, require a retained golden sample, measured chain length over a defined number of links, carton batch codes, and a packing checklist for O-rings, cam bolts, crank bolts, dowels, seals, and tensioner pins.
Failure Modes: Do Not Call Everything Chain Stretch
“Chain stretched” is often a lazy failure label. Actual elongation may come from pin and bush wear, but timing deviation can also be caused by guide surface loss, sprocket wear, low oil quality, catalogue error, or a weak tensioner. Buyers need the distinction because each cause points to a different corrective action.
Separate maintenance-related failures from part-quality issues and require oil-service evidence for claims
Incorrect kit content
Wrong guide, tensioner length, link count, oil-port position, or missing single-use bolts
Use OE layout checks, sample build trials, VIN/application validation, and carton-level inspection before release
</tr></thead><tbody> </tbody></table>In a claim review, divide the file into four parts: application match, dimensional check, functional check, and service-condition evidence. That structure prevents a catalogue mismatch from being argued as a manufacturing defect, or sludge damage from being credited as a part-quality claim. Driventus reviews application data, sample failures, dimensional drawings, and kit content before confirming replacement kits in our catalog or developing new programmes through custom manufacturing.
Set acceptance language before ordering. Chain pitch and link count must match the approved drawing. Guide hole positions and datum surfaces need tolerances. Tensioner stroke, body length, oil-port diameter, and check-valve function should be recorded. Sprocket tooth count, bore, keyway, runout, and surface treatment should be inspected by batch. Without these controls, a cheap kit can move the real cost into repeat labour and disputed warranty claims.

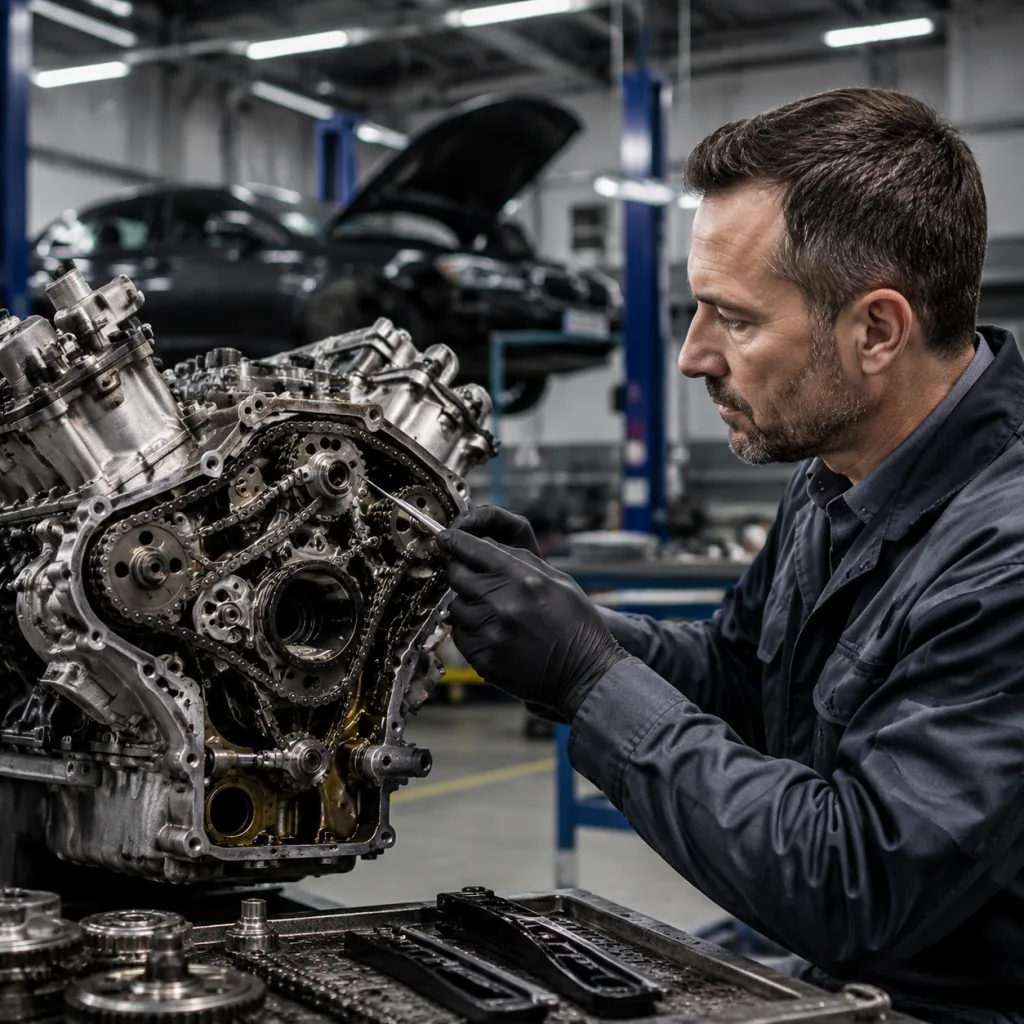

Step-by-Step Claim Inspection for Service Networks
A standard inspection sequence reduces false claims and gives the supplier useful technical evidence. It also protects the distributor when the actual cause is oil neglect, installation error, or the wrong application.
1. Reproduce the complaint. Record start temperature, soak time, engine speed, oil pressure if available, noise duration, and whether the rattle stops within 1, 3, or 5 seconds. 2. Scan the ECU. Capture cam/crank correlation codes, misfire data, cam adaptation values, freeze-frame data, and oil-pressure-related faults. Do not rely on sound alone. 3. Check the oil. Record level, viscosity, contamination, sludge, filter condition, and service history. Tensioners and cam phasers are highly sensitive to oil supply quality. 4. Inspect before disassembly. Where the engine design permits, remove the timing cover or inspection plug and photograph guide wear, sprockets, chain path, timing marks, and tensioner extension. 5. Measure the fault. Record tensioner protrusion, guide groove depth, chain length over a defined number of links, sprocket tooth wear, and timing-mark offset with calipers, depth gauges, or fixtures. 6. Compare the kit. Match chain pitch, link count, plate stack, guide shape, tensioner body length, plunger design, oil-port position, sprocket tooth count, fastener type, and seal profile against the removed set. 7. Verify before start-up. Rotate the engine by hand at least two full crankshaft revolutions and confirm timing marks, cam locking positions, tensioner release, and no binding. 8. Record the repair result. Clear codes, then capture idle stability, start-up noise, oil pressure if available, and cam adaptation values if the diagnostic tool supports them.
Claim evidence pack
A useful file includes vehicle application, VIN or market variant where permitted, engine code, installation mileage, failure mileage, oil-service records, fault codes, diagnostic screenshots, photos before disassembly, measured tensioner extension, guide wear depth, returned-part condition, installer notes, and packaging batch details.
Time control matters. Require the service outlet to report suspected failures within 5 working days, quarantine the parts dry and labelled, retain packaging labels, and avoid cleaning wear surfaces before photos are taken. The distributor can then issue a preliminary 8D or equivalent response within 10 working days after receiving parts, including containment, stock check, and next-shipment hold or release decision.
Driventus timing chain kits are produced under a documented quality system aligned with IATF 16949:2016 and ISO 9001:2015. These standards do not replace application testing, but they define the process discipline expected for automotive serial production, including traceability, control plans, corrective action, and audit routines.
Spec Deep-Dive: When a Complete Kit Is Required
Replacement should be based on measured condition and engine risk, not on noise alone. On interference engines, delay can turn a loose timing chain timing chain complaint into valve damage, piston impact marks, broken guide debris, and secondary oil contamination.
Replace the timing chain kit when one or more of these conditions is present:
Chain pitch elongation exceeds the engine maker’s service limit, or measured length over a specified link count is outside the approved tolerance
Tensioner plunger extension is outside the normal range, close to the stop, or unable to hold pressure after priming
Guide rails show deep grooves, cracking, deformation, heat damage, or material loss, especially on the tensioning guide
Cam/crank correlation codes return after oil, sensor, wiring, and actuator checks
Sprocket teeth are hooked, sharp, unevenly polished, worn off-centre, or unable to seat the chain correctly
Chain has jumped one or more teeth, or timing marks no longer align after hand rotation
Broken guide material, metallic debris, or polymer fragments are found in the timing cover, oil pickup, or sump area
Kit content is a procurement decision as much as a repair decision. Depending on the engine, a service kit may include the chain, fixed guide, tensioning guide, hydraulic tensioner, sprockets, cam bolts, crank bolt, seals, cover gasket, O-rings, oil-control plugs, installation notes, and locking pins. Do not assume every aftermarket kit includes single-use bolts, sealing parts, or updated guide versions. If the OE procedure replaces torque-to-yield bolts, the sourcing specification must state whether those bolts are included, excluded, or sold as an add-on.
A buyer-ready specification should list chain pitch, link count, plate construction, guide material, tensioner stroke, sprocket tooth counts, fastener grades, seal material, carton barcode, inner-bag labels, and approved applications. The engineering drawing should be the master. Critical-to-fit dimensions such as guide mounting holes, sprocket bore, keyway width, tensioner body diameter, and oil-port position need measurable limits, not “same as sample” wording.
If an OE part-number cross-reference is required, keep it at application level, for example OE 06A… or OE 11251… when those families are already part of the buyer’s internal catalogue data. Driventus does not claim approval, endorsement, or affiliation with any vehicle manufacturer.

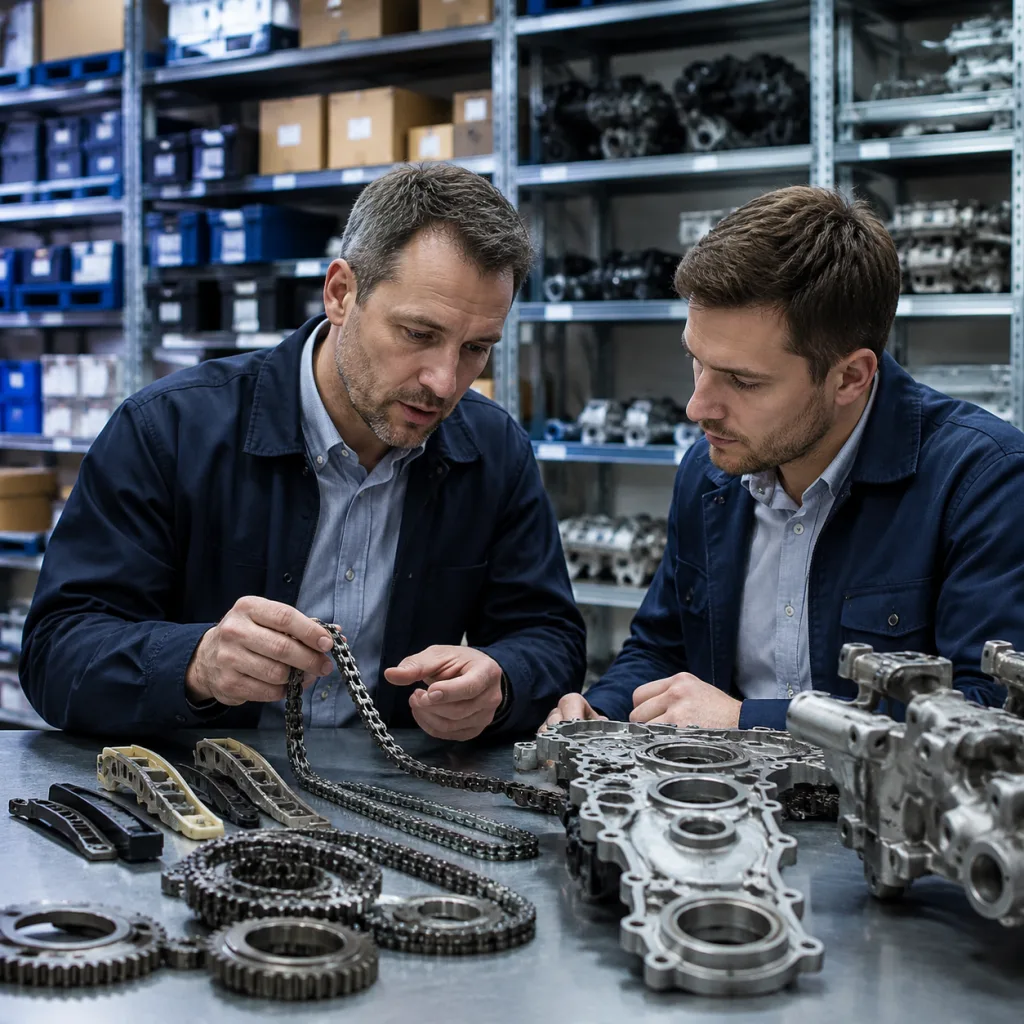

Supplier Comparison: What Separates a Reliable Programme
A replacement chain must match pitch, link count, plate thickness, pin diameter, surface hardness, side clearance, and articulation performance. Small deviations shift tensioner position, increase chain noise, destabilise cam timing, and accelerate wear.
Use manufacturing controls to compare suppliers, not just certificates:
Incoming steel verification by material certificate, heat number, hardness spot check, and random dimensional inspection
Pin, bush, roller, and plate dimensional checks using calibrated gauges, with critical dimensions recorded by batch
Heat-treatment monitoring for hardness, case depth, metallographic structure, and batch consistency
Chain pre-loading to stabilise initial elongation before packing, with load and elongation records retained for the lot
Articulation, friction, side-bow, twist, rivet condition, and visual checks after assembly
Guide rail dimensional inspection, polymer batch traceability, glass-fibre content confirmation where specified, and surface-finish review
Tensioner leak-down, spring force, plunger stroke, check-valve sealing, oil-pressure response, and anti-drain-back checks where applicable
Sprocket tooth-profile inspection, bore checks, runout checks, keyway control, and surface-treatment verification where sprockets are included
Packaging controls to prevent mixed components, incorrect labels, missing small parts, corrosion, and carton damage during sea freight
Management standards such as IATF 16949:2016 and ISO 9001:2015 support repeatability through APQP, control plans, traceability, internal audits, nonconforming-product control, and corrective action. For export markets, buyers may also need supplier declarations against REACH (EC) No 1907/2006 for relevant materials and substances.
For new programmes, request a validation matrix rather than a general quality claim. It can include drawing review, material report, dimensional report, tensioner bench test, guide wear test, sprocket profile report, chain fatigue or endurance test, salt-spray requirement for exposed parts where applicable, packaging drop test, and fitment trial on a representative engine. Sampling can follow the buyer’s AQL plan, but critical timing-function items should be separated from cosmetic defects.
Driventus manufactures engine and powertrain components in Taizhou, Zhejiang, and exports to more than 60 countries. Timing chain programmes can be supplied as catalogue kits or buyer-specific assemblies, subject to drawings, samples, validation scope, MOQ, lead time, and packaging requirements.
Commercial Scenario: The Cheap Quote That Costs More
A distributor receives two quotes for the same timing chain programme. Supplier A is lower on unit price. Supplier B is higher, but includes seals, single-use bolts, barcode control, stronger packaging, batch traceability, and a defined claim process. The cheaper quote looks attractive until repeat labour, vehicle downtime, mixed cartons, and catalogue disputes are priced in.
Before adding a timing chain programme, run this sourcing checklist:
Confirm exact engine applications, production years, engine codes, power outputs, emissions variants, and regional differences
Request chain pitch, link count, plate construction, pin specification, surface-hardness target, guide material, and tensioner functional data
Verify kit content against the service procedure, including seals, O-rings, bolts, locking pins, updated components, and one-time-use hardware
Ask for batch traceability from incoming material through chain assembly, component packing, final kit inspection, carton labelling, and pallet records
Review endurance, tensioner, sprocket, and guide-wear evidence for the intended application rather than accepting generic test summaries
Define claim documentation, return routes, credit rules, labour-policy boundaries, and response timelines before first shipment
Audit corrective-action response time, containment method, replacement-stock control, and how suspect inventory is blocked in the supplier system
Commercial terms should reflect programme maturity. For an existing catalogue kit, MOQ may be negotiated by SKU, annual volume, and mixed-container quantity. For a buyer-specific assembly, MOQ is usually driven by tooling, dedicated components, printed packaging, and validation cost. Compare price at landed level: unit price, tooling amortisation, test cost, packaging, inner cartons, palletisation, sea or air freight, duty, defect allowance, and expected claim rate.
Lead time should be split by phase: sample preparation, buyer measurement, fitment trial, production approval, mass production, final inspection, and shipping. Catalogue items can move faster if components are stocked. New assemblies may need guide tooling, sprocket machining, tensioner validation, printed packaging, and PPAP-style documentation. Lock artwork, barcode format, carton quantity, and spare-part list before production release.
For large distributors, a pilot order with field monitoring is often the safest launch path. Track installation volume, early noise reports, claim rate, returned-part findings, installer feedback, catalogue coverage gaps, and batch-specific patterns for the first 90–180 days. That data gives both buyer and manufacturer a factual basis for expanding coverage, adjusting kit content, changing MOQ or price tiers, or limiting applications where field risk remains unclear.
Frequently asked questions
The most common sign is a metallic rattle from the timing cover area during cold start, especially if it repeats after overnight parking or lasts more than 1–3 seconds. Cam/crank correlation codes, unstable idle, abnormal cam adaptation values, oil pressure, tensioner extension, guide wear, sprocket condition, and sensor faults should be checked before confirming chain slack.
Usually no. If guides, sprockets, bolts, seals, or the tensioner are worn or application-specific, a chain-only repair may leave the root cause in place. Many service programmes use complete kits with controlled link count, guides, tensioner, seals, and single-use hardware to reduce repeat labour, comeback repairs, and warranty exposure.
Yes. Driventus can review samples, drawings, kit content, packaging, validation requirements, barcode rules, and batch traceability needs for aftermarket distributors, repair chains, and OEM/Tier-1 buyers. MOQ and lead time depend on application complexity, tooling status, dedicated components, validation scope, packaging requirements, and annual forecast.
