How to Verify Harmonic Balancer Quality Before Purchase

Buying a harmonic balancer is a specification decision, not a cosmetic one. The part has to control torsional vibration, stay concentric under belt load, and survive heat, oil, and long service intervals. For sourcing teams, the real question is simple: what proof shows the part will perform the same way in every lot? Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. This guide shows how to verify harmonic balancer quality with the checks buyers actually use during sample approval, supplier audits, and incoming inspection. It also separates evidence from claims so you can spot weak control early. For product range context, see [our catalog](/products.html) and our [quality system](/quality.html).

Start with the failure modes, not the brochure

The fastest way to judge a harmonic balancer is to ask what normally goes wrong. If the hub bore is off, the part will not seat correctly. If the inertia ring is not concentric, vibration control suffers. If the elastomer is weak, cracked, or oil-swollen, damping life drops fast.

Before you approve a sample, check the application data and the part structure:

OE cross-reference, such as `OE 06A107065` when applicable
Overall diameter, hub bore, offset, and groove count
Timing mark and pulley alignment geometry
Hub, ring, and elastomer material specification
Stated runout and balance limits

Appearance is the least reliable signal. A smooth coating does not prove balance quality, and a clean box does not prove process control. Ask what was measured, how it was measured, and how many pieces were checked. If the supplier cannot answer those three questions clearly, the risk is already high.

For first-pass approval, insist on concrete acceptance criteria before the PO. Typical aftermarket targets are a hub bore tolerance around `±0.02 mm`, outer diameter tolerance around `±0.10 mm`, and groove width or offset tolerance around `±0.05 mm` unless the drawing states tighter limits. Critical engine programmes should use the actual drawing limit, gauge method, and sample size from first-article approval, not catalog language.

Construction checks that expose weak parts

A harmonic balancer is a three-part system: steel hub, inertia ring, and damping medium. Each part has a different failure mode, so each one needs a different check.

What to inspect

Steel should show consistent machining marks, with no burrs, weld spatter, or sharp edges
The elastomer should be uniform, with no voids, cracks, oil swelling, or delamination
The inertia ring should sit concentric to the hub with no visible wobble
Surface protection should resist corrosion without interfering with press fit or belt contact surfaces

Material claims need traceability. If a supplier cites REACH (EC) No 1907/2006, request the declaration. If the programme requires durability validation, ask whether the test plan references ECE R-83 or another relevant OEM-style regime when applicable. Do not treat those references as vehicle-maker approval; treat them as evidence that the supplier understands the duty cycle.

For rubber-damped parts, ask for compound hardness and cure control. A useful sourcing range is `55–70 Shore A` unless the drawing specifies otherwise. Also ask for batch traceability on the elastomer and its cure date. If the supplier cannot show that, warranty risk rises. For coated steel components, a `96-hour` salt-spray result is a basic screening benchmark for many aftermarket programmes; harsher export use may justify `240 hours` or more based on internal test plans.

Runout, balance, and concentricity: the spec deep-dive

This is the core of how to verify harmonic balancer quality. A part can look perfect and still fail on the bench.

Use a dial indicator and a balancing record to confirm:

Radial runout at the outer diameter
Face runout at the belt running surface
Concentricity between the hub bore and outer ring
Residual imbalance after balancing

A practical incoming check is to rotate the sample on a known-good fixture and record total indicated runout. Large variation between samples usually points to weak machining control or inconsistent assembly. If the supplier provides balancing data, the method should be defined and repeatable, not just labeled “dynamic balanced.”

</tr></thead><tbody> </tbody></table>Common buyer thresholds for aftermarket approval are `≤0.05 mm` radial runout on the outer diameter, `≤0.08 mm` face runout at the pulley surface, and a balance record that shows the part was brought within the supplier’s defined machine limit, often expressed in `g·mm` or `mg·cm`. If the factory cannot state that limit clearly, the balancing process is not mature enough for repeat orders.

Sample size matters too. For initial approval, `n=5` to `n=10` parts pulled from different cartons tells you more than one golden sample. If the spread is wide, stop and request process capability data before scaling volume.

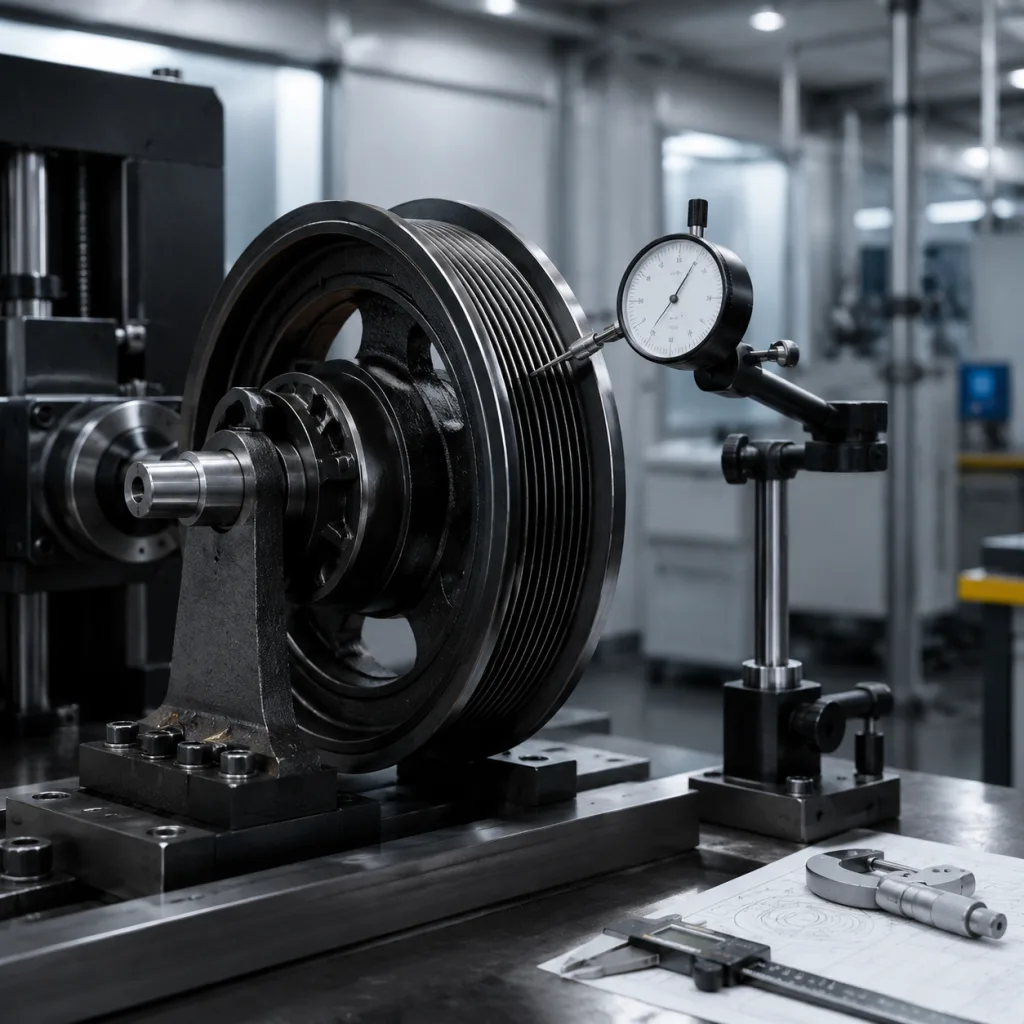

Runout, balance, and concentricity: the spec deep-dive

Validation proof: what to request before you buy

A reliable supplier should show how the part was validated under heat, cyclic load, and contamination exposure. For procurement, the report matters more than the promise.

Ask for documents covering:

Thermal cycling and long-duration endurance
Ozone, oil, and coolant resistance where the construction requires it
Belt load or pulley endurance testing
Torsional vibration or fatigue verification relevant to the target engine family
Reference to SAE J2527 only when the supplier is actually using it for weathering or durability validation

Separate design verification from routine production inspection. That distinction matters when you compare samples from multiple factories or use custom manufacturing for a private-label or OE-style programme. A good file shows both: the design can survive the duty cycle, and the factory can repeat the build.

Ask for test conditions in measurable terms: temperature range, number of cycles, load level, and pass/fail criteria. Useful reports usually list the soak temperature, cycle count, and inspection interval. A buyer may request `-40°C to 120°C` thermal cycling, `100 to 300 hours` of heat exposure depending on severity, and a belt-load or torsion cycle count matched to the vehicle duty profile. If the report only says “passed test,” it is not enough for purchase approval.

Price should reflect proof, not just samples. Small trial buys may justify extra validation cost, but stable annual volume should let the supplier amortize tooling and test expense across the forecast. A common structure is a higher sample-piece price for the first `50–200` units, then a lower production price after first-article approval, with `30–45 days` lead time for repeat production after material is in stock.

Supplier control checklist: what makes quality repeatable

Sample quality is not enough. The process behind the sample decides whether the next lot will hold up.

1. Confirm the factory is certified to IATF 16949:2016 and ISO 9001:2015. 2. Review incoming material control for steel, rubber, and bonding agents. 3. Check whether in-process inspection covers diameter, groove geometry, and runout. 4. Verify lot traceability from raw material to finished carton. 5. Ask for capability data on key dimensions and balancing consistency. 6. Confirm packaging prevents ring damage, corrosion, and edge knocks in transit.

If you source through distributors, ask whether they can support batch traceability and claim handling. If you source direct, align the inspection plan with your own acceptance criteria before placing repeat orders. You can also review our catalog for related engine components when consolidating purchase volumes, including engine components for broader programme sourcing.

Add commercial controls to the technical checklist. Ask for MOQ by SKU, packaging multiple, and whether the factory reserves production slots for repeat buys. For many aftermarket programmes, MOQ may start at `200–500 pcs` per part number for private-label orders, with better pricing at `1,000 pcs+` if the design is stable. Request tiered pricing by `100`, `500`, and `1,000` units so you can see whether the quote reflects real scale or just a one-time sample rate. Also verify the lead-time split: sample development, first production run, and standard reorder time should each be listed separately.

Supplier control checklist: what makes quality repeatable

Incoming inspection: approve, quarantine, or reject

When the shipment arrives, inspect a statistically meaningful sample rather than only the outer cartons. Focus on attributes that affect function and warranty risk.

Reject or quarantine if you find:

Visible separation of the damping element
Excessive runout or eccentricity beyond your drawing limit
Damaged keyway, threads, or pulley grooves
Inconsistent markings that break traceability
Rust, oil contamination, or packaging collapse

Record the lot number, inspection readings, and photographs. If the issue repeats, compare it against supplier process data and previous lots. That history is often the fastest way to separate a shipping problem from a manufacturing defect.

A practical incoming rule is to sample at least `2%` of the shipment, with a minimum of `5 pcs` and a focus on mixed carton selection. If the lot is over `1,000 pcs`, sampling `13` to `20 pcs` gives a better view of process spread, especially for rubber-damped or pressed assemblies. Quarantine immediately if you see any of the following: runout above the drawing limit, missing or unreadable lot code, incomplete coating coverage on the bonding zone, or packaging that allows part-to-part contact.

Use a simple reject/accept matrix tied to warranty exposure: if a critical dimension misses by more than `10%` of tolerance, reject; if cosmetic damage is isolated but functional data is in spec, sort and document; if balance or concentricity data is missing, hold the lot until the supplier submits the measurement record.

Frequently asked questions

Runout and balance are the most important functional checks. A visually clean part can still fail if the hub and inertia ring are not concentric or if residual imbalance is too high.

Yes. Material and compound records help confirm traceability and consistency. For regulated markets, also ask for REACH-related declarations when relevant.

No. Appearance is only a screening step. Approval should also include dimensional data, runout, balance evidence, and validation test records.

If you need a sourcing review, drawing check, or batch verification plan, send your target application and sample data. Request a quote and technical support at /contact.html.

Request a Quote

Verification layer	What it confirms	Typical buyer evidence
Dimensional check	Fitment and interchangeability	Drawing, gauges, first article report
Runout check	Concentricity and machining control	Dial indicator record
Balance check	Dynamic stability	Balancing certificate or machine log
Material check	Durability of hub and damper	Mill cert, compound declaration
Validation test	Service performance	Heat, torsion, and belt-load test report
