Cylinder Head Seat Manufacturer China: Sourcing Guide

A cylinder head seat is easy to quote and hard to qualify. The ring is small, but it sits in one of the hottest and most mechanically punished areas of the cylinder head. If material stability, concentricity, interference fit, hardness, or surface finish drifts between batches, the result can be leakage, recession, poor heat transfer, installation damage, or warranty claims.

That is why choosing a cylinder head seat manufacturer China buyers can use for repeat supply is not mainly a price exercise. It is a control exercise. The supplier must be able to show how the part is specified, measured, packed, traced, and protected from undocumented change after sample approval.

For engine programmes in the EU, UK, US, Canada, Australia, Brazil, and other export markets, records are part of the product. Material certificates, inspection reports, packaging traceability, and revision control reduce the risk of mixed-lot shipments and installation surprises. Driventus is an independent aftermarket manufacturer; brand names and OE numbers are referenced for fitment identification only. We support B2B supply for distributors, OEM and Tier-1 programmes, and multi-location repair chains, with production aligned to IATF 16949:2016 and ISO 9001:2015.

This guide gives procurement teams a practical way to qualify a cylinder head seat manufacturer China sourcing teams can trust beyond the first sample: what to specify, where failures start, which evidence to request, how to audit production control, and how to compare landed cost instead of only unit price.

Start With the Failure You Are Trying to Prevent

Cylinder head seats provide the sealing and wear surface between the valve face and the cylinder head. They absorb repeated valve impact, transfer heat away from the valve, and hold geometry through oxidation, combustion temperature, and cyclic loading. In sourcing terms, this is not a simple commodity ring. It is a functional wear component whose performance depends on metallurgy, machining stability, and compatibility with the parent head material.

The main procurement risk is not that a supplier misses the drawing by a large amount. It is that the part looks acceptable at nominal size while the interface control is weak. Outer diameter, installed height, seat angle, contact finish, and runout can all sit close enough to pass a loose check yet still fall outside the engine builder’s tolerance window.

As RFQ guidance, many aftermarket and OE-equivalent programmes define OD control in the ±0.010 mm to ±0.025 mm range, seat-angle control within ±0.25° to ±0.50°, concentricity or runout targets of 0.015 mm to 0.030 mm TIR, and surface finish on sealing or locating faces around Ra 0.8 to 1.6 μm unless the drawing specifies otherwise. These are not universal limits. They show the level of detail that should be agreed before tooling, sampling, or batch production.

Failure usually starts at the interface. Too little interference can allow seat movement under heat cycling. Too much can distort the head bore or crack brittle materials. Poor finish can reduce heat transfer. Angle or concentricity error can create compression loss and leak-down variation. Material or hardness drift can accelerate seat recession.

Before approving production, require the supplier to confirm the target head material, installation bore tolerance, operating temperature assumptions, and recommended press-fit allowance. Then ask for the process flow, material certificates, in-process inspection plan, final inspection records, and lot traceability method. A supplier that cannot show lot-level control is a sourcing risk even when sample parts and unit pricing look attractive. Repeatability across production batches is the real test.

Build the RFQ Around Measurable Features

The exact specification depends on engine design, fuel type, temperature profile, and service target. The RFQ should turn those requirements into measurable features before the supplier quotes. At minimum, confirm:

  • Material grade, alloy composition, and heat treatment route, including limits for key alloying elements and any restricted substances
  • Outer diameter and inner diameter tolerances, stated in millimetres with the measuring temperature defined, commonly 20°C
  • Seat angle, face width, and concentricity to the locating bore, with the datum and inspection fixture identified
  • Installed height and interference fit range, including recommended bore preparation and installation force where relevant
  • Hardness range after processing, including test method such as HRC, HRB, HV, or HB, load, location, and conversion rules
  • Surface finish on the valve contact area and installation surfaces, for example Ra 0.8 μm, Ra 1.6 μm, or a drawing-specific value
  • Oxidation, wear, and thermal fatigue resistance for the intended application, especially for LPG, CNG, diesel, turbocharged, or high-temperature duty
  • Chamfer, edge-break, and visual criteria to prevent installation damage, such as 0.2 mm to 0.5 mm edge breaks where permitted by the drawing
  • Packaging that prevents edge damage, corrosion, and mixed lots, including bag, tray, carton, label, and pallet requirements

A purchasing drawing should also define the measurement method, datum structure, sampling plan, and acceptance standard. Without that detail, two factories can quote the same part number while measuring different features in different ways. One supplier may check OD with a micrometer at two points. Another may use air gauging at multiple clock positions. Both can report a dimension; only one may catch taper, ovality, or local grinding error.

For an OE-equivalent replacement programme, the supplier should be able to cross-reference by OE 06A107065 or another customer-defined reference when required for fitment. That cross-reference should remain a fitment aid only, not a claim of vehicle-manufacturer approval. Keep a controlled specification sheet for each reference, including nominal dimensions, tolerances, material, hardness, finish, packaging, MOQ, target annual volume, and approved revision.

Compare Suppliers by Evidence, Not Claims

A short comparison table is often more useful than a long supplier profile. Use it during RFQ review, technical screening, or factory audit to separate basic trading capability from production control.

</tr></thead><tbody> </tbody></table>Listen closely to how the supplier explains measurement uncertainty, gauge calibration, capability data, and rejection handling. A low unit price is not useful if the factory cannot prove that critical diameters remain stable during real batch production.

For critical features, ask for capability evidence rather than a general assurance. A practical target is Cpk ≥ 1.33 for stable production characteristics and Cpk ≥ 1.67 for safety-critical or customer-designated features, provided the measurement system is capable and the data set reflects actual production, not a hand-selected trial.

Strong export suppliers connect commercial terms with process reality. They know which requirements add cost: ±0.010 mm OD tolerance, 100% air-gauge inspection, special alloy, separate export packaging, PPAP Level 3 submission, or third-party testing. A serious cylinder head seat manufacturer China buyers can qualify should state these cost and lead-time drivers in the quotation instead of accepting every requirement and resolving the gap after the purchase order is placed.

Match the Manufacturing Route to the Duty Cycle

Cylinder head seats may be produced by powder metallurgy, forging, casting, or machining from alloy rings. The right route depends on volume, alloy selection, application severity, and cost target. Each route can work when controlled. Each can create risk when control is weak.

Process differences

  • Sintered seats suit high-volume production and can deliver stable geometry when powder composition, compaction, sintering, sizing, and post-sinter machining are tightly managed.
  • Forged or machined alloy seats can support demanding applications where strength, density, and dimensional control are critical, but tool wear and heat-treatment distortion must be controlled.
  • Cast variants may be suitable for lower-load programmes when alloy chemistry, porosity control, heat treatment, and finishing are verified.

Do not stop at the process label in the quotation. Ask how the manufacturer controls density, hardness, microstructure, porosity, grain structure, and final machining after heat treatment. For powder-metal seats, useful evidence includes powder batch control, compaction pressure records, sintering temperature profile, furnace atmosphere, sizing operation, density target, and oil or resin impregnation status if used. For machined alloy seats, ask for bar or ring source, heat number, rough-machining allowance, heat-treatment sequence, final grinding allowance, and tool-change frequency.

Then match that evidence to the application. Gasoline, diesel, LPG, CNG, ethanol blends, turbocharged engines, and heavy-duty duty cycles do not load the seat in the same way. LPG and CNG applications often need stronger wear and recession resistance than standard gasoline service because valve-seat lubrication and combustion conditions differ. Turbocharged and heavy-duty diesel applications may require higher hot hardness, better oxidation resistance, and tighter control of seat recession after endurance testing.

For export markets, substance compliance may also matter. A supplier serving Europe should be able to explain REACH (EC) No 1907/2006 obligations where relevant and provide restricted-material documentation when requested. Compliance claims should be supported by records, not broad statements.

Set Release Rules Before the First Batch Ships

A competent supplier should inspect cylinder head seats at three main control points: incoming material, in-process machining, and final release. The release package should be agreed before production starts, especially for repeat orders or private-label supply.

The package should include, where applicable:

  • Material certificate by heat, batch, or lot, with chemistry and heat-treatment reference where applicable
  • Dimensional inspection report for critical and significant characteristics, including sample size, gauge ID, and actual measured values
  • Hardness results with test scale, load, location, and acceptance range, for example HV10, HRC, or HRB as defined by the drawing
  • Visual acceptance criteria for cracks, chips, burrs, porosity, corrosion, and surface defects, with photo standards for borderline conditions
  • Packaging inspection to prevent edge damage and mixed-lot shipment
  • Calibration status for measuring tools and gauges used in release inspection
  • Nonconformance and corrective-action records when deviations occur

Sampling should follow risk. For a mature repeat part, AQL-based final inspection plus SPC on critical dimensions may be enough. For a new part, revised tool, new alloy, or supplier transfer, use a stronger launch plan: first-article inspection, 100% checks on critical OD or seat angle during trial production, retained master samples, and a defined safe-launch period such as the first 3 batches or first 5,000 to 10,000 pieces.

Where OD, roundness, or concentricity controls installation and sealing performance, attribute gauging alone is not enough. Variable data is needed to see drift before parts fall out of tolerance.

For performance programmes, ask for validation that matches the engine duty cycle. Higher thermal load may justify bench testing, endurance testing, hot/cold cycling, or dimensional retention checks after thermal exposure. Where emissions-related durability is part of the customer requirement, programme documents may reference standards such as ECE R-83 or SAE J2527, but those standards should only be cited when they truly apply to the project scope.

Release criteria should be specific enough that both sides can make the same accept/reject decision from the same data. That clarity prevents shipment disputes and helps the supplier react quickly when a process trend begins to move.

Use the Audit to Follow One Real Batch

A factory audit should confirm whether the supplier can hold the agreed specification across repeat orders. Do not limit the review to certificates and conference-room slides. Follow one live batch from raw material through machining, heat treatment or sintering, washing, inspection, packing, and finished-goods storage.

Ask these questions during the audit:

  • How are first-article approvals documented and retained, and are master samples sealed with revision, date, and customer approval?
  • Which dimensions are monitored by SPC, what subgroup size is used, and what reaction plan is used when trends move?
  • How often are gauges calibrated, who performs calibration, and how are overdue gauges blocked from use?
  • How is material identity preserved from incoming stock to finished goods, including heat number, lot number, WIP traveller, and packing label?
  • What is the corrective-action process for out-of-spec heat, hardness, density, or diameter readings?
  • How are tooling wear, fixture condition, and machine offsets controlled, and are tool-life limits based on data or operator judgment?
  • How are engineering changes approved before shipment, including material source, heat treatment, machining process, inspection method, and packaging changes?
  • How are mixed lots prevented during packing, labelling, and warehouse handling?

On the shop floor, check whether batch travellers are filled in at the operation, whether rejected parts are physically segregated, whether rework is authorised by procedure, and whether operators can identify the current drawing revision. The audit file matters, but the live batch usually shows whether the system is working.

If the supplier handles broader engine components, extend the review to machining cleanliness, washing, anti-corrosion protection, packing, serialization, and warehouse segregation. For reference before issuing an RFQ, buyers can review our catalog, our quality system, and custom manufacturing to align part scope, documentation, and approval expectations.

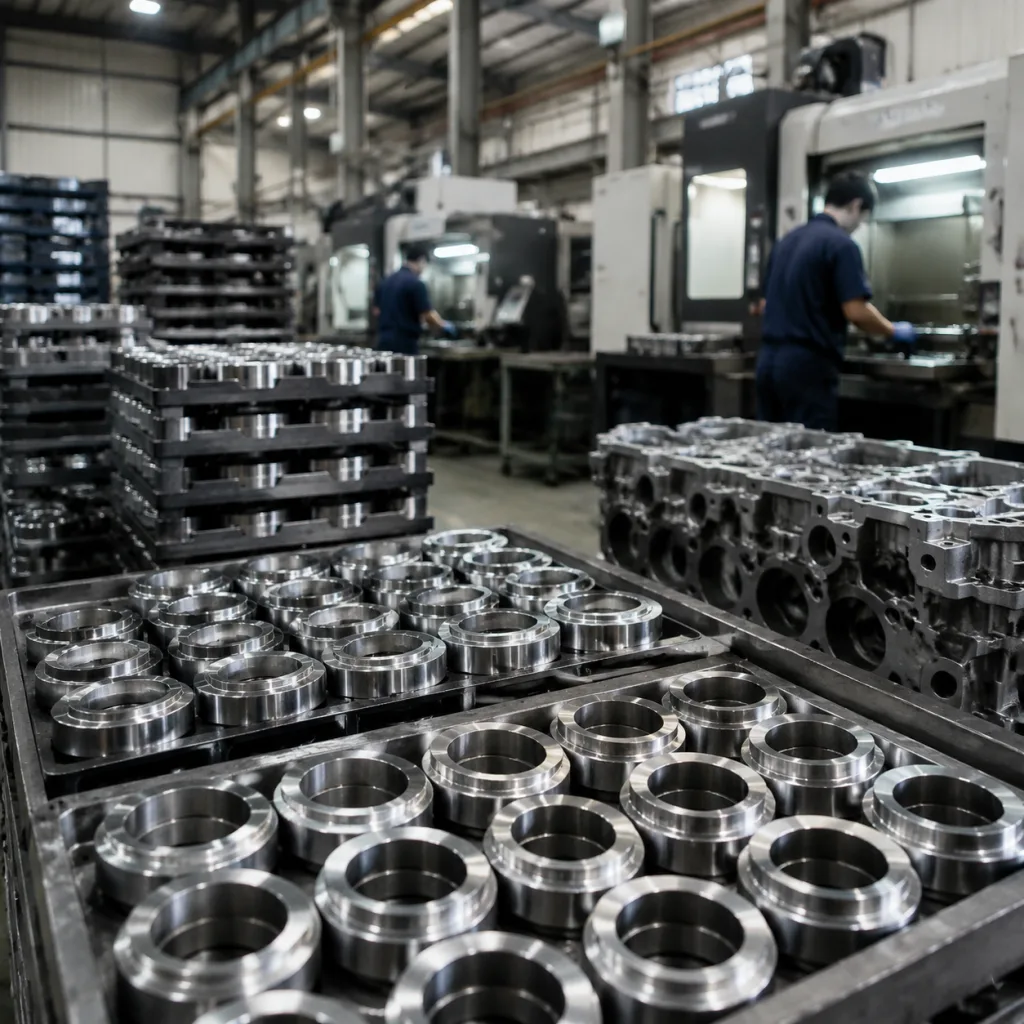

Model Landed Cost, Then Negotiate Unit Price

The cheapest ex-works quote is not always the lowest landed cost. Cylinder head seats are small, but hidden cost appears quickly through mixed lots, weak packing, unclear rework terms, unstable lead times, and repeated incoming inspection failures. Model the full commercial picture before selecting a supplier.

Key variables include:

  • MOQ and mix policy by part number, including whether the supplier allows family tooling or mixed SKUs in one shipment
  • Tooling ownership, maintenance responsibility, and amortisation terms
  • Lead time for first order versus repeat order
  • Packing standard, corrosion protection, carton weight, and palletisation
  • Incoterms, freight mode, and consolidation options
  • Inspection level, documentation package, and any third-party testing cost
  • Rework, replacement, credit, or containment terms for rejected lots
  • Forecast requirements and safety-stock agreements for repeat demand

As an RFQ benchmark, prototype or sample quantities may be quoted separately at higher unit cost. Production MOQs depend on material route and setup time. Machined or forged small-batch seats may be feasible from 500 to 2,000 pieces per size if material is available. Powder-metal or special-alloy programmes often require 3,000 to 10,000 pieces per size because powder procurement, tooling, furnace loading, and setup losses must be absorbed.

A buyer with many slow-moving references should ask for a mixed-SKU policy, but should expect the unit price to rise when each part number needs separate setup, inspection, and labelling.

Lead time should be split into sample, pilot, and repeat production. For existing tooling and available material, samples may take 10 to 20 working days and repeat production may take 25 to 45 days after deposit and specification freeze. New tooling, new material approval, PPAP documentation, or third-party testing can extend launch timing to 45 to 75 days or more.

Ask for price with a clear validity period, currency, Incoterm, packing basis, inspection scope, documentation package, and payment terms. That makes landed-cost comparison meaningful. A supplier that supports repeatable replenishment, stable packing, clear labelling, and complete documentation often reduces total cost even when its unit price is not the lowest. For teams consolidating cylinder head components, our broader engine components page can help with category alignment across related parts.

Where Driventus Fits in the Sourcing Process

Driventus supplies engine and powertrain components from Taizhou, Zhejiang, with export experience across 60+ countries. For cylinder head seat programmes, our role is to make the technical and commercial controls visible before volume release.

At RFQ stage, we can review nominal dimensions, OD and ID tolerance, seat angle, face width, hardness target, material route, surface finish, chamfer requirements, packing quantity, carton weight, label format, inspection report format, MOQ, target annual volume, and required Incoterm. That early review helps determine whether the part is a catalogue match, a controlled modification, or a drawing-based production item.

For private-label, regional distribution, and platform-based sourcing, the launch work may include sample submission, drawing confirmation, lot-coded packing, retained samples, inspection reports, and repeat-order scheduling based on forecast or call-off demand. Where a customer requires PPAP-style documentation, third-party testing, special packaging, or safety stock, those requirements should be confirmed before quotation because they affect cost and lead time.

Our team can review application data, OE fitment references, drawings, target quantities, packaging requirements, and documentation expectations before tooling, sampling, or batch production begins.

Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. We do not claim vehicle-manufacturer endorsement or approval. For sourcing enquiries, volume plans, or drawing-based requests, use request a quote to start the review.

Frequently asked questions

Start with material control, dimensional capability, and traceability. The supplier should be able to show lot records, calibrated inspection, defined acceptance criteria, and change control before production sourcing begins. For critical programmes, ask for actual OD, angle, hardness, and concentricity data from recent batches, not only a sample report.

Yes, if the supplier matches the required drawing, fitment, material, and performance criteria. OE cross-references may be used for fitment identification, such as OE 06A107065, without implying manufacturer approval. The buyer should still approve the drawing, tolerance table, material specification, and packaging before volume release.

IATF 16949:2016 and ISO 9001:2015 are the main quality system references. REACH (EC) No 1907/2006 may also matter for substance compliance in export supply chains when the destination market requires it. PPAP, APQP, SPC, and MSA methods are also useful when the programme requires automotive-style launch control.

The main risk is inconsistent geometry, material, or heat treatment between batches. That can cause poor seat retention, leakage, heat-transfer problems, and premature wear even when the initial sample appears acceptable. Low prices can also hide weak packing, incomplete inspection, unstable lead time, or high MOQ pressure that increases landed cost.

For drawings, commercial terms, or batch supply questions, contact our team and we will review the application against the required fitment, specification, documentation package, MOQ, lead time, and packaging plan. Start here: /contact.html

Request a Quote
Buyer check Minimum acceptable Preferred for volume programmes
Quality systemISO 9001:2015IATF 16949:2016 with controlled APQP/PPAP flow
TraceabilityLot code on packagingLot code linked to raw material, machining, heat treatment, and final inspection
Dimensional controlGO/NO-GO gauges and documented sampling planCMM, air gauging, calibrated fixtures, and SPC on critical diameters
Material proofMill certificate or incoming verificationHeat-linked material certificate with retention records and incoming test evidence
Process controlOperator checks at defined stagesControl plan with reaction rules for drift and nonconforming product
Lead timeClear ex-works promiseStable schedule, repeat-order planning, and safety stock where agreed
Change controlWritten notificationFormal ECN process with customer approval before material, process, or tooling changes
