A Genesis crankshaft pulley program can fail on details that never appear in a simple cross-reference table: pulley offset, groove profile, hub datum, rubber bond quality, balance, coating, or traceability. For importers, distributors, repair chains, and Tier-1 buyers, the right question is not “Does it look the same?” but “Can the supplier prove it will fit, run true, survive storage and service, and be repeated lot after lot?” Driventus manufactures crankshaft pulleys and related engine components in Taizhou, Zhejiang, under IATF 16949:2016 and ISO 9001:2015 certified systems. We support B2B customers in Europe, the UK, North America, Australia, and Brazil with standard aftermarket supply and drawing-based development. This guide gives sourcing teams a practical way to evaluate a crankshaft pulley genesis oem supplier without relying on price alone. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment identification only.
Start With the Failure Modes, Not the Part Number
A crankshaft pulley may be a simple solid pulley, but many modern applications use a bonded elastomer damper: an inner hub, an outer inertia ring, and a rubber layer designed to control torsional vibration. That design makes sourcing more sensitive than a basic machined wheel. A pulley can match the catalog number and still create belt noise, wobble, front seal stress, or premature damper separation if the geometry or bonding process is wrong.
For Genesis-related programs, screen the supplier against the failures you are trying to prevent:
Belt misalignment from incorrect offset, groove pitch, or mounting face control
Rubber separation caused by poor surface preparation, adhesive control, cure process, or compound selection
Pulley wobble from excessive radial or axial runout
Abnormal accessory-drive vibration from poor balance or incorrect damping characteristics
Premature belt wear from groove profile error, burrs, coating buildup, or diameter deviation
Corrosion during warehousing or sea freight from weak coating and packaging control
Fitment disputes caused by weak application mapping or unverified cross-references
The RFQ should not stop at OE-style reference numbers. Use them for fitment mapping only, then release the part based on measured dimensions, approved drawings, sample reports, and production controls. Where no drawing exists, send 2–3 original samples or field-proven aftermarket samples. That gives the supplier enough evidence to confirm datum structure, groove pitch, hub geometry, offset, and damper layout.
A strong sourcing file includes:
Application list, engine code, model year, drivetrain notes where relevant, and OE cross-reference format, such as OE 23124… or OE 23127… conventions used only for identification
Belt profile: PK groove count, groove angle, effective diameter, and belt contact width; common multi-rib groove pitch is often controlled around 3.56 mm, but the drawing must define the final value
Hub bore, keyway if applicable, bolt pattern, mounting offset, chamfer, and face runout tolerance
Datum plan for high-risk dimensions so measurements are taken from controlled references rather than free-state surfaces
Damper construction: rubber compound target, hardness range, bonding method, cure process, and rubber lot traceability
Surface finish, salt spray target, anti-rust method, and export packaging requirement
Documentation expectations under IATF 16949:2016, ISO 9001:2015, and REACH (EC) No 1907/2006 where applicable
As an early screening test, ask whether the factory can quote to tolerances such as bore ±0.02–0.05 mm, axial offset ±0.10–0.20 mm, radial runout ≤0.10–0.20 mm, and coating thickness 8–15 µm where applicable. These are not universal specifications. They are a way to see whether the crankshaft pulley genesis oem supplier understands the control level expected for rotating engine components.
Spec Deep-Dive: Dimensions That Decide Fit and Service Life
Two pulleys can look identical on a warehouse shelf and behave differently on an engine. The differences are often small: a few tenths of a millimetre in offset, a groove profile outside tolerance, an uncontrolled bore datum, or a rubber hardness range that does not match the damping requirement. During qualification, check whether the factory controls these items in process—not only at final visual inspection.
Specification item
Typical procurement requirement
Why it matters
Belt groove profile
PK profile by drawing; groove pitch often around 3.56 mm and groove angle normally verified by profile gauge or CMM
Prevents belt wander, squeal, and accelerated wear
Effective diameter
Controlled against drawing or approved sample, commonly within ±0.10–0.25 mm depending on design
Maintains accessory speed and belt tension relationship
Radial runout
Measured at the belt contact area; common control target ≤0.10–0.20 mm unless drawing states otherwise
Reduces vibration and accessory drive instability
Axial face runout
Checked at mounting and belt faces; common target ≤0.10–0.15 mm for machined datum faces
Supports pulley alignment across the accessory drive
Elastomer hardness
Batch-controlled, often Shore A 55–75 depending on tuned requirement, with ±5 Shore A as a typical control window
Maintains damping behaviour over temperature and load
Rubber-to-metal bond integrity
Pull, shear, peel, fatigue, or agreed adhesion test method in the approval file; failure mode should be recorded
Reduces risk of damper ring separation
Hub bore and mounting features
100% or statistically controlled depending on risk; bore, bolt PCD, chamfer, thread clearance, and keyway must be datum-linked
Ensures crankshaft fit and clamp load retention
Coating
Zinc, phosphate, e-coat, black oxide, or customer-specified finish; typical salt spray targets range from 96–240 hours by market
Controls corrosion during transport, storage, and service
Balance
Static or dynamic method according to design; residual imbalance limit should be defined in g·mm or customer standard
Limits torsional and rotational vibration
Packaging
Individual bagging, VCI paper, dividers, or bulk export packing by agreement; carton weight should normally stay below 15–20 kg
Prevents coating damage, deformation, and mixed-lot risk
</tr></thead><tbody> </tbody></table>For OEM-style supply, the inspection plan should separate critical-to-quality dimensions from routine checks. A launch control plan may use 100% checking for bore, visual defects, coating coverage, and marking, with CMM or profile inspection on 3–5 pieces per lot for groove geometry, runout, offset, and bolt pattern. Once repeat orders show stable lot history, the plan may move to AQL or process-capability sampling.
Driventus can support drawing-based control plans, first article inspection, retained master samples, and production part approval documentation. When a customer requires PPAP-style submission, the file can be structured around drawing ballooning, dimensional report, material evidence, process flow, control plan, FMEA summary where required, and sample retention.

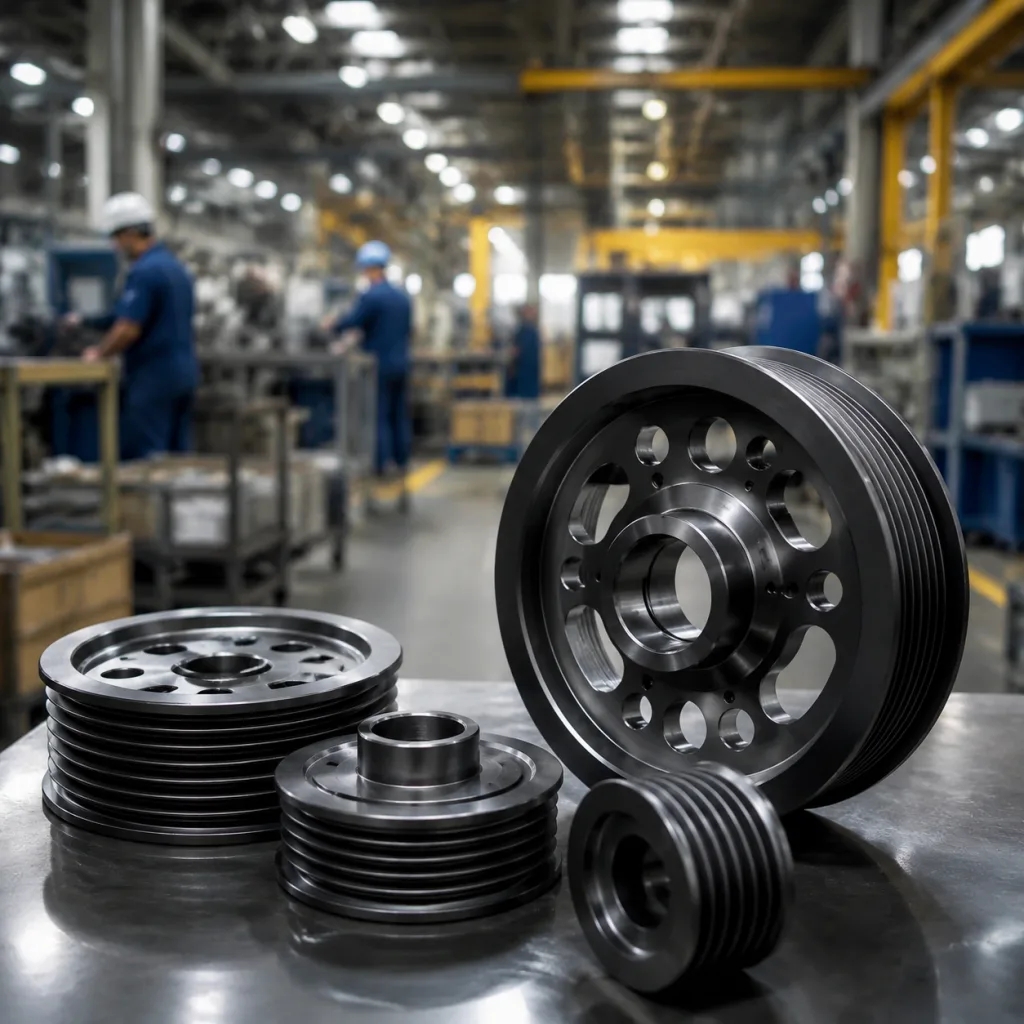

Choose the Supply Model: Trial Order, Repeat Replenishment, or Custom Program
Not every Genesis pulley order should be treated the same way. A 100-piece market test, a quarterly distributor replenishment, and a new bonded damper development have different cost drivers and risk levels. A capable crankshaft pulley genesis oem supplier should explain how quantity affects tooling, setup, inspection depth, scheduling, documentation, and delivery reliability.
Use the supply model to frame the quote:
1. Existing tooling / standard aftermarket item This is usually the fastest route when drawings, gauges, and production history already exist. Practical export MOQs commonly start around 100–300 pieces per part number, with better unit economics at 500–1,000 pieces. Production lead time is commonly 45–60 days after order confirmation; repeat orders using released drawings and stocked semi-finished components may be possible in 30–45 days.
2. Pilot order after sample approval For new customers, a common path is 5–10 sample pieces, then a 100–300 piece pilot order. The pilot validates market fit, packaging, labelling, inspection records, and freight planning before larger releases. Unit price may be higher because setup, fixture, and inspection costs are spread over fewer pieces.
3. Custom or reverse-engineered pulley When new tooling, elastomer development, dedicated bonding fixtures, casting/forging dies, or special validation tests are needed, sample lead time is often 30–45 days. If tooling or dynamic balance fixtures are required, 45–60 days is more realistic. Buyers should expect 300–500 pieces per initial lot or an agreed tooling/NRE charge to offset low-volume launch risk.
4. Scheduled replenishment program For distributors carrying several Genesis-related engine parts, quarterly release planning can reduce freight cost and warehouse disruption. Mixed-container or consolidated pallet planning is often more efficient than isolated small shipments.
Price is not just steel or iron weight. It is also machining time, rubber compound cost, bonding scrap rate, balance operation, coating type, packaging method, documentation level, and inspection scope. A launch order may require dimensional reports, coating checks, hardness data, balance records, and retained samples. A stable repeat order may need a leaner outgoing inspection package.
Packaging should be included in the commercial discussion early. Options include neutral export cartons, palletised bulk packing, anti-rust protection, barcode labelling, or customer-branded packaging by agreement. Heavier pulleys need dividers or molded trays to prevent rim impact during sea freight. Shipping is usually by sea for replenishment; air freight is best reserved for launch samples, shortage recovery, or urgent approval stock.
Driventus supports distributors, wholesalers, repair-chain procurement teams, and Tier-1 sourcing projects. For non-catalogued pulleys, buyers can discuss custom manufacturing based on drawings, samples, target performance requirements, or agreed inspection standards.
Audit the Factory Like You Are Tracing a Defect Backward
Certification gives the framework. The audit proves whether the framework is alive on the production floor. Driventus operates under IATF 16949:2016 and ISO 9001:2015 certified quality management systems, but buyers should still verify how the system controls real crankshaft pulley production: material receiving, machining, bonding, coating, inspection, storage, and packing.
A useful audit works backward from a possible field complaint. If a bonded damper separates, can the supplier identify the rubber lot, adhesive batch, surface preparation record, cure parameters, operator, inspection result, and shipment lot? If a belt squeals, can the supplier retrieve groove profile and runout records? If corrosion appears after import, can coating thickness, salt spray basis, packing method, and storage time be checked?
Key audit points include:
Incoming inspection for steel, cast iron, elastomer compounds, coatings, packaging materials, and bought-in hardware; mill certificates and rubber compound batch records should match the production lot
Traceability from raw material batch to finished pulley lot, including bonding compound and coating batch records where relevant
Lot codes that allow recall by production date, operator, and inspection record
Process controls for machining, deburring, bonding, curing, coating, marking, balancing, and final inspection
Recorded parameters for bonding surface preparation, adhesive mix life, cure temperature, and cure time
Gauge calibration records, fixture control, and measurement system analysis where required by the customer
Control of bore, offset, belt grooves, mounting face, bolt PCD, chamfer depth, and runout
Non-conforming product handling, containment, root-cause analysis, and corrective action closure
Packaging drop resistance, corrosion protection, carton labelling, pallet loading, and mixed-part prevention controls
Change management for tooling, rubber compound, coating process, sub-supplier, inspection method, or production location changes
Do not accept only verbal answers. Ask for a live control plan at the workstation, operator self-check records, first-piece approval sheets, patrol inspection data, final inspection reports, and one recent 8D or corrective-action example. For bonded dampers, look closely at the surface preparation process. Blasted or chemically prepared metal surfaces must be protected from oil, moisture, and long delays before adhesive application; contamination at this stage can destroy bond reliability.
For regulated markets, buyers may also request REACH (EC) No 1907/2006 declarations for materials supplied into Europe. Customer-specific requirements should be written into the purchase specification before sampling so the factory quotes and validates against the correct standard. More information is available on our quality system page.

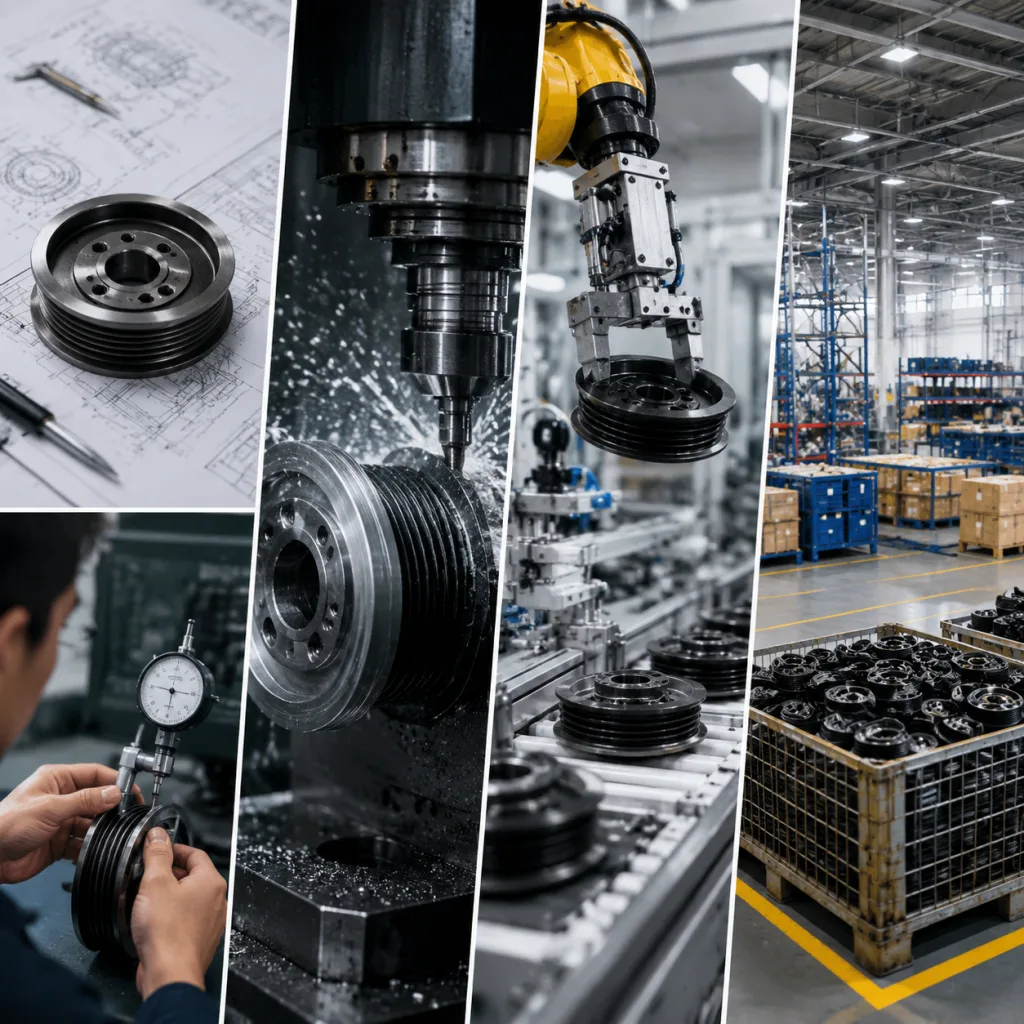

Approval Sequence: From Sample Pulley to Released Production
Validation should match the design risk. A solid pulley needs strong dimensional and coating control. A bonded damper adds rubber performance and adhesion risk. A tuned vibration damper requires even tighter attention to damping behaviour, balance, and repeatability. The approval sequence should make that difference clear.
A practical release process is:
1. Confirm the application and baseline. Check engine code, model year, reference numbers, sample condition, and known field requirements. If reverse engineering is used, document which features were measured directly and which were inferred from function. 2. Freeze the drawing or inspection standard. Define datums, critical dimensions, tolerances, material, coating, hardness range, balance requirement, and packaging. 3. Build and inspect samples. A launch report should normally cover every drawing characteristic on 3–5 sample pieces. 4. Run functional checks. Confirm fitment, belt tracking, clearance, torque seating, crank nose fit, and mounting stability on a representative engine, fixture, or controlled assembly setup. 5. Approve the production controls. Link the approved sample to the control plan, gauges, material specifications, process parameters, and retained master sample. 6. Release pilot production. Use the pilot lot to confirm repeatability before moving to routine replenishment.
Recommended approval checks include:
Dimensional inspection: hub bore, bolt pattern, keyway where applicable, mounting offset, belt groove geometry, and outer diameter
Runout measurement: radial and axial runout at defined datum points, with fixture datum, gauge location, rotation method, and acceptance limit recorded
Hardness and material checks: elastomer hardness, steel or iron grade confirmation, coating thickness, and material declaration where required
Bond strength verification: agreed test method for rubber-to-metal adhesion; the report should state whether cohesive rubber tear, adhesive failure, or mixed failure occurred
Balance confirmation: static or dynamic balance according to pulley design and customer risk level; dynamic balancing is recommended for higher mass, larger diameter, or higher operating-speed risk
Thermal cycling: exposure to low and high temperatures to check rubber stability, dimensional change, and bond durability; practical aftermarket validation may use cycles such as -30°C to +120°C, but the final profile should follow the customer specification
Salt spray or corrosion test: method and duration agreed by market destination; common procurement targets are 96, 120, or 240 hours
Fitment trial: installation on a representative engine, fixture, or controlled assembly setup to confirm belt tracking, clearance, and mounting stability
For bonded dampers, approval should also include visual inspection after cure, rubber overflow control, concentricity of inner and outer rings, and evidence that the bond line is continuous. The approved sample must not become a one-off reference stored in a cabinet and forgotten. It should anchor the mass-production control plan, inspection gauges, material requirements, packaging standard, and lot inspection records for future orders.
Buyer Q&A: Working With Driventus on Genesis Pulley Programs
What does Driventus manufacture? Driventus manufactures engine and powertrain components including crankshaft pulleys, pistons, crankshafts, gaskets, water pumps, and turbocharger-related parts. Our Taizhou, Zhejiang location supports machining coordination, supplier management, export packing, container consolidation, and communication for multi-part sourcing programs.
What can you support on a crankshaft pulley genesis oem supplier project? Our team can support existing aftermarket part review, cross-reference confirmation, drawing or sample-based development, feasibility review before tooling investment, and launch planning. We can also prepare dimensional inspection plans, first article reports, ballooned drawing reports where required, control plans, inspection reports, material declarations, and batch traceability records.
What should be included in the RFQ? A complete RFQ should include target annual volume, first order quantity, sample or drawing, vehicle application data, engine code where available, market destination, Incoterms, packaging style, documentation level, inspection standard, and expected delivery schedule. For custom development, also state whether tooling/NRE, sample cost, production unit price, packaging cost, and testing cost should be quoted separately.
How fast can you quote? For existing items, a complete RFQ normally allows a more accurate quotation within 2–5 working days. New development may take longer because measurement, feasibility review, process planning, or sub-supplier confirmation may be needed.
What packaging options are available? Driventus can support neutral packing or customer-specified export packaging, including labels, inner bags, VCI protection, pallet marks, and carton strength requirements. Packaging should be agreed before sampling if it affects corrosion protection, barcode format, carton quantity, or private-label presentation.
Do you claim vehicle manufacturer approval? No. Driventus does not claim approval, affiliation, or endorsement by any vehicle manufacturer. Brand names and model references are used only to identify fitment. We supply independent aftermarket and B2B sourcing programs where customers require reliable specification control, documented inspection, and export-ready packing.
For sourcing teams comparing multiple factories, the best RFQ package forces every supplier to quote on the same technical basis. That is how buyers avoid a misleading low unit price and focus on fit, validation, repeatability, documentation, and landed cost.
Frequently asked questions
Yes. Driventus can review Genesis-related fitment requirements and supply crankshaft pulleys through existing programs or drawing/sample-based development. We require application details, dimensions, target market, packaging needs, and annual volume to confirm feasibility.
Depending on the project, Driventus can provide inspection reports, material declarations, packaging details, control plans, traceability information, and certification references for IATF 16949:2016 and ISO 9001:2015 systems. Customer-specific documentation should be agreed before sampling.
For existing tooling, production lead time is commonly 45–60 days after order confirmation. New development or tooling projects normally require sample lead time first, often around 30–45 days depending on complexity, tooling status, and validation requirements.
If you are building a sourcing file for Genesis crankshaft pulleys, send drawings, samples, application data, annual volume, and market destination. Our team can review feasibility and help you [request a quote](/contact.html).
