Buying a clutch kit from a Nissan OEM supplier takes more than matching a vehicle name in a catalog. Procurement teams need verified dimensions, repeatable friction performance, disciplined packaging, and traceable production records. For distributors, repair networks, and OEM programmes, the main risk is rarely part availability; it is receiving a kit that appears correct on paper but fails on spline count, cover height, clamp load, release travel, or thermal consistency. Driventus supplies clutch kits as an independent aftermarket manufacturer with integrated machining, friction pairing, and assembly control. We work to IATF 16949:2016 and ISO 9001:2015 systems, and we support export documentation for the EU, UK, US, Canada, Australia, and Brazil. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. This article outlines what buyers should verify before issuing a purchase order, including sourcing checks, specification review, validation testing, MOQ and pricing logic, and lead-time planning.
What buyers should verify first
For a `clutch kit nissan oem supplier` search, the first screen should be fitment evidence, not price. Ask for OE cross-reference data, gearbox code matching, spline count, disc outer diameter, cover bolt pattern, release bearing dimensions, and the approved sample number. If the supplier cannot show part-level traceability, treat the offer as a catalogue match only.
Minimum sourcing checks
OE cross-reference in the format `OE 06A107065` when applicable
Vehicle application by engine code, gearbox code, and model year range
Disc OD, ID, thickness, and hub spline count
Cover assembly height, bolt circle, and clamp load range
Release bearing ID, OD, width, and axial travel
Country of origin, batch code, carton count, and packing list format
Declaration of compliance to applicable chemical and documentation requirements
For export programmes, also confirm carton labelling, barcode format, palletisation, gross weight, and carton cube. These details matter when a kit moves through a distributor warehouse, a repair-chain DC, or direct to a regional assembler. A buyer should also request the supplier's sample approval method, because a 1:1 visual match is not enough unless it is tied to a controlled drawing and measurement sheet.
Specification points that affect fitment
A clutch kit can be dimensionally close and still create warranty claims if the stack height or clamp profile is wrong. Buyers should review the full assembly, not only the disc.
Item
What to confirm
Typical control target
Clutch disc
OD, spline count, hub offset, torsion damper layout, lining material
Match approved drawing within ±0.20 mm on key fit dimensions
All parts present, sealed, and protected against transit damage
</tr></thead><tbody> </tbody></table>Material control also matters. Friction facings should be specified by application, with thermal stability and fade resistance validated for the vehicle duty cycle. In mixed fleets, the same model name may cover different engine codes or transmission variants, so procurement teams should ask for engine and gearbox confirmation before release. For higher-torque or stop-start duty, buyers should also confirm whether the disc lining uses organic, reinforced organic, or ceramic blend material, and whether the pressure plate is tuned for standard pedal effort or higher clamp load.

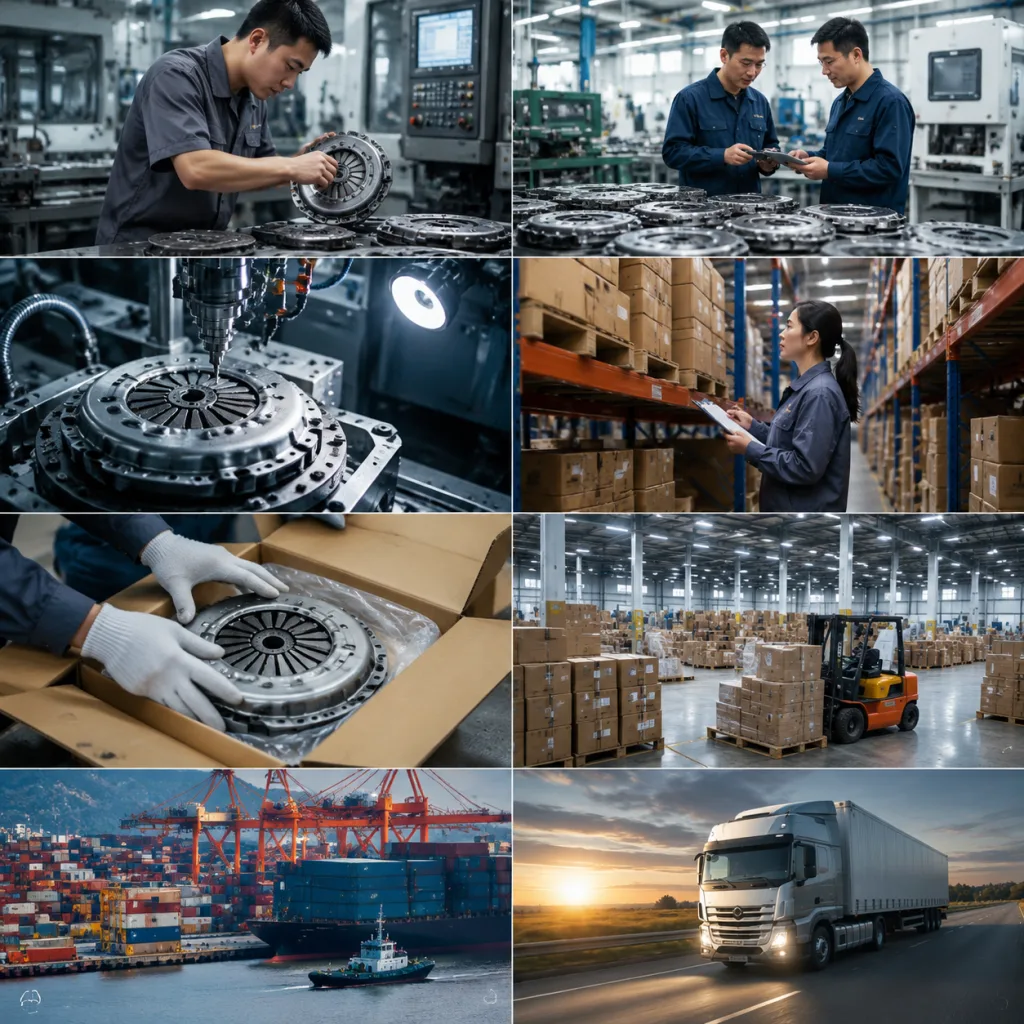

How Driventus manages supply for B2B buyers
Driventus supports wholesale, OEM/Tier-1, and multi-location repair-chain procurement with controlled production and export-ready packing. Our `quality system` is built around IATF 16949:2016 and ISO 9001:2015, with incoming inspection, in-process checks, and final release records.
Supply points for buyers
MOQ structured by part family, packing format, and annual forecast
Batch traceability for discs, covers, bearings, and carton labels
Lead-time planning for standard, stock, and made-to-order items
Labelling that supports warehouse receiving and scan accuracy
Photo, measurement, and sample-retention reports available for pre-shipment review
For planning purposes, buyers normally see shorter lead times on stocked catalogue items and longer lead times for private-label or non-standard build kits. Standard items are often planned in the 30-45 day range after order confirmation, while custom or tooling-dependent configurations can require 45-75 days depending on raw-material availability and approval timing. MOQ is usually lowest for shared-pack standard SKUs and highest for private-label or market-specific carton formats, so buyers should align the order size with forecast stability instead of asking only for the cheapest unit price. When a programme needs a non-standard fitment or packaging format, our `custom manufacturing` service can support private label, kit content changes, and market-specific carton requirements. That is useful when a distributor wants one regional specification or when a repair chain needs a stable SKU strategy across multiple branches. Review our catalog for current coverage and our quality system for process details.
Validation tests procurement teams should request
Before first shipment, ask for validation that reflects real use rather than a simple pass/fail visual check. For clutch kits, the most useful evidence is a combination of dimensional, functional, and durability data.
Recommended checks 1. Dimensional inspection against approved drawings and master samples 2. Spring force or clamp load verification for the cover assembly 3. Runout and balance checks on rotating parts 4. Installation fit trial using the intended gearbox family 5. Thermal cycling or endurance data for the relevant duty cycle 6. Packaging drop and transit checks for export lanes 7. Salt-spray or corrosion exposure evidence where shipment or storage conditions justify it
Where appropriate, request references to published standards such as IATF 16949:2016, ISO 9001:2015, REACH (EC) No 1907/2006, ECE R-83, or SAE J2527, depending on the application and the documents being reviewed. Do not accept a generic statement of compliance without test context, date, sample identification, and acceptance criteria. A usable validation pack should show the test method, sample size, measurement tolerance, and the pass/fail threshold used for approval.

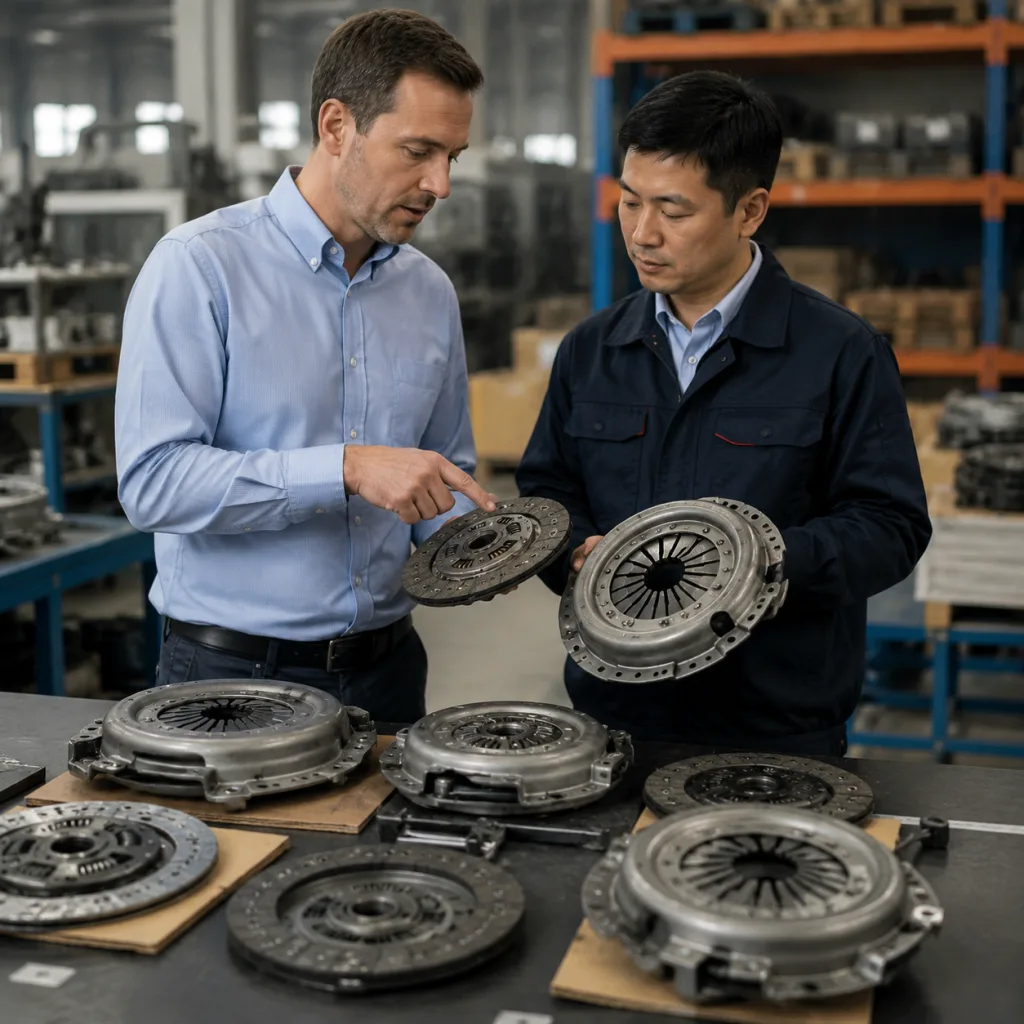

How to compare suppliers without overpaying
A low unit price can hide higher landed cost if a supplier ships incomplete kits, uses poor carton protection, or cannot maintain replenishment timing. Compare offers on total supply performance, not only ex-works price.
Comparison factors
Fitment depth: model-only data versus part-level dimensional confirmation
Documentation: batch traceability, test reports, and export paperwork
Lead time: standard SKU availability and repeat order stability
Packaging: carton strength, label accuracy, and pallet efficiency
Support: response time for drawings, samples, and claim handling
When comparing quotes, ask each supplier to break pricing into sample cost, MOQ price, next-tier price, and annual-contract price. That makes it easier to see whether a supplier is offering a real scale break or simply hiding margin inside the first lot. A practical buying model is to compare landed cost at 1x MOQ, 3x MOQ, and 1 quarter of forecast demand, then add the cost of any missing documentation, repackaging, or incoming inspection rework. If a supplier cannot hold repeat-order pricing for 60-90 days, the quote is risky for replenishment programmes. For programmes with recurring demand, ask for a forecast review and a replenishment agreement. That reduces stock-outs and helps align MOQ with seasonal demand. If you need broader drivetrain coverage, our catalog also links to adjacent engine and powertrain product families, including engine components.
Ordering process and lead-time control
A buyer can reduce launch risk by using a clear approval sequence instead of placing a volume order immediately. Start with application confirmation, then request a drawing pack, then approve a physical sample, and only then release production quantity. For programmes with uncertain vehicle coverage, ask for one confirmed sample per gearbox family rather than one sample per model name.
Step 2: receive part number proposal, drawing sheet, and photos
Step 3: approve a sample and confirm all dimensions against target tolerances
Step 4: lock packaging, barcode, and pallet specification
Step 5: place the production order with delivery windows and reorder trigger points
For recurring programmes, define reorder logic before the first shipment. A good rule is to reorder when on-hand stock reaches 6-8 weeks of forecast, especially if ocean freight is involved or if the application has long vehicle downtime penalties. Buyers should also agree on acceptable lead-time variance, such as plus or minus 5 business days for stocked items and plus or minus 10 business days for custom builds. That protects both sides from disputes when schedules tighten.
Frequently asked questions
Request OE cross-reference data, gearbox code confirmation, spline count, disc diameter, cover height, and approved sample measurements. A supplier should provide drawing or sample measurements before you place a volume order.
Ask for dimensional reports, batch traceability, packing details, compliance declarations, and any test references tied to the approved sample. Export orders also need clean commercial paperwork, carton labels, and pallet counts.
Yes. We support packaging, kit content, and specification adjustments through our custom manufacturing service. Share your target market, annual volume, MOQ target, and required documentation for review.
If you are sourcing a stable clutch programme, share your fitment list, target volume, MOQ target, and packing needs. We can review options and prepare a quotation at /contact.html
