Choosing a camshaft phaser Fiat supplier requires more than comparing unit price. Procurement teams need evidence of stable dimensional control, verified oil-pressure response, reliable locking pin operation and documentation that supports import clearance, warranty review and factory audits. Because the phaser controls variable valve timing, small changes in vane clearance, spring force, oil-passage cleanliness or surface finish can lead to timing deviation faults, cold-start noise, slow response or emissions-related drivability issues. Driventus manufactures engine and powertrain components in Taizhou, Zhejiang, using IATF 16949:2016 and ISO 9001:2015 certified processes. We supply B2B customers including aftermarket distributors, OEM and Tier-1 programmes, and multi-location repair chains. This guide explains how to evaluate Fiat-fitment camshaft phasers for MOQ, lead time, quality evidence, packaging, cross-reference control and audit readiness. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
What procurement teams should verify before nomination
A camshaft phaser is a precision hydraulic actuator, not a simple timing pulley. For Fiat-fitment applications, the supplier should show how it controls the vane rotor, housing, return spring, locking mechanism, oil passages and sealing surfaces across normal production lots. Evidence from mass-production batches is more useful than sample-only data because it reflects process capability after tooling, operators and inspection routines are fully in use.
Key sourcing checks include:
Application control: confirmed engine family, intake or exhaust position, chain or belt interface, mounting style and fitment data that do not depend on connectors or unrelated components.
OE cross-reference discipline: cross-references should follow buyer-supplied data and be checked against dimensions, application notes and market-specific fitment before quoting. If a programme references a format such as OE 06A107065 or OE 11251…, it should not be treated as valid until the technical match is confirmed.
Hydraulic response: advance and retard angle movement under defined oil temperature, viscosity and pressure conditions.
Locking pin function: repeatable lock and release during cold-start simulation, including checks for sticking, delayed release and abnormal impact noise.
Noise control: rotational backlash, vane impact, spring return behaviour and sprocket or pulley interface consistency verified through functional testing.
Traceability: batch, cavity, heat-treatment lot, assembly record and final inspection data linked to shipping documents.
For buyers consolidating several engine components, Fiat-fitment phasers can be reviewed together with related timing and engine parts in our catalog and the engine component category page at /products/engine-components.html.

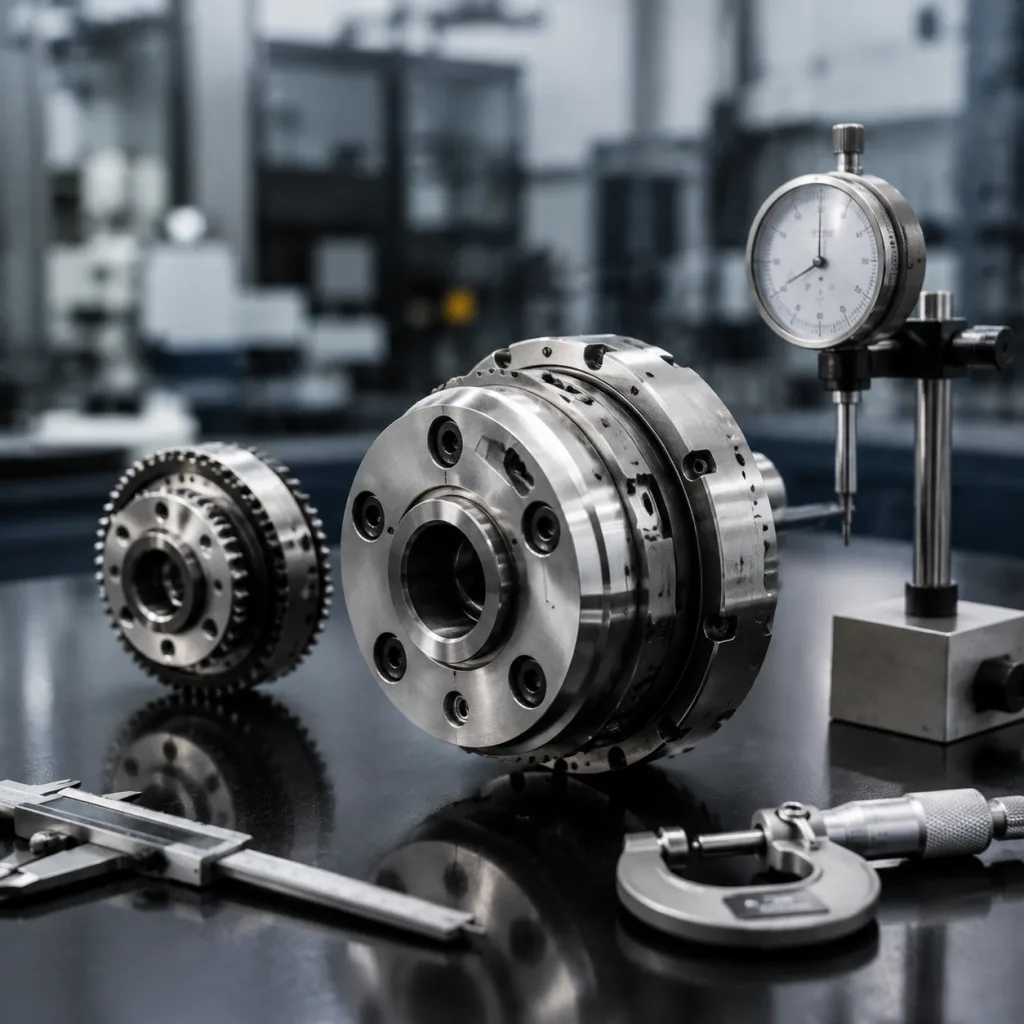

Manufacturing controls and materials used for stable VVT function
Aftermarket phaser failures are often linked to uncontrolled clearances, poor oil-contamination tolerance, weak locking pin performance, rough sealing surfaces or inconsistent heat treatment. A qualified supplier should be able to connect each critical feature with a measurable process control, inspection method and reaction plan when results move toward the limit.
Typical manufacturing controls for Fiat-fitment camshaft phasers include:
Feature
Typical control point
Procurement relevance
Rotor vane width
Micrometre or CMM inspection by lot
Controls internal leakage and response speed
Housing bore geometry
Roundness and profile measurement
Reduces sticking, scoring and abnormal wear
Sprocket or pulley interface
Tooth profile, pitch and runout check
Supports timing accuracy and noise control
Locking pin bore
Position, diameter and surface finish verification
Improves cold-start lock reliability
Spring force
Load test at specified compression
Stabilises return behaviour and release feel
Oil passage cleanliness
Particle and visual inspection
Reduces early-life sticking and valve contamination risk
Anti-corrosion treatment
Salt spray or coating verification where specified
Supports export storage, long transit and shelf life
</tr></thead><tbody> </tbody></table>Material selection depends on the design and operating load. Common combinations include powder metallurgy or machined steel rotors, aluminium or steel housings, alloy steel locking pins and calibrated spring steel. Nominal material grade matters, but surface finish, cleanliness and heat-treatment consistency are just as important because the phaser relies on controlled oil sealing and low-friction movement.
Driventus maintains controlled machining, assembly and inspection processes under our quality system. For new programmes, buyers may request a control plan, process flow diagram, PFMEA summary, inspection plan, sample inspection report and available functional test records.
MOQ, lead time and packaging expectations for import buyers
A practical sourcing plan should separate validation samples, pilot orders and repeat production. This avoids a common procurement mistake: approving a supplier from a small hand-selected sample batch before confirming mass-production capability, packaging control and shipment traceability.
Pilot order: confirms packaging, barcode data, carton strength, label format, batch traceability and communication flow before repeat purchasing.
Standard MOQ: depends on casting, machining, assembly complexity, tooling status and forecast volume, so it is normally agreed by part number rather than by product family only.
Lead time: influenced by raw material availability, tooling condition, surface treatment, inspection load, production queue and sea or air freight choice.
Forecast planning: rolling 3-month and 6-month forecasts help stabilise production scheduling, reduce emergency freight and improve unit-cost planning.
For distributors, mixed-SKU shipments are often more useful than single-part full-container quantities because they improve inventory coverage without overstocking one reference. For repair-chain supply, carton-level identification, batch visibility and installation-note consistency are usually more important than retail shelf presentation. For Tier-1 and OEM-related programmes, packaging must also support inbound inspection, line-side handling, barcode rules and traceability back to production records.
Export packaging should protect phasers from impact, moisture and contamination during storage and transit. Each unit should be sealed or capped where oil passages are exposed, and corrosion protection should match the expected transport route and warehouse conditions. Cartons should be drop-tested according to the buyer’s logistics requirement, while labels should include part number, quantity, production batch and country of origin where required by the destination market.
Certification, compliance and factory-audit documents
For a camshaft phaser Fiat supplier, certification is only the starting point. Buyers should confirm that the certificate scope covers the relevant manufacturing processes, that the audited site matches the quoted production site and that supporting records are current. A strong supplier can explain not only what certificates it holds, but how those systems control day-to-day production, inspection and corrective action.
Documents commonly requested during supplier approval include:
IATF 16949:2016 certificate and scope.
ISO 9001:2015 certificate and scope.
Business licence and manufacturing site details.
Process flow chart, control plan and PFMEA summary.
Incoming material inspection procedure.
In-process inspection and reaction plan for critical dimensions.
Final functional test procedure.
Nonconforming product control procedure.
Corrective action process, including 8D reporting.
Traceability method from finished goods to production batch.
Packaging specification and export carton data.
REACH (EC) No 1907/2006 compliance statement where applicable for EU imports.
For emissions-related engine timing components, buyers should also consider the downstream effect of valve timing stability in compliance-sensitive repair markets. Standards such as ECE R-83 define emissions requirements at vehicle level, while the phaser itself is validated as a component against customer drawings, performance targets and functional tests. Suppliers should avoid unsupported claims about vehicle manufacturer approval or original-equipment endorsement. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Driventus supports remote document review and on-site factory audits where appropriate. Audit preparation can include production-line walkthroughs, test-equipment lists, calibration records, recent shipment traceability examples, corrective-action samples and packaging verification records.
Validation tests buyers should request for Fiat-fitment phasers
Procurement teams should request test evidence that reflects how the component behaves in service. Dimensional reports confirm whether parts match critical measurements, but they do not prove oil-control response, cold-start locking behaviour or long-cycle stability.
A practical validation package may include:
1. Dimensional inspection: CMM or calibrated gauge report for critical interfaces, mounting surfaces, oil passages and sealing areas. 2. Functional angle test: advance and retard movement measured against the required design range. 3. Oil-pressure response test: response time checked at defined oil pressure, temperature and viscosity conditions. 4. Leakage test: internal leakage measured to confirm vane and housing sealing performance. 5. Locking pin test: repeated lock and release cycles, including cold-start simulation where specified. 6. Torque and runout checks: interface stability, sprocket or pulley alignment and fastening areas verified before shipment. 7. Endurance test: cyclic operation used to evaluate wear, noise, response drift and repeatability. 8. Cleanliness inspection: control of machining debris and particles in oil-contact areas.
Incoming inspection checklist
Importers can reduce warranty exposure by applying a standard receiving inspection plan. Recommended checks include carton condition, label accuracy, batch traceability, visual damage, corrosion signs, rotation feel, mounting interface dimensions and sample functional testing. Any deviation should be reported with photos, batch code, measured values and inspection conditions rather than general descriptions such as “bad quality” or “not working.”
Where a buyer requires a modified vane profile, material change, private-label packaging, additional validation step or unique cross-reference mapping, Driventus can evaluate custom manufacturing based on drawings, samples or validated technical requirements.
Commercial comparison: trading company versus direct manufacturer
A direct factory relationship can improve technical communication, but it still needs clear specifications, forecast discipline and purchasing controls. The right sourcing route depends on order volume, quality risk, documentation needs and how quickly the buyer must expand SKU coverage.
Sourcing route
Advantages
Risks to control
Best use case
Trading company
Fast quotation, broad SKU access, flexible small orders
Limited process visibility, slower technical correction, mixed factory sources
Low-volume exploratory sourcing
Direct manufacturer
Process access, audit support, engineering feedback, traceable batches
Requires clearer forecasts, validated references and technical specifications
Repeat programmes and quality-sensitive categories
Hybrid model
Combines stock access with factory development
Responsibility boundaries, warranty handling and data ownership can be unclear
Transition from spot buying to planned sourcing
</tr></thead><tbody> </tbody></table>For camshaft phasers, direct access to engineering and production records is often valuable because fitment alone does not confirm hydraulic performance. Buyers should define acceptance criteria before price negotiation, including response angle, leakage limit, surface finish, cleanliness level, packaging method, inspection level, warranty handling and documentation format. These details make quotations easier to compare and reduce disputes after shipment.
Driventus exports to more than 60 countries and supplies distributors, wholesalers, repair-chain programmes and industrial customers. We can quote based on sample, drawing, cross-reference list or application table. To start supplier evaluation, share annual forecast, target markets, required documentation, validation expectations and packaging requirements through request a quote.
Frequently asked questions
Please provide the target application, intake or exhaust position, required quantity, destination country, packaging format and any buyer-supplied OE cross-reference. Photos, drawings or samples help confirm dimensional and functional requirements before pricing.
Yes. Driventus can support document review and factory-audit preparation, including IATF 16949:2016 and ISO 9001:2015 certificates, process flow, control plan, inspection records, calibration records and traceability examples.
No. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. Any cross-reference is used to support application identification and must be verified against buyer requirements.
If you are qualifying a camshaft phaser supplier for Fiat-fitment programmes, Driventus can review your application list, MOQ target and documentation needs. Send your sourcing details through /contact.html
