Harmonic Balancer Material Specs for Sourcing

Harmonic balancers sit at the front of the crankshaft, where torsional vibration, accessory-belt load, heat, oil mist, and installation force meet in one compact assembly. For procurement teams, harmonic balancer material selection is not only a cost decision; it affects inertia, damping stability, pulley wear, corrosion resistance, elastomer ageing, and aftermarket warranty exposure. A typical balancer combines a hub, inertia ring, elastomer layer, and pulley profile, and each element needs a defined material specification, process route, and acceptance window. Driventus manufactures engine and powertrain components in Taizhou, Zhejiang, under IATF 16949:2016 and ISO 9001:2015 systems for production control, traceability, and inspection discipline. This guide gives buyer-ready sourcing details for cast iron, ductile iron, steel, aluminium, and elastomer compounds used in passenger car and light commercial applications. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment identification only.

How to choose the right material stack

A harmonic balancer should be specified as an assembly, not as a single raw material. The hub must hold clamp load on the crank nose, the inertia ring must provide mass at the correct radius, and the elastomer must keep its bond while damping torsional vibration across temperature cycles.

The first sourcing mistake is usually simple: quoting from a photo or sample without locking the full stack. If the rubber compound, bond process, pulley geometry, coating, or balance target is missing, two parts can look alike and still behave very differently in service.

Use this decision frame before you compare offers:

Need maximum damping stability over a wide temperature range? Prioritise elastomer control first.
Need higher bore strength and fatigue resistance? Push toward steel or ductile iron hubs.
Need lower cost and proven inertia density? Grey cast iron often stays in the lead.
Need reduced mass for a redesigned front end? Treat aluminium as an engineering change, not a swap.
Need durable corrosion performance? Define coating, thickness, and salt-spray target in writing.

For RFQ comparison, buyers should request the following minimum technical data:

Hub material grade, hardness, and heat treatment condition, where applicable
Inertia ring material grade, density, and casting or machining route
Elastomer compound family, hardness range, and thermal-ageing requirement
Rubber-to-metal bonding process, primer system, and audit method
Crank bore, keyway, bolt face, and pulley groove tolerances
Dynamic balance grade and maximum residual unbalance per part
Surface treatment, coating thickness, and salt spray requirement
Batch traceability from incoming material to final inspection record
Sampling level for critical dimensions and cosmetic acceptance

A clear material stack helps procurement compare quotes on the same basis. It also reduces disputes when a lower-priced offer quietly changes the casting route, rubber specification, coating, or inspection plan.

As a practical sourcing rule, buyers should insist on a written product definition that links material, process, and inspection. If the supplier quotes only "cast iron and rubber," the quote is incomplete. A usable quote should name the metal family, elastomer family, balance target, runout limit, coating specification, and the test report format for PPAP-style review.

Driventus can cross-reference drawings, samples, or fitment data through our catalog, while non-standard applications can be reviewed under custom manufacturing.

Metal options: where each one wins

The metal portion of the assembly is selected around inertia, machinability, strength, corrosion protection, and cost stability. Passenger vehicle balancers commonly use grey cast iron, ductile iron, forged or machined steel, and aluminium alloy in selected lightweight designs.

</tr></thead><tbody> </tbody></table>A buyer should not simply state “iron” or “steel” in the RFQ. It should define the grade or equivalent range, dimensional tolerance, heat-treatment condition where relevant, and acceptance criteria. For castings, ask how porosity, shrinkage, inclusions, and machining allowance are controlled. For machined hubs, bore roundness, surface finish, and face perpendicularity often matter more than the nominal material name.

Material substitution also needs engineering review. A heavier ring can change inertia and damping response; a lighter pulley can reduce rotating mass but may move the assembly away from the intended torsional target. Coating changes can affect pulley groove dimensions, corrosion resistance, and belt contact if they are not controlled. Where replacement is intended for an OE reference, the supplier should provide a fitment and performance comparison rather than a visual match only.

As a sourcing benchmark, request the supplier’s internal capability target for critical characteristics. For example, a stable programme should be able to hold bore size to a few hundredths of a millimetre, keep face and groove geometry within a narrow band, and report residual unbalance in grams-millimetres rather than using a vague pass/fail statement. Buyers should also request the coating system in measurable terms, such as e-coat, phosphate, or paint thickness in the range of 10–25 μm, depending on corrosion target and packaging conditions.

Where aftermarket parts are developed against OE samples, Driventus does not claim vehicle manufacturer approval or endorsement. Fitment references are used only to identify application scope.

Rubber compound choices without the guesswork

The elastomer layer is the main damping element, so its specification has direct performance impact. Natural rubber, EPDM, NBR, and blended compounds may be used depending on thermal exposure, oil contact, ozone resistance, and target damping behaviour. Material selection should reflect the engine bay environment and crankshaft torsional profile, not only the initial Shore hardness.

Typical elastomer specification points include:

Shore A hardness range, commonly controlled within ±5 points after moulding
Operating temperature range and peak short-term exposure by application
Compression set after heat ageing, typically checked after 70–100 hours at elevated temperature
Ozone resistance for exposed pulley and front-engine positions
Oil resistance where front crankshaft seal leakage is a known field risk
Rubber-to-metal bond strength by internal process standard or agreed customer method
Ageing comparison covering hardness change, cracking, and bond integrity after thermal cycling
Cure time and mould temperature window used in production

EPDM generally offers strong heat and ozone resistance. NBR provides better oil resistance, although it may not be the preferred choice for severe high-temperature ozone exposure. Natural rubber can deliver strong dynamic properties, but the compound must be protected against ageing, ozone, and oil conditions. In practice, many programmes use a compound family tailored to the application rather than an off-the-shelf rubber description.

For procurement approval, ask the supplier to define the compound family and controlled properties instead of confirming only “black rubber.” Confidential formulation details are not normally disclosed, but measurable performance limits, test conditions, and batch control methods should be available. For repeat supply, the key is consistency: hardness, bond strength, cure condition, and ageing response should remain within the agreed control window.

A practical buyer spec should also call out the test method. For example, hardness should be measured to a named ISO or ASTM method, bond strength should be recorded with the test direction and failure mode, and ageing should include the temperature, duration, and post-test acceptance criteria. If the supplier cannot state these details, the rubber system is not yet controlled enough for serial sourcing.

Where tolerances actually make or break the part

Material choice must be matched with dimensional control. Even a well-selected harmonic balancer material will not compensate for poor bore fit, pulley offset, groove error, or excessive runout. These dimensions affect belt tracking, seal contact, crankshaft loading, noise complaints, and installation repeatability.

A practical incoming inspection plan can include the following points:

Material option	Typical use	Advantages	Procurement cautions
Grey cast iron	Inertia rings and pulleys	Density around 7.0–7.2 g/cm³, good vibration damping, and cost control	Requires casting-defect control, machining allowance control, and corrosion coating
Ductile iron	Hubs or higher-load rings	Tensile strength typically 420–700 MPa depending on grade, better toughness than grey iron	Nodularity, matrix, and heat-treatment condition should be documented
Carbon steel	Hubs and selected pulleys	Strong bore, keyway, and threaded-feature retention; good fatigue performance when correctly processed	Higher machining cost; coating needed on exposed surfaces
Forged steel	High-load or compact hubs	Good fatigue resistance, directional grain flow, and bore strength	Usually higher tooling cost and unit price; confirm forging reduction ratio
Aluminium alloy	Lightweight pulley assemblies	Lower mass, good corrosion resistance, and easier cosmetic finishing	Lower inertia may require redesign; not a direct substitute for iron

</tr></thead><tbody> </tbody></table>Tolerance values should be agreed by drawing, application criticality, and production capability. As a sourcing baseline, buyers should ask for capability data on critical-to-fit features, not only final inspection reports. Bore diameter, pulley offset, and groove geometry are often better indicators of repeatability than a general statement that the part “passed QC”.

For serial programmes, the supplier should state which measurements are 100% checked, which are sampled, and what reaction plan applies when a feature trends out of control. A buyer should also ask whether the measuring fixture reproduces the installed condition. Unsupported measurement can hide face runout, bore alignment, or pulley offset issues that appear only after engine installation.

A strong control plan should include incoming material checks, in-process checks after machining, post-bond checks, and final audit checks before packing. If a supplier can provide SPC charts for bore, runout, and balance, that is usually a better indicator of stable production than a one-time sample approval.

Driventus applies process documentation under its quality system, including inspection records, traceability, and corrective action workflows aligned with IATF 16949:2016 and ISO 9001:2015 expectations.

Proof, compliance, and what to validate first

There is no single public standard that fully defines every harmonic balancer design across vehicle platforms. Buyers should combine published management and compliance standards with application-specific validation agreed in the drawing, purchase specification, or programme file.

Relevant references may include:

IATF 16949:2016 for automotive quality management system requirements
ISO 9001:2015 for quality management system requirements
REACH (EC) No 1907/2006 for chemical substance compliance in the EU market
RoHS Directive 2011/65/EU where electrical or electronic scope is relevant to the customer’s product file
Customer-specific PPAP, control plan, IMDS, or material declaration requirements where contractually requested

Validation evidence for a balancer programme commonly includes dimensional layout reports, material certificates, hardness checks, bond tests, runout measurement, dynamic balance records, salt spray reports, and thermal-ageing comparison. For higher-volume programmes, buyers may request capability studies for bore diameter, pulley offset, groove geometry, and other critical-to-fit characteristics.

Documentation should show both material conformance and process stability. A material certificate confirms the stated grade or compound family, but it does not prove that bonding, balance, runout, or coating thickness are controlled in production. For this reason, approval packages should connect material records with inspection results, batch traceability, and change-control rules.

A practical approval pack should also state the minimum retest triggers. If the elastomer formulation changes, the bonding primer changes, the coating system changes, or the machining source changes, the supplier should re-validate the affected characteristics rather than relying on the previous approval file. Buyers should expect written notification before any change that affects fit, function, or durability.

If the part is supplied for emissions-regulated vehicles, procurement teams should avoid assuming that a mechanical component has regulatory approval by association with an application. ECE R-83 relates to vehicle emissions requirements and is not a blanket approval for aftermarket engine components. Claims should remain limited to tested characteristics and agreed customer specifications.

Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

RFQ questions that expose weak suppliers fast

A complete RFQ reduces re-sampling, price revisions, and batch disputes. For harmonic balancer material evaluation, the strongest RFQs combine application data, target performance, and measurable acceptance criteria.

Procurement teams should provide or request:

Vehicle application range, engine code, model year range, and market region
OE part-number cross-reference if available, such as OE 06A… only when already used in the customer’s data
2D drawing, 3D model, or approved physical sample
Required metal grade or equivalent performance requirement
Elastomer hardness, ageing, and oil or ozone resistance requirement
Surface treatment, colour, coating thickness, and corrosion test duration
Pulley groove standard or mating belt specification
Dynamic balance requirement and runout limits
Packing method for export cartons and palletisation
Annual volume, release schedule, and target delivery window
Required documentation package, including inspection report and material declaration
Sampling quantity for first article and PPAP-style submission
Reorder MOQ, if different from trial order quantity

For distributors, the decision often balances broad fitment coverage, carton durability, and stable reorder lead time. For OEM and Tier-1 buyers, the focus is usually PPAP discipline, change control, and documented process capability. Multi-location repair chains normally prioritise consistent fit, low installation complaint rate, and clear application data.

Buyers should also define how changes will be handled after approval. Material grade, rubber compound family, bonding process, coating, production location, and key inspection fixtures should not change without notification and, where required, re-approval. This prevents a technically acceptable sample from turning into inconsistent serial supply.

To make the commercial side actionable, the RFQ should ask the supplier to quote by volume tier. For example, prototype or sample orders may carry a higher unit price because tooling, setup, and first-off inspection are spread across a small batch; a stable annual programme should receive a lower piece price once the same part is ordered in repeat lots. Buyers should also request lead time by stage, such as sample development, tooling if required, first article submission, and serial production, rather than accepting one generic delivery estimate.

As a practical sourcing rule, buyers can ask for MOQ, standard pack quantity, and price break points in the same response. That makes it easier to compare suppliers on landed cost, not just ex-works unit price. Driventus supports aftermarket distribution and programme-based sourcing for engine components, including balancers, pistons, gaskets, water pumps, crankshafts, and related powertrain parts. Buyers can use the same supplier audit framework across multiple product categories to reduce onboarding workload.

Frequently asked questions

Grey cast iron is common for inertia rings because it provides useful density, damping behaviour, and cost control. Hubs may use cast iron, ductile iron, or steel depending on load, bore design, and application requirements. The rubber compound is equally important because damping performance depends on the metal and elastomer working together.

Not as a direct substitution. Aluminium reduces mass, but a balancer depends on inertia at a specific radius. Changing material can shift damping behaviour and may require redesign, validation, and dimensional review. Treat aluminium as an engineered alternative, not a simple material swap.

Request material certificates, dimensional layout reports, elastomer hardness data, bond test evidence, runout and balance records, corrosion test results, and traceability information. For programme supply, also request a control plan and change-control process aligned with IATF 16949:2016 expectations.

If you are comparing specifications for a balancer programme, Driventus can review drawings, samples, and documentation requirements before quotation. To discuss harmonic balancer material options, fitment data, validation scope, MOQ, lead time, and supply terms, [request a quote](/contact.html).

Request a Quote

Feature	Why it matters	Typical control method	Common buyer target
Crank bore diameter	Fit and clamp retention	Plug gauge, air gauge, or CMM	Hold to drawing; often within ±0.01–0.03 mm on critical fit parts
Keyway width and position	Angular location and assembly fit	CMM or dedicated gauge	Hold to drawing; positional tolerance should be explicit
Pulley groove profile	Belt seating, noise, and wear	Profile gauge or optical measurement	Groove angle and width should be defined in the drawing package
Pulley offset	Belt alignment across accessories	Height gauge or CMM	Often controlled within ±0.20 mm or tighter where belt stack-up is sensitive
Radial runout	Vibration and belt movement	Dial indicator on fixture	Common sourcing target is ≤0.10 mm total indicated runout unless the application is tighter
Axial runout	Belt edge loading	Dial indicator on fixture	Often ≤0.10 mm total indicated runout on critical assemblies
Bond line condition	Damping durability	Visual check and destructive audit sampling	No exposed separation, voids, or flash that interferes with assembly
Dynamic balance	NVH and bearing load	Balancing machine with recorded result	Residual unbalance should be stated, often in g·mm per part or equivalent

Harmonic Balancer Material Specs for Sourcing

How to choose the right material stack

Metal options: where each one wins

Rubber compound choices without the guesswork

Where tolerances actually make or break the part

Proof, compliance, and what to validate first

RFQ questions that expose weak suppliers fast

Frequently asked questions

Related reading

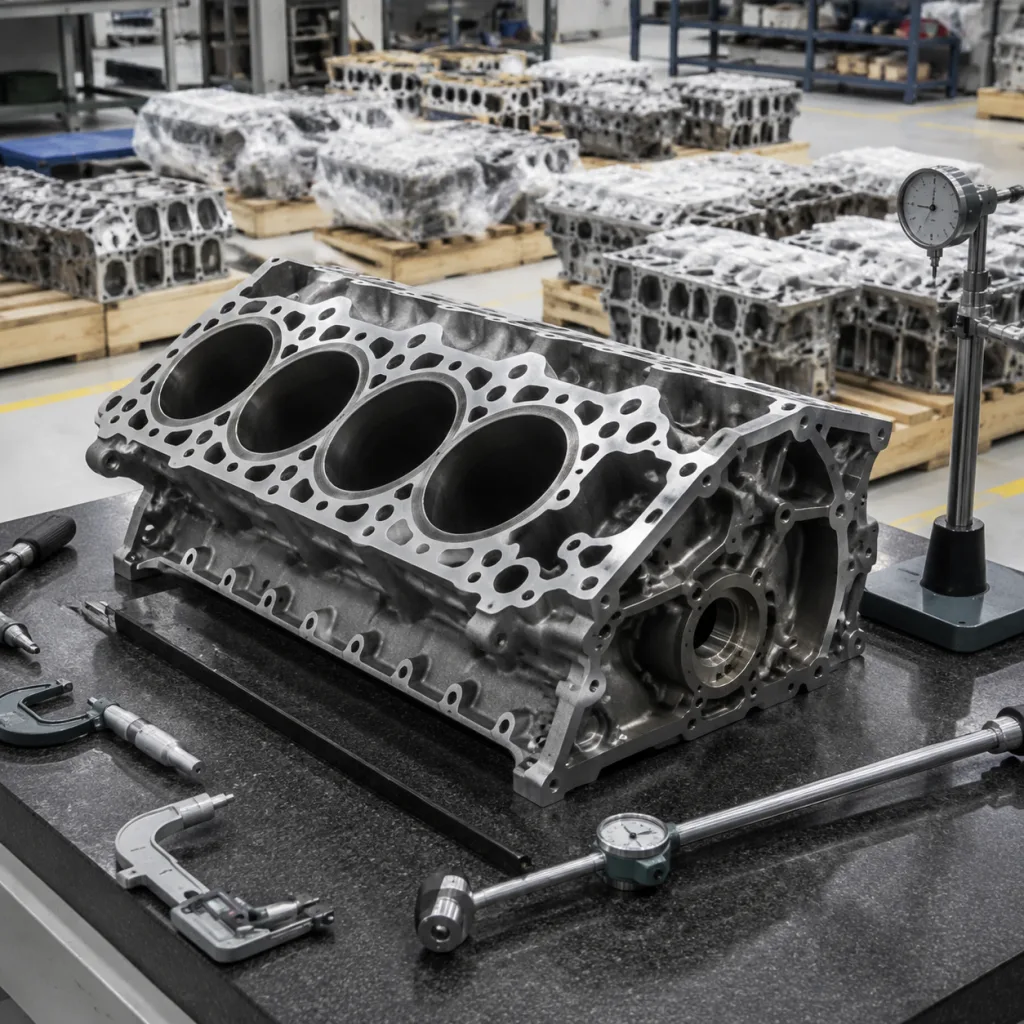

Engine Block Wholesale: Sourcing and Quality Checks

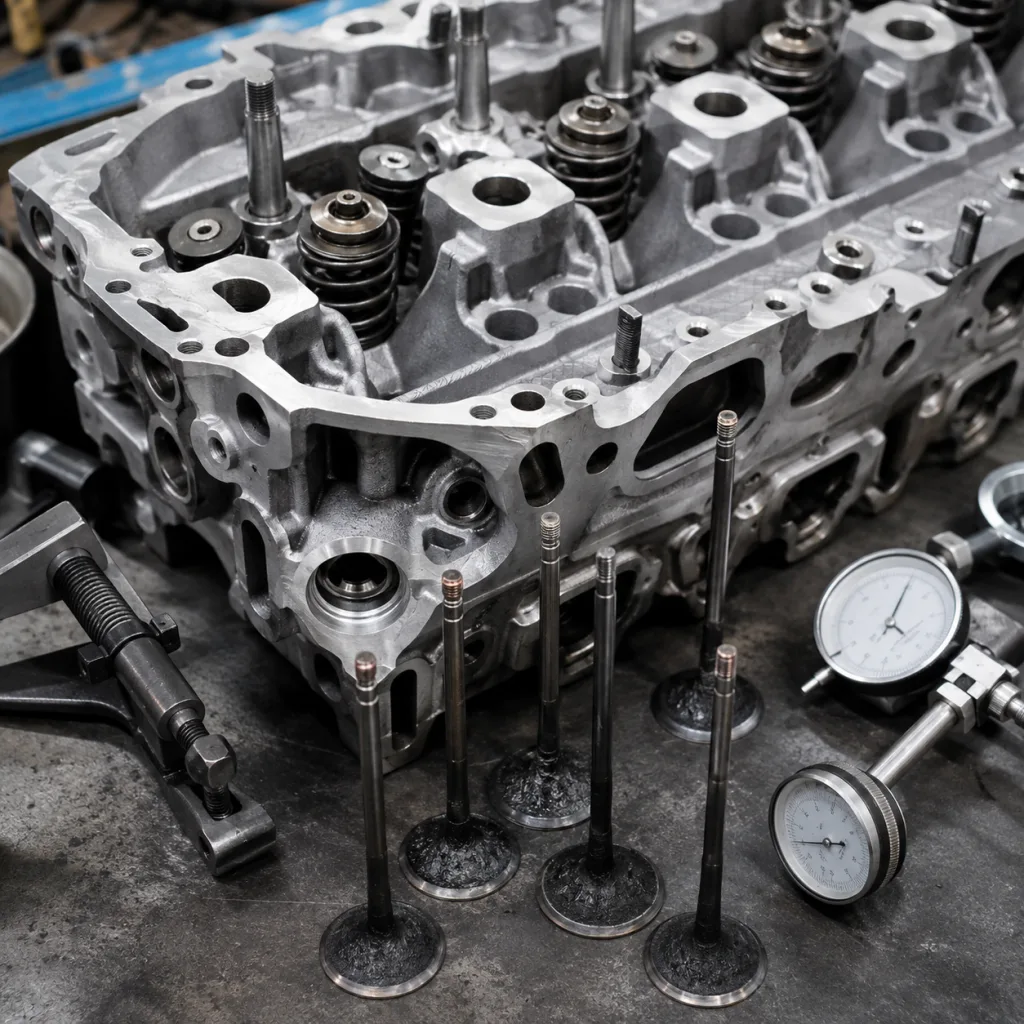

Carbon Buildup Intake Valves Valve Spring: Diagnosis Guide

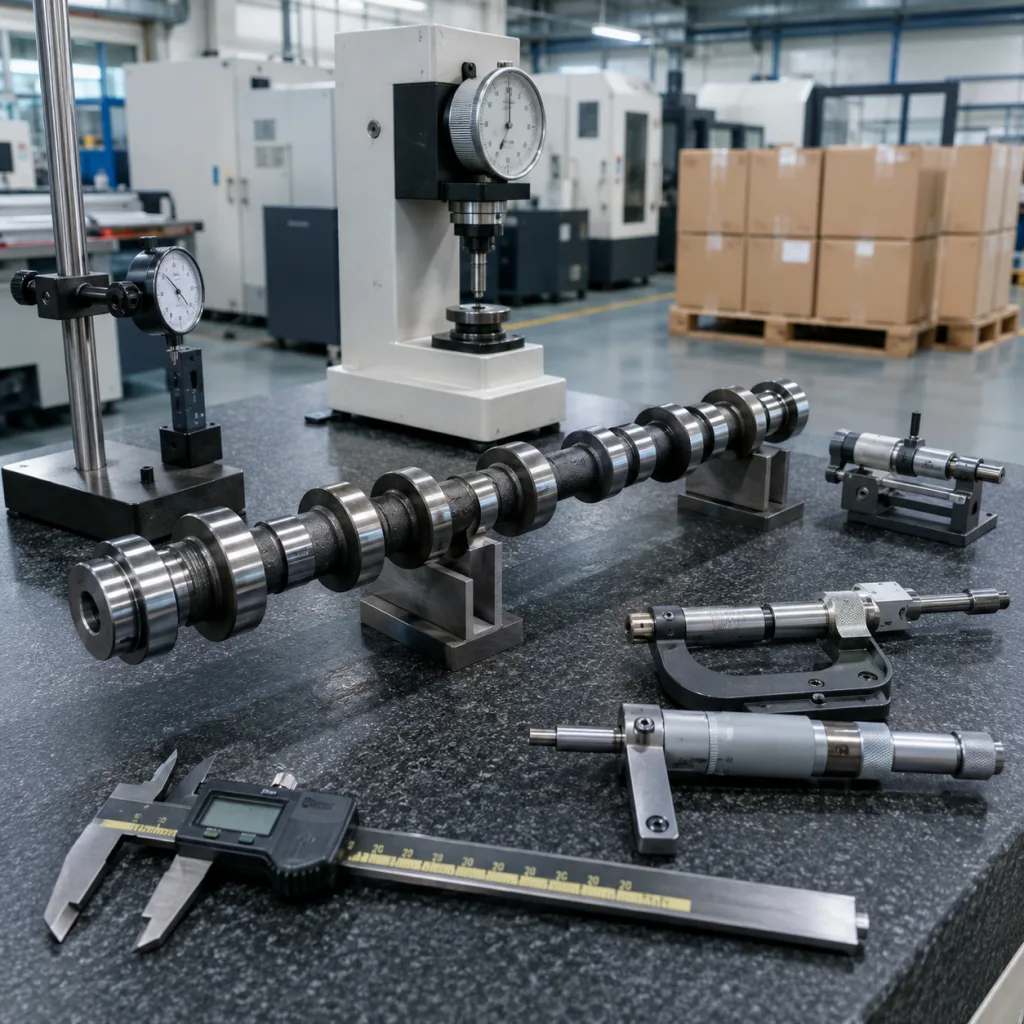

Camshaft Opel Wholesale: Supplier Sourcing Guide
