EGR Cooler Fiat Wholesale: Sourcing Guide for Buyers

Specs that actually determine fitment

An EGR cooler works under thermal shock, soot exposure, and coolant pressure cycling. That means OE-equivalence is not just shape matching; it is the full assembly envelope and service behaviour.

Core dimensions to validate

• Overall length, width, and height
• Port centre distance and tube angle
• Bracket thickness and hole diameter
• Seal land width and surface finish
• Internal flow path and restriction level

For Fiat platforms, compare the replacement part against the OE sample and vehicle service data. If the application sheet lists a family of engines, validate the exact engine variant before authorising mass purchase. That matters even more when the same cooler is listed across multiple model years or export markets. Driventus can support custom manufacturing when the target specification needs a modified pipe angle, revised mounting tab, or distributor packaging standard.

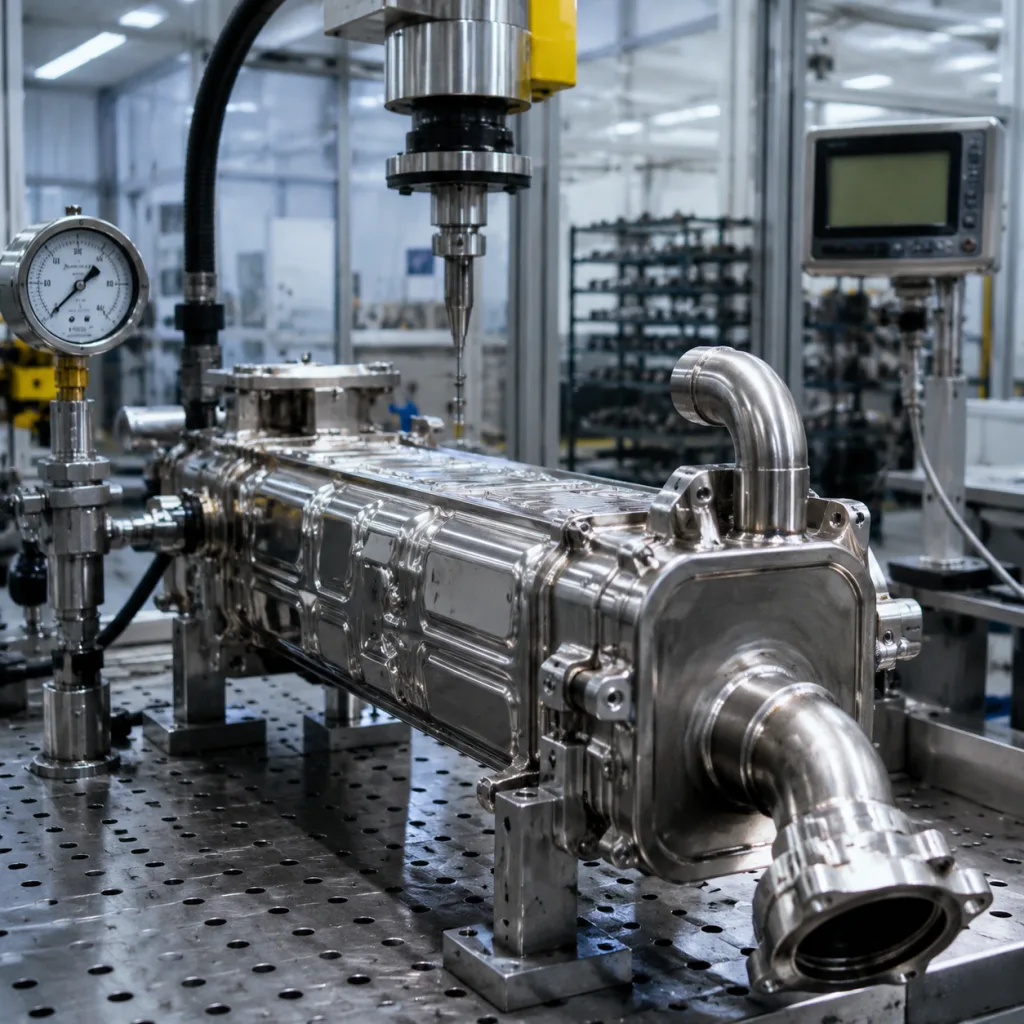

Failure modes to test before shipment

A wholesale EGR cooler programme should include a simple acceptance plan. The goal is to catch leak risk and fitment drift before the parts leave the dock.

Recommended checks for incoming samples:

• Visual inspection for weld continuity, braze overflow, and contamination.
• Air-under-water or equivalent leak test at the agreed pressure.
• Coolant-side pressure retention check.
• Dimensional inspection against the approved drawing.
• Surface flatness check on gasket faces.
• Optional thermal cycling validation for high-duty applications.

Where the customer requires validation evidence, ask for the test method, sample size, and rejection criteria in writing. For aftermarket distribution, this is one of the most effective ways to avoid returns caused by marginal fitment or inconsistent weld quality. If a project needs broader engine coverage, see our catalog and the engine component range at `/products/engine-components.html`.

How to structure the order without overbuying

Wholesale buyers usually balance stock depth against cash tied up in slow-moving SKUs, so the right order structure depends on forecast accuracy and vehicle parc.

Typical procurement questions:

• What is the minimum order quantity by part number?
• Can the first order mix multiple Fiat applications?
• What is the sample lead time versus batch lead time?
• Can cartons be labelled by customer SKU and OE reference?
• Is long-term supply available for a stable programme?

For private-label or programme supply, Driventus supports export packing, documentation, and production planning for repeat orders. If you need a new cross-reference, non-standard coating, or carton specification, use request a quote to start the technical review. That is usually faster than trying to finalise a purchase order before the fitment data is locked.
