Crankshaft Pulley Lexus Manufacturer China: Supplier Guide

A crankshaft pulley Lexus manufacturer China search should start with risk, not with the lowest quoted unit price. The part must keep belt alignment, rotational balance, concentricity, damping behaviour, and the crankshaft interface inside the approved OE reference, drawing, 3D model, or validated master sample. If it does not, the buyer pays later through noise claims, belt walk, vibration, rubber separation, accessory-drive damage, and emergency replacement orders.

The real sourcing test is repeatability. Can the supplier hold bore size, offset, groove profile, runout, balance, coating, rubber bonding, packaging, and traceability after the first approved sample? Can it prove that control with records, calibrated gauges, material evidence, and stable process routing?

Before asking for price, define annual demand, order frequency, target Incoterm, packaging type, AQL level, sample approval route, and whether the programme needs PPAP-style evidence before production release. Driventus is an independent aftermarket manufacturer; brand names are used for fitment reference only. We supply replacement parts for distributors, wholesale programmes, repair networks, and OEM and Tier-1 supply chains.

Use this guide as a procurement framework for evaluating technical fit, factory capability, validation, MOQ, price structure, lead time, and commercial terms.

Decision Point: What Has To Match Before Price Matters

A crankshaft pulley is acceptable only when it matches the application on both function and interface. The belt path, offset, bore, keyway or locating feature, fastening face, and damping characteristics all have to align with the engine variant and accessory-drive layout. A 0.5-1.0 mm offset error can be enough to create belt tracking noise or edge wear when the tolerance stack-up is tight.

For procurement, the baseline is simple:

  • OE cross-reference by application, where the target listing already defines a reference number
  • Dimensional match to the drawing or approved sample, including pulley outside diameter, belt pitch diameter, offset, bore, keyway, bolt pattern, and groove profile
  • Repeatable production control, with capability data and inspection records rather than a one-time visual pass

A useful RFQ should include the OE reference, engine code if available, vehicle year range, photos of both sides, measured outside diameter, bore diameter, total height, belt groove count, pulley offset from mounting face, keyway width or locating feature, and any damper rubber details. For bonded damper pulleys, add whether the rubber layer is visible, whether timing marks are required, and whether the part needs paint, phosphate, electrophoresis, zinc plating, or another corrosion protection method.

Keep fitment reference separate from brand affiliation. A Lexus application reference identifies the required part family, but it does not replace drawing review, sample comparison, first-article inspection, or production validation.

Driventus supplies engine and powertrain parts under documented process control. For broader engine coverage, see our catalog and engine components.

Why China Works When The Process Route Is Controlled

China remains a practical supply base for this category when the full manufacturing route is managed as one programme. Casting or forging, CNC turning, broaching, drilling, surface treatment, rubber bonding where required, balancing, inspection, and export packaging can be coordinated through a single supplier relationship. That matters because the part has to hold concentricity, runout, groove geometry, and corrosion protection across repeat batches.

The advantage is not only lower cost. The stronger value is process control:

1. Raw material identification and traceability by heat, batch, or supplier lot 2. Machining to controlled tolerances on CNC lathes, machining centres, and dedicated fixtures 3. Balance correction where the design requires it, with removal limits defined before production 4. In-process inspection and final audit using calibrated gauges, height gauges, CMM checks, or runout fixtures as applicable 5. Corrosion protection, packaging, carton labelling, palletisation, and export documentation

A supplier in Taizhou, Zhejiang can support mixed-volume demand, which helps distributors, fleet service channels, and programme buyers that release orders on different schedules. One distributor may need 100-300 pieces for a high-moving reference, 50-100 pieces for slower SKUs, and one consolidated shipment across 10-30 part numbers to reduce freight cost per unit.

The commercial question is whether the plant can absorb annual volume, forecast changes, and part-number mix without quality drift or undocumented process changes. Ask whether tooling is dedicated or shared, whether machining fixtures are locked after approval, whether subcontracted processes are listed, and whether the supplier can reserve capacity during seasonal demand peaks.

Spec Deep-Dive: Dimensions, Balance, Rubber, And Coating

A crankshaft pulley sits in a harsh area of the engine. Belt tension, accessory load, torsional vibration, heat, corrosion exposure, oil mist, road salt, and repeated start-stop cycles all affect service life. Treat it as a rotating engine component, not as a generic machined ring.

</tr></thead><tbody> </tbody></table>Tie inspection numbers to the drawing wherever possible. Even without a full drawing, set RFQ expectations for critical-to-fit dimensions: bore diameter, keyway width, mounting face flatness, bolt circle position, pulley offset, and groove profile. For machined belt grooves, request a profile gauge check or CMM section check during first-article approval.

If the pulley includes a bonded damping element, ask for elastomer specification, Shore A hardness target, bonding adhesive, surface preparation, curing temperature and time, and adhesion checks. For a solid pulley, focus on hardness, heat treatment route where applicable, machining sequence, deburring method, balance method, and corrosion protection thickness. These details are where many field failures begin: belt misalignment, wobble, noise, rubber separation, timing mark shift, and premature corrosion.

Document Pack: Evidence That Survives An Audit

A credible supplier should provide a document set that supports factory audit, incoming inspection, and customer approval. At minimum, request:

  • IATF 16949:2016 certificate scope, where automotive production scope is claimed
  • ISO 9001:2015 certificate scope
  • Material certificate or mill traceability, including grade, heat number, and chemical or mechanical data where applicable
  • Control plan and inspection record format with critical dimensions identified
  • Process flow chart covering casting or forging, machining, bonding, surface treatment, balancing, inspection, and packing
  • PPAP-style submission package when the programme requires it, such as PSW, dimensional report, material report, capability study, control plan, and appearance approval if relevant
  • Gauge list and calibration records for bore gauges, micrometers, height gauges, runout fixtures, torque tools, and balancing equipment
  • REACH (EC) No 1907/2006 declaration for relevant markets
  • Packaging specification and labelling format for export orders

Driventus maintains a quality system structured for export programmes. For parts that need bespoke interface features, bracket changes, marking rules, or packaging control, custom manufacturing is available under defined drawing and approval steps.

Do not approve a supplier because a certificate is present. Check that the certificate covers the actual manufacturing site, product family, and process scope used for your pulley. A trading company certificate, subcontracted machining cell, or unrelated scope gives little protection when a quality claim appears later.

For repeat orders, define document frequency before launch. A common structure is full first-article documentation before mass production, batch inspection reports with each shipment, material traceability on request, and annual revalidation for high-volume or safety-sensitive programmes. If your incoming inspection uses AQL, align the supplier's outgoing sampling plan with the same defect definitions before the first shipment.

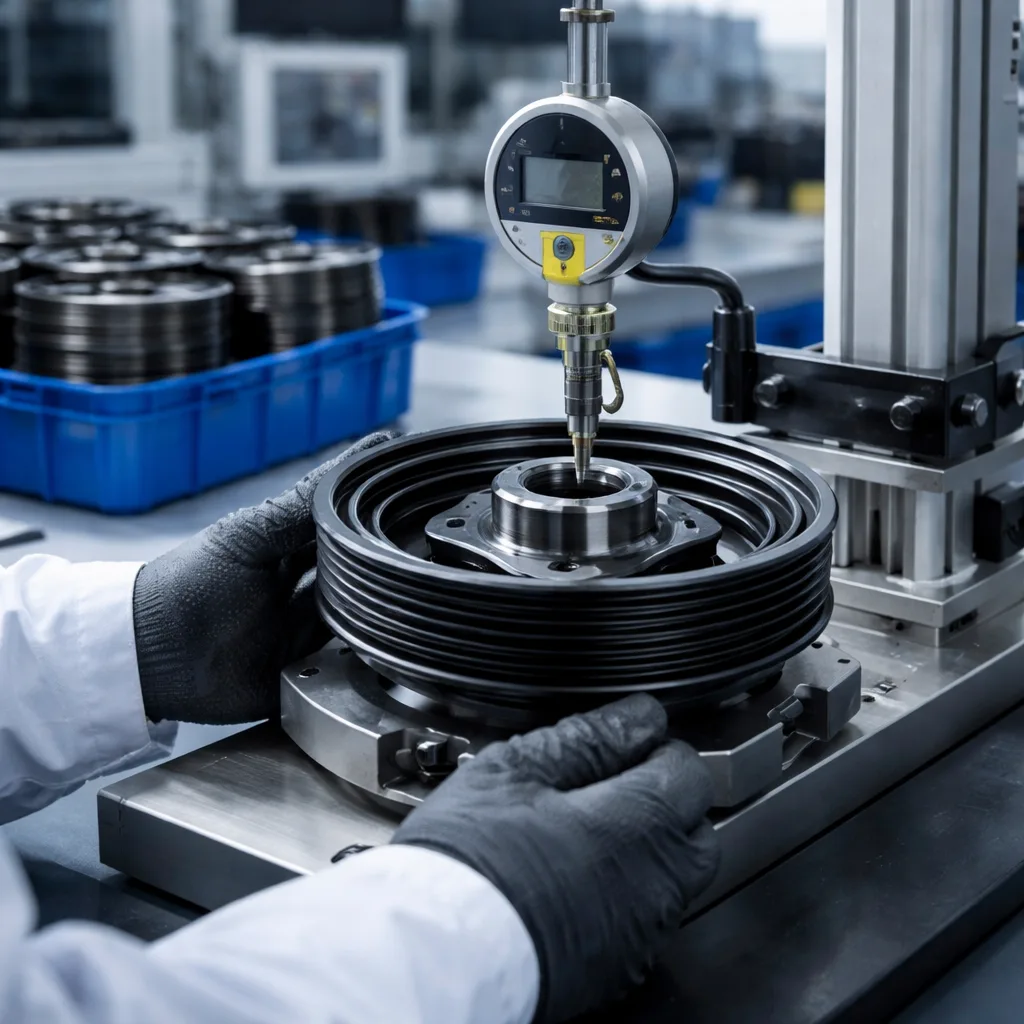

Failure Modes: What Validation Is Trying To Prevent

Validation should catch problems while process changes are still manageable. It is cheaper to reject a first article than to sort a shipment or handle warranty returns.

A practical validation plan should include:

  • Dimensional inspection against the approved drawing or master sample, with at least 3-5 first-article samples checked before production approval
  • Concentricity and radial runout measurement at agreed datum points, recorded with fixture method and gauge resolution
  • Static and dynamic balance verification where specified, including correction location and residual unbalance result
  • Torque retention and fastener interface checks, including bolt seating face, thread clearance, and mounting face flatness
  • Belt tracking observation on the target engine, accessory-drive rig, or validated test fixture
  • Corrosion resistance screening for the destination market, commonly 48-240 hours salt spray depending on coating and customer requirement
  • Noise, vibration, and harshness review when the programme risk justifies it
  • Road, rig, or bench durability testing for higher-volume programmes

For bonded damper designs, add rubber-to-metal adhesion, torsional stiffness comparison, heat ageing, and visual inspection after cycling. Buyer-controlled ageing may include thermal exposure, oil contact screening, humidity storage, and repeated acceleration/deceleration cycles on a rig. The exact figures should come from the customer specification, but the supplier should be able to state test temperature, duration, sample quantity, acceptance criteria, and failure reporting method.

For severe-duty export programmes, buyers may also require thermal cycling, humidity exposure, salt spray screening, and chemical resistance checks. If the application is linked to emissions durability or drivability validation, keep the test plan aligned with the wider vehicle programme. Published standards such as SAE J2527 and ECE R-83 may appear in adjacent validation discussions, but the scope must match the specific component, vehicle platform, and customer requirement.

Commercial Scenario: Distributor MOQ Is Not The Same As Programme MOQ

The right supplier has to fit your operating model. Aftermarket distributors and multi-location repair chains usually care most about MOQ, batch consistency, packaging, landed cost, and replenishment lead time. OEM and Tier-1 buyers put more weight on change control, documentation discipline, programme timing, capacity reservation, and delivery reliability.

Ask for:

  • MOQ by part number, tooling state, and packaging type
  • Standard production lead time and expedited lead-time option
  • Sample lead time, sample cost, and approval process
  • Price breaks at realistic quantities, such as 50, 100, 300, 500, and 1,000 pieces where the part family supports it
  • Incoterms, carton specification, palletisation, gross weight, volume, and export packing method
  • Spare tooling, gauge availability, or contingency plan for long programmes
  • Change notification procedure for material, process, supplier, or packaging updates
  • Claim handling process, response timing, and evidence required for analysis

MOQ depends on the route. A machined-from-existing-blank part may support a lower MOQ than a new casting, forging, or rubber-bonded damper design. Neutral bulk packaging usually has a lower threshold than private-label colour boxes because printed cartons, labels, inserts, and barcode rules create separate MOQ and set-up costs. In many aftermarket projects, practical MOQs range from 50-100 pieces for repeat references using existing tooling to 300-1,000 pieces where new tooling, special coating, or private packaging is required.

Split lead time by stage. Sample machining may take 10-25 days after drawing or sample confirmation. New tooling can add 25-45 days or more depending on casting, forging, or rubber mould requirements. Mass production after approval is commonly planned in a 30-60 day window, with extra time for coating capacity, packaging material, consolidation, inspection, and sea freight booking.

A stable supplier will state commercial boundaries before the purchase order. If MOQ, lead time, price validity, or change-control terms are vague at quotation stage, the same uncertainty usually appears later in delivery planning or the quality file.

Factory Audit Walkthrough: Follow One Lot From Material To Carton

A factory audit should prove that the plant can repeat the same part reliably. One acceptable sample is not enough. Follow a real or recently completed lot through the process and focus on the areas that drive production risk:

1. Incoming material control and traceability 2. Machining capability, fixture control, tool-life control, and gauge control 3. Dynamic balancing equipment, master part use, and calibration status 4. In-process inspection frequency and final inspection sampling plan 5. Bonding, curing, and rubber material control if the pulley includes a damper element 6. Surface treatment, corrosion protection, packaging, and lot segregation 7. Nonconformance handling, rework limits, scrap control, and CAPA discipline 8. Change-control records for material, process, tooling, and subcontracted operations

During the audit, ask for actual records from a live or recently completed production lot. Compare the inspection sheet, gauge records, material traceability, balance report, nonconformance log, and packing list against the physical parts. Pull a few parts from finished stock and ask the factory to recheck bore, offset, runout, groove profile, and mounting face flatness in front of the auditor.

A useful audit also tests process stability. Check whether operators have current drawings at the workstation, whether fixtures are identified, whether rejected parts are physically separated, whether coating thickness or salt spray records are available, and whether packaging labels match the lot record. For balancing, ask to see the machine calibration label, the last verification record, the correction method, and the maximum material removal limit.

A supplier that can explain rejection handling, gauge calibration intervals, balance correction limits, and rework boundaries is easier to manage in export programmes. It also gives your team a stronger basis for incoming inspection and future claim analysis.

Where Driventus Fits In A Sourcing Shortlist

Driventus manufactures engine and powertrain components in Taizhou, Zhejiang, with export coverage in more than 60 countries. For crankshaft pulley programmes, we support specification review, sample alignment, production control, inspection documentation, and packaging for international shipment.

Typical buyer requirements we can support include:

  • OE application cross-reference where the listing already defines one
  • Drawing-based or sample-based matching, including bore, offset, groove profile, bolt pattern, and timing mark review
  • Material, machining, balancing, surface treatment, and inspection control according to the approved specification
  • Batch traceability and document pack preparation for first article, shipment release, or customer audit
  • Private label, neutral packaging, barcode labels, carton marks, and pallet rules for distributor channels
  • Programme-specific inspection criteria, AQL definitions, and export packing rules
  • MOQ and lead-time planning by part family, tooling condition, packaging method, and forecast volume

For new projects, the most useful RFQ pack includes OE reference, application list, annual forecast, first-order quantity, target market, preferred Incoterm, packaging format, required certificates, and any drawing or sample data. If no drawing is available, we can review sample-based matching, but approval should still include measured dimensions, fitment confirmation, and production inspection criteria.

Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. If you are building a sourcing list around Lexus fitment, we can review your application data, target volume, document requirements, and packaging needs before release. Start with request a quote.

Frequently asked questions

Yes, when the buyer provides the application data and the OE reference already used in the listing. We validate fitment against the requested data, drawing, or sample evidence and do not claim manufacturer approval.

We can provide certification scope, inspection records, material traceability where applicable, control plan formats, packing specifications, and programme documents tied to the approved specification.

MOQ depends on part family, tooling state, packaging requirement, and forecast volume. Existing-tooling references may be quoted at lower quantities, while new tooling, special coatings, or private packaging usually require higher MOQ. We quote MOQ together with lead time and price breaks so buyers can assess landed cost and replenishment planning.

Yes. Where the programme needs a different offset, groove set-up, bore, keyway, marking, coating, or packaging, we can review [custom manufacturing](/oem-services.html) under drawing control.

Send your application data, OE reference, drawing or sample details, target volume, packaging needs, Incoterm, and required documents, and we will review the fitment and commercial structure with you. Start here: /contact.html

Request a Quote
Item Typical buyer check
MaterialHT250/FC250 cast iron, 45# steel, ductile iron, or aluminium alloy according to the approved application
HardnessRecorded to drawing requirement, commonly HB 170-240 for cast iron routes where specified
RunoutRadial and axial runout measured at defined datum points; many aftermarket programmes target 0.05-0.15 mm depending on diameter and drawing
BalanceStatic or dynamic balance verified for the rotating mass; define residual unbalance limit in g.mm or balance grade before quotation
Bore and keywayCorrect crankshaft interface, locating feature, chamfer, bolt clearance, and torque transfer method
Groove profileCorrect belt section, groove count, pitch, V angle or multi-rib profile, and alignment with adjacent pulleys
Surface finishBelt-contact finish controlled to drawing; avoid burrs, sharp edges, heavy paint build-up, and rust-prone untreated surfaces
MarkingBatch, lot, cavity, date code, or traceability identification agreed before production
