Camshaft Seat Manufacturer China: Sourcing Criteria

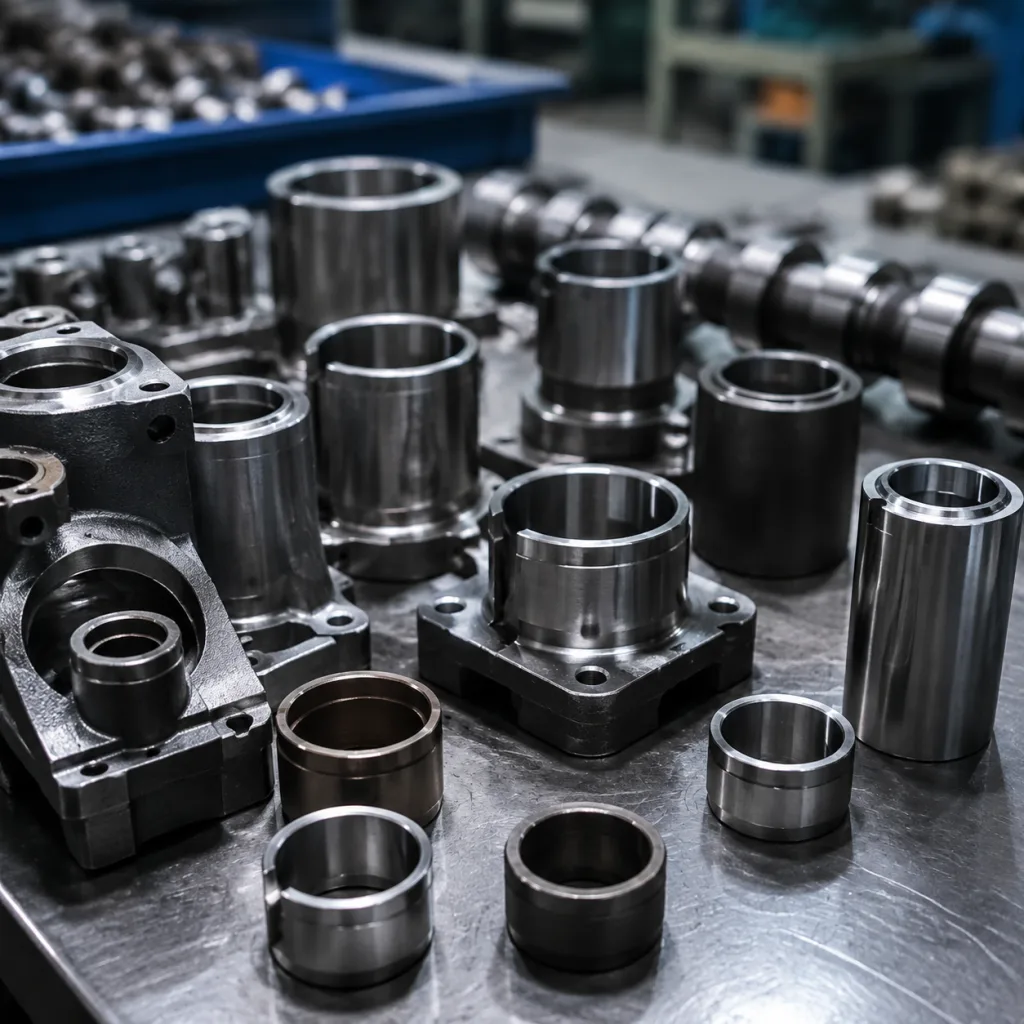

Specification deep-dive: where the part usually becomes risky

The highest-risk features are rarely the ones visible in a catalog photo. Material structure, bore geometry, flatness, hardness, surface roughness, cleanliness and edge condition determine whether the part installs cleanly and supports the camshaft as intended.

Material selection depends on engine design, load, lubrication regime, temperature exposure and mating components. A Chinese camshaft seat manufacturer should not substitute materials without written buyer approval. If a drawing exists, it controls. If production starts from a sample, the supplier should measure the reference part, identify wear-related uncertainty and propose a controlled specification before mass production.

Pay particular attention to these specification items:

• Material: alloy cast iron, steel alloy, powder metallurgy material or buyer-specified grade; common requirements may include controlled carbon content, alloying elements and microstructure acceptance.
• Hardness: controlled range according to the drawing or agreed standard, verified with a calibrated hardness tester. Planning examples may be HRC 20–35 for some steel components or HB 180–260 for some cast iron parts, but the drawing must decide.
• Heat treatment: case depth, core hardness, distortion limit or stress-relief requirement where the design requires it; define whether case depth is effective or total case depth.
• Surface roughness: controlled on functional faces; common planning targets may be Ra 0.8–1.6 µm on bearing or seating surfaces and Ra 3.2 µm on non-critical machined faces unless otherwise specified.
• Concentricity and roundness: measured on critical bore and outer diameter features that influence camshaft support and alignment; projects often define tighter controls such as 0.01–0.03 mm for critical alignment features when required by drawing.
• Flatness: controlled on seating surfaces to prevent uneven load distribution or assembly gaps; typical drawing-controlled targets may range from 0.02–0.05 mm on functional faces.
• Edge condition: chamfers, deburring and sharp-edge limits defined to reduce assembly damage and loose particles; common chamfer ranges are 0.2–0.5 mm where geometry allows.
• Cleanliness: oil, debris, chips and abrasive residue controlled before packing; washing, drying and magnetic or visual chip checks should be included where loose particles can damage oil passages.
• Corrosion protection: VCI bag, anti-rust oil, sealed inner packaging or desiccant depending on sea transit time and warehouse conditions, typically planned for 45–90 days of ocean freight and storage exposure.

Validation should start before mass production. Depending on part risk and customer requirements, the approval package may include a dimensional report, hardness result, material certificate, metallographic check, surface roughness record, installation trial and endurance feedback from the buyer side. For OEM or Tier-1 sourcing, PPAP documentation may be required under the IATF 16949:2016 approach, based on the customer’s submission level.

A practical route is: 3–10 prototype pieces for dimensional and assembly review, 30–100 pilot pieces for process stability, then a locked mass-production control plan. For new tooling or high-risk parts, request a first article report covering every drawing dimension and a separate critical-dimension chart for bore size, width, flatness and concentricity.

Clarify environmental and substance requirements early for EU and UK-bound shipments. REACH (EC) No 1907/2006 is relevant when importers require material and substance declarations. Packaging rules, customer-specific restricted substance lists and market-specific documentation should be agreed before tooling or sample approval, not after goods are packed.

The MOQ and lead-time trade-off buyers actually face

A camshaft seat project often fails commercially after the technical review looks acceptable. The reason is usually not the unit price alone. Tooling, sample development, heat-treatment trials, special gauges, inspection level, packaging, freight terms and release pattern all affect landed cost.

Use the table below as a planning model, not a promise. Actual figures depend on part complexity, material availability, tooling status, inspection depth and order mix.

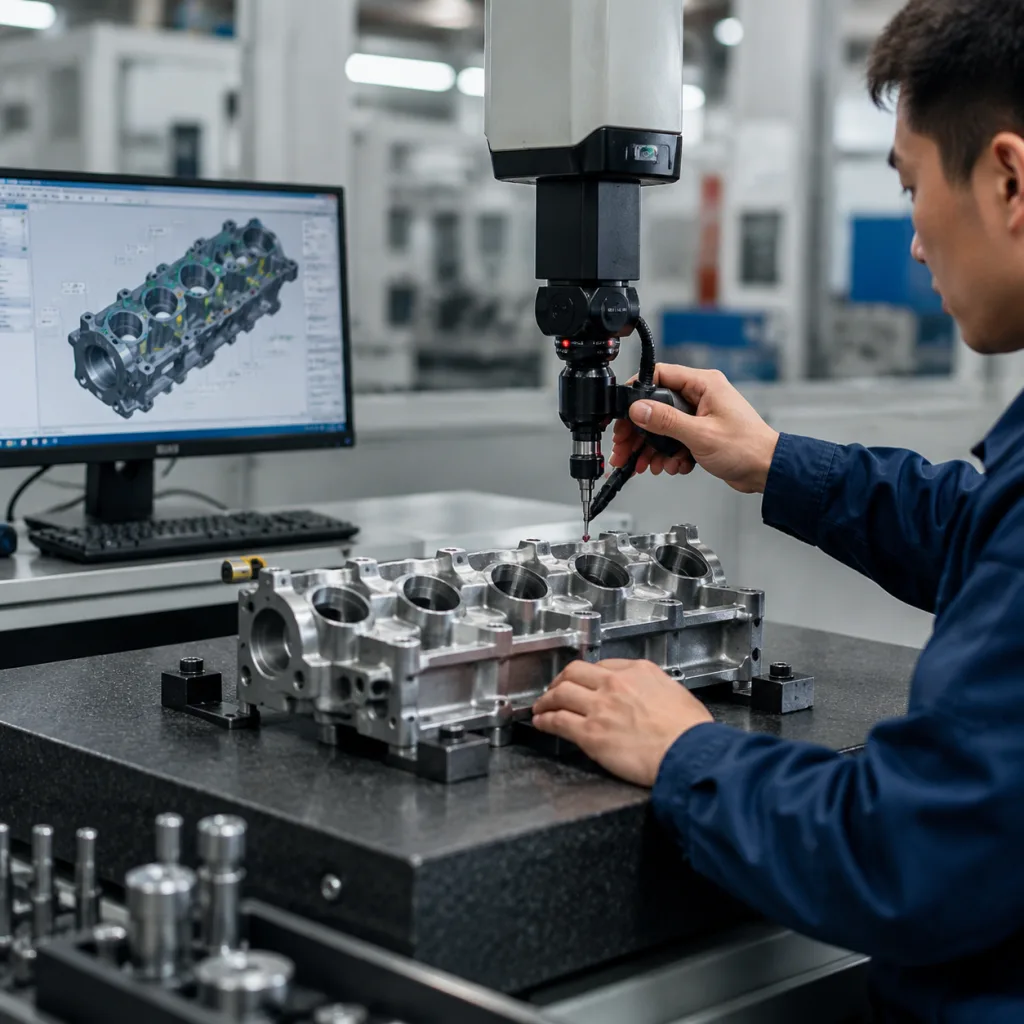

Scenario: developing a camshaft seat from an incomplete sample

Many sourcing projects do not begin with a clean drawing. A buyer may have a worn reference part, a discontinued application, an unstable current supplier or partial engine-family information. In that situation, the supplier’s engineering discipline matters as much as its machining capacity.

The danger is obvious: if the supplier simply copies the sample, it may also copy wear, corrosion, deformation or the previous supplier’s error. Reverse engineering must separate measured dimensions from functional design intent.

Driventus supports custom manufacturing for engine components where the buyer provides drawings, 3D files, samples or specification targets. A controlled development process normally follows these steps:

1. Confirm application, annual volume, target market and compliance requirements. 2. Inspect the sample or drawing and identify critical-to-function dimensions. 3. Measure the sample by CMM, bore gauge, micrometer, height gauge, surface roughness tester or hardness tester as applicable. 4. Compare sample measurements against likely wear areas and assembly interfaces. 5. Propose material, process route, inspection plan and packaging method. 6. Define open points, including tolerances that cannot be safely inferred from a worn sample. 7. Produce a prototype or first sample batch, commonly 3–10 pieces for initial review. 8. Submit dimensional report, material confirmation and hardness data where relevant. 9. Adjust the specification based on buyer assembly trial, bench test or field feedback. 10. Lock the approved specification, revision level, control plan and packaging standard for batch production and future repeat orders.

This approach is useful when replacing an inconsistent supply source, localising a legacy part family, building a private-label range for distributors or developing a controlled alternative for regional repair networks.

Version control is critical. Drawings, samples, inspection reports and approved deviations should be dated and traceable. A practical rule is to freeze the revision only after the buyer confirms installation fit, oil passage clearance where applicable, mating-surface contact and packaging suitability.

Driventus does not claim approval, affiliation or endorsement by any vehicle manufacturer. All brand references are used only to identify fitment, market demand or comparison samples.

Q&A scorecard for comparing China suppliers

When comparing a camshaft seat manufacturer in China, the best supplier is not automatically the cheapest one. A quotation that is USD 0.10–0.30 lower per piece can become more expensive if it leads to sorting, air freight, line stoppage, warranty replacements or delayed container consolidation.

Use the questions below as a supplier scorecard. The answers should be written, specific and supported by records.

Does the supplier manufacture in-house or trade from multiple workshops? In-house production is easier to audit and trace. Trading can work, but only when sub-supplier control and change notification are clear.

Are IATF 16949:2016 and ISO 9001:2015 certificates valid and relevant? Check the issuing body, site address, expiry date and scope. Then confirm the quoted camshaft seat is linked to relevant control plans and inspection records.

Can the supplier prove measurement reliability? Measuring instruments should be calibrated, identified and traceable to inspection records. Gauge resolution must match the tolerance being claimed.

Is there a product-family control plan? A control plan shows how material, machining, heat treatment, inspection, packing and release are managed. Without it, repeatability depends too heavily on individual operators.

Will the supplier provide first article inspection before mass production? For drawing-controlled parts, first article inspection should cover all drawing dimensions. For higher-risk features, ask for separate critical-dimension tracking.

Are batch records complete? Material, machining and heat-treatment records should link to batch numbers, inspection reports and carton labels.

How are engineering changes handled? Material, tooling, process, sub-supplier, drawing revision and packaging changes should require written approval when specified by the buyer.

Can the supplier support the required packaging model? Confirm neutral, private-label or customer-specified packaging, plus barcode format, carton strength, anti-corrosion method and pallet requirements.

What happens when a claim occurs? Ask for the written response process: containment, root-cause analysis, corrective action, replacement policy and required evidence.

Can supply be scheduled? For high-turnover applications, safety stock or scheduled releases may be more important than a small price reduction.

Does the commercial offer show MOQ breaks clearly? Compare 300, 500, 1,000 and 2,000 pieces where relevant. Separate repeat-order price from tooling, sample and packaging charges.

Does lead time include the whole export process? Some quotations mean factory production only. Confirm whether raw material, machining, heat treatment, inspection, packing and export booking are included.

For warranty-sensitive parts, request a video audit, third-party inspection or on-site audit before scaling volume. Score suppliers on unit price, tolerance capability, traceability, documentation response time, packaging reliability and corrective-action discipline. Select on total landed risk, not headline price alone.
