Camshaft Phaser Land Rover Wholesale Sourcing Guide

Camshaft phasers are not high-volume consumables. That is exactly why they deserve tighter sourcing control. A distributor may sell fewer phasers than filters or brake pads, but one poor internal clearance, blocked oil feed, weak locking pin, or incorrect phasing range can create cold-start rattle, cam/crank correlation faults, comeback labor, and expensive warranty disputes.

A credible camshaft phaser Land Rover wholesale program starts with fitment accuracy, then proves manufacturing repeatability. Buyers should look past catalog coverage and ask how the supplier controls vane and rotor clearance, oil-port geometry, sprocket datum runout, lock-pin release pressure, leakage, angular travel, cleanliness, end-of-line testing, batch traceability, and packaging protection. The goal is not to buy a part that looks right on a desk. The goal is to buy a part that behaves correctly once hot oil, chain load, and ECU adaptation are involved.

Driventus manufactures engine and powertrain components in Taizhou, Zhejiang, and supplies B2B customers including distributors, wholesalers, OEM/Tier-1 programs, and repair-chain purchasing teams. This article sets out a practical sourcing framework for Land Rover application phasers: where programs fail, what to audit, how to stage MOQ and lead time, what to test before launch, and how to structure RFQs and warranty controls. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

Start With the Fitment Decision, Not the Catalog Page

A camshaft phaser changes camshaft position relative to the crankshaft through controlled engine-oil pressure acting on an internal rotor-and-vane assembly. On Land Rover applications, the same visual family can hide important differences: intake versus exhaust, left bank versus right bank, timing layout, oil-control route, sprocket tooth profile, lock position, and engine-generation changes.

The first sourcing decision is therefore not “which supplier has the lowest quote?” It is “which SKU definition is safe enough to buy in volume?” Image matching is weak evidence. So are partial interchange lists. RFQs sometimes include shortened OE-style references such as OE 06A… or OE 11251…, but exact brand-owned numbers should be checked only against the buyer’s approved catalog data, physical sample, or validated fitment database.

Use a fitment decision sheet before requesting volume pricing:

</tr></thead><tbody> </tbody></table>For wholesale launch, avoid building a broad program from uncertain references. A controlled start with 3–8 high-confidence SKUs is usually safer than a 20-SKU list built from thin interchange data. For each approved reference, keep one golden sample, one measurement report, one packaging standard, one carton label layout, and one batch-code rule.

Buyers can review related engine parts in our catalog, including timing and valvetrain-adjacent components. For a narrower starting point, the engine components page is useful before submitting an RFQ package.

Where Phaser Programs Fail During Supplier Qualification

A Land Rover application phaser can pass a visual check and still fail in service. The weak point is often hidden inside the assembly: burrs in oil holes, unstable vane clearance, poor cleaning, inconsistent heat treatment, weak spring force, or a lock pin that releases outside the intended pressure window.

Do not qualify a supplier from a catalog line alone. Ask for evidence that connects drawings, process controls, test data, traceability, and corrective action. Certificates help, but they are not the audit. The audit is whether the factory can repeatedly machine, clean, assemble, and test a hydraulic timing component without letting variation escape.

Request these files before pilot approval: process flow chart, PFMEA, control plan, gauge list, calibration status, cleaning specification, end-of-line test method, and the last three internal nonconformance summaries for the same product family.

Decision point	What to confirm	Why it matters
Engine identity	Engine code, displacement, fuel type, model years, market version, emissions version, and mid-year changes	Prevents one phaser being assigned to the wrong engine generation
Installation position	Intake or exhaust, bank 1 or bank 2, left or right orientation where applicable	Avoids mirrored or position-specific errors
Chain interface	Chain pitch, sprocket tooth count, tooth profile, sprocket datum face, and chain alignment	Reduces timing noise, wear, and misalignment risk
Mounting geometry	Hub bore, central bolt thread, bolt seat, dowel position, axial height, and datum runout	Confirms the part fits mechanically before function is tested
Hydraulic layout	Oil-port count, port angle, feed path, vane clearance, leakage path, and blocked-passage risk	Determines whether the phaser can respond correctly under oil pressure
Locking behavior	Full advance, full retard, or neutral park position; lock-pin release pressure	Affects cold-start noise, start strategy, and cam adaptation
Control expectation	Advance/retard angle range, return stability, response time, and leakage limit	Separates a visual copy from a functional replacement

</tr></thead><tbody> </tbody></table>Agree which features are 100% inspected, which are sampled per lot, and which are controlled by tool-life management. A sensible pilot requirement is first-article inspection on 3–5 pieces per SKU, followed by dimensional sampling every 50–100 pieces during pilot production or by agreed AQL during mass production.

If raw end-of-line data cannot be shared, require at least a lot summary: quantity tested, quantity failed, failure mode, rework decision, and final accepted quantity. Driventus operates under IATF 16949:2016 and ISO 9001:2015. Buyers can review our quality system when preparing supplier questionnaires, PPAP-style requests, or factory audit plans.

Choose MOQ and Lead Time by Scenario

MOQ should follow the commercial scenario, not the other way around. Land Rover phaser demand may split by bank, cam position, and engine generation, so a low unit price on the wrong mix can leave the buyer with slow-moving inventory and missing coverage for the parts technicians actually need.

Use scenario planning before negotiating price breaks:

Failure mode	Audit evidence to request	Buyer risk reduced
Timing noise or chain misalignment	Cpk records for datum faces, bores, sprocket surfaces, rotor faces, and critical stack heights; for special characteristics, buyers often request Cpk ≥1.33 after pilot stabilization and 100% sorting until capability is proven	Rattle, offset timing, uneven chain load
Early wear or scoring	Heat-treatment records, hardness range, case depth where applicable, furnace batch traceability, and separate checks for sprocket teeth and sliding faces	Tooth wear, rotor scoring, surface failure
Sticking or delayed movement	Deburring records for oil holes, vane slots, locking-pin bore, and sprocket teeth; magnification checks and blocked-hole inspection	Vane drag, debris release, hydraulic delay
Oil-control faults	Ultrasonic or equivalent cleaning process, particle-control limits, blocked-passage checks, and sealed handling after final wash	Sticking vanes, contaminated oil passages, early returns
Incorrect assembly behavior	Spring, lock pin, seal, fastener torque, lubrication, and orientation verification; poka-yoke for intake/exhaust or left/right variants where possible	Cold-start rattle, wrong phasing, unstable return movement
Escaping nonconforming parts	Functional-test data for advance/retard response, holding pressure, leakage, angle verification, and lock/unlock confirmation	Field claims, diagnostic faults, unstable cam adaptation
Slow containment	Batch code, material lot, operator station, final test record, retained sample, and shipment linkage	Faster isolation, recall control, warranty analysis

</tr></thead><tbody> </tbody></table>Safety stock is often 8–12 weeks for importers serving multi-branch wholesale channels, but the number should be calculated rather than copied from another category. Include supplier production lead time, inland movement, port time, sea transit, customs clearance, DC receiving, branch transfer, and forecast error. A simple reorder trigger is average weekly sales × total replenishment weeks + safety stock, reviewed monthly for the first six months.

Price and MOQ are linked. Low MOQ helps market entry, but it increases the per-piece share of setup, inspection, carton printing, export handling, and inland freight. Larger orders usually improve unit cost through longer machining runs, fewer setup changes, more efficient heat-treatment batches, and better carton or pallet utilization. Ask suppliers to quote at two or three breaks, such as 100, 300, and 1,000 pieces per SKU, with product price separated from tooling, private-label setup, special inspection, and courier sample cost.

Packaging must be locked before pilot production. A phaser package should protect sprocket teeth, machined faces, oil passages, and corrosion-sensitive surfaces during sea freight and warehouse storage. Typical controls include VCI bag or oil-resistant wrap, covered oil ports where practical, rigid inner support, 5-layer export cartons for heavier SKUs, pallet stretch-wrap, desiccant for humid lanes, and carton drop-test review for private-label packaging.

For non-standard packaging, controlled labeling, or buyer-owned drawings, Driventus can support custom manufacturing after technical review. This may include private-label cartons, barcode requirements, inspection reports, batch coding, pallet labels, master-carton quantity control, and agreed change-notification rules.

Run This Validation Sequence Before Volume Release

Sample approval should answer one question: can this phaser be bought repeatedly without creating fitment, function, or warranty surprises? The buyer does not need to duplicate a vehicle manufacturer’s full development program, but the validation sequence must prove enough for aftermarket supply.

Use the steps in order. Skipping ahead saves little if the part later fails on a basic datum or oil-port issue.

1. Lock the reference: confirm catalog fitment, installation position, part marking, carton label, and any intake/exhaust or bank-specific notes against the same sample group. 2. Measure critical geometry: compare bolt circle, center bore, oil feed path, sprocket alignment, tooth form, datum surfaces, central bolt seat, dowel position, thread depth, and overall height against the approved sample, drawing, or buyer benchmark. Inspect at least 3 pieces per SKU and record actual values, not only pass/fail results. 3. Check material and hardness: confirm material grade, surface hardness, and heat-treatment consistency on representative samples, especially wear-critical areas. If destructive testing is limited, perform it on pilot samples and retain the report as the baseline. 4. Test leakage and pressure response: verify internal leakage, lock-pin release, advance/retard movement, and return behavior using controlled oil pressure and temperature. Require the supplier to state oil viscosity or test-fluid equivalent, pressure range, temperature, dwell time, and leakage limit. 5. Verify timing angle: confirm the specified angular range without sticking, delayed movement, or over-travel. Measure advance and retard end stops and document travel in crankshaft or camshaft degrees according to the buyer’s convention. 6. Cycle for noise and backlash: inspect for loose components, excessive backlash, abnormal rattle, and inconsistent lock-up after repeated cycling. A 500–1,000 cycle bench plan on pilot samples can expose weak spring force, lock-pin sticking, or vane drag. 7. Review cleanliness: look for machining chips, abrasive residue, blocked oil passages, or packaging debris that could enter the engine oil circuit. Use gravimetric particle checks, borescope inspection, or filter-membrane review depending on lab capability. 8. Confirm on vehicle or engine bench where possible: scan for cam/crank correlation faults, adaptation limits, and abnormal start-up noise. Record oil grade, oil temperature, idle speed, cold-start condition, fault codes, and before/after adaptation values.

A cost-controlled importer package can use 5 pieces for dimensional and packaging review, 3 pieces for hydraulic bench testing, 1–2 pieces for destructive material checks, and 2–4 pieces for vehicle or installer trial where the application is available. Do not release the regular order until the same sample group supports the catalog, label, part marking, and installation-position decision.

Published frameworks can sit in the supplier file, including IATF 16949:2016 and ISO 9001:2015 for management systems and REACH (EC) No 1907/2006 when chemical substance compliance is needed for EU import documentation. Packaging, labeling, restricted-substance declarations, and destination-market documents should be settled before shipment, not corrected at customs.

What a Strong RFQ Answers Before the Supplier Asks

A weak RFQ creates wrong samples, slow quotations, and unnecessary tooling debates. A strong RFQ lets the manufacturer identify the product family, check feasibility, choose the production route, and quote the right commercial structure.

Before sending the inquiry, answer these questions:

Which vehicle range is covered? Include model, engine, displacement, fuel type, market, emissions version where known, and production years.
Where is the phaser installed? State intake or exhaust, left or right bank where applicable, and timing-layout notes.
What reference data is trusted? Provide the buyer’s internal SKU, aftermarket reference, supersession history, or OE-style cross-reference such as OE 06A… only when it already appears in approved data.
What sample evidence exists? Note whether a new sample, used sample, drawing, 3D scan, marking photos, or measurement report is available.
Which features are critical? List sprocket tooth count, chain pitch, center bore, bolt thread, oil-port layout, locking position, phasing angle, and known differences between intake/exhaust or bank 1/bank 2 variants.
What is the demand plan? Share annual forecast by SKU and region, expected order cycle, sample quantity, pilot quantity, first regular order, and replenishment frequency.
What market position is required? Clarify entry-level price, premium warranty position, private-label program, or OE-service benchmark so the quoted specification is not underbuilt or commercially unrealistic.
How should it be packed? Define neutral, private label, or bulk pack; barcode format; carton strength; palletization; label language; country-of-origin statement; and inner protection.
Which documents are required? Request inspection report, functional test record, material declaration, certificate copy, traceability file, and preferred test-data format.
How will it ship? State EXW, FOB, CIF, air, sea, rail, courier sample shipment, or consolidated container.
What quality rules apply? Include AQL level, special characteristics, retained samples, warranty review process, and change-approval expectations.

For new-tooled or modified phasers, define tooling ownership early: exclusive, shared, or supplier-owned. Control drawing revisions by version. A small undocumented change to oil-port timing, rotor clearance, spring force, or locking-pin geometry can shift camshaft adaptation values and create field issues that are hard to diagnose once parts are distributed.

Attach clear photos of both faces, side profile, central bore, oil passages, markings, and original packaging label. Add caliper readings for overall height, sprocket outside diameter, bore diameter, bolt-hole pattern, and tooth count even if a full drawing is unavailable. If sending samples, mark each unit with the RFQ number and position, such as “LH intake” or “bank 2 exhaust,” and state whether it is new or removed from a vehicle. Used samples help with geometry, but they are unreliable benchmarks for backlash, leakage, and spring force.

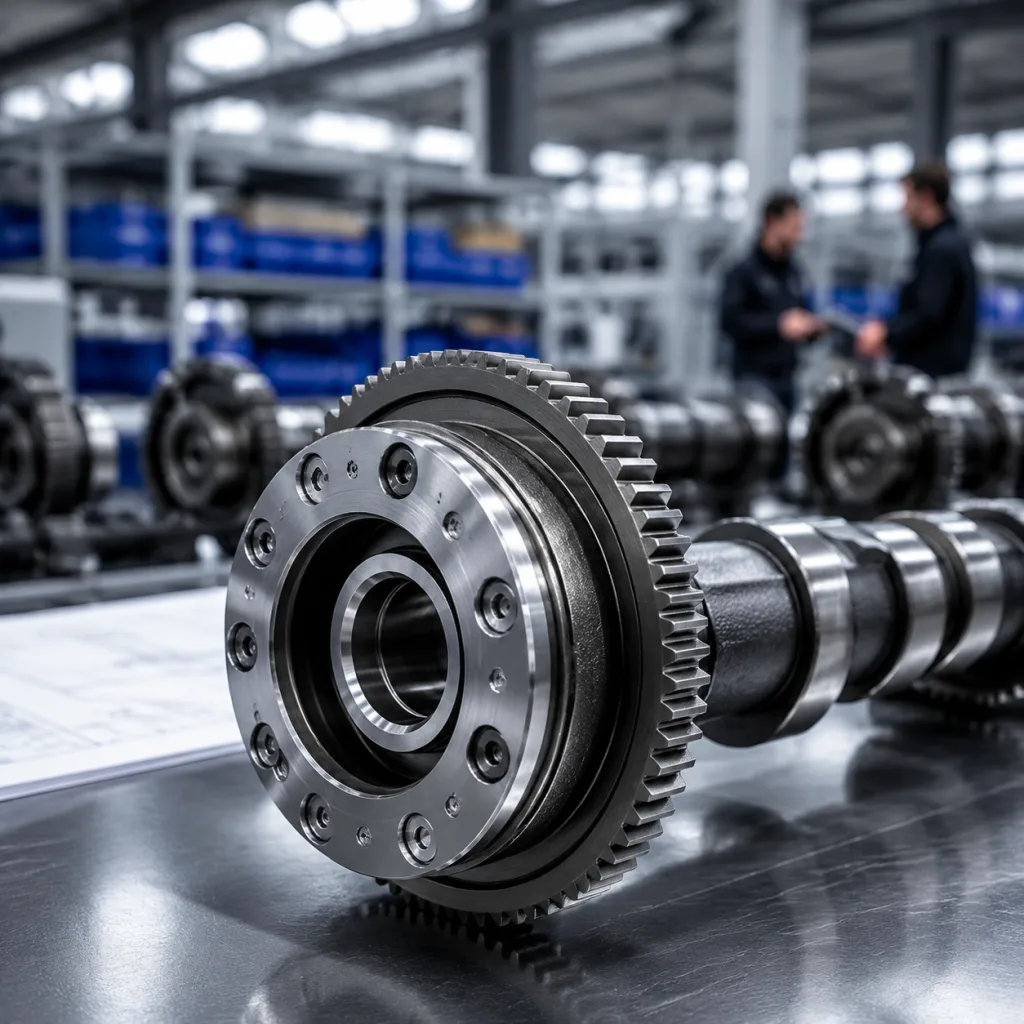

What a Strong RFQ Answers Before the Supplier Asks

Commercial Controls That Prevent One Bad Batch From Becoming a Program Problem

Phaser sourcing needs the same discipline used for timing kits, oil pumps, turbocharger actuators, and other engine-critical components. The part cost may be moderate. The failure cost is not. Labor reimbursement, diagnostic time, customer dissatisfaction, and warranty administration can quickly exceed the saving from a cheaper quote.

Set the rules before the first production order:

Scenario	Practical order structure	Watch point
New supplier evaluation	5–20 sample pieces per reference for dimensional inspection, functional testing, packaging review, installer feedback, and retained comparison	Do not combine sample approval with a broad volume order
Controlled market launch	100–300 pilot pieces per reference after test approval; 50–100 pieces may suit slow-moving references with existing tooling	Monitor early sell-through and returns before expanding branch stock
Faster-moving replacement SKU	300–500 pieces where demand is proven and tooling is stable	Confirm packaging, test coverage, and traceability do not change at higher volume
Private-label program	MOQ depends on artwork, barcode rules, carton structure, master-carton quantity, and label language	Packaging setup can drive MOQ as much as machining capacity
New-tooled or modified phaser	Pilot timing may extend to 60–90 days or longer before release	Tooling ownership, drawing revision, and validation scope must be agreed early
Existing-tooling replenishment	Previously approved SKUs may ship in about 25–45 days after deposit and artwork approval	Recheck lead time when component blanks or heat-treatment capacity are constrained

</tr></thead><tbody> </tbody></table>Treat any sharp price reduction as a change request. Ask what moved: material source, heat treatment, machining tolerance, test coverage, packaging, warranty reserve, or freight basis. For camshaft phasers, the useful comparison is not quote price. It is landed cost per accepted part, including rejected samples, warranty debit risk, replacement freight, and inventory tied up in slow-moving variants.

Driventus recommends a controlled sell-through plan for the first production shipment. Place initial stock with technically capable customers, collect installation feedback, monitor early returns, then expand to the wider branch network. This reduces the chance of repeating an application or catalog error across multiple markets.

Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. We do not claim approval, sponsorship, or endorsement by any vehicle manufacturer.

Frequently asked questions

MOQ depends on SKU complexity, tooling status, packaging, testing requirements, and forecast. New wholesale programs often begin with 5–20 sample pieces and a 100–300 piece pilot batch per reference before regular production. Existing-tooled SKUs can usually support lower MOQs than new-tooled or private-label programs. Driventus can quote MOQ after reviewing fitment data, target references, and annual demand.

Yes. Private-label or neutral packaging can be discussed for qualified B2B orders. Buyers should provide carton artwork requirements, barcode format, label content, packing method, inner protection, master-carton quantity, pallet requirements, and destination-market compliance needs before production confirmation.

Common documents include inspection reports, functional test records, material declarations, packing lists, batch traceability data, and certificates related to IATF 16949:2016 and ISO 9001:2015. REACH (EC) No 1907/2006 declarations may also be requested when required for EU supply.

If you are building a camshaft phaser sourcing program for Land Rover applications, send your fitment list, forecast, sample status, target MOQ, required lead-time, and packaging requirements. Driventus can review the RFQ and respond with a practical supply proposal at [request a quote](/contact.html).

Request a Quote

Control point	Recommended requirement
Golden sample	Approved sample retained by both buyer and supplier, with photos and measurement record; seal and label it with SKU, revision, approval date, and application position
Batch marking	Date code or lot code on part and carton where feasible; carton code must link to production date, test record, and material lot
Inspection level	Agreed AQL plus 100% functional test for defined characteristics when required; classify cosmetic defects, burrs, oil-port blockage, and packaging damage as major or minor defects
Change control	Written approval before any material, process, tooling, test method, drawing, supplier, coating, cleaning chemistry, or sub-supplier change
Warranty analysis	Return review covering oil contamination, installation damage, catalog error, and product defect; require photos, fault codes, mileage after installation, oil condition, and vehicle application
Spare samples	Retain production samples from each shipment for comparison and dispute resolution; common practice is 2–5 pieces per batch or per agreed lot size
Claims process	Define response time, evidence needed, credit method, replacement method, and containment action; initial acknowledgement within 48 hours and preliminary 8D response within 5 working days is a workable B2B target
Forecast review	Update demand, lead time, and SKU priorities after pilot sell-through and early warranty feedback; adjust MOQ only after 90–180 days of real channel data
