Bent Valve Valve Guide: Diagnosis and Sourcing Notes

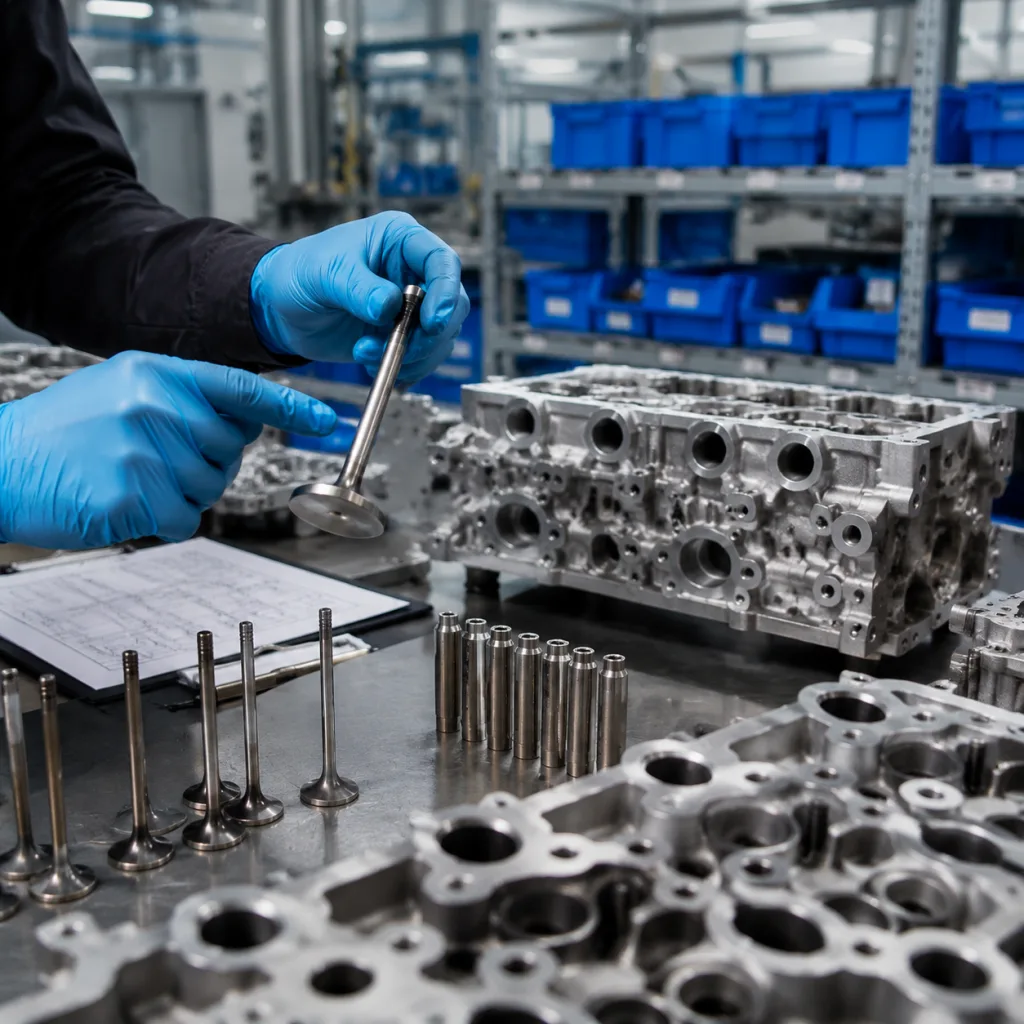

Step-by-Step Inspection Before Parts Are Released

A cylinder head that has suffered piston-to-valve contact should not pass on visual inspection. A guide bore can look clean and still be tapered, oval, cracked, or outside the engine maker’s service limit. Inspect the valve and guide together; either one can hide the other’s damage.

Use this sequence before approving reuse or replacement:

1. Confirm valve straightness. Roll the stem on V-blocks or measure runout with a dial indicator; many workshops reject reused valves at 0.03-0.05 mm TIR or any visible wobble. 2. Measure valve stem diameter. Use a calibrated 0.001 mm micrometer at the top, middle, and lower running area to find wear, taper, or local scoring. 3. Measure guide internal diameter. Use a small-bore gauge, ball gauge, or air gauge with 0.001-0.002 mm resolution; measure at three depths and at 90-degree clock positions. 4. Calculate stem-to-guide clearance. Subtract measured stem OD from measured guide ID and compare the result with the engine service specification, not a generic clearance. 5. Check guide-to-seat alignment. Confirm that the seat contact band is even after machining; seat runout targets are often below 0.03-0.05 mm depending on engine design. 6. Inspect seal seating diameter. Make sure the seal locates squarely, grips correctly, and matches the guide top profile; a loose seal can look like guide wear in the field. 7. Check installed height and protrusion. Incorrect height can interfere with spring hardware, stem seals, or port flow; hold protrusion to the drawing, often within ±0.10 mm where specified. 8. Clean and verify oil paths. After reaming or honing, wash the head until a white lint-free wipe shows no abrasive residue in the guide bore. 9. Record the result. Keep measurements with the job record so repeat claims can be reviewed against evidence.

For sourcing, define the measurement method, gauge resolution, sampling plan, acceptance criteria, and reaction process for nonconforming parts. A practical incoming plan is 100% checking on first-article and first-shipment critical dimensions, then AQL or agreed batch sampling once Cp/Cpk evidence is stable. Driventus can support drawings and application lists through custom manufacturing when distributors need a private-label or programme-specific valve guide range.

Spec Deep-Dive: Dimensions Buyers Cannot Leave Vague

Valve guide performance is decided by geometry, material, bore finish, installation method, and cylinder-head compatibility. Small dimensional errors create large field effects because the guide defines the valve centreline and carries heat away from the valve head. A purchasing specification should go beyond nominal length and diameter.

Control these points in the drawing or purchase file:

• Material: sintered iron, cast iron, manganese bronze, phosphor bronze, or another application-specific material; require grade, hardness range, and any impregnation or heat-treatment note.
• Outer diameter tolerance: set for the correct interference fit in aluminium or cast-iron heads; common press fits are roughly 0.03-0.07 mm in aluminium and 0.02-0.05 mm in cast iron, but the OE drawing should govern.
• Internal diameter allowance: state whether the guide is finished, semi-finished, or ream-to-size; semi-finished IDs often leave 0.05-0.20 mm for final sizing after pressing.
• Roundness and taper: prevent the stem from being supported at one high spot; many aftermarket programmes specify ≤0.01 mm roundness and ≤0.01-0.02 mm taper on critical IDs.
• Concentricity: control ID-to-OD alignment to protect seat machining accuracy; request a clear datum scheme and a practical limit such as 0.03-0.05 mm where design permits.
• Surface finish: define an internal bore finish that retains oil without accelerating stem wear; Ra 0.4-1.6 µm is a common working band, subject to material and engine requirement.
• Chamfers and lead-ins: prevent shaving or galling during press-fit installation; define angle, width, and burr-free condition instead of saying “deburr” only.
• Hardness and microstructure: verify by batch inspection where the drawing or buyer specification requires it, with records tied to heat or lot number.
• Packaging: use separated cavities, sleeves, tubes, or VCI protection to avoid nicks on precision diameters during sea freight and branch handling.
• Identification: show part number, lot reference, drawing revision, quantity, and application data clearly enough for warehouse and branch picking.

Relevant management and compliance references include IATF 16949:2016 for automotive quality management, ISO 9001:2015 for quality management systems, and REACH (EC) No 1907/2006 for chemical substance obligations in EU supply chains. For emissions context, ECE R-83 matters because poor valve sealing and oil consumption can affect tailpipe results, although it is not a valve guide manufacturing standard.

Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment identification only.

Supplier Comparison: Controls That Separate Stable Supply From Repeat Claims

A bent valve valve guide problem is usually found at workshop level, but repeat prevention starts in procurement. Buying only by nominal size or catalogue coverage is risky. Similar-looking guides can differ in shoulder position, top profile, bore allowance, material, and post-installation process.

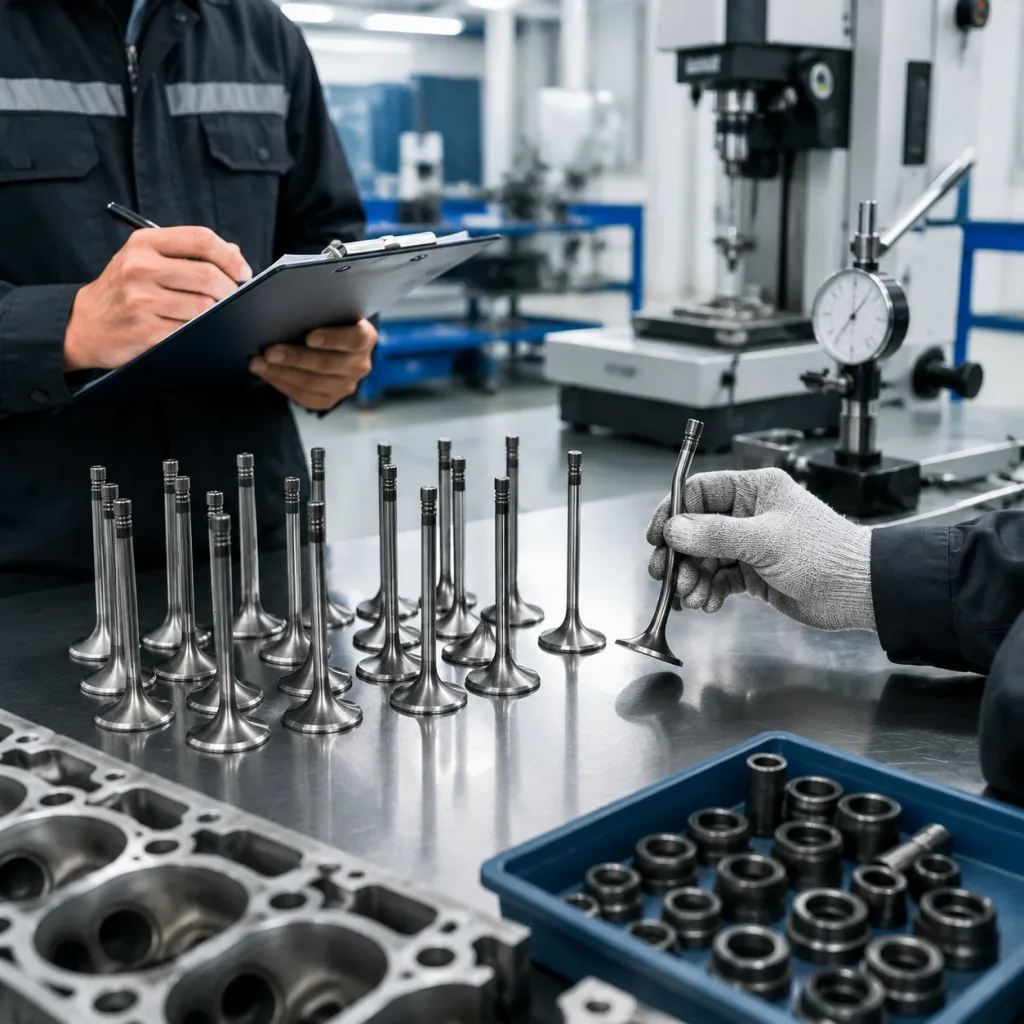

Use supplier controls that prove the part can survive real distribution and repair conditions:

Decision Framework: Replace the Guide or Reuse It?

Replace the guide when measured clearance exceeds the service limit, when the bore is cracked, scored, tapered, or bell-mouthed, or when the seat cannot be machined concentrically to the guide axis. Replacement is also advisable after severe piston contact, even if the outside of the head looks clean. The guide may be distorted internally while showing no obvious external damage.

The workshop environment matters. If the shop cannot measure the guide accurately to 0.001-0.002 mm resolution, reusing a questionable guide in a high-labour head job is a weak decision. For semi-finished guides, the process must include correct pressing, reaming or honing, cleaning, and final clearance verification before assembly. Typical controls include heating aluminium heads as specified, using a shouldered driver, pressing square to the bore, checking protrusion, finishing the ID only after installation, then re-cutting or verifying the valve seat from the installed guide axis.

For procurement planning, stock guides with related repair parts instead of treating them as slow-moving accessories. Timing-failure repairs may need valves, guides, stem seals, head gaskets, timing kits, and water pumps in the same job. Coordinated supply reduces downtime and helps wholesalers build repair kits for common engine families. A practical rule is to map the top 20-30 engine families by timing-failure and cylinder-head repair frequency, then hold valves, guides, and seals in matched quantities.

A purchasing brief should state the application list, annual forecast, target MOQ, price target or landed-cost ceiling, packaging format, inspection level, drawing or sample status, target market, and whether the guide is supplied finished or semi-finished. Also specify neutral boxes, private-label cartons, barcode labels, kit packing, or bulk workshop packs. Those choices affect unit cost, lead time, and minimum run size. Buyers can request a quote with drawings, samples, or target applications for review.
