Transmission Mount Specifications for B2B Sourcing

A transmission mount is small enough to sit in one hand, yet it can decide whether a repair feels smooth or noisy, whether a bracket bolts up in seconds or fights the technician, and whether a distributor sees repeat orders or warranty claims. The sourcing risk is not limited to application matching. The mount must repeat its geometry, rubber hardness, bond strength, corrosion protection, and fatigue behaviour after the first approved sample.

This article treats transmission mount specifications as a buying control system, not a catalogue exercise. It is written for procurement teams, sourcing engineers, and import managers who need to compare drawings, reverse-engineered samples, inspection plans, supplier capability, MOQ, lead time, PPAP-style documents, and landed-cost assumptions for aftermarket and OE-service programmes.

Driventus manufactures rubber-to-metal powertrain mounting components in Taizhou, Zhejiang, under IATF 16949:2016 and ISO 9001:2015 controls, with export supply to more than 60 countries. Driventus is an independent aftermarket manufacturer; brand names and OE-style references are used for fitment identification only.

Decision Gate 1: Prove the Mounting Geometry Before You Quote

Do not start with the vehicle description. Start with controlled geometry.

A transmission mount should be specified from a drawing, verified 3D data, or a validated physical sample. A catalogue cross-reference can identify the likely part family, but it cannot prove bolt alignment, bracket offset, installed angle, or loaded height. Small errors here create large sourcing problems: preload, bracket interference, slow assembly, changed driveline angle, vibration, and fitment disputes.

Key dimensional items to capture include:

</tr></thead><tbody> </tbody></table>For catalogued aftermarket parts, treat cross-reference data as an index, not approval evidence. If an inquiry refers to an OE-style number such as 06A… or 11251…, the buyer should still provide application details, installation position, photos, and sample measurements where possible. Cross-references help catalogue mapping; dimensional confirmation protects the programme.

A practical reverse-engineering pack normally includes 10 to 15 major dimensions, datum photos, thread verification, material and coating notes, rubber hardness readings from at least three accessible points, and weight comparison against the reference sample. For irregular cast or welded brackets, 3D scanning or CMM measurement is preferable. A 0.8 mm bracket offset can be enough to trigger installation complaints in tight engine bays.

Driventus maintains application-linked drawings and inspection plans for standard lines in our catalog. For new references, the first quotation stage checks sample availability, annual volume, tooling status, and whether the part is rubber-only, rubber-to-metal, or a complete bracket assembly.

Spec Deep-Dive: What the Rubber, Metal, and Bond Line Must Declare

Two mounts can look identical and behave differently. The reason is usually hidden in the compound, metal preparation, adhesive process, curing condition, or coating. Material specification is where buyers separate a visual copy from a controlled automotive component.

Common material specification points include:

  • Rubber compound: natural rubber, NR/SBR blend, EPDM, or an application-specific compound selected for heat, oil mist, ozone, and durability requirements. NR-based compounds are common where fatigue and elasticity are priorities; EPDM is used when heat and ozone resistance are more important.
  • Hardness: often 45 to 75 Shore A. Standard production control is commonly ±5 Shore A, while engineered programmes may request ±3 Shore A after capability is proven.
  • Tensile strength and elongation: typical minimum targets may be 12 to 18 MPa tensile strength and 300% to 500% elongation, depending on compound family and design duty.
  • Compression set: used to evaluate long-term height loss when the mount remains under load; buyers often specify 70 °C x 22 h or 100 °C x 22 h test conditions and a maximum percentage limit.
  • Heat ageing: common checks include 70 °C, 100 °C, or 125 °C exposure for 70 h, followed by hardness, tensile, and elongation retention comparison.
  • Metal substrate: low-carbon steel stamping, cast aluminium, welded steel bracket, or machined insert depending on the design. Stamped brackets are often 2.0 mm to 5.0 mm thick; cast aluminium designs require extra attention to porosity and thread inserts.
  • Surface protection: zinc plating, zinc-nickel plating, phosphate coating, e-coating, or powder coating selected according to salt-spray and market requirements. Typical buyer targets range from 96 h to 240 h neutral salt spray for general aftermarket supply, with higher requirements for severe-duty or coastal markets.
  • Bonding system: primer and cover-coat process matched to the rubber compound, adhesive supplier recommendations, and metal surface preparation. Bond lines should fail cohesively in rubber during destructive checks rather than cleanly separating at the metal interface.

Rubber testing may reference ASTM D2240 for Shore hardness and ISO 37 for tensile properties where agreed with the customer. Corrosion exposure may be defined by neutral salt spray methods such as ISO 9227. For EU supply, chemical compliance should consider REACH (EC) No 1907/2006 and applicable customer restricted substance lists. Other markets may require additional declarations depending on importer and end-customer policy.

For B2B sourcing, material declarations should be tied to a batch and supplier lot. Generic statements such as “high-quality rubber” do not control risk. Driventus uses incoming material checks, compound traceability, curing parameter records, and documented inspection controls under its quality system.

Comparison Matrix: Static Tests, Dynamic Tests, and What Each One Actually Tells You

Performance data should sit next to dimensional approval in the procurement file. Outer dimensions confirm that the mount can be installed. Stiffness, damping, fatigue, and bond data indicate how it will behave after installation.

A basic comparison looks like this:

Parameter Common control point Practical specification range
Overall length, width, heightExternal installation envelope±0.5 mm to ±1.0 mm for most aftermarket mounts
Mounting hole centre distanceChassis and gearbox interface±0.2 mm to ±0.5 mm; tighter if slotted holes are not used
Hole diameterBolt clearance and assembly toleranceH11/H12 or drawing-specific; verify with pin gauge
Stud diameter and threadFastener engagement and clamp loadM8 x 1.25, M10 x 1.25/1.5, M12 x 1.25/1.75, or inch thread where specified
Thread engagement lengthNut retention and service strengthCommonly 1.0D to 1.5D minimum unless drawing defines more
Bracket thicknessStamped, cast, or welded metal section±0.2 mm to ±0.4 mm for stamped steel; drawing-specific for castings
Rubber block heightFree-state and loaded comparisonRecord free height plus deflection at stated load
Sleeve inner diameterBolt fit and clamp loadH11 or drawing-specific tolerance
Installed angleBracket-to-rubber orientation±1° to ±2° for orientation-sensitive designs
Datum-to-datum offsetGearbox pad to chassis pad relationshipOften controlled within ±0.5 mm to avoid driveline angle error

</tr></thead><tbody> </tbody></table>For passenger vehicle and light commercial applications, test loads should reflect engine-transmission mass, torque reaction, braking deceleration, road shock, and installation angle. Transverse powertrains and longitudinal layouts do not load mounts in the same way. A single generic load case is rarely enough for engineered programmes.

Where the OE drawing is not available, buyers should define the test direction, preload, displacement amplitude, temperature, and acceptance limits. Example sourcing-level targets may include static stiffness measured after 3 preconditioning cycles, vertical deflection recorded at 500 N, 1,000 N, and 1,500 N, dynamic stiffness measured at 10 Hz to 100 Hz, and fatigue cycling at an agreed load amplitude for 100,000 to 500,000 cycles. Heavy commercial or high-torque fleet applications may require a higher cycle count or multi-axis loading.

The biggest comparison error is mixing unlike test conditions. Static stiffness measured at a different preload, temperature, direction, or loading speed will not produce a directly comparable value. Ask suppliers to state the method, fixture, preconditioning, temperature, and pass/fail limit with the result.

A useful submission includes first-article inspection, material test results, a performance test summary, and packaging validation for export handling. Where the customer requires PPAP, submission level, sample quantity, dimensional layout format, and retention records should be agreed before tooling release. Driventus can support drawing-based custom manufacturing for distributors, Tier-1 programmes, and fleet-specific part families.

Failure Modes to Control: The Tolerances That Cause Noise, Harshness, and Claims

Many warranty issues do not begin with a visibly broken mount. They begin with a mount that is slightly too tall, slightly off-centre, slightly too hard, or slightly twisted. The vehicle may still assemble, but the driver feels the error as vibration, knocking during take-off, shift harshness, or accelerated exhaust and driveshaft wear.

Critical tolerances to monitor include:

  • Hole-to-hole position: affects assembly time, bracket stress, and alignment with surrounding components. For two-bolt interfaces, ±0.3 mm is a common procurement target; slotted holes still need controlled slot width and end radius.
  • Stud perpendicularity: helps prevent cross-threading and uneven clamp load. A practical limit is often 0.5 mm to 1.0 mm runout over the exposed stud length, or an angular tolerance stated on the drawing.
  • Free height and compressed height: influence driveline angle after installation. Record both free height and height under a defined load, such as 500 N or 1,000 N, rather than relying on free height only.
  • Rubber overflow and flash: can interfere with bracket seating, heat shields, or nearby housings. Flash limits are commonly 0.5 mm to 1.0 mm unless the flash is in a non-functional area.
  • Bushing concentricity: affects load distribution through the sleeve and rubber body. Eccentricity above 0.5 mm may change stiffness direction on compact mounts.
  • Bracket flatness: important for mounts bolted to machined gearbox cases or flat chassis pads. Typical flatness limits are 0.3 mm to 0.8 mm depending on contact area.
  • Thread quality: should match the agreed metric or inch thread form and pass go/no-go gauge inspection. Thread damage, plating build-up, and weld spatter should be treated as shipment-blocking defects.
  • Coating thickness: should protect the part without closing holes or threads. Zinc plating is often controlled around 8 µm to 15 µm, while e-coat or powder coating may be thicker and must be checked at interfaces.

Ask how each characteristic is measured in production. A caliper check may be sufficient for a simple envelope dimension. It is weak evidence for complex bracket geometry. CMMs, go/no-go gauges, thread gauges, hardness testers, profile fixtures, and orientation gauges produce more repeatable control.

For annual-volume programmes, define special characteristics on the drawing and request control plans, gauge records, process capability data, and corrective-action history. A practical control split is 100% checking for threads, visual defects, and critical fit gauges, with statistical sampling for dimensions and hardness by lot. This reduces the classic sourcing failure: good pilot samples followed by unstable mass production.

Audit Trail: How to Verify the Factory Process Behind the Sample

A good first sample is useful. A repeatable process is more useful.

Transmission mounts are highly process-sensitive. Rubber mixing, metal cleaning, surface roughness, adhesive application, mould temperature, curing time, cavity condition, and demoulding method all influence final performance. Procurement review should therefore cover the manufacturing route, not only the finished part.

A practical supplier checklist includes:

  • IATF 16949:2016 and ISO 9001:2015 certification scope.
  • Incoming inspection for steel, aluminium, rubber compound, and bonding chemicals.
  • Rubber batch traceability and cure-date control.
  • Surface preparation controls before bonding, including degreasing, blasting, or phosphating where specified.
  • Adhesive storage, mixing, application, and drying controls, including shelf-life and viscosity or solids checks where required.
  • Mould maintenance and cavity identification, so dimensional or bond issues can be traced to a specific cavity.
  • Controlled mould temperature, injection or compression parameters, curing time, and post-cure conditions where applicable.
  • In-process hardness, dimension, and visual checks at start-up, during production, and before shutdown.
  • Bond strength or destructive audit testing by lot or defined schedule.
  • Final inspection using approved drawings and reference samples.
  • Export packaging checks for humidity, compression, stacking, and carton strength.
  • Documented complaint handling and 8D corrective-action process.

For a normal aftermarket order, documentation may include a certificate of conformity, dimensional inspection report, material declaration, hardness report, and packing list. For engineered programmes, buyers may request PPAP-style files such as process flow, PFMEA, control plan, MSA, capability study, material test report, performance test report, initial sample inspection report, and appearance approval where relevant. Retention samples should be marked by part number, cavity, batch, and production date.

For EU, UK, North American, Australian, and Brazilian import programmes, confirm labelling, country-of-origin documentation, HS code alignment, packaging language needs, restricted substance declarations, and any customer-specific compliance forms. Driventus supplies aftermarket distributors and industrial buyers with part-level traceability and inspection documentation according to agreed order terms.

No aftermarket supplier should claim vehicle manufacturer approval unless a formal approval exists for that specific programme. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

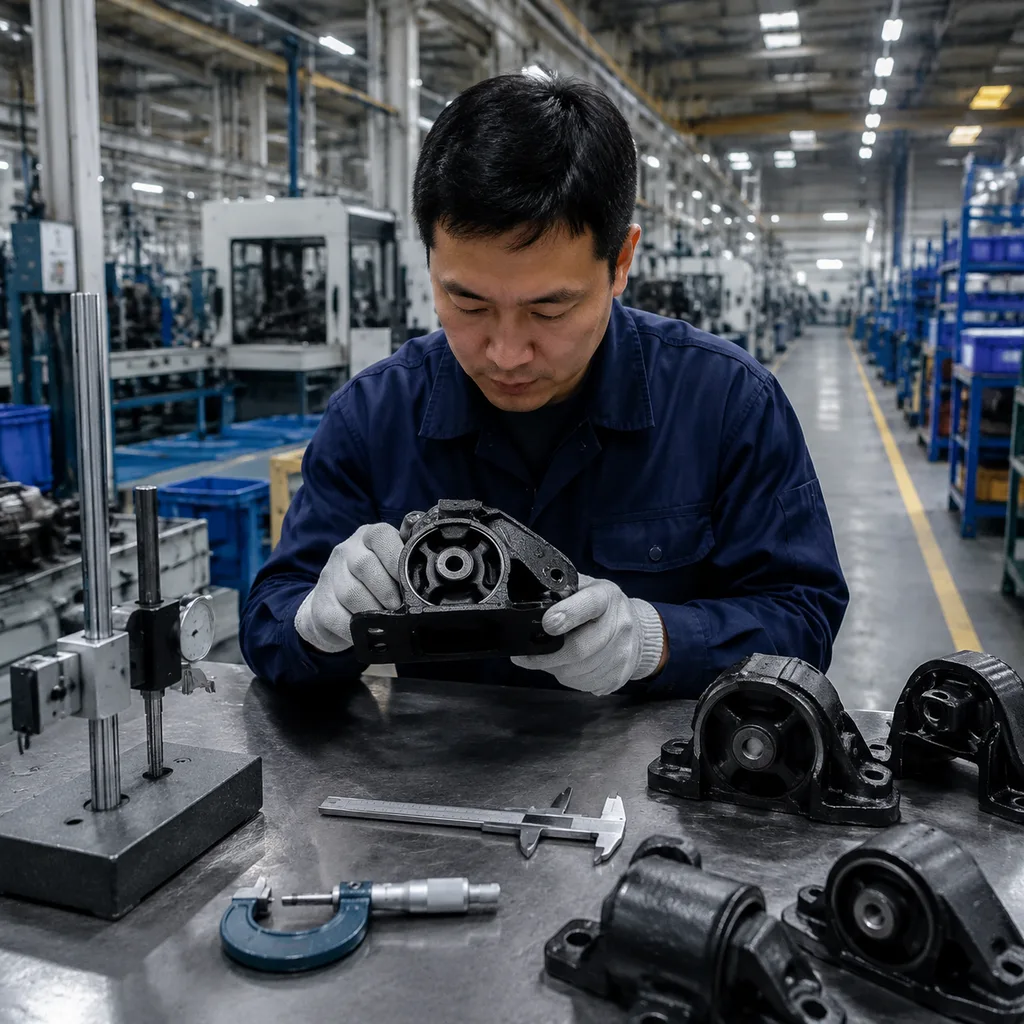

Audit Trail: How to Verify the Factory Process Behind the Sample

Step-by-Step RFQ: Build an Inquiry Package Suppliers Can Price Correctly

A vague RFQ produces a vague quotation. A complete RFQ lets the supplier confirm whether an existing tool, modified tool, or new development is required—and it reduces the risk of repricing after sample review.

Use this sequence when preparing the inquiry:

1. Define the part description and installation position, such as left, right, rear, front, upper, or lower transmission mount. 2. Add the OE-style reference if available, such as 06A… or 11251…. 3. List vehicle make, model, engine code, transmission type, and production years for fitment mapping. 4. Provide a 2D drawing, 3D model, or three physical samples for reverse engineering and validation. 5. State required rubber hardness, coating, corrosion resistance, static stiffness, and fatigue target. 6. Provide annual volume, first order quantity, and forecast by market. 7. Confirm certification, test report, inspection report, and PPAP-style documentation requirements. 8. Define packaging type, private label needs, pallet limits, barcode requirements, and destination port. 9. State the commercial target, including Incoterm, currency, payment term, inspection level, and required delivery schedule.

MOQ and pricing depend on tooling status and material commonality. If an existing tool and standard compound can be used, MOQ may be driven mainly by rubber mixing, coating batch, and packing efficiency. For many aftermarket rubber-to-metal mounts, trial or first commercial orders are often discussed from several hundred pieces per reference, while new-tool or low-volume items may require higher MOQ or shared development cost.

Unit price usually changes with annual volume bands, packaging type, coating requirement, inspection level, PPAP scope, and whether the order is shipped as a mixed container or a single-reference lot.

Lead time should be separated by stage. A practical planning model is 3 to 7 working days for quotation after complete data is received, 30 to 60 days for new tooling depending on complexity, 10 to 20 days for sample moulding and internal checks, and 30 to 45 days for mass production after approval and deposit for common references. Highly customised validation, special compounds, salt-spray testing, fatigue testing, or private-label packaging can add time and should be scheduled before the purchase order is placed.

Driventus reviews these inputs before confirming tooling status, sample lead time, unit price, MOQ, and validation plan. Buyers comparing transmission mount specifications across suppliers should normalise test conditions before comparing quoted performance values.

For a programme review or drawing-based quotation, buyers can request a quote with photos, sample data, application information, and expected order volume.

Frequently asked questions

The main specifications are mounting geometry, hole centre distance, free height, rubber hardness, static and dynamic stiffness, bond strength, metal coating, and fatigue durability. For procurement, these should be linked to drawings, inspection plans, and agreed test conditions rather than described only by vehicle application.

Yes. Driventus can review drawings, 3D models, or physical samples for rubber-to-metal transmission mounts. The quotation process normally confirms material, tooling, validation tests, MOQ, packaging, and documentation requirements before sample production.

Driventus does not claim vehicle manufacturer approval unless such approval is formally granted for a specific programme. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

If you need dimensional review, sample development, or a production quotation for transmission mounts, send your drawings, photos, application details, and forecast volume. Contact the Driventus team at /contact.html

Request a Quote
Test item Purpose Typical output
Static load-deflectionConfirms vertical and lateral stiffnessN/mm curve or deflection at rated load
Dynamic stiffnessEvaluates NVH behaviour by frequencyStiffness versus Hz and temperature
Damping factorMeasures vibration attenuationLoss factor or damping ratio
Fatigue cyclingChecks crack growth and bond durabilityCycles to defined load and amplitude
Pull-out or peel testConfirms rubber-to-metal bond integrityMinimum force or failure mode
Thermal ageingVerifies property retention after heat exposureHardness and tensile change after ageing
Overload or bump-stop checkConfirms survival under shock loadNo cracking, separation, or permanent deformation beyond limit
