REACH Compliance for Valve Cover Gasket Sourcing

Failure modes: where gasket REACH reviews usually break down

Most REACH problems in valve cover gasket sourcing do not start with the finished gasket on the bench. They start with an unmapped accessory, a changed additive, a generic declaration, or a packaging component no one reviewed.

Common failure modes include:

• The main rubber is checked, but the kit is not. Bolt grommets, tube seals, sleeves, half-moon seals, washers, and separate rubber parts may have different compounds or suppliers.
• A metal carrier is treated as harmless. Surface treatments, anti-corrosion coatings, plating residues, passivation chemicals, cleaning agents, and residual process oils still need review.
• Bonding chemicals are hidden in the process. Adhesive or primer systems for bonded rubber-to-metal designs can introduce restricted-substance questions that are absent from a simple moulded profile.
• Surface aids are forgotten. Anti-stick coatings, installation lubricants, colour markers, part-identification marks, release agents, and handling aids can sit outside the drawing but inside the supplied article route.
• Packaging is assumed out of scope. Printed bags, labels, inks, desiccants, recycled paper content, protective films, and retail inserts may be part of the supplied package and can trigger customer questions.
• Aftermarket cross-references are mistaken for material specifications. An OE-style reference helps identify fitment. It does not define the actual compound, coating, insert, supplier, or compliance status of the aftermarket article.

Material risk varies by design. A simple moulded VMQ profile without inserts has a cleaner review path than a bonded gasket with metal carriers, coatings, printed retail packaging, and multiple accessories. High-volume EU distribution needs tighter document control because one substance issue can affect many downstream customers at once.

The chemical review should connect to measurable material specifications. Typical incoming checks for elastomer parts may include hardness tolerance such as ±5 Shore A from the approved value, visual flash limits agreed by drawing or sample, bead height tolerance based on the sealing design, and dimensional checks on critical areas such as bolt holes, plug tube seals, corners, and half-moon profiles. Performance validation often includes heat ageing, oil immersion, compression set, tensile strength, elongation, and tear strength using agreed customer or ISO/ASTM methods.

For replacement gaskets supplied by OE cross-reference, use fitment references carefully. A notation such as OE 06A… or OE 11251… may help identify application scope, but it does not confirm the compound, coating, insert, or compliance status of the supplied aftermarket part. The supplier must confirm the actual materials used, the market covered by the declaration, and any differences between catalogue, private-label, and OEM-style versions.

Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. No vehicle manufacturer approval or endorsement is implied unless a buyer provides a separate, documented approval route through its own programme.

Spec deep-dive: pass REACH and still validate the sealing system

A gasket can be chemically compliant and still fail in the engine. Wrong bead height, poor compression recovery, weak oil resistance, over-trimming, deformation in export cartons, or a compound mismatch can create leaks regardless of the REACH file.

Treat REACH compliance for valve cover gasket sourcing as one release gate. Technical validation is another.

Recommended specification checkpoints:

• Drawing revision and part-number cross-reference controlled in the RFQ and quotation package, including supersessions and engine-code coverage.
• Elastomer family confirmed against engine temperature range, oil exposure, crankcase gases, cover material, and service environment.
• Hardness target and tolerance agreed, commonly stated in Shore A with an allowed tolerance such as ±5 points unless the drawing requires otherwise.

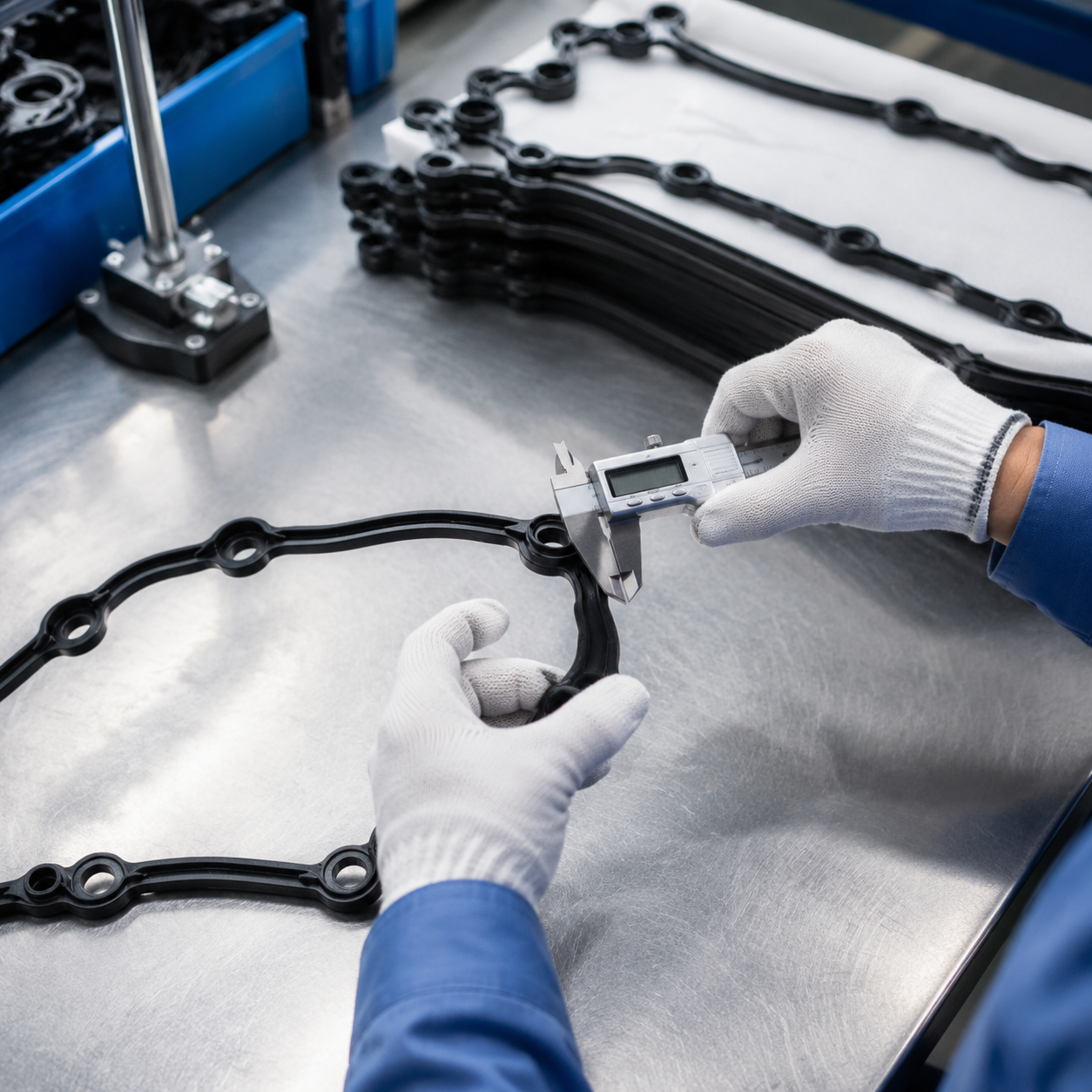

• Critical dimensions measured by cavity where applicable, including bead height, groove width, bolt-hole spacing, corner radius, sealing lip thickness, carrier location, tube seal geometry, and half-moon profile.
• Compression set tested after heat ageing according to a recognised internal or customer-approved method, with test temperature, time, compression percentage, and acceptance criteria stated in the report.
• Oil resistance evaluated with relevant engine oil exposure conditions, including volume change, hardness change, tensile change, and visual cracking or swelling criteria where required.
• Visual criteria defined for flash, cuts, contamination, voids, knit lines, underfill, over-trimming, deformation, trapped air, bond failure, coating damage, and carrier exposure.
• Installation and packaging checks performed to reduce distortion, bending, sticking, compression marks, or deformation during export shipment.
• Batch traceability retained from compounding and moulding through inspection, packing, warehousing, and shipment.

For OEM/Tier-1 projects, the approval package may include PPAP-style documentation, control plans, process flow diagrams, FMEA, measurement system analysis, initial sample inspection reports, capability data, material test summaries, and change-control records. For aftermarket distributors, a narrower package may be enough, but it should still include material confirmation, dimensional report, fitment confirmation, packaging approval, and a current compliance declaration.

Inspection depth should follow risk and volume. For a new or re-sourced gasket, buyers often request 100% visual inspection during initial production, cavity-level dimensional checks on the first batch, and AQL-based final inspection before shipment. Critical sealing dimensions may need tighter sampling than non-critical packaging attributes. If the part has several mould cavities, record data by cavity so recurring flash, short-shot, or dimensional drift can be isolated.

The rule is blunt: REACH controls chemical risk; it does not replace drawings, inspection data, process capability, material performance, or functional sealing validation. Both gates must pass before serial release, and both should be reopened after material, tooling, supplier, or process changes.

Supplier qualification Q&A before nomination

Before issuing a purchase order, use the supplier discussion to test whether the declaration is backed by a real operating system. The strongest suppliers can explain how they keep compliance current and how that discipline affects MOQ, price, samples, lead time, and repeat supply.

Ask these questions during qualification:

• Who is responsible for REACH monitoring and Candidate List updates?
• How often are REACH declarations reviewed and reissued, and what Candidate List date is currently used?
• How are compound recipes approved, documented, and locked after sampling?
• Are rubber compounds mixed in-house or purchased from an external mixer, and how are mixer changes controlled?
• What is the minimum compound batch size, and how does it affect MOQ for low-volume references?
• How are raw material batches linked to finished gasket lots and packing lists?
• What happens if a raw material supplier changes an additive, processing aid, pigment, curing agent, or oil?
• Which changes require customer notification before shipment?
• How are mould cavities identified in inspection records and nonconformance reports?
• Can the supplier provide dimensional reports for critical sealing features by cavity or production lot?
• What are the normal lead times for catalogue parts, first samples, new tooling, private-label packaging, and third-party chemical testing?
• Are nonconforming parts segregated, labelled, and dispositioned under documented controls?
• Does the supplier maintain IATF 16949:2016 and ISO 9001:2015 certification or work under equivalent documented procedures?
• Can compliance declarations, material confirmations, inspection reports, packing photos, and traceability records be supplied before shipment?

Listen for specifics. If the supplier cannot name the compliance owner, explain Candidate List review timing, identify material-change triggers, or trace batches through production and packing, the buyer may inherit the risk after the goods arrive. For regulated or high-volume programmes, close those gaps before commercial release.

Then test the quotation against the technical file. A lower unit price may depend on a substitute compound, simplified packaging, larger MOQ, fewer inspections, or no third-party testing. A higher price may be justified where it includes a special elastomer, bonded carrier processing, private-label cartons, tighter dimensional control, REACH documentation, PPAP-style records, or lab screening. Ask suppliers to separate tooling, sample, test, packaging, and serial unit price so decisions are transparent.

Driventus manufactures engine and powertrain components in Taizhou, Zhejiang, and exports to distributors, wholesalers, OEM/Tier-1 customers, and multi-location repair groups in more than 60 countries. For valve cover gasket projects, procurement teams can request a quote with drawings, sample parts, OE cross-references for fitment, annual volume, target MOQ, target market, packaging requirements, required test reports, and compliance documentation needs.
