Oil Pump Assembly Specifications for B2B Buyers

Oil pump assembly specifications are easiest to source when the buyer defines the pump type, drive interface, relief setting, housing material, and inspection method before price discussions. For engine programmes, the purchase spec should also lock down dimensional tolerances, surface finish, cleanliness, and test evidence. That reduces late-stage mismatch between the casting, rotors, gasket stack, and pressure control valve. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. Buyers working to IATF 16949:2016 and ISO 9001:2015 should ask for traceability, PPAP-style documentation where required, and material compliance under REACH (EC) No 1907/2006. The sections below set out the practical spec items that matter most for distributors, OEM/Tier-1 buyers, and repair-chain procurement teams.

What to lock into the purchase specification

Start with the operating envelope, not the part number. A usable purchase specification should define pump style, drive engagement, intended engine speed band, cold-start viscosity range, and the pressure relief strategy. For an oil pump assembly, the buyer should also state whether the housing is cast aluminium or sintered steel, whether the pickup is integral, and whether the gasket surface is machined or ground. If the programme includes multiple vehicle lines, keep one master drawing and one deviation log.

Use this as the minimum procurement checklist:

Pump type: gear, trochoid/gerotor, or variable-displacement
Drive: crank, cam, chain, or belt interface
Relief valve setting: kPa or bar at a defined oil temperature
Mounting datum and gasket stack-up
Packaging, traceability, and label content

For catalog alignment, see our catalog. If the application needs a modified casting, port location, or valve spring, custom manufacturing is the correct path.

Dimensions and tolerances that should be measured

Exact limits depend on the engine family, but the buyer should always measure the same critical features. The most important controls are rotor-to-housing clearance, end play, shaft runout, sealing-face flatness, and relief-valve opening pressure. If those values are outside the drawing, the pump can still fit and still fail in service.

</tr></thead><tbody> </tbody></table>If a supplier cannot report these values on a first-article record, the specification is incomplete. Ask for the measurement method, gauge resolution, and sample size as part of the quotation package.

Materials, coatings, and lubrication path

The mechanical layout is only half of the requirement. Buyers should specify base material, heat treatment where applicable, coating, and internal cleanliness after machining and assembly. Aluminium housings need consistent porosity control and stable bore geometry. Steel rotors or shafts need hardness and surface finish that support wear resistance without raising friction. Seals and gaskets should be compatible with modern engine oils, including low-ash and extended-drain formulations.

Material and surface items to confirm:

Housing alloy or steel grade, with certificate of conformity
Surface treatment, coating thickness, and corrosion resistance requirement
Oil passage finish and burr-free edges at every port
Cleanliness limit for residual chips, sealant, and packing debris
REACH (EC) No 1907/2006 compliance for restricted substances

If the programme runs in salt-exposed markets, ask for corrosion data aligned to SAE J2527 or the buyer's own cyclic-corrosion method. That matters most when the housing is externally exposed and the finish is part of the commercial spec.

Validation and documentation package

A supplier should not release production only on dimensional fit. The validation file should include flow rate versus speed, pressure relief curve, leakage checks, noise or vibration screening where required, and endurance data tied to the intended oil grade. For higher-risk programmes, buyers often ask for run-in evidence and post-test teardown photos.

The document set should normally include:

Dimensional report against the approved drawing
Material certificates and coating records
Process traceability by lot or serial number
Test summary with date, equipment ID, and acceptance limits
Control plan or inspection plan revision

IATF 16949:2016 and ISO 9001:2015 are relevant here because they support controlled process change, traceability, and corrective action, but they do not replace the buyer's own validation criteria. If the platform is closely related to other engine hardware, align the pump with seals, gaskets, and bearings in engine components.

Sourcing checks before release

Before purchase order release, confirm whether the supplier can hold the same geometry over the full annual volume, not just on samples. Ask about tooling ownership, cavity count, lead time, minimum order quantity, and packaging controls for export lanes. A pump that arrives with damage to the relief valve seat or a distorted gasket face is a logistics failure, not only a quality failure.

Use this release checklist:

Approved sample or sample-retention standard
Audit access to the production cell and inspection records
Label format with part number, lot code, and origin
Export packaging that protects machined faces and ports
Change-notification process for material, process, or tooling updates

Review the supplier's quality system before long-term award. If the application needs a private-label run, alternate finish, or revised relief setting, use request a quote with the drawing, annual demand, and test standard so the response is comparable across bids.

Frequently asked questions

Relief pressure, rotor or gear clearance, mounting face geometry, drive interface, and material or coating details matter most. If those do not match the engine drawing, the pump may fit but still fail on pressure, noise, or leakage. Ask for measured data, not only a part number.

Ask for IATF 16949:2016 and ISO 9001:2015 certification, REACH (EC) No 1907/2006 compliance for restricted substances, and test records tied to your validation plan. If corrosion exposure is part of the requirement, SAE J2527 is a reasonable reference method.

Yes. If the application needs a different port layout, relief setting, housing material, or packaging, use [custom manufacturing](/oem-services.html). Provide the drawing, target annual volume, inspection limits, and any cross-reference data supplied by your team.

If you need a drawing review, sample plan, or procurement quote, use [request a quote](/contact.html).

Request a Quote

Parameter	Typical buyer target	Why it matters
Rotor or gear side clearance	0.02-0.06 mm	Affects volumetric efficiency and hot idle pressure
Housing bore roundness	<= 0.02 mm	Prevents scuffing and internal leakage
Seal face flatness	<= 0.03 mm over the sealing land	Reduces gasket seepage
Shaft or rotor runout	<= 0.05 mm TIR	Limits noise and wear
Relief opening pressure	Engine-specific, often 250-600 kPa	Sets maximum system pressure

Oil Pump Assembly Specifications for B2B Buyers

What to lock into the purchase specification

Dimensions and tolerances that should be measured

Materials, coatings, and lubrication path

Validation and documentation package

Sourcing checks before release

Frequently asked questions

Related reading

Camshaft for Volkswagen Polo OE Equivalent: What to Verify

Connecting Rod for Lexus IS Replacement: OE Match Checks

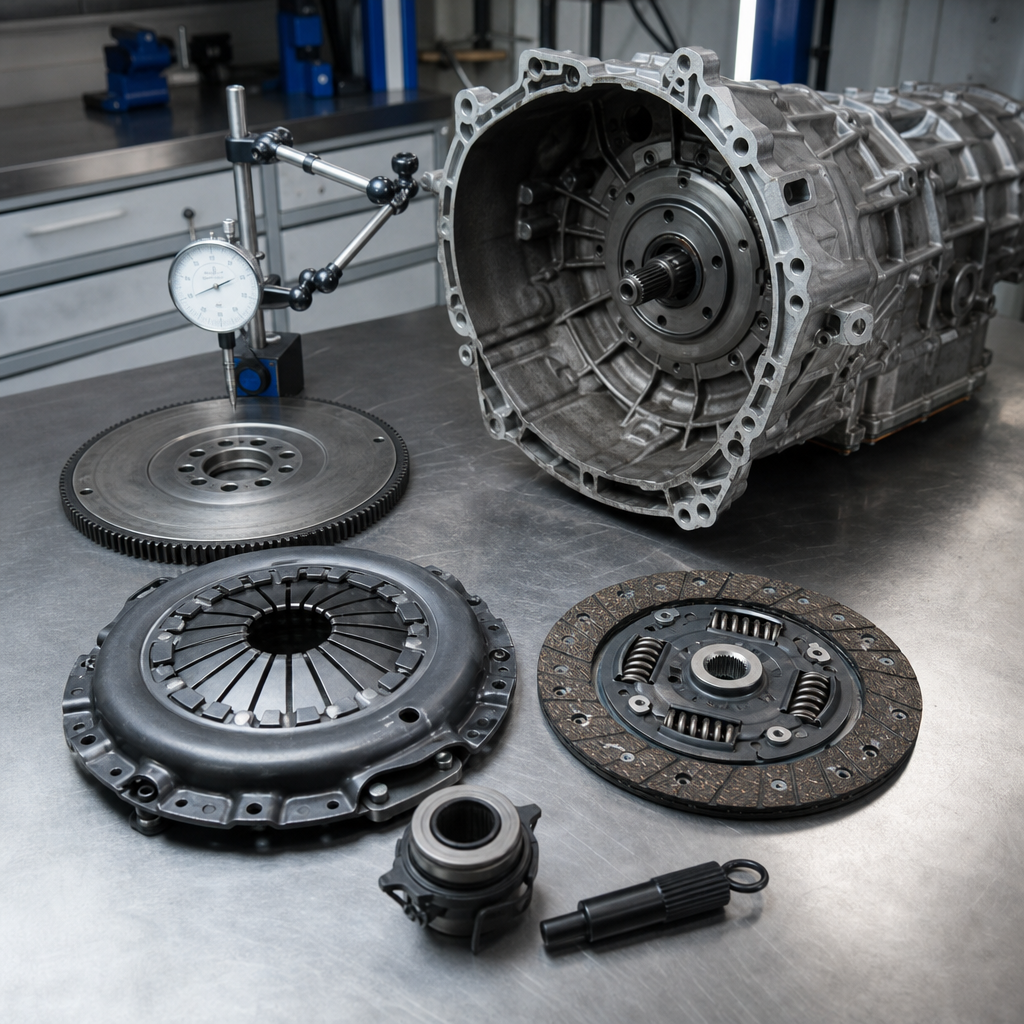

Clutch Kit Infiniti Replacement: OE-Match Checks
