Lower Engine Gasket Set Specifications for B2B Buyers

When buyers review lower engine gasket set specifications, the decision is rarely about one part number. It is about whether the kit matches the block, front cover, oil pan, crank seals, and any related sealant path for the target engine family. For procurement teams, the most useful data are thickness, material family, seal lip geometry, temperature resistance, chemical compatibility, and dimensional tolerances against the drawing. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. Manufacturing and inspection should sit under IATF 16949:2016 and ISO 9001:2015 controls, with material and chemical compliance checked against REACH (EC) No 1907/2006. This page sets out the fields that matter when comparing suppliers, validating samples, and closing a fitment risk before purchase orders move.

What the kit should contain

A lower-engine kit should be defined by function, not by a loose parts list. The contents vary by engine family, but the specification should state exactly which sealing points are included.

Oil pan gasket or formed seal bead
Front cover gasket and crankshaft front seal
Rear main seal
Timing cover seal elements where applicable
Oil pump, balance shaft, or lower intake seals where the engine design requires them
O-rings, washers, and sealing plugs only when they are part of the validated kit

For each line item, the buyer should confirm engine code, production year break, transmission variant if it changes the cover pattern, and whether the kit uses paper, rubber, multi-layer steel, or moulded elastomer construction. This is the first filter before price, lead time, or packaging is discussed.

Core specifications that matter

The useful part of lower engine gasket set specifications is the data that controls seal performance after installation. Use the drawing and material sheet, not the carton label, to verify the values below.

</tr></thead><tbody> </tbody></table>A mixed-material kit is normal. For example, a rigid carrier may be used on a cover rail, while NBR or FKM is used for the dynamic crank seal.

Validation, traceability, and standards

A serious supplier should back the kit with traceable inspection records, PPAP-style control where required, and document control inside IATF 16949:2016 and ISO 9001:2015. For material declarations, ask for REACH (EC) No 1907/2006 status and confirm whether any SVHC reporting is needed for the destination market.

If the elastomer callout matters, ask for ASTM D2000 or SAE J200 references on the compound sheet. These references help the buyer compare ageing, hardness, and fluid-resistance data across multiple suppliers.

If you are comparing vendors on the same platform, ask for:

Revision-controlled drawings
Incoming material certificates
Dimensional inspection reports
Batch traceability back to compound lot
Retention samples for dispute review

You can review the supporting process controls in our quality system before moving samples into approval.

Fitment checks before release

Fitment risk usually comes from small geometry differences, not from the headline description. Before approving samples, verify the following points against the target engine code and cover design.

Bolt-hole count and spacing
Oil gallery cut-outs and drain-back points
Crankshaft seal inner diameter and shaft finish
Cover rail width, corner radius, and bead path
Whether the engine uses OEM-style sealant, a pre-formed gasket, or a hybrid construction
Any OE cross-reference from the customer file, then compare it with the sample sheet rather than relying on carton text alone

If the application family is still being mapped, review our catalog and the related engine components page to narrow the correct kit structure before sample sign-off.

Sourcing, MOQs, and custom builds

Commercial terms should be written into the technical brief. For a lower engine kit, that means stating MOQ, target annual volume, carton count, label language, barcode format, and whether the packing must support regional warehouse kitting.

If the engine family has multiple sump depths, seal diameters, or cover revisions, custom manufacturing can standardise the bill of materials before launch. That is usually more efficient than trying to merge incompatible kit variants after purchase order release.

Provide these inputs early:

Engine code and production range
Sample gasket, seal, or drawing package
Required materials and fluid exposure
Destination market and compliance file
Pack configuration and labelling rules

For current range coverage, start with our catalog and then send the final data set through request a quote.

Frequently asked questions

It should list every sealing element, the material family, thickness, seal lip geometry, temperature and chemical limits, and the revision-controlled drawing reference. The key question is whether the kit matches the exact engine variant, not just the model name.

An OE number helps, but it is not the only safe input. Engine code, production year range, photos, dimensions, and a sample part are often enough to validate fitment. Brand names are used for fitment only.

Yes. Common changes include gasket material, seal compound, carton language, barcode format, and kit content. If you need a market-specific revision, send the engine data and target volume with your enquiry.

If you need a lower engine gasket set matched to a specific engine code, send the drawing, sample, or OE cross-reference through our [request a quote](/contact.html).

Request a Quote

Parameter	Typical target	Procurement note
Gasket thickness	0.8-3.0 mm, engine dependent	Check crush after installation and final rail alignment
Elastomer hardness	60-80 Shore A	Higher hardness improves shape retention, but can raise assembly force
Seal lip material	NBR for standard oil service; FKM for higher heat zones	Match temperature and fluid exposure
Compression set	<=25% after heat ageing	Low compression set supports long-term sealing load
Flatness or warp on formed parts	Within drawing tolerance, often +/-0.20 mm on small seals	Important for cover rails and oil pan interfaces
Temperature range	About -40 C to 150 C for NBR; up to 200 C for FKM	Verify with supplier test data
Chemical resistance	Engine oil, coolant, ATF as applicable	Do not assume one material covers all fluids

Lower Engine Gasket Set Specifications for B2B Buyers

What the kit should contain

Core specifications that matter

Validation, traceability, and standards

Fitment checks before release

Sourcing, MOQs, and custom builds

Frequently asked questions

Related reading

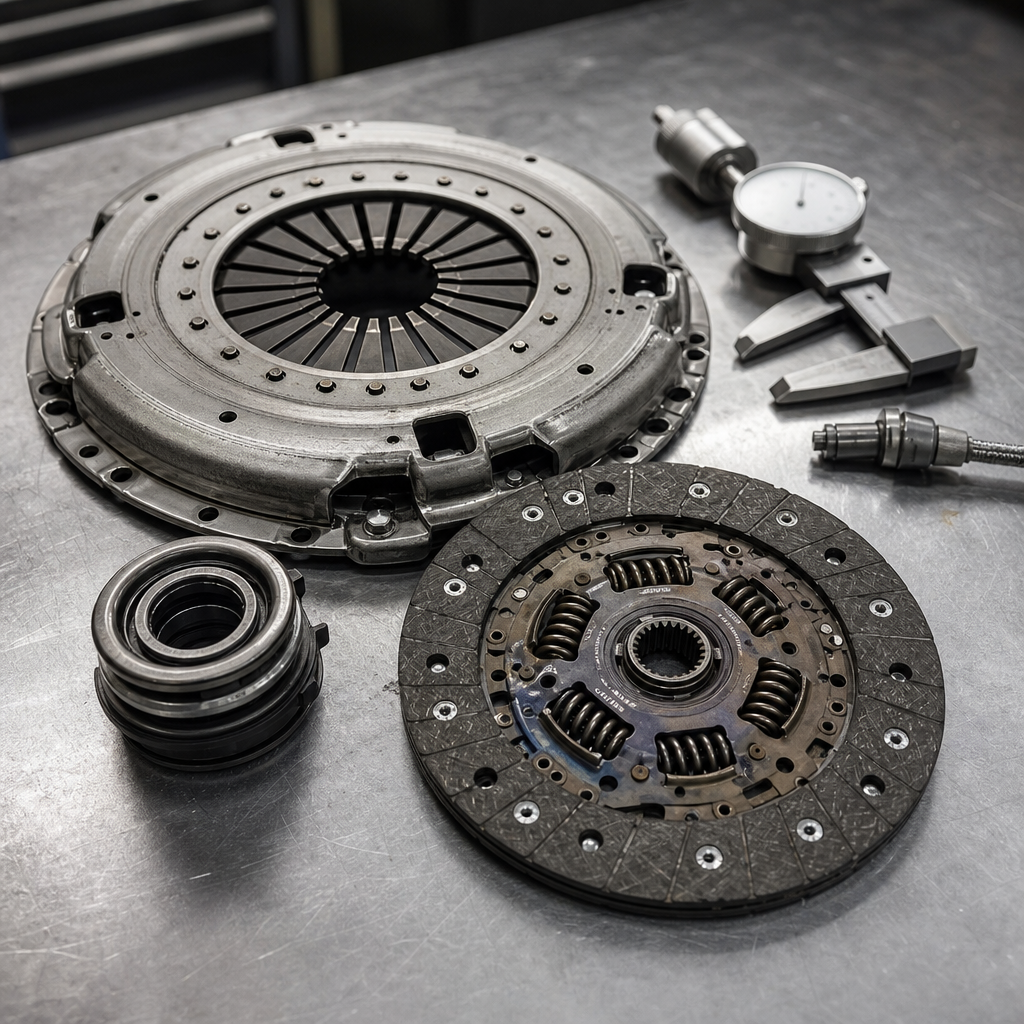

Clutch Kit Buick Supplier: Fitment, Quality, Lead Time

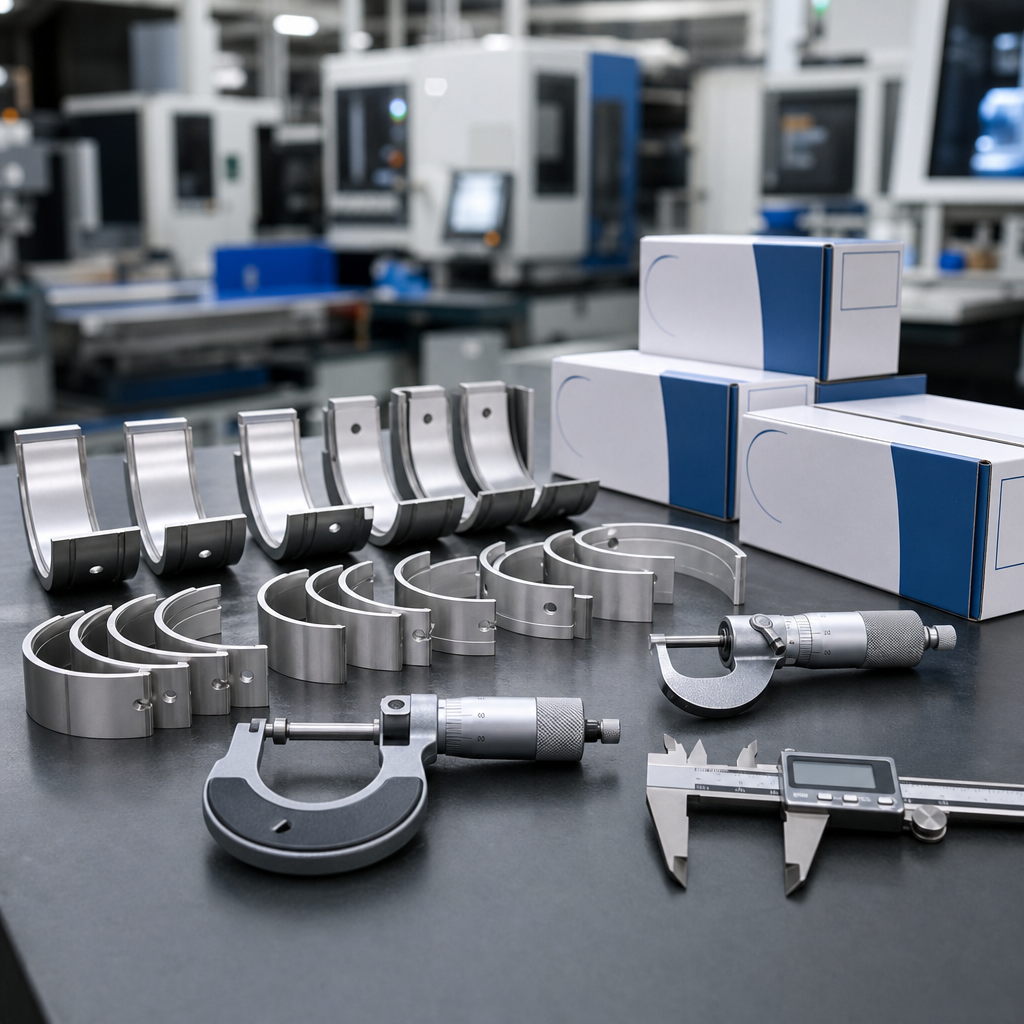

Engine Bearing Acura Manufacturer China: Sourcing Guide

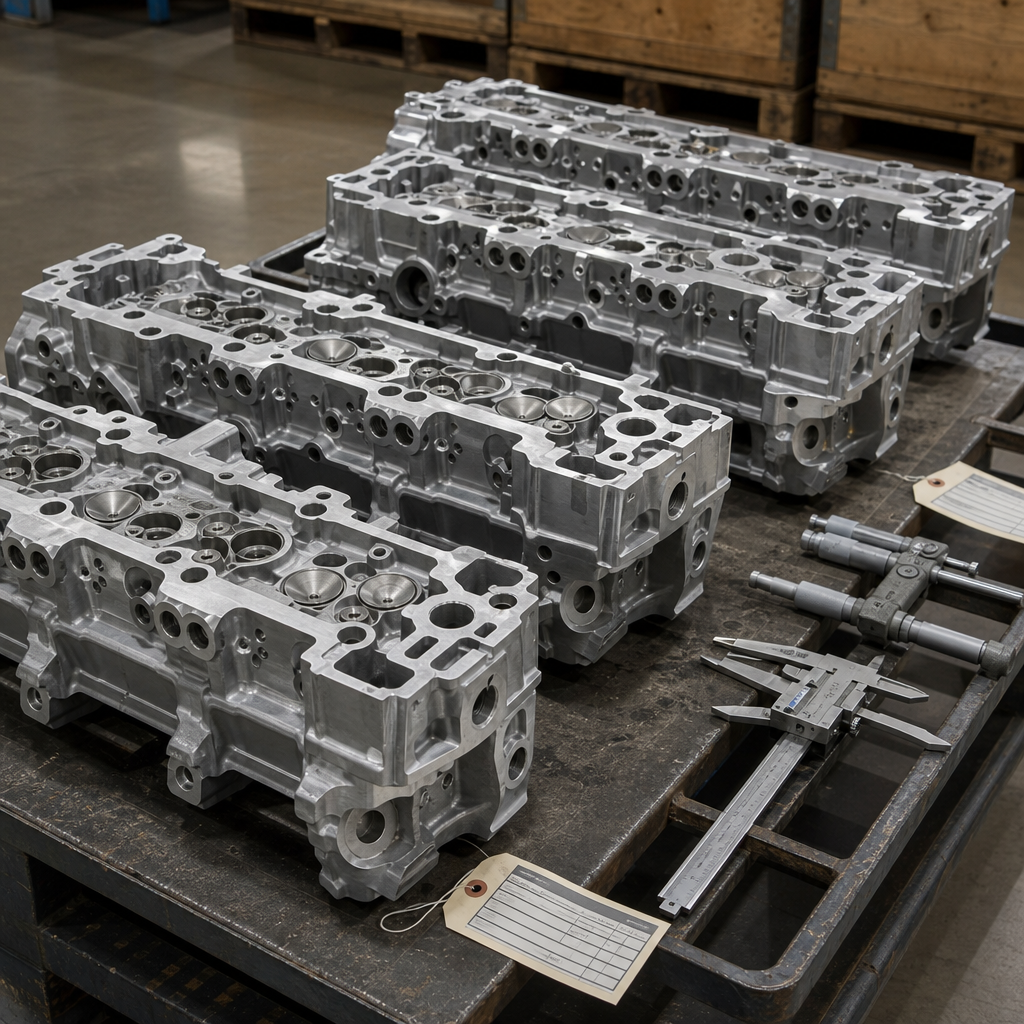

Cylinder Head Peugeot Wholesale: Sourcing Guide for Buyers
