Low oil pressure is a high-risk engine condition because lubrication loss can move quickly from a warning lamp or valvetrain noise to bearing damage, turbo failure, or complete engine seizure. For distributors, workshop groups, and procurement teams, the challenge is not just finding the fault but choosing the right replacement parts, validating root cause, and avoiding repeat failures across multiple vehicles or sites. The safest workflow is to verify the reading first, then determine whether the issue comes from the sender circuit, oil condition, filter specification, pick-up restriction, oil pump, pressure relief valve, or internal engine wear. Replacing parts at random raises cost, increases downtime, and creates unnecessary warranty exposure. This guide explains **low oil pressure causes and fixes** in a practical sequence for repairers and technical buyers, with common failure patterns, inspection points, measurable acceptance criteria, and sourcing considerations. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Start with the pattern, not the parts
A low-pressure complaint only becomes useful once you pin down when it happens. That timing usually narrows the fault faster than the warning lamp alone.
Common patterns include:
Oil warning lamp at idle, after hot soak, or during hot restart
Mechanical top-end ticking or hydraulic lifter noise
Bottom-end knock in more advanced cases
Pressure that falls away after full warm-up
Turbocharger noise on engines with pressure-fed turbo lubrication
Diagnostic trouble codes related to oil pressure switch, sensor range, or signal plausibility
The first split is simple: real oil pressure loss or false indication. A bad sensor, poor ground, damaged connector, wiring fault, or instrument-cluster logic issue can produce the same dash warning as a worn pump or excessive bearing clearance.
Quick baseline
Before anyone removes hard parts, confirm four basics:
1. Correct oil grade and fill quantity 2. Correct oil filter type, including bypass and anti-drainback characteristics where applicable 3. No obvious fuel dilution or coolant contamination 4. Actual oil pressure using a calibrated mechanical gauge
Many passenger vehicle engines may show roughly 0.7-1.5 bar at hot idle and 3.0-5.0 bar at 2,000-3,000 rpm, while light commercial diesels may be closer to 1.0-1.8 bar at hot idle and 3.5-6.0 bar under moderate speed. Those are only field references. The valid target is always the vehicle maker's service data, because acceptable pressure changes with engine family, oil viscosity, bearing design, oil temperature, and control strategy.
For a useful job card, record at least four values: cold idle pressure at 20-30°C oil temperature, hot idle pressure at 90-100°C oil temperature, pressure at 2,500 rpm hot, and time-to-pressure after start-up. On a healthy primed system, pressure often arrives within 1-3 seconds after start. More than 5 seconds points toward drain-back, pick-up air ingress, filter bypass issues, or pump prime loss.
That symptom timing matters commercially too. A hot-idle-only complaint usually drives demand for oil, filters, pick-up seals, and pumps. An intermittent lamp with normal gauge pressure usually drives demand for switches, sensors, pigtails, and connector repair kits. That is why low oil pressure causes and fixes should be mapped to operating pattern, not just to fault code.
Compare the most likely causes before authorising repairs
Cause
Typical evidence
Inspection method
Likely fix
Low oil level
Warning on cornering, braking, incline, or hot idle
Dipstick check, sump and external leak inspection
Restore oil level, repair leak source
Wrong oil viscosity
Low hot pressure after service, noisy valvetrain
Service records, oil label check, oil sample review
Drain and refill with specified grade
Fuel-diluted or degraded oil
Thin oil, fuel smell, low hot pressure, abnormal wear trend
Oil condition check, service history, lab analysis if needed
Correct root cause, change oil and filter
Clogged oil pick-up screen
Slow pressure rise, sludge history, sealant debris in sump
Sump removal, pick-up inspection
Clean or replace pick-up, clean sump and oil passages as needed
Worn oil pump
Low pressure across the rev range, poor pressure recovery
Filter inspection, part number verification, cut-open analysis
Replace with correct filter specification

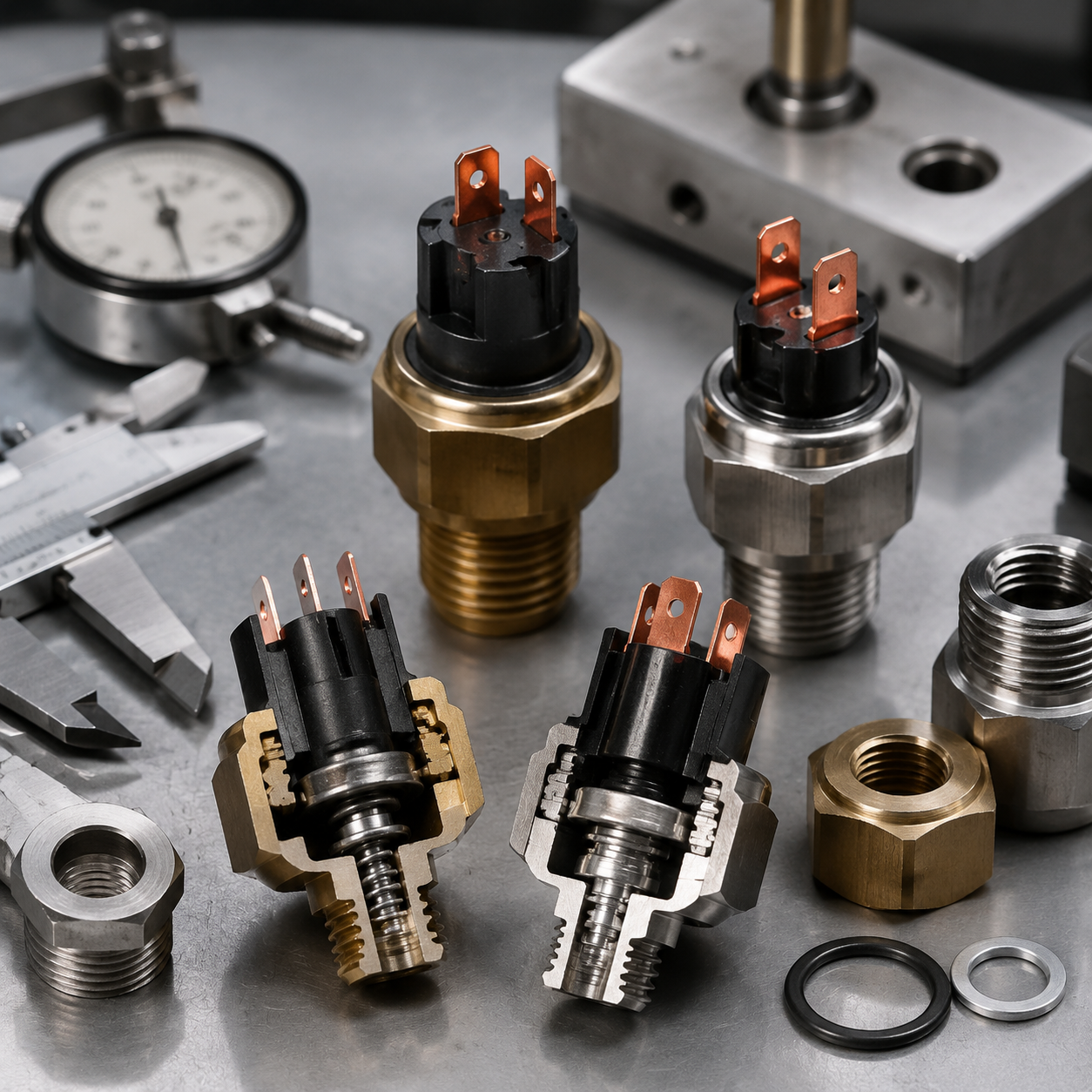

Faulty pressure switch or sensor
Warning lamp with normal mechanical gauge reading
Compare electrical signal with gauge reading
Replace switch or sensor
</tr></thead><tbody> </tbody></table>The usual waste points are predictable. Some workshops replace the oil pressure switch before testing real pressure. Others fit a pump when the actual issue is sludge restriction, wrong oil, or excessive internal leakage from worn bearings.
A better way to rank the job is by cost to confirm and cost to fix:
Low cost / medium repair: contaminated oil, pick-up seal leakage, blocked pick-up, relief valve sticking
Medium diagnosis / medium to high repair: oil pump wear, pressure-regulating hardware defects
High diagnosis / high repair: main or rod bearing clearance, cam bore wear, balance shaft housing wear, turbo-related debris circulation
This matters for purchasing logic. A workshop group may stock MOQ 20-50 pieces for switches and filters, MOQ 5-10 kits for pump-and-gasket sets, and hold overhaul components only against confirmed inspection. Price spread follows certainty: a pressure switch may be a single-digit to low double-digit USD item, while a pump assembly may sit around USD 40-180 in the aftermarket depending on engine type. In many cases, a matched pump, pick-up, seal, and gasket kit is cheaper overall than four separate SKUs once freight and downtime are counted.
If the same engine family keeps generating complaints, do not stop at the vehicle. Review filter specification, gasket fit, pick-up sealing, pump machining consistency, and relief-valve calibration through the supply chain. Sometimes the failure is not one bad part. It is a mismatch between service parts and the engine's lubrication requirements. For repeat cases, buyers should ask suppliers for actual relief-valve set-point tolerance, such as target opening pressure ±5-10%, plus rotor or gear clearance control data instead of accepting a generic 'tested' claim.
Use this diagnostic sequence to avoid misdiagnosis
Do not jump straight to teardown. A staged process improves first-time fix rate and helps buyers separate real component failures from installation, maintenance, or service-part errors.
Step 1: Prove the warning is genuine
Install a calibrated mechanical pressure gauge at the sender port. Record readings at cold idle, hot idle, and a defined engine speed such as 2,500 rpm. If gauge pressure is within specification, shift attention to the switch, sensor, harness, connector condition, and instrument interpretation.
Use a gauge with a suitable range, typically 0-10 bar for passenger vehicles and 0-15 bar for some diesel applications, with calibration status not older than 12 months. If possible, compare scan-tool pressure value, switch state, and mechanical gauge at the same time. A deviation greater than about 0.2-0.3 bar at steady idle between two calibrated tools deserves a re-check before parts are ordered.
Step 2: Check oil level, grade, and service history
Confirm correct fill level and correct viscosity. Then ask the practical question: did the warning start right after service, after an oil-brand change, or after an extended drain interval? A recent service event often shortens the search dramatically.
For workshop control, note the exact oil specification, not just viscosity. 5W-30 alone is not enough if the engine requires a specific OEM approval. Two oils with the same SAE grade can behave differently under hot high-shear conditions and deposit loading. If the level is below minimum, record the shortage in litres. 0.5 L low and 2.0 L low do not imply the same risk.
Step 3: Read the oil, not just the dipstick
Check for:
Fuel dilution
Coolant ingress
Oxidation and sludge
Excessive metallic particles
Incorrect viscosity grade
Aeration or foaming
Oil degradation often follows overheating, extended drain intervals, combustion leakage, injector faults, or cooling-system failure. Thin or contaminated oil may still look acceptable on the dipstick while failing to maintain pressure when hot.
Where repeat failures or warranty claims are involved, a basic oil sample gives useful numbers. Fuel dilution above roughly 2.5-3.0%, elevated insolubles, or a viscosity drop outside the grade's expected band can justify stopping before pump replacement. Coolant traces combined with sodium, potassium, or glycol indicators matter even more, because replacing oil-system parts without correcting coolant ingress often creates a second failure cycle.
Step 4: Challenge the filter assumption
A collapsed element, incorrect anti-drainback valve design, or the wrong bypass setting can cause delayed pressure build, unstable lubrication, or a false pump diagnosis. This is especially relevant when qualifying private-label filters or consolidating supplier programs.
Useful checks include thread size, seal outside diameter, can height, bypass setting, and anti-drainback valve material. Thread and seal match alone are not enough. If the engine expects a bypass opening near 1.0-1.5 bar and the installed filter differs materially, lubrication behaviour can change even when the part physically fits. For incoming inspection, a buyer may sample AQL-based lots and cut open 1-3 filters per batch to review media bonding, center tube integrity, and valve assembly consistency.
Step 5: Inspect the sump and pick-up before blaming the pump
Remove the sump if sludge, carbon deposits, broken sealant, or debris is suspected. Excess RTV from an earlier repair can partially block the pick-up screen and reduce flow, especially at idle when oil is hot and thin.
Record whether blockage is light film, partial occlusion, or severe restriction. As a field rule, once roughly 20-30% of visible screen area is obstructed, flow risk becomes significant, particularly on hot idle. Also inspect the pick-up tube for cracks, flange distortion, and O-ring hardening. A flattened or undersized O-ring can create suction-side air ingress without leaving an external leak.
Step 6: Measure pump condition and internal leakage paths
Measure pump housing wear, rotor side clearance, gear backlash, or end float according to design. Inspect the relief valve for sticking, scoring, or weak spring force. If the pump remains within tolerance, measure main and connecting-rod bearing clearances because internal leakage can lower system pressure even when the pump is serviceable.
Typical workshop measurement points include rotor tip clearance, rotor-to-body clearance, cover flatness, and relief-valve bore condition. Depending on design, pump clearances may be controlled in the 0.02-0.15 mm range. Buyers should expect a new pump to come with measurable dimensional control, not just visual inspection. Sample inspection reports for critical dimensions are worth requesting.
Step 7: Decide whether the fault has moved beyond external repair
If low pressure is confirmed, inspect drained oil and filter media for metallic debris. Noise from the crankshaft area, turbocharger damage, or repeated hot-idle pressure loss after basic repairs usually means the problem has crossed into internal engine wear.
Many workshop groups use a simple gate: if confirmed hot pressure is below spec and metallic debris or knock is present, stop replacing external parts and move to strip-inspection approval. In practice, the best handling of low oil pressure causes and fixes is often a disciplined stop/go decision, not a faster parts swap.
Why some oil-pressure repairs fail again
Repeat failure usually comes from mismatch, omission, or poor verification rather than from one dramatic defect. A pump, gasket, seal, or pick-up tube that looks close on paper but differs in dimensions, valve settings, or material quality can recreate pressure loss, air ingress, leakage, or delayed pressure build.
Key items to verify during sourcing and incoming inspection include:
Pump body material and hardness consistency
Rotor or gear machining tolerances
Relief valve spring rate and free length
Flatness of mating faces
Seal and gasket compression-set resistance
Pick-up tube weld integrity and screen mesh condition
O-ring fit and sealing quality at the pick-up connection
Packaging cleanliness to prevent debris entering the lubrication system
For organised aftermarket supply, process documentation should align with IATF 16949:2016 and ISO 9001:2015 principles for traceability, incoming material control, inspection discipline, and nonconformance handling. Where elastomeric seals or gaskets are included, material review against REACH (EC) No 1907/2006 is also relevant for EU importers.
The useful question is not whether a supplier is 'qualified'. It is whether the supplier can turn quality claims into measurable acceptance criteria. Examples include pump cover flatness within 0.03-0.08 mm depending on design, rotor thickness variation held within drawing tolerance, relief spring free-length checks lot by lot, pick-up flange sealing-face flatness verified with feeler gauges or CMM data, and O-ring hardness controlled to the specified Shore band. If those nominal dimensions and tolerances are unavailable, warranty decisions become hard to defend.
It is also worth deciding whether the repair should use a single component or a matched kit. In many applications, replacing only the pump without the pick-up seal, gasket set, or filter leaves the original leak path or restriction in place. Across workshop networks, kit-based service tends to reduce missed items and improve repeatability.
From a commercial angle, kit strategy often improves total cost even when unit price is higher. A pump-only SKU may look cheaper ex-works, but a pump kit that adds the pick-up O-ring, housing gasket, front seal, and fastener pack can reduce technician omissions and avoid a second shipment. Typical B2B logic looks like this:
Fast-moving electrical items: lower unit price, higher MOQ, shorter lead time
Pump-only mechanical items: medium MOQ, often 30-45 day replenishment if stocked semi-finished
Matched kits: slightly higher price, but lower claim rate and better workshop compliance
Engine-code-specific variants: lower MOQ if mix is wide, but require tighter forecasting and fitment control
In many aftermarket programs, indicative MOQs may start around 50-100 pieces for switches or seals, 20-50 pieces for filters, and 10-30 pieces for pumps or matched lubrication kits, though workable numbers depend on packaging, export consolidation, and annual volume. Lead times often split into stock items at 7-15 days, repeat production at 30-45 days, and new-tool or customised kits at 45-90 days. These ranges help buyers plan safety stock around seasonal service peaks.
If your team is sourcing engine lubrication-related components, you can review our catalog and the supporting quality system used for production control and inspection.
Repair, strip, or overhaul? Use a decision threshold
Not every low-pressure case needs a rebuild. But not every case deserves another external part either. The right decision depends on measured pressure loss, debris findings, noise level, service history, and evidence of internal wear.
Repair-only cases often include:
Faulty pressure switch or sensor
Incorrect oil grade or low fill level
Filter restriction or wrong filter specification
Sludge blockage isolated to the pick-up area
Pressure relief valve sticking without wider wear damage
Minor leakage at a pick-up seal or related oil-system joint
Overhaul-risk cases often include:
Persistent low hot idle pressure after oil, filter, and pump-related faults have been ruled out
Bearing material in drained oil or filter media
Crankshaft scoring
Connecting rod knock
Camshaft or valvetrain wear linked to lubrication loss
Turbocharger lubrication failure caused by oil starvation
Recurrent low pressure combined with overheating or severe maintenance neglect
A pump replacement can restore pressure when the pump or relief valve is the real fault. It will not solve excessive bearing clearance or internal oil leakage caused by wear. If pressure remains below specification after correcting oil, filter, and pick-up issues, the engine should be assessed for deeper mechanical damage rather than cycled through more external parts.
A practical threshold model helps workshop groups stay consistent. If hot idle pressure is only slightly below target, with no debris, no knock, and clear evidence of a service-part or oil issue, repair is usually justified. If pressure is materially below target at both idle and raised rpm, or falls rapidly as oil temperature rises from 80°C to 100°C, the probability of internal leakage rises sharply. Add metallic debris, copper or aluminium bearing material, or turbo shaft distress, and the case shifts from service repair to overhaul planning.
For buyers serving multi-location repair networks, consistency is the commercial issue. If one site replaces a sensor while another replaces a pump for the same symptom pattern, warranty data becomes noisy and stock planning becomes less accurate. Standardising gauges, inspection sheets, and approval thresholds improves first-time fix rate and helps identify which low oil pressure causes and fixes are most common in a given engine population.
It is also useful to define internal approval bands. For example, a network may allow branch-level approval for oil, filter, switch, and seal repairs up to a fixed labour cap, require technical manager sign-off before pump replacement, and require strip evidence before ordering bearings, crank work, or a complete engine. That reduces over-ordering of expensive mechanical parts and improves forecast accuracy for pumps versus overhaul components.
Where an engine family shows recurring lubrication-related failures, supplier collaboration on pump assemblies, gaskets, housings, or matched kits may be appropriate through custom manufacturing programs.
What buyers should ask suppliers before stocking these parts
For this fault category, technical support and product control matter as much as price. The strongest supplier conversations are specific.
Buyers should ask for:
Dimensional inspection records for pump-critical features
Relief valve functional checks where applicable
Material certificates for housings, gears, rotors, and springs
Batch traceability for seals and gaskets
Cleanliness control procedures during assembly and packaging
Warranty return analysis process
Stable lead times for kits covering pump, gasket, seal, and pick-up where relevant
Clear fitment validation by engine code, not only by vehicle model
A useful stocking model is to hold both diagnostic-related service parts and mechanical repair parts together: pressure switches, sensors, filters, gaskets, pumps, pick-up seals, and associated engine components. That reduces downtime, avoids split shipments, and lets workshops complete the likely repair path without waiting for a second order.
Return patterns also deserve scrutiny. If pressure switches test normal on return while pumps rarely fail dimensional checks, the issue may sit with filter quality, oil selection, installation practice, or internal engine condition rather than with the replaced component. That feedback loop is valuable because it reduces unnecessary stock exposure and improves supplier qualification.
To make quotations comparable, buyers should request a standard commercial matrix covering MOQ, unit price break, tooling status, sample lead time, mass-production lead time, and warranty terms. A practical RFQ format might ask for:
MOQ per SKU: for example 10, 30, 50, and 100 pieces
Price breaks: ex-works price at each volume tier
Tooling: existing, modified, or new-tool requirement
Sample timing: typically 7-20 days if no tooling change is needed
Production timing: often 30-45 days after deposit or order confirmation for repeat items
Packaging: units per carton, carton dimensions, and export pallet quantity
Traceability: batch code format and retention period for inspection data
This structure makes comparison more honest. A supplier offering a slightly lower pump price but requiring high MOQ, longer lead time, or no documented relief-valve test may be less competitive than a supplier with a stronger kit structure and faster replenishment. For workshop chains, stock-out cost is often higher than a small unit-price difference because one delayed pump kit can immobilise a vehicle bay for an extra day.
A second useful control is to track claims in PPM or claims per 1,000 units by category: switch, filter, seal, pick-up, and pump. If one category shows elevated claims after a supplier change, buyers can isolate whether the problem is dimensional drift, material inconsistency, packaging contamination, or fitment cross-reference error. That is more actionable than treating all oil-pressure-related returns as one pool.
Driventus supports B2B customers with engine and powertrain component supply across aftermarket and manufacturing programs. If you need fitment review, specification discussion, or supply planning, you can request a quote.
Frequently asked questions
Yes. An incorrect filter can affect bypass behaviour, anti-drainback performance, or flow restriction. Always verify the full filter specification, not only thread size and seal diameter. Buyers should also check bypass pressure setting, valve material, and media construction if repeat start-up or hot-idle complaints appear across the same filter batch.
No. Confirm actual pressure with a calibrated mechanical gauge first. Sensor faults, low oil level, oil viscosity errors, contamination, and pick-up blockage are all common and often less expensive to correct. In a controlled workflow, pump replacement usually comes after gauge verification, oil and filter review, and sump or pick-up inspection where symptoms justify it.
For B2B buyers, process control and traceability under IATF 16949:2016 and ISO 9001:2015 are important references. For EU markets, REACH (EC) No 1907/2006 is also relevant when reviewing material compliance for seals, gaskets, and related components. It is also good practice to request measurable inspection data such as clearance checks, flatness checks, spring verification, and batch traceability rather than relying only on certificate summaries.
If you are reviewing suppliers for oil-system repair parts or related engine components, Driventus can support specification checks, MOQ and lead-time planning, and programme supply. Contact our team here: /contact.html
