Full Engine Gasket Kit Specifications for Buyers

Buyers evaluating a full engine gasket kit need more than a parts list. The key questions are which sealing elements are included, which materials are used, how the kit matches the engine drawing, and what validation evidence supports stable production. For procurement teams, the useful specification is not a generic marketing description but a document that ties each gasket, seal, and bead profile to the engine family, service duty, and inspection method. This matters for distributors, OEM supply, and workshop networks alike because seal failure can trigger rework, warranty claims, and avoidable downtime. The notes below focus on the specification points that should be checked before placing repeat orders or approving a new source. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

What a full kit should cover

A complete kit is engine-family specific. For a typical passenger car or light commercial engine, it may include the cylinder head gasket, valve cover gasket, intake and exhaust manifold gaskets, oil pan gasket, front and rear crankshaft seals, camshaft seals, valve stem seals, timing cover seals, and small auxiliary O-rings or washers. For some diesel and turbo applications, the package can also include EGR, cooler, and thermostat housing seals.

The first procurement check is scope. Ask whether the bill of materials covers every static and dynamic sealing point that is removed during a top-end or in-frame rebuild. If the answer is partial, make sure the quote states exclusions clearly. A full set for one engine code is not interchangeable with another that only differs by cylinder head revision, emissions package, or oil pump drive layout. That is why catalog accuracy matters. Start with our catalog and confirm the engine code, model year window, and any OE cross-reference notes before requesting samples.

Materials and sealing stack

Material selection should match joint load, temperature, coolant or oil exposure, and surface finish. Common constructions include:

</tr></thead><tbody> </tbody></table>For high-heat turbocharged engines, ask for proof that the materials were selected for the actual thermal profile, not just a generic engine family. If the kit includes coated steel parts, surface protection should be defined by the drawing or by a buyer-approved internal specification. Where corrosion testing is required, programs may reference SAE J2527 or an equivalent customer method.

Dimensional checks that matter

The most useful specification data is measurable. Buyers should ask for the following on the approved sample and on ongoing production lots:

Head gasket compressed thickness
Cylinder bore diameter and fire-ring position
Oil and coolant port alignment
Bead height and bead width on formed gaskets
Seal inner diameter, outer diameter, and lip preload
Hole pitch, corner radius, and locating tab position
Free height and installed height for valve stem seals
Material hardness where elastomers are used

Do not accept a generic statement such as “OE quality” without the test basis. The drawing should state the critical dimensions and the acceptable tolerance bands. In production, those values are usually controlled through incoming material inspection, first-article approval, and in-process sampling. For repeat orders, buyers should also request lot traceability so non-conforming material can be isolated quickly.

If you source adjacent parts for the same engine program, engine components can be aligned to the same dimensional control logic.

Validation and compliance checks

A supplier file should show more than a photo and a part number. At minimum, ask for material declarations, dimensional reports, and process controls that support the build standard. For automotive supply chains, IATF 16949:2016 and ISO 9001:2015 are the baseline quality references. For chemical compliance, REACH (EC) No 1907/2006 should cover substances of very high concern and restricted ingredients where applicable.

For engine programs connected to emissions durability, sealing consistency contributes to the engine-level compliance story, including tests referenced under ECE R-83 where relevant to the application. Buyers should treat that as an engine validation topic, not a claim that the gasket kit itself is certified.

A practical evidence pack includes:

PPAP or equivalent approval record
Material data sheet and composition declaration
Dimensional inspection report
Leak or pressure test method, if used
Packaging and preservation specification

Use the quality system page to review how incoming and in-process checks are handled, then align the evidence set to your own supplier onboarding list.

How procurement should compare suppliers

For sourcing, the right comparison is not just price per kit. Compare scope completeness, dimensional control, traceability, lead time, and response time for drawing changes. If a supplier cannot quote against a revised gasket thickness, they are not ready for stable program supply.

Component	Common material	Buyer check
Head gasket	MLS, graphite, composite, or multi-layer steel with stopper beads	Compressed thickness, bore clearance, coating type
Valve cover and oil pan	Molded rubber, cork-rubber, or FKM/ACM blends	Seal lip geometry, oil resistance, corner retention
Intake/exhaust manifold	Graphite, steel core, or layered composite	Heat resistance, port alignment
Rotary shaft seals	NBR, ACM, FKM	Shaft speed limit, spring load, oil compatibility
O-rings and washers	NBR, FKM, copper, aluminium	Dimensional tolerance, compression set

</tr></thead><tbody> </tbody></table>If your program needs a packaging format, colour coding, or a customer-specific bill of materials, custom manufacturing is the right route. For standard SKUs and aftermarket coverage, keep the quote aligned to the approved application list and avoid unverified substitutions.

Buying checklist for repeat orders

Before a repeat PO, confirm these points in writing:

Engine code and build range
Included and excluded sealing items
Material family for each gasket and seal
Drawing revision or approved sample reference
Measured critical dimensions and tolerances
Compliance declarations for REACH and customer-specific restrictions
Packaging count, label format, and lot traceability
Lead time, minimum order quantity, and spare parts support

This is the fastest way to prevent mixed lots and incorrect substitutions when multiple engine revisions share similar names. It also reduces the risk of field returns caused by one omitted seal or a mismatched bore opening. If you need a supplier review, a sample set, or a drawing-based quote, use request a quote.

Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

Frequently asked questions

It depends on the engine family, but most kits cover the head gasket, valve cover gasket, intake and exhaust manifold gaskets, shaft seals, and common O-rings. Confirm the exact scope before ordering.

The core references are IATF 16949:2016, ISO 9001:2015, and REACH (EC) No 1907/2006. For application-specific testing, ask whether the supplier can support customer leak, heat, or corrosion methods.

Yes. Custom builds can be aligned to a drawing, sample, or approved BOM. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

For drawing reviews, sample checks, or a repeat-order quote, use [request a quote](/contact.html).

Request a Quote

Criterion	Standard kit	High-spec kit	Buyer implication
Scope	Core seals only	Full engine sealing set with auxiliaries	Fewer missing items at rebuild
Material control	Generic elastomer mix	Application-specific compounds	Better heat and oil resistance
Dimensional proof	Basic sample check	Full report against drawing	Lower launch risk
Traceability	Batch code only	Lot traceability and retained samples	Faster containment
Support	Stock sales	Drawing review and custom labelling	Better fit for distributor or OEM programs

Full Engine Gasket Kit Specifications for Buyers

What a full kit should cover

Materials and sealing stack

Dimensional checks that matter

Validation and compliance checks

How procurement should compare suppliers

Buying checklist for repeat orders

Frequently asked questions

Related reading

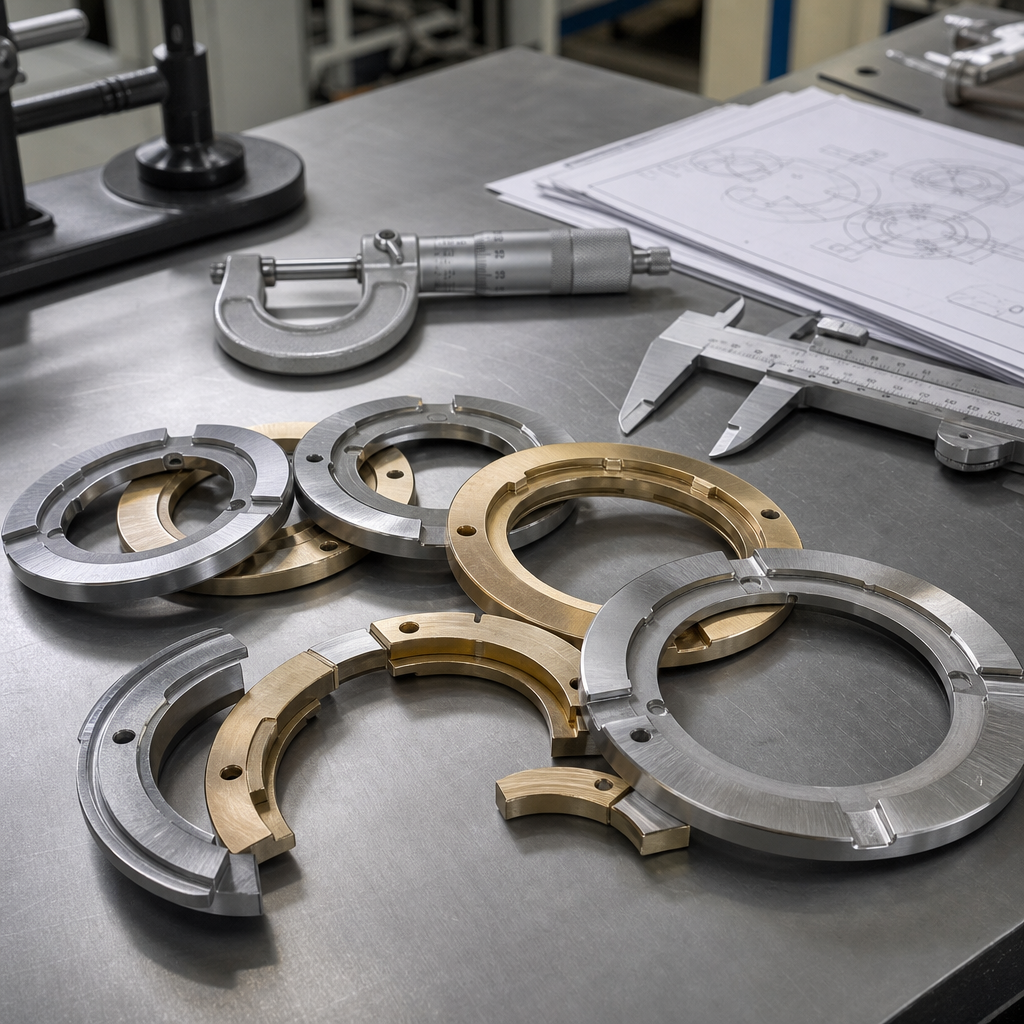

Thrust Washer Dimensions: Specification and Sourcing Guide

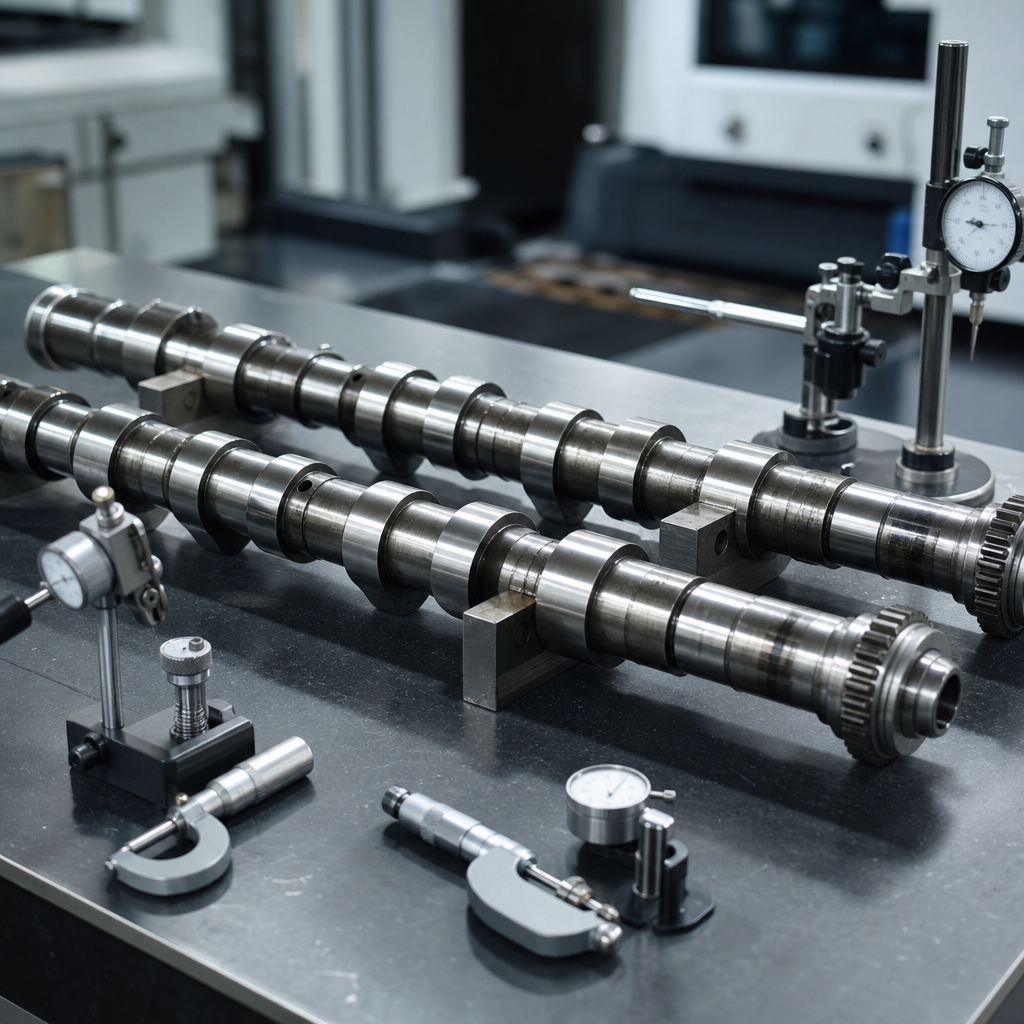

Camshaft Fiat Wholesale: Supplier Criteria for Buyers

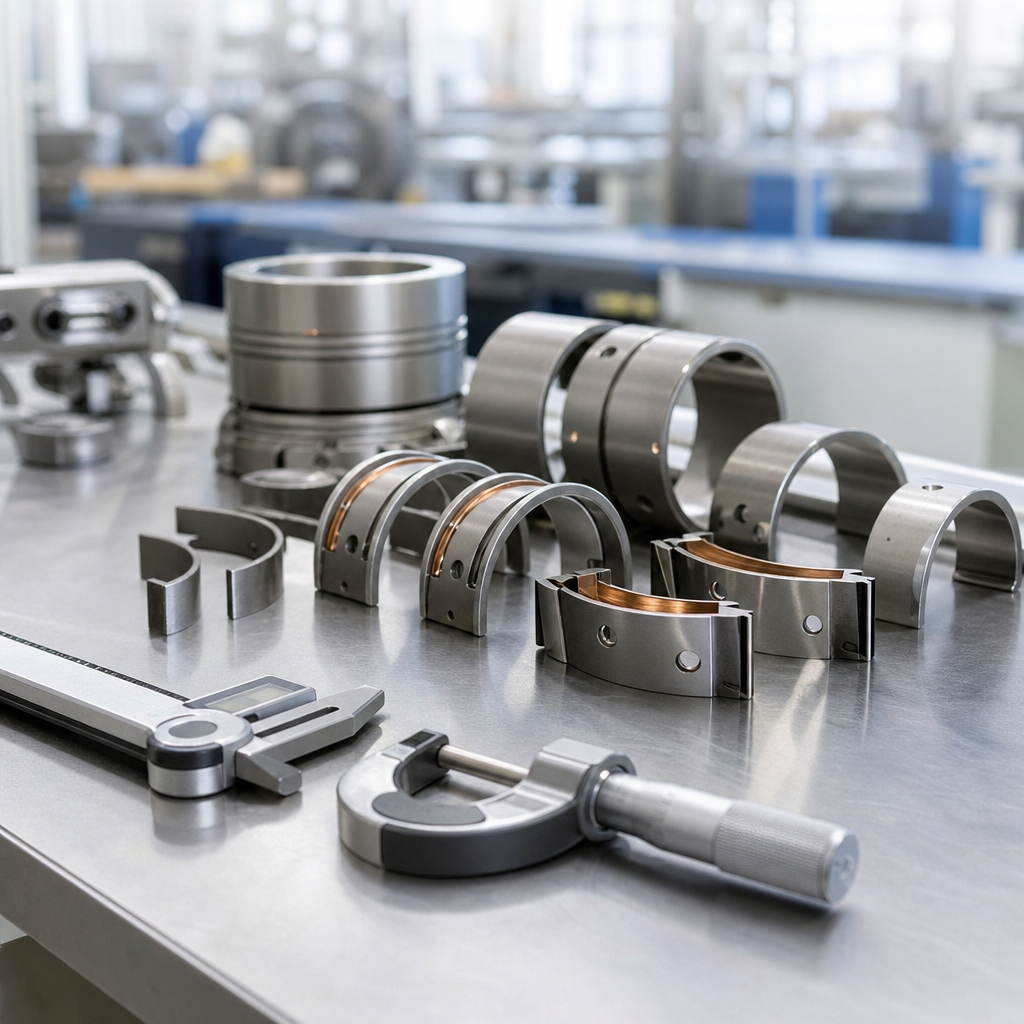

Engine Bearing Buick Manufacturer China: Sourcing Guide
