Cylinder Sleeve Toyota OEM Supplier: How B2B Buyers Actually Qualify Supply
Choosing a cylinder sleeve supplier for Toyota-platform engines is less about finding a low quote and more about controlling failure cost. For importers, rebuild programmes, and distributor networks, the expensive problems are predictable: unstable metallurgy, OD drift that changes press-fit behaviour, missing traceability, weak rust protection, and vague answers when a batch goes out of spec. A small unit-price saving rarely offsets rework, warranty claims, blocked inventory, or customer loss.
That is why buyers usually qualify a cylinder sleeve Toyota OEM supplier at two levels at once. First: can the factory hold material, hardness, bore stock, finish condition, and batch records consistently enough for the intended engine family? Second: can the commercial team support the programme with realistic MOQ, sample timing, approval discipline, and export documentation? Sleeves look simple on paper. In practice, the commercial result changes fast once you add new tooling, first-article approval, retained master samples, mixed-SKU planning, or protected capacity for repeat call-off orders.
This article approaches the topic from the angles buyers actually use: early decision filters, common supplier failure modes, process comparison, specification depth, project timing, and audit questions that produce useful answers rather than brochure language. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Start With the Decision, Not the Drawing
The first sourcing mistake is treating every sleeve enquiry as if it were the same part family. It is not. Some enquiries are straightforward catalogue replenishment. Others are really mini-development projects hiding inside a simple RFQ.
A useful first split is:
Catalogue sleeve: existing tooling, familiar process route, lower approval burden
Drawing-based sleeve: drawing review required, tighter sample validation, more documentation
Repair liner for rebuild use: extra attention on OD interference and ID stock allowance
Finished service part: more risk sits in supplied bore geometry and finish condition
For Toyota-fit engine components, procurement usually needs the following clarified before price comparison means anything:
Traceability requirement: heat number, batch code, record retention period
Required documents: material report, dimensional report, process records, REACH declaration where requested
The supplier discussion should then move to a harder question: is this quoted from existing tooling, or does it need a new pattern, core box, fixture set, or honing setup? That answer drives MOQ, sample lead time, and replenishment stability more than many buyers expect.
Just as important, confirm what standard the supplier is quoting against. Is it your drawing, an approved sample, or the supplier's internal catalogue? Many fitment disputes start because the buyer assumes interchangeability while the supplier is quoting a different stock allowance or finish condition.
Ask for numbers early. A serious RFQ should not stop at nominal size. It should state real limits, such as OD tolerance around +0.02 to +0.05 mm for an interference-fit liner, ID stock allowance of 0.30 to 1.00 mm before final machining, flange thickness tolerance like +/-0.03 mm, and hardness commonly controlled around 180-260 HB or to drawing requirement. The exact values vary by engine family. The point is that without tolerance bands, a capability claim is just sales language.
Commercial screening should be just as specific:
Existing catalogue sleeve: often 100-300 pcs per size if combined with other SKUs
Custom sleeve using an established casting route: often 300-500 pcs per part number
New-pattern or low-volume drawing part: commonly 500-1,000 pcs because tooling, trials, and inspection cost must be absorbed
Price comparison also needs context. A rough-machined sleeve may look cheaper, but the buyer then owns more downstream machining variation. In most import programmes, the real comparison is piece price + local machining cost + installation scrap risk + claim exposure.
Where part-family overlap matters, buyers may also review adjacent engine components in our catalog and engine components to see whether one supplier can support wider consolidation.
Where Supplier Programs Usually Fail
Most sleeve sourcing problems are not mysterious. They repeat.
The common failure modes are:
The supplier quotes to nominal dimensions only, with no committed tolerance window
The buyer expects a finished bore, but the supplier is delivering semi-finished stock
Hardness is within range on paper, but microstructure or chemistry control is inconsistent from batch to batch
OD variation changes press-fit behaviour, leading to installation scrap or bore distortion
Rust prevention is treated casually, and export shipments arrive with corrosion staining
Lot coding is incomplete, so one complaint turns into a whole-container containment problem
Capacity is quoted at plant level, while the actual bottleneck is honing, casting, or final inspection
These are not just quality issues. They are programme-control issues.
A buyer evaluating a cylinder sleeve Toyota OEM supplier should ask how the factory reacts when process drift appears. If OD starts trending high, who stops the batch? If hardness spreads toward the limit, what is the containment rule? If a bore finish check fails, are parts reworked, downgraded, or segregated? A capable manufacturer can answer that directly.
Another frequent failure point is false comparability between sources. Two suppliers may both quote the same nominal sleeve size, but one is pricing from a stable centrifugal casting route with controlled wall thickness and the other is pricing from a less repeatable route with looser process discipline. The quotes look similar until field performance separates them.
At audit stage, it is worth testing whether the supplier speaks in process detail or only in general reassurance. Specific answers about inspection frequency, gauge method, batch coding, and escalation timing usually indicate a source that has done this before. Vague answers usually mean the buyer will be carrying the risk.
Compare the Process Route Before You Compare the Price
A credible supplier should be able to explain how the sleeve is made, step by step. That matters because wear life, machinability, wall consistency, and fitment stability all begin there.
Practical comparison points
Checkpoint
What to confirm
Why it matters
Casting process
Sand cast or centrifugal cast route, mould control, chemistry control
Affects density, wall consistency, and wear behaviour
Material verification
Spectrometer checks, incoming and in-process chemistry records
Reduces hardness drift and inconsistent machinability
Machining control
CNC boring, OD turning or grinding, flange machining, hone control
Determines installation fit and bore geometry
Metrology
Bore gauges, roundness checks, roughness measurement, CMM where required
Confirms repeatability rather than one-off compliance
Batch traceability
Lot coding from melt or casting batch to packed goods
Limits containment cost if a defect appears
Quality certification
IATF 16949:2016 and ISO 9001:2015 scope relevance
Shows process discipline, but only if the scope fits the quoted work
Export packaging
VCI protection, rust preventive oil, partition trays or sleeves
Prevents corrosion and handling damage in transit
</tr></thead><tbody> </tbody></table>A plant audit should also cover gauge calibration, gauge R&R where relevant, segregation of non-conforming product, rework controls, and corrective-action closure time. Buyers supplying the EU or UK often want evidence that change control, deviation approval, documentation, and supplier management are handled with the discipline expected under IATF 16949:2016. ISO 9001:2015 is a baseline, not a substitute for product-specific review.
For sleeves, capability needs to be auditable. Typical checkpoints include:
Chemistry control frequency: spectrometer verification by melt or furnace batch, with retained heat records
Hardness check plan: for example 3-5 pcs per batch or one sample per defined quantity, measured at stated positions
Bore and OD in-process control: first-off approval, hourly checks, and final AQL or 100% inspection on critical dimensions depending on risk
Surface finish verification: Ra checks after boring or honing, often targeting Ra 0.4-1.2 um where the supplied bore condition requires it
Roundness and cylindricity control: often within 0.01-0.03 mm on critical finished diameters, depending on design
Wall thickness consistency: especially important for wet liners and thin-wall repair sleeves
Capacity claims also need to be broken down by bottleneck. Sleeve output is often constrained by centrifugal casting availability, semi-finish boring capacity, honing throughput, or final inspection manpower, not by total machine count.
Packaging deserves the same scrutiny. For sea freight, buyers often require VCI paper or VCI bags, rust preventive oil, capped bores where needed, partitioned cartons, and pallet wrapping suited to 30-45 day transit. If the supplier cannot explain the intended corrosion-protection duration, the export process may be underdeveloped.
Driventus maintains a documented quality system for export supply, including controlled inspection records and batch traceability.
Specification Deep-Dive: The Numbers That Change Fitment Risk
Sleeves fail for familiar technical reasons: weak wear resistance, distortion after installation, poor lubrication retention, surface cracking, cavitation risk in some wet-liner environments, or incorrect interference with the parent block. Those risks should be handled in the RFQ and approval file, not after the first shipment.
A sound specification review should define:
Material class: wear-resistant cast iron with controlled chemistry
Microstructure expectation: stable pearlitic structure or equivalent agreed on the drawing
Hardness window: verified batch by batch
OD tolerance: matched to installation method and parent bore condition
ID stock allowance: enough for finish boring and honing after assembly
Roundness and cylindricity: controlled for sealing, heat transfer, and wear
Surface finish: OD and ID roughness limits aligned to the supply condition
Edge condition: deburring, chamfer angle, flange corner control
Why this level of detail matters
If a supplier quotes from nominal dimensions only, the buyer still does not know whether the part will install correctly. Rebuild applications often need more machining stock than ready-to-install catalogue sleeves. If that is not written clearly, the result can be scrap, extra machining time, unstable installation yield, or even block damage.
It also matters whether dimensions are being discussed as supplied or after installation and final honing. Some disputes are simply measurement disputes. The RFQ, drawing, and sample approval should state whether the part is rough, semi-finished, or fully finished.
A buyer-ready technical sheet for a cylinder sleeve Toyota OEM supplier project often includes values like these:
Item
Common buyer control point
Practical note
Material chemistry
Controlled C, Si, Mn, P, S and alloy additions per agreed grade
Should tie back to a drawing, internal standard, or approved sample
Hardness
Often 180-260 HB or per programme requirement
Too low reduces wear resistance; too high can hurt machinability
OD tolerance
Frequently in the 0.02-0.05 mm range for interference-fit sleeves
Final value depends on block material, wall thickness, and installation method
ID stock allowance
Commonly 0.30-1.00 mm before finish machining
Rebuilders usually want more stock than ready-fit distributors
Roundness
Often within 0.01-0.03 mm on critical finished diameters
Important for ring sealing and heat transfer
Cylindricity
Often 0.02-0.05 mm where specified
Must match supplied condition and inspection method
Surface roughness
Honed bore often around Ra 0.4-1.2 um when supplied in finished condition
State clearly whether values apply before or after installation
Chamfer/deburr
Example 0.5 x 45 degrees or print specific
Protects assembly and reduces edge chipping
</tr></thead><tbody> </tbody></table>Material evidence should go beyond a generic certificate. Buyers should ask for the report format, test frequency per heat or batch, and whether chemistry, hardness, and dimensional results can all be linked to the same lot code. For higher-risk programmes, some importers also ask for retained metallographic photos showing the approved pearlitic structure and any graphite form requirement.
Installation assumptions should be written into the approval file as well. If the intended parent-bore interference is, for example, 0.05-0.08 mm on a given size, the supplier needs that assumption to control OD correctly. If the buyer plans to final-hone to a target piston clearance after installation, the ID stock must support that route across the full tolerance range, not just at nominal.
Run the Project in Stages: MOQ, Samples, Lead Time, Documents
Commercial execution is where many technically acceptable suppliers still fall short. Buyers usually need a clear answer on MOQ, pilot samples, production lead time, approval sequence, and document package before onboarding a new source.
A practical comparison looks like this:
Commercial item
Standard catalogue part
Custom or drawing-based part
MOQ
Lower, often mixed by shipment
Higher due to tooling and setup cost
Sample lead time
Shorter if tooling exists
Longer because of pattern, fixtures, and first-article checks
Production lead time
More stable with forecast
Depends on approval timing and capacity reservation
Documentation
Basic inspection report, packing list, COO if needed
Expanded dimensional report, material report, development records
Change control
Limited if established item
Must be defined in writing before SOP
</tr></thead><tbody> </tbody></table>For repeat import programmes, buyers should also ask:
Whether safety stock can be held against forecast
Whether mixed-container consolidation is available with related engine parts
Whether packaging can be adapted for pallet height or shelf handling
Whether first-article samples are retained as master references
Whether custom labels, barcodes, and batch codes can be applied under custom manufacturing
Whether the supplier can issue certificate of origin, inspection records, and material documents in the required destination-market format
Lead time should be broken into stages. One total number is usually not enough.
Project stage
Existing tooling part
New or modified tooling part
RFQ review and technical clarification
2-5 working days
3-7 working days
Sample preparation
7-15 days
20-45 days depending on pattern/core box work
First article inspection report
2-5 days after sample completion
3-7 days after sample completion
Mass production after approval
25-40 days
35-60 days depending on foundry and machining loading
Export booking and dispatch
5-10 days
5-10 days
</tr></thead><tbody> </tbody></table>MOQ and price should always be discussed together. The unit-price logic is usually driven by setup amortisation, not only material weight.
Lower MOQ: higher unit price because setup, inspection, and scrap allowance are spread over fewer pieces
Forecast-backed MOQ: lower unit price because the supplier can reserve raw material, combine batches, and plan machining more efficiently
Custom tooling project: tooling may be charged separately, amortised into the piece price, or refunded after agreed cumulative volume
For sleeve programmes, buyers often see broad ex-works pricing logic in three bands:
Standard small dry sleeve: lower price band where tooling exists and machining is simple
Flanged or heavier-wall sleeve: mid price band because of higher mass and added machining time
Wet liner or complex drawing part: higher price band because of tighter control, wall-consistency requirements, and inspection cost
Low quotations are rarely comparable unless they are tied to material grade, part weight, supply condition, annual quantity, packaging specification, and required paperwork.
Documentation should be written into the PO. At minimum, many buyers request packing list, commercial invoice, certificate of origin where needed, batch-linked inspection record, and material certificate or statement of conformity. For custom parts, add ballooned drawing, full dimensional report on first article, approved sample sign-off, and change-notification procedure. If the programme follows automotive customer discipline, a slim PPAP-style file with control plan, PFMEA summary, and process flow can reduce later disputes materially.
RFQ and Audit Questions That Expose the Real Supplier
A structured RFQ shows very quickly whether a supplier is ready for repeat business or only for opportunistic trading. The right questions are specific enough that weak sources cannot hide inside general claims.
1. What casting route is used for this sleeve family, and how are chemistry and hardness controlled? 2. What are the committed OD and ID tolerances, stock allowance, and roundness limits? 3. Is the part supplied semi-finished or finish honed? 4. What is the standard batch size and monthly capacity per part number? 5. What is the repeat-order lead time after forecast confirmation? 6. Which inspection records are issued with each shipment? 7. How are rust prevention and export packing validated for long transit? 8. What is the engineering change notification and approval process? 9. Can the supplier support cross-reference review when buyers provide internal or generic fitment references? 10. What corrective-action format is used for complaints, containment, and root-cause closure?
If buyers are evaluating references linked to an engine programme, the RFQ should include full drawing data, material expectation, finish condition, and any cross-reference already held internally. OE-style references should only be used when they are already present in the enquiry. That reduces fitment ambiguity and unnecessary revision cycles.
It is also useful to ask for records or photos from recent comparable production, especially when the supplier claims prior Toyota-platform experience. Comparable evidence does not replace validation, but it shows whether the quoted process is routine or theoretical.
For initial discussions or a formal RFQ package, use request a quote.
To make the RFQ usable, require fixed answer fields instead of open text alone:
Quoted MOQ per part number: pieces and batch multiples
Tooling status: existing / modification required / new tooling required
Sample lead time: calendar days from drawing confirmation
Repeat-order lead time: days from deposit or PO release
Monthly capacity: normal and peak by part number
Inspection frequency: first-off, hourly, per batch, or 100% on critical dimensions
Tolerance commitment: quoted min/max values, not nominal only
Claim response time: containment within 24-72 hours, 8D or equivalent closure target within 10-20 working days
Rust-prevention duration: claimed protection period under warehouse and sea-freight conditions
A strong audit question for any cylinder sleeve Toyota OEM supplier is whether process capability is measured on stable dimensions. If the supplier tracks bore or OD capability, buyers can ask for evidence such as Cp/Cpk >= 1.33 on agreed critical characteristics after process stabilisation. Not every project needs formal capability studies. But a supplier that understands the question is usually better prepared for repeat OEM-style supply.
Acceptance sampling should also be fixed before shipment. Some importers rely on AQL-based final inspection. Others require 100% checking of OD, flange thickness, or visual defects on critical service parts. That affects both lead time and price, so it belongs in quote review, not in the first complaint meeting.
Scenario: When a Trader Stops Being Enough
A trading company can work for spot demand or low-risk replenishment. The calculation changes when volume rises, fitment complexity increases, or claim cost starts to matter.
The shift usually happens when the buyer needs one or more of the following:
Drawing-based sleeve development
Controlled metallurgy and process records
Stable monthly replenishment across multiple SKUs
Private-label packaging and barcode integration
Audit access to production and inspection points
Faster root-cause feedback on claims
In that situation, the real question is simple: can the source control the variables that determine service life, installation yield, and batch-to-batch repeatability? If not, the buyer is still carrying the operational risk.
A qualified cylinder sleeve Toyota OEM supplier should offer transparent capability, realistic lead times, and documentation that supports import, incoming inspection, and complaint handling. The value is not just manufacturing the sleeve. It is maintaining consistency when forecasts move, material cost changes, and the part mix expands.
A typical transition point from trader to manufacturing partner appears when annual demand reaches roughly 3,000-10,000 pcs per year across a sleeve family. At that level, process control often matters more than spot pricing. Even a modest dimensional drift rate can cost more than the gap between two quoted suppliers.
Buyers should run a landed-risk calculation:
What is the cost of one rejected batch once freight, sorting, rework, and back-order loss are counted?
How much local machining-stock variation can the rebuild network absorb before productivity drops?
Is forecast accuracy good enough to justify supplier-held safety stock or reserved casting slots?
Does the supplier have authority to implement corrective action directly at foundry and machining level?
When the answers point to ongoing volume and quality accountability, a direct manufacturing relationship is usually more economical over 12 months than buying through a non-controlling trading layer. The stronger partner is usually the supplier that can separate tooling, sample cost, unit price by MOQ break, packaging option, and lead-time assumption instead of offering one low number with unresolved technical conditions.
That is the practical test. The best source is not the one promising everything at RFQ stage. It is the one that can state clearly what is controlled, what is variable, and what commercial conditions are required to keep supply stable over repeated Toyota-platform programmes.
Frequently asked questions
MOQ depends on whether the sleeve is a standard catalogue item or a custom drawing part. Standard items may allow lower mixed-order quantities, often around 100-300 pcs per size if combined in one shipment, while custom parts commonly start around 300-1,000 pcs depending on tooling, setup, and validation requirements. Buyers should also ask whether MOQ applies per part number, per production batch, or per combined shipment.
For automotive export programmes, IATF 16949:2016 is a key process-quality reference, with ISO 9001:2015 as a common system baseline. Buyers may also request REACH (EC) No 1907/2006 declarations, material reports, certificate of origin, batch traceability records, and first-article dimensional reports depending on destination market and programme requirements. The important point is not only whether the supplier has a certificate, but whether the certified scope covers the quoted casting, machining, and inspection processes.

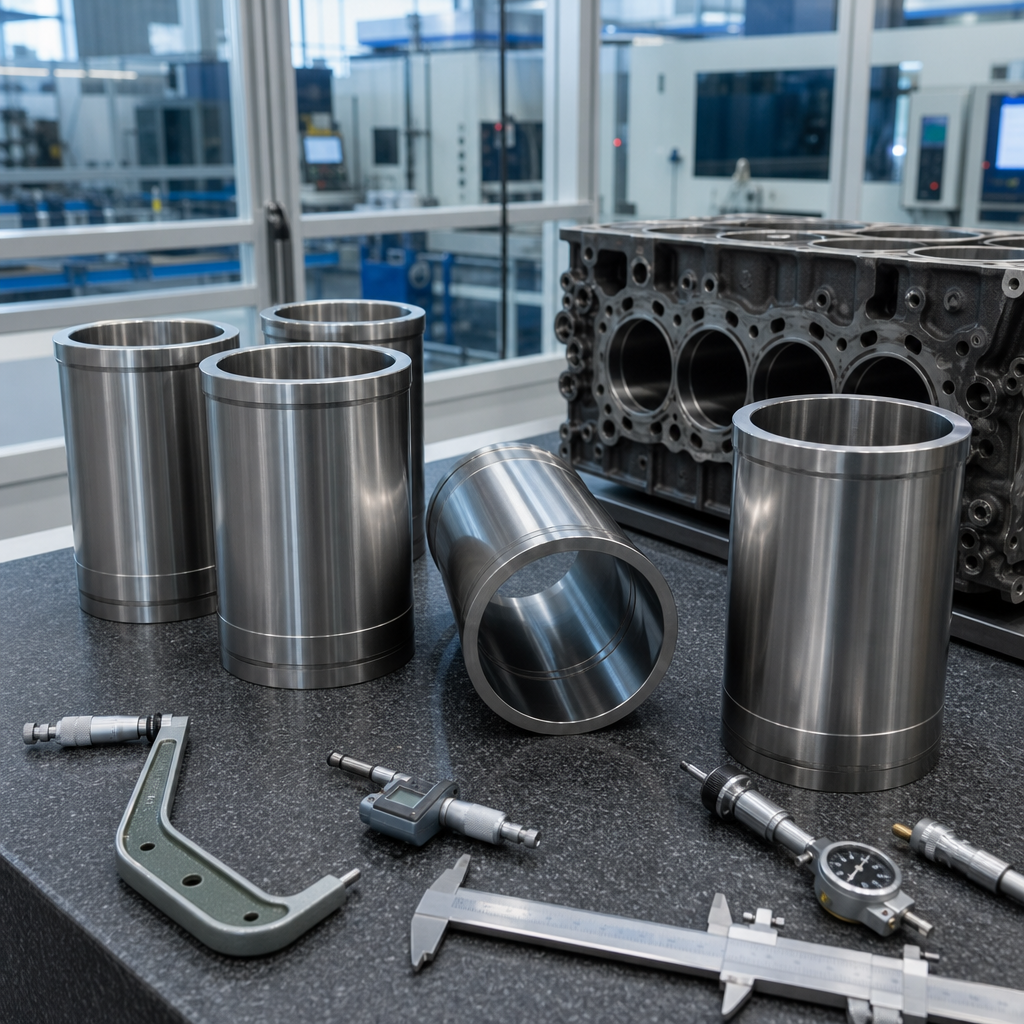

That depends on the installation route. Rebuilders often prefer semi-finished sleeves with machining allowance such as 0.30-1.00 mm for final boring and honing after installation. Distributors selling ready-to-fit parts may prefer more finished supply, provided tolerances, finish condition, bore roughness, and final bore expectations are clearly defined in the RFQ and approval sample.
If you are qualifying a new source for cylinder sleeves or consolidating engine-component supply, send the part data, annual volume, target market, required tolerances, MOQ target, and lead-time expectation through /contact.html.
