Connecting Rod for Audi TT Replacement: Sourcing Without Fitment Surprises
Buying a connecting rod for Audi TT replacement is not a simple model-name exercise. The safe question is not “does it fit an Audi TT?” but “which engine code, crank journal, pin interface, rod width, bolt system, cap design, and weight band does this rebuild program require?” A rod that looks correct can still cause low bearing crush, tight oil clearance, piston height variation, hot idle knock, extra balancing work, or warranty returns after assembly. Procurement teams should therefore compare suppliers only after the technical envelope is fixed: center-to-center length, big-end bore, small-end bore, big-end width, bolt specification, material route, hardness window, machining controls, and matched-set weight spread. This article uses a sourcing lens rather than a generic parts-guide format. It shows where mistakes usually happen, what evidence to request, how to structure validation, and how to make MOQ, lead time, packaging, and documentation part of the same decision. Driventus manufactures engine and powertrain components in Taizhou, Zhejiang under IATF 16949:2016 and ISO 9001:2015 systems for B2B supply. Driventus is an independent aftermarket manufacturer; brand names are referenced only to identify fitment.
Start With a Fitment Decision, Not a Model Name
“Fits Audi TT” is too broad for a purchase order. Before price comparison, separate the application by engine code, production years, displacement, fuel type, aspiration, wrist-pin diameter, crank journal diameter, big-end width, center-to-center length, and supply format: individual rod, matched set, or kit with bolts and bearings excluded or separately specified.
The first decision is whether the part is an OE-equivalent replacement or a performance conversion. For an OE-equivalent program, the supplier should stay inside the original assembly envelope: bearing interface, reciprocating weight range, cap location method, bolt clamping approach, and service-friendly rebuild process. For many Audi TT replacement programs, the practical split is between earlier 1.8T-style engine families, later 2.0 TFSI-style families, and regional variants that may share a model badge but not the same rod geometry. If an OE part-number cross-reference is available, record it in a controlled format, such as OE 06A… where applicable. Do not approve fitment from a partial number.
Write down the no-change interfaces before releasing an RFQ: crankpin diameter and width, bearing tang and shell compatibility where relevant, piston-pin diameter and lock style, rod bolt thread and under-head seating, cap split design, oil-hole requirement, and maximum weight spread per set. If the buyer cannot share a complete drawing, use a measured-sample report from at least 5 pieces where possible. One used rod is a weak reference; bearing failure, overheating, detonation, or previous resizing can distort the data.
Useful sourcing references include our catalog and the engine-specific category page for engine components. When an aftermarket item is based on an existing drawing or sample, Driventus can also support custom manufacturing after drawing review, sample assessment, and feasibility approval.
Failure Modes That Start With Small Dimensional Errors
Connecting rods are unforgiving because several dimensions interact under clamp load. A rod can pass a visual check and still create rebuild problems if the housing bore, center distance, pin-bush geometry, cap alignment, or side width drifts outside the intended range. Ask for an inspection report tied to the approved drawing, gauging method, torque condition, and sampling plan. A generic certificate is not enough.
Check point
Procurement requirement
Why it matters in the engine
Center-to-center length
Drawing-specific tolerance, commonly ±0.02–0.05 mm for replacement machining control
Controls piston deck position and compression variation
Big-end housing bore
Measured after cap assembly at specified bolt torque or torque-angle
Controls bearing crush, oil clearance, and roundness under clamp load
Big-end bore roundness/taper
State maximum deviation, commonly within 0.005–0.010 mm where drawing supports it
Reduces hot bearing risk, tight spots, and unstable oil film
Small-end bore or bushing ID
Matched to piston-pin specification and measured after final honing
Prevents pin seizure, cold knock, or excess pin clearance
Big-end width
Verified against crank cheek clearance, often controlled within ±0.02–0.05 mm
Controls side clearance and oil flow at the crank journal
Rod weight
Set average and maximum spread per matched set, often 1–3 g depending on program
Reduces imbalance and balancing labor after rebuild
</tr></thead><tbody> </tbody></table>For a connecting rod for Audi TT replacement order, decide early whether the inventory should be individual rods sorted by weight band or boxed matched sets. Matched sets usually work better for rebuilders because they reduce incoming inspection time, balancing effort, and branch-level handling errors.
A practical incoming-inspection plan is to check 3–5 pieces from a pilot shipment, then move to AQL sampling for stable repeat orders. On first orders, also verify the big-end bore after bolt removal and re-torque. The cap and bolt system must repeat accurately during real engine assembly, not only during final factory inspection. If rods are supplied with bolts, the dimensional report should state whether production bolts, lubricated threads, and the specified torque or torque-angle condition were used.

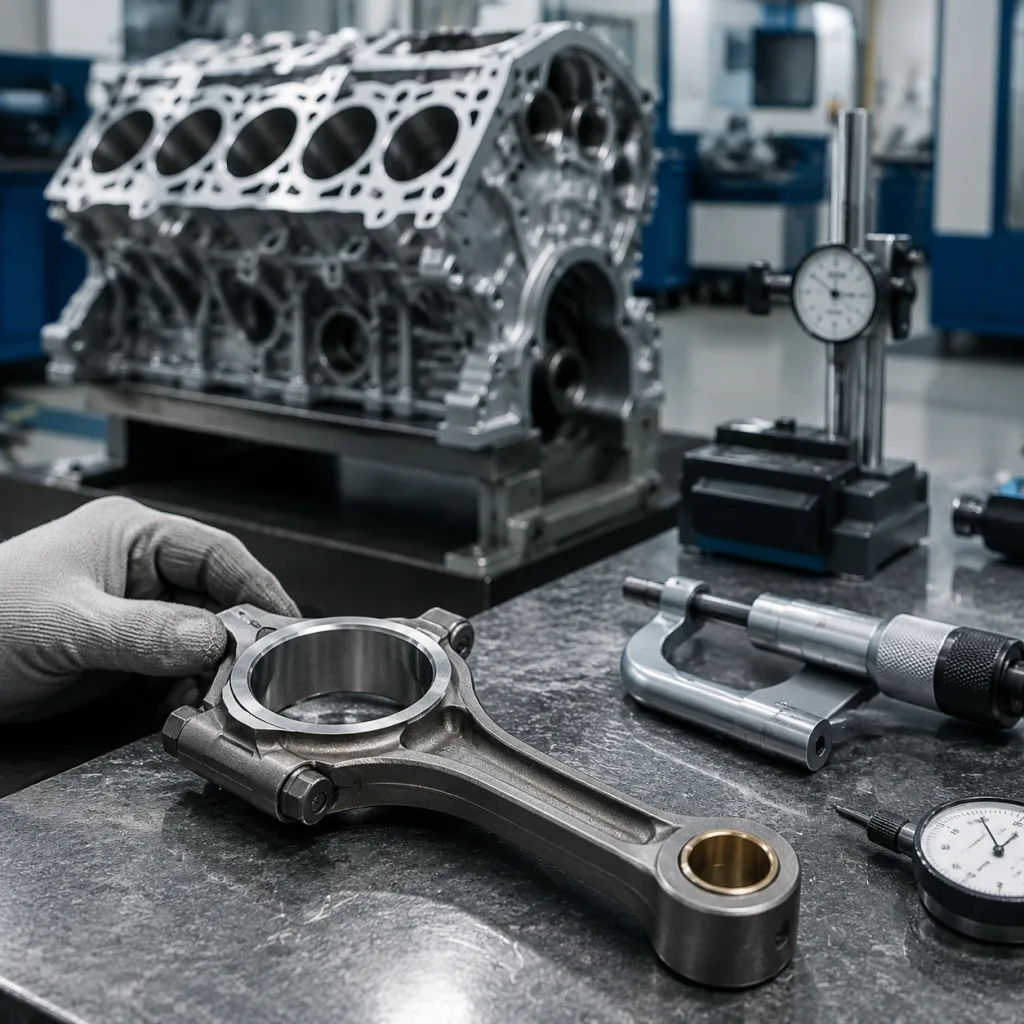

Material and Machining: Match the Engine, Not the Strongest Brochure Claim
Replacement rods are commonly produced from forged steel or powder-metal routes, depending on the original engine family and service target. The strongest-sounding material is not automatically the correct choice. Material route, fracture-split or machined cap design, cap alignment method, bolt style, and machining process must match the engine architecture and the rebuild workflow.
A purchasing specification should request these records:
Material grade statement and mill certificate traceable to batch, such as forged steel grade or approved powder-metal route.
Forging or sintering process route with heat number or lot number linkage to finished goods.
Heat-treatment record with hardness range and sampling frequency; use a defined HRC/HB window instead of vague “heat treated” wording.
Magnetic particle or comparable crack inspection record where required by the control plan, especially for forged steel rods.
Big-end and small-end dimensional report after final machining, including gauge ID, operator/date, and measurement temperature where required.
Surface condition requirements for parting faces, beam area, bolt seats, bushing bore, and oil-hole transitions.
Lot traceability code on packaging and inspection documentation, with FIFO control for mixed production batches.
Process sequence matters. Confirm how the supplier handles cap machining, bolt installation, big-end boring and honing, small-end bushing installation or sizing, deburring, cleaning, anti-rust treatment, and final weight sorting. Critical steps need in-process checks, not only final inspection. Big-end honing, for example, should use master setting rings and recorded tool compensation when a batch trends toward the tolerance limit.
Driventus’ quality system is structured around IATF 16949:2016 and ISO 9001:2015 requirements, including process control, nonconforming-output handling, corrective action, and production traceability. For export programs, packaging records and material declarations may also need to support customer compliance workflows under REACH (EC) No 1907/2006, depending on the destination market and importer obligations.
Approval Path: From Sample Rod to Repeatable Batch
Validation should not be treated as one sample photo and a price quote. Separate three layers: development approval, production control, and shipment inspection. A supplier can make a good first sample yet still create risk if batch controls, gauging methods, and acceptance criteria are unclear.
Typical validation evidence can include:
Tensile or material property verification for the selected steel or powder-metal grade, by mill certificate or agreed independent test.
Hardness testing after heat treatment, with sample size and pass/fail range stated on the report.
Fatigue evaluation or equivalent engineering validation for the target duty cycle when program volume or risk justifies it.
Bolt clamp-load verification using the specified torque-angle or torque-only method, including thread lubrication condition.
Housing bore roundness measurement after bolt installation, removal, and reinstallation to confirm repeatability.
Visual inspection for machining damage, burrs, cracks, rust, nicks on cap faces, and oil-hole obstruction where required.
For a new connecting rod for Audi TT replacement program, use a staged approval path: drawing or sample review, prototype or first-article sample, dimensional report, assembly trial with bearing and piston pin, packaging approval, then pilot order. Keep the pilot order under tighter review than routine replenishment. Buyers may require 100% checks on big-end bore, small-end bore, center distance, and weight sorting for the first production lot, then move to agreed sampling once capability is proven.
For repair-chain supply, repeatability often matters more than a high advertised strength figure. A rod that forces special balancing, extra bearing selection, or branch-level sorting increases warranty exposure. For distributor programs, define pre-shipment AQL criteria such as AQL 1.0 for major dimensional defects and AQL 2.5 for minor visual defects, retained-sample rules for at least one full production lot, and a documented method for preventing mix-ups between engine applications that look similar but use different pin, journal, or width dimensions.

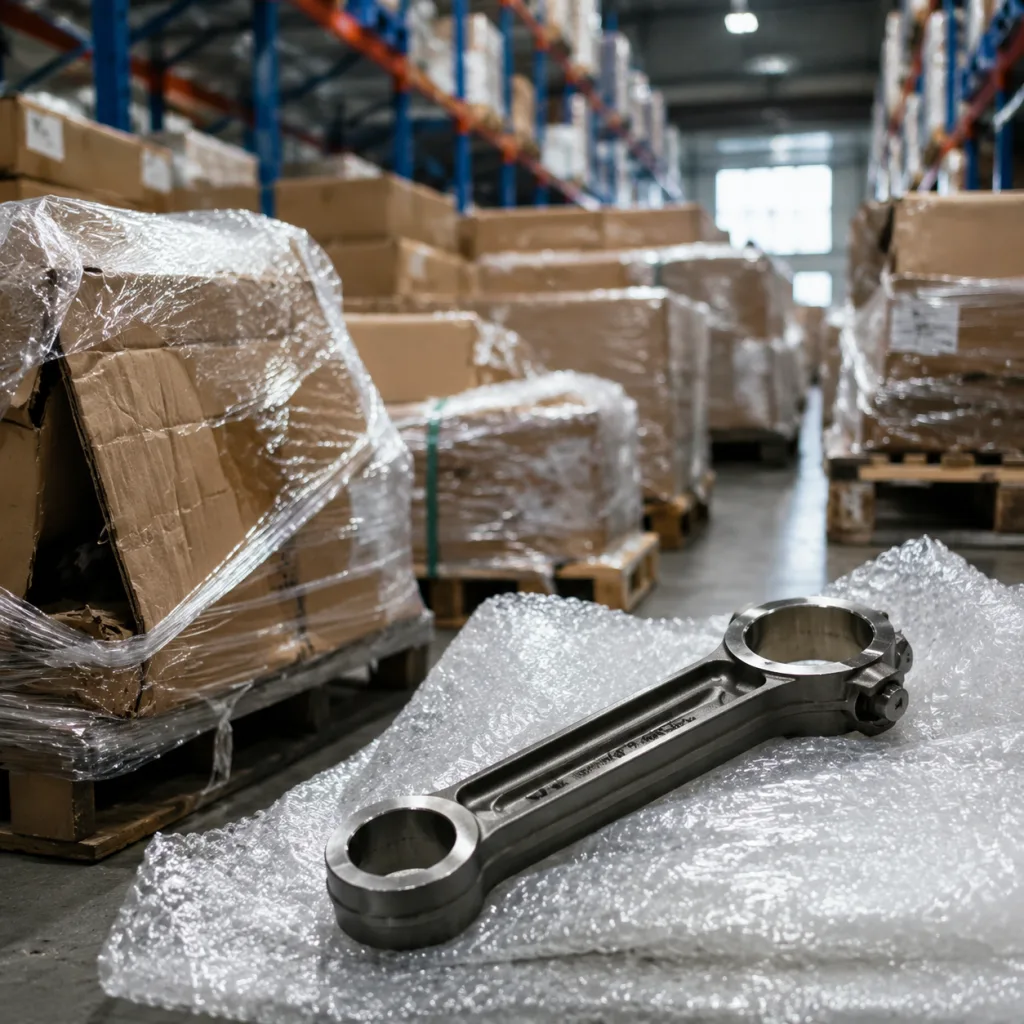

Warehouse Scenario: The Rod Survives Production but Fails the Supply Chain
A connecting rod is dense, machined, and corrosion-sensitive. Even a correctly made rod can become a claim if cap faces touch during transit, a bushing corrodes in storage, or weight-matched pieces lose their identity after carton opening. Packaging should protect machined bores, bushings, oil holes, and parting faces while preventing mix-ups between similar variants.
Recommended documentation package for B2B orders:
Commercial invoice, packing list, and HS code confirmation for the buyer’s import process; final classification should be confirmed by the importer or broker.
Certificate of conformity referencing the approved drawing, revision, or agreed specification.
Batch inspection report with key dimensions, hardness results, sample size, and pass/fail criteria.
Material certificate summary with traceability to production lot and heat/lot number where applicable.
Packaging specification, including VCI bag or anti-rust oil method, inner box quantity, carton quantity, pallet pattern, and gross weight.
Fitment list controlled by engine code and application notes, not only model name.
Make the packaging spec measurable. A buyer may require each rod in an individual VCI bag, cap faces protected from metal-to-metal contact, 4 pieces per inner carton for matched sets, carton weight below 15–18 kg for manual handling, and pallet labels showing part number, revision, quantity, lot, net/gross weight, and destination PO. If rods are weight-matched, the set number and individual piece position should remain identifiable after carton opening.
For private-label distribution, confirm label language, country-of-origin marking, barcode format such as EAN-13, UPC, Code 128, or customer SKU, carton drop-test expectations, and artwork approval timing before production. Driventus exports to more than 60 countries and can align packaging formats for EU, UK, US, Canada, Australia, and Brazil distribution channels, subject to agreed artwork files and importer requirements.
RFQ Q&A: What Separates a Usable Quote From a Risky One?
What must be in the RFQ before pricing? Include vehicle application, engine code, displacement, model year range, market, OE cross-reference format such as OE 06A… if available, and the status of the sample, drawing, or measured reference part. State whether used samples are acceptable for reverse review.
How should quantity be presented? Give the trial quantity, annual forecast, release schedule, and whether rods are required as individual pieces or matched sets. A quote for loose rods is not equivalent to a quote for weight-matched boxed sets.
What technical choices affect cost? Confirm bolt inclusion, bolt grade/class, tightening method, and whether bolts are single-use in the service procedure. Also state whether the order needs neutral packaging, private label packaging, bulk packaging, or repair-chain unit packs.
Which records should be priced into the offer? List required inspection records, certificate of conformity, dimensional report, material traceability summary, hardness results, packaging specification, and any PPAP-style documentation. If documents are needed for every shipment, say so.
What commercial details prevent late revisions? Provide destination country, incoterm preference, compliance-document expectations, target defect allowance, warranty handling process, and required response time for quality claims.
MOQ and price should be evaluated against setup burden, not only unit price. Existing validated items often allow lower B2B MOQs because tooling, drawings, and gauges already exist. New or customized rods usually need higher MOQs to absorb engineering review, fixture setup, first-article inspection, packaging artwork, and material lot minimums. Ask suppliers to separate sample cost, tooling or fixture cost if any, unit price by quantity break, packaging cost, inspection-document cost, and freight basis.
Lead time should be quoted in stages. A common planning model is 1–2 weeks for drawing or sample confirmation, 2–4 weeks for first-article or pilot preparation when no engineering changes are required, and 4–8 weeks for mass production depending on material availability, heat treatment, machining capacity, and packaging approval. Reorders of a stable item can usually be shorter when forecast, labels, and inspection requirements stay unchanged. The best sourcing comparison is landed cost per accepted part: include defect rate, sorting labor, warranty exposure, packaging suitability, MOQ pressure, cash tied in inventory, and lead-time stability. Buyers can request a quote with application data and annual volume so engineering can confirm fitment, production feasibility, and documentation requirements before commercial negotiation.
Frequently asked questions
No. Fitment depends on engine code, displacement, crank journal, wrist pin, rod length, big-end width, bolt design, and production variant. Buyers should confirm the engine family and use a controlled fitment list before purchasing.
Matched sets are usually better for rebuilders and repair chains because weight spread can be controlled before shipment, often to an agreed 1–3 g range depending on the program. Individual rods may suit distributor stock if the application and weight band are clearly labelled.
Request a certificate of conformity, dimensional inspection report, material traceability summary, hardness results, packaging specification, and batch identification. For larger programs, request control-plan, first-article, retained-sample, and PPAP-style records where agreed.
For application confirmation, drawings, samples, or volume pricing, send the engine details, target quantity, forecast, packaging format, and documentation requirements to Driventus. Our team can review fitment and production feasibility through /contact.html
