Car Cabin Air Filter Replacement for B2B Buyers
Car cabin air filter replacement is a routine service item, but procurement risk is higher than the low unit price suggests. A filter that is 2 mm short, too flexible at the frame, or poorly pleated can bypass dust, whistle inside the HVAC housing, reduce airflow, or create warranty friction for repair chains. For distributors and importers, the commercial requirement is not a single attractive sample; it is repeatable dimensional match across applications, stable media performance, accurate packaging data, and reliable supply.
Driventus manufactures replacement cabin filters for aftermarket programmes, private-label ranges, and multi-location service networks. The focus is OE-equivalent fitment, controlled materials, and batch-level inspection rather than consumer-style claims. Driventus is an independent aftermarket manufacturer; vehicle and OE references are used for fitment identification only. This article explains what buyers should verify before sourcing cabin air filters at scale, including dimensions, media selection, validation testing, labelling, and supplier documentation for EU, UK, US, Canada, Australia, and Brazil markets.
Replacement Requirements That Affect Fitment
Cabin filters often look simple: rectangular panels, trays, cartridges, or flexible framed inserts. In the HVAC housing, however, the tolerance window is narrow. If the frame is undersized, unfiltered air can bypass the media. If it is oversized or too rigid, the installer may crush the pleats, distort the seal, or leave the access cover unseated.
For replacement programmes, buyers should confirm the following before approving a part number:

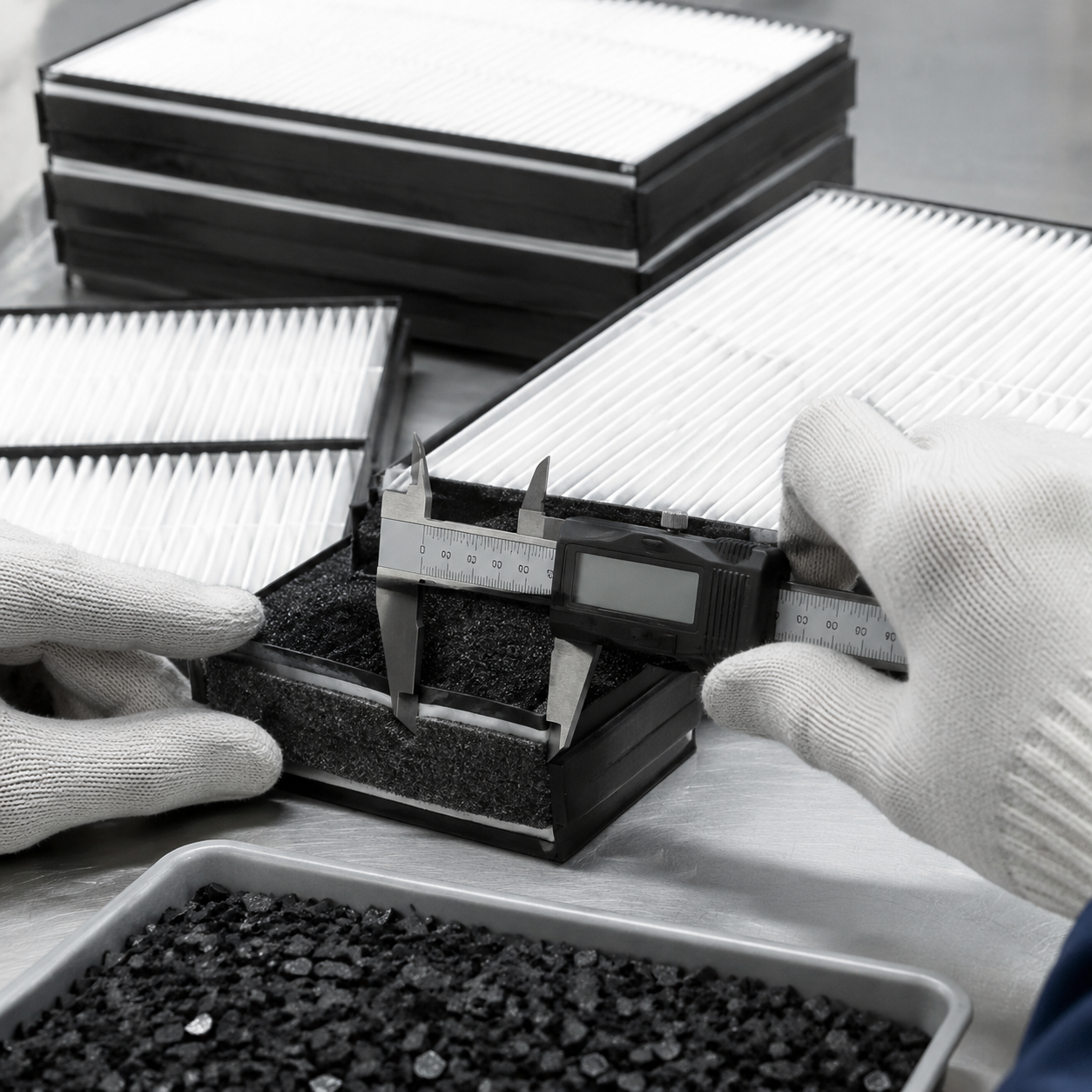

- Length, width, and thickness: measured at multiple points, with production tolerance agreed in the drawing or control plan.
- Frame stiffness: firm enough to seal, but flexible enough for curved housings, side-loading slots, and awkward service positions.
- Pleat count and pitch: consistent across production lots to protect dust capacity, pressure drop, and service life.
- Airflow direction marking: printed clearly where the installer can see it after unpacking and during installation.
- Edge sealing: hot-melt, ultrasonic, moulded-edge, or nonwoven-wrap construction matched to the filter design.
- Application data: mapped to vehicle year range, body platform, engine variant where relevant, and HVAC configuration.
Where an OE part-number cross-reference is required, it should be treated as a fitment reference only, such as OE 06A… or OE 11251… when already provided in the buyer’s interchange data. Driventus does not claim approval, sponsorship, or endorsement by any vehicle manufacturer.
Media Selection for Cabin Filter Replacement Lines
The media specification sets the product tier, cost structure, airflow resistance, and service positioning. A distributor range may need economy particulate filters, activated-carbon filters, and higher-efficiency synthetic options, depending on climate, vehicle mix, retail channel, and local claim rules.
| Media type | Typical construction | Procurement advantage | Trade-off to check |
|---|---|---|---|
| Standard particulate | Nonwoven synthetic or electret media | Lower unit cost and broad catalogue coverage | Lower odour adsorption than carbon media |
| Activated carbon | Particulate layer plus carbon layer | Easier positioning for odour and gas adsorption | Higher pressure drop or carbon dust risk if media weight is not controlled |
| Anti-bacterial treated media | Synthetic media with treated layer | Useful for premium service programmes | Claims must match local chemical, biocide, and labelling rules |
| High-efficiency synthetic | Multi-layer synthetic media | Improved particle capture at stable airflow | Higher cost and tighter pleat control required |
| Validation item | Why it matters | Evidence to request |
|---|---|---|
| Dimensional inspection | Confirms installation fit in the HVAC housing | First article report and production inspection record |
| Airflow resistance | Helps prevent blower load complaints and weak cabin ventilation | Test curve at agreed flow rate |
| Dust holding capacity | Supports service interval positioning | Laboratory report or internal validation record |
| Filtration efficiency | Confirms media performance by particle size range | Test report with method stated |
| Thermal cycling | Checks frame and adhesive stability during transport and vehicle use | Batch or design validation summary |
| Packaging drop test | Reduces crushed pleats in export cartons | Carton test record and packing specification |
