Camshaft for Toyota RAV4 Replacement: B2B Buyer Checks
A camshaft for Toyota RAV4 replacement must match the exact engine family, cam position, valve-timing system, bearing journal layout, oil-feed path, and lobe geometry. The badge on the order form is only a starting point. RAV4 models have been sold across multiple generations and markets with different gasoline, diesel, and hybrid engines, so the required camshaft specification can change by intake or exhaust location, VVT actuator interface, trigger pattern, emissions package, and cylinder-head casting. Even engines with similar displacement may use different phaser mounting details, sensor target clocking, or oil-control passages.
For procurement teams, the job is not simply to find "a RAV4 camshaft." It is to confirm OE-equivalent fit, material route, machining quality, and lot-level inspection evidence before release. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. We supply replacement engine components with traceable inspection records, and we can work from an OE sample, 2D drawing, 3D model, or verified part number when the application is clear. The sections below outline the checks that reduce mismatch risk, support repeatable supply, and keep the part suitable for workshop, distributor, remanufacturing, or private-label channels.
Start with the engine code, not the badge
When sourcing a camshaft for Toyota RAV4 replacement, start with the engine code and cam position. The RAV4 name covers several engine families depending on model year and destination market, and those families do not share one universal camshaft. Mid-cycle and running production changes can also alter VVT actuator hardware, cam sensor targets, oil-feed drilling, or machining details, even when the vehicle name and displacement stay the same.
Examples of RAV4 engine variation by market can include engines such as 1AZ-FE, 2AZ-FE, 2AR-FE, 3ZR-FAE, 2AR-FXE hybrid, A25A-series applications, and diesel variants in some regions. That is why a catalog search based only on "Toyota RAV4" or registration data is not a reliable release method for a critical valvetrain component.
Collect these items before you send an RFQ or PO:
- Engine code from the engine stamp, VIN decode, service record, or OE documentation
- Model year, production month where available, and market specification: EU, UK, North America, Canada, Australia, Middle East, Latin America, or other export destination
- Intake cam, exhaust cam, or matched intake/exhaust set
- VVT, Dual VVT-i, Valvematic/VVT-iE where applicable, or non-VVT application
- Hybrid, gasoline, or diesel powertrain type where relevant to the market
- OE part number, supersession number, or a clear reference from the removed part
- Photos of both ends of the original camshaft, including sprocket/phaser interface and any sensor target feature
- Photos or measurements of dowel, keyway, spline, threaded hole, bolt seat, and phaser oil passage details
- Any visible casting, forging, grinding, or machining marks on the sample
- Cylinder head casting number if the engine has been rebuilt or swapped previously
A useful rule for buyers is simple: if the engine family is not confirmed, treat the request as a fitment verification job rather than a stock lookup. On remanufactured or repaired engines, head swaps and imported used engines are common enough that badge-only identification can create avoidable claims. Asking for an OE sample photo, end-detail photo, engine code, and OE reference up front usually prevents the common mismatch where the part looks correct at a glance but fails on journal spacing, trigger wheel orientation, oil feed location, or actuator interface.
For broader engine coverage, see our catalog and the engine components range.

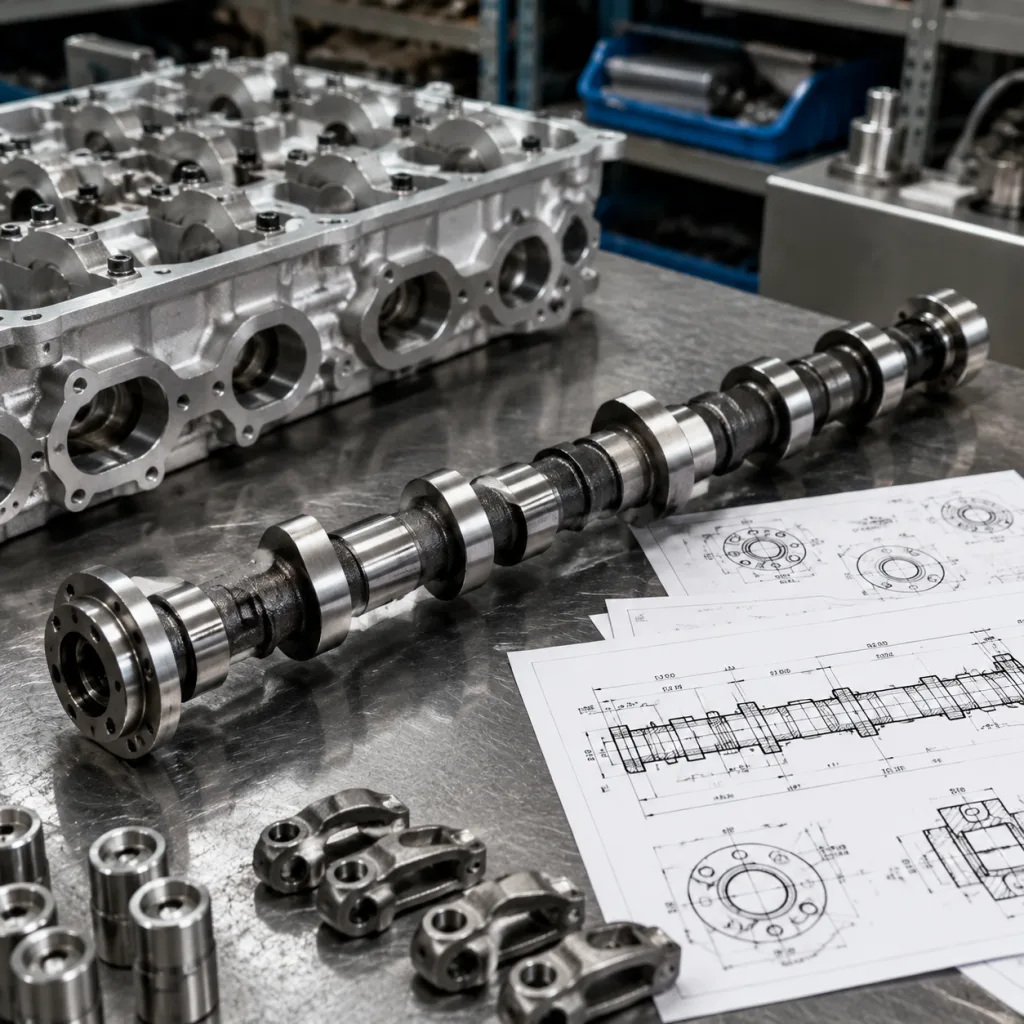

Verify the dimensions that control fit and timing
Once the engine code is identified, dimensional equivalence determines whether the part will install correctly, maintain oil control, and preserve valve timing. For a camshaft for Toyota RAV4 replacement, a measured dimensional report is more valuable than a generic fitment statement because the workshop and distributor need evidence that the geometry matches the approved reference.
The table below covers the minimum checks most procurement teams should request before approval.
| Check point | What to confirm | Why it matters |
|---|---|---|
| Journal diameter | Measure every bearing surface with a micrometer against the target drawing or OE sample; record actual values, not only pass/fail | Prevents seizure, excess clearance, oil pressure loss, and abnormal wear |
| Journal spacing | Verify center-to-center position of bearing journals and compare with the cylinder-head cap layout | Confirms the shaft sits correctly in the cylinder head and cap set |
| Overall length | Confirm end-to-end length, drive-end stack height, and rear-end reference face | Protects head assembly alignment and end-float control |
| Thrust face width | Match the thrust area, contact faces, and axial location | Avoids axial movement, thrust wear, and timing instability |
| Lobe lift and base circle | Compare intake and exhaust lobes separately using a profile measuring device, master cam, or approved sample | Controls valve lift, lash behavior, and opening characteristics |
| Lobe phasing | Check angular relationship between lobes and reference features in crankshaft/camshaft degrees according to the drawing method | Keeps cylinder events synchronized to the intended firing order |
| Timing drive end | Match sprocket, phaser, keyway, spline, dowel, thread, bolt seat, and mounting-face details | Keeps valve timing hardware interchangeable with the OE setup |
| Sensor target feature | Verify reluctor wheel position, tooth count, clocking, air-gap surface, and orientation | Avoids cam correlation faults, no-start conditions, and sensor reading issues |
| Oil feed features | Confirm drilling, cross-holes, grooves, chamfers, and oil-feed alignment to journals and VVT passages | Ensures lubrication reaches journals and VVT-related passages correctly |

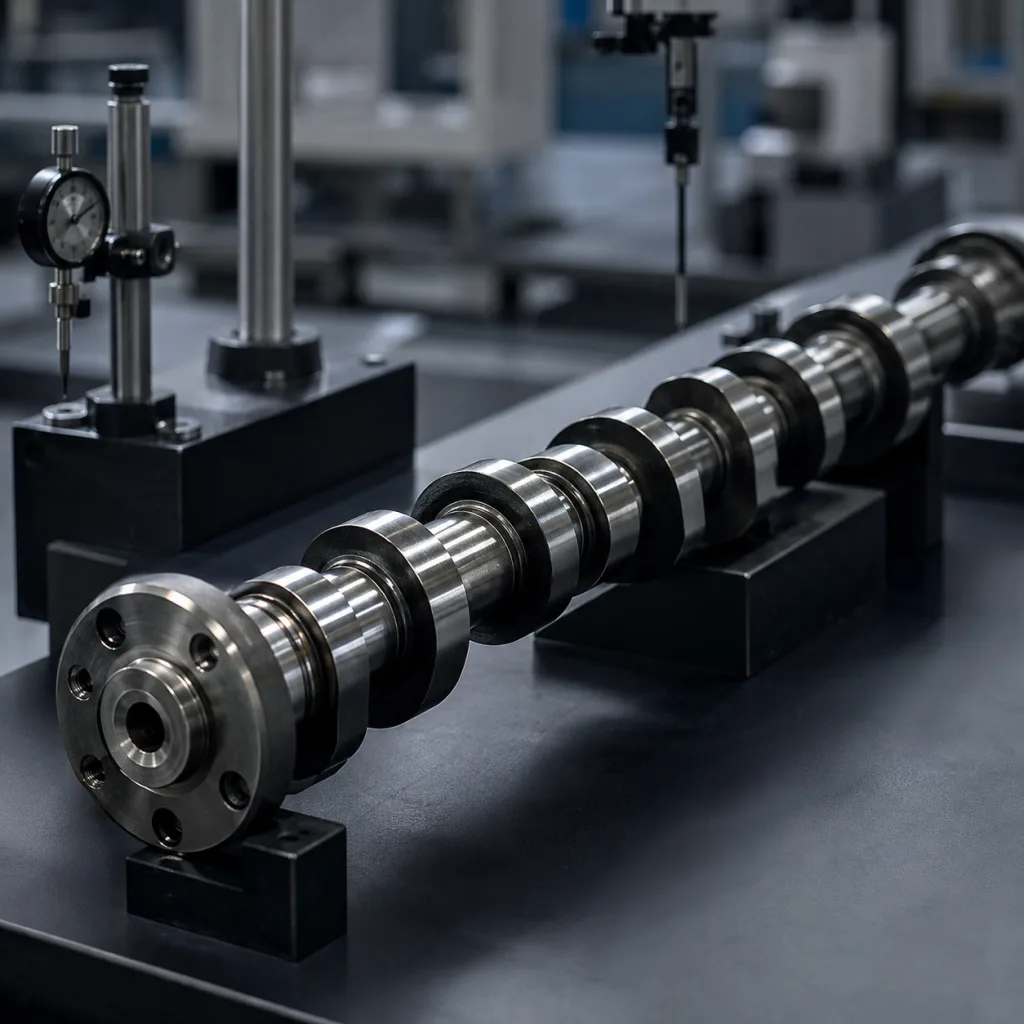

| Runout and straightness | Check total indicated runout on V-blocks or dedicated centers and record the maximum value | Reduces noise, binding, and premature head wear |
| Surface finish | Confirm lobe and journal finish after grinding or polishing, commonly using Ra values where the drawing specifies them | Reduces break-in wear, scuffing, and follower damage |
| Document | What it should show | Why procurement needs it |
|---|---|---|
| Dimensional inspection report | Actual measured values on critical features, part revision, sample size, date, and inspector or equipment reference | Confirms fit on the approved application and creates a baseline for later claims |
| Material certificate or heat record | Material grade, casting/forging route, heat number where applicable, or production route tied to the manufacturing lot | Supports consistency and verifies the agreed material path |
| Hardness report | Test method, location, scale, and result for the relevant surfaces or sections | Helps validate wear resistance and heat-treatment control |
| Case-depth or layer report | Effective case depth, chilled layer, or nitrided layer where required by the agreed specification | Confirms the load-bearing surface is not only hard at the skin |
| Runout or straightness record | Measured result against the acceptance limit, with fixture or datum reference | Reduces risk of binding, noise, and installation issues |
| Lobe profile or lift report | Lift, base circle, key angular points, or overlay against a master profile | Confirms the cam controls valve events as intended |
| Cleanliness or oil-passage check | Evidence of deburring, washing, air blow-through, or particle-control process | Reduces early wear and lubrication-related failures |
| Certificate of conformity | Part number, lot number, quantity, revision, and release reference | Creates a clean commercial and quality trail |
| Packaging specification | Corrosion protection, separators, carton method, pallet method, and outer-label details | Prevents damage in storage and export transit |
| Traceability label format | Lot code, manufacturing date or batch reference, product identification, and quantity | Makes containment and returns handling more manageable |
| REACH declaration where required | Conformance to REACH (EC) No 1907/2006 when material disclosure is requested | Supports EU compliance and customer file requirements |
| Quality-system alignment | Evidence of process controls aligned with IATF 16949:2016 and ISO 9001:2015 | Indicates the supplier is working within a controlled quality framework |
