Camshaft Phaser Salt Spray Test Standard: How to Specify
A camshaft phaser is exposed to two different corrosion stories at the same time. Internally, it sees hot engine oil, pressure pulses, and tight oil-control features. Externally, it may face road salt, humidity, splash water, warehouse condensation, sea freight, and thermal cycling around the front cover or cylinder head. That combination makes corrosion validation a sourcing decision, not just a lab checkbox.
ISO 9227 is the common reference for neutral salt spray testing, but it is not a complete camshaft phaser salt spray test standard by itself. It tells the laboratory how to run the exposure. It does not decide which phaser surfaces matter most, how long the exposure should last, what counts as failure, how many samples to test, or what evidence a supplier must submit.
A usable purchase specification closes those gaps. It defines the method, exposure duration, production sample condition, inspection zones, acceptance criteria, reporting format, lot traceability, and revalidation triggers. It also records practical details: 5% sodium chloride solution, pH range, chamber temperature, sample quantity, coating thickness data, red-rust limits, photo angles, and the escalation path if the first submission fails.
This article explains how to write a practical requirement for RFQs, PPAP files, supplier audits, and incoming validation. It is written for aftermarket distributors, OEM service suppliers, repair-chain sourcing teams, and engineering buyers who need repeatable evidence rather than broad claims such as “anti-rust treated” or “salt spray passed.” Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Decision frame: what ISO 9227 proves—and what it never proves
Start with the right question. Salt spray testing is not a service-life forecast. It is an accelerated, controlled corrosion exposure used to compare surface protection, process stability, and early failure risk.
ISO 9227 describes several salt spray methods, including neutral salt spray (NSS), acetic acid salt spray (AASS), and copper-accelerated acetic acid salt spray (CASS). For camshaft phasers, NSS is usually the baseline because the assembly may include machined steel, sintered parts, springs, pins, fasteners, coated external surfaces, and precision oil-control interfaces.
For NSS, the report should show that the chamber was run under recognisable conditions. Typical items to confirm include:
Sodium chloride concentration: 50 g/L ± 5 g/L.
Chamber temperature: 35 °C ± 2 °C.
Collected solution pH: 6.5–7.2.
Fallout collection rate: commonly controlled around 1.0–2.0 mL/80 cm²/h, depending on the chamber verification plan.
These numbers do not define product acceptance. They only confirm the exposure method. The buyer still has to decide which surfaces are critical, how much corrosion is allowed, and whether the sample represents real production.
For camshaft phaser sourcing, the test is normally used to answer six procurement questions:
Is the external coating continuous on steel surfaces?
Does the supplier’s process remain stable from lot to lot?
Does base-metal red rust appear on functional areas before shipment approval?
Have washing, handling, coating, preservation, or packaging steps damaged the protection?
Is there objective evidence to support IATF 16949:2016 and ISO 9001:2015 quality planning?
Can two suppliers be compared using the same exposure, sample condition, and pass/fail rules?
Just as important: define what the test is not approving. A camshaft phaser salt spray test standard should not be used alone to release oil-control function, locking pin behaviour, vane response, phase angle accuracy, leakage, torque characteristics, or long-term wear. Those require hydraulic endurance, oil-pressure response testing, torque leakage checks, thermal cycling, dimensional inspection, and functional validation under controlled oil temperature and flow conditions.
The practical value of salt spray is consistency. Once sample condition, exposure time, inspection zones, and pass/fail rules are fixed, a buyer can compare evidence instead of marketing language. A good requirement makes two decisions visible: which process is being validated, and which corrosion condition is unacceptable on the finished phaser.
RFQ wording that prevents supplier interpretation gaps
A weak RFQ line creates weak evidence. “Salt spray 240 h pass” sounds specific, but it leaves too much open. Was the sample tested after machining, after coating, after full assembly, after final washing, or after packaging abrasion? Was it a normal production part or a specially prepared show sample? Which surfaces were judged? What counted as failure?
Use the published method first, then add camshaft-phaser-specific requirements.
Requirement item
Recommended wording for camshaft phaser sourcing
Test method
Neutral salt spray according to ISO 9227, NSS, 50 g/L ± 5 g/L NaCl, 35 °C ± 2 °C, pH 6.5–7.2
Sample condition
Finished production-intent camshaft phaser, cleaned according to the normal production process, not reworked, selectively masked, hand-polished, or specially protected
Exposure duration
96 h, 240 h, or 480 h depending on market exposure, coating system, drawing requirement, warranty risk, and shipment route
Sample quantity
Minimum 3 pieces per part number for initial approval; 1–3 pieces for annual revalidation if the process is stable; more if multiple coating batches are involved
Orientation
15–30° from vertical where practical; positioned to avoid artificial salt pooling in oil ports, threaded holes, and cavities unless the drawing specifies otherwise
Inspection zones
Functional surfaces, cosmetic external surfaces, edges, stamped areas, fastener interfaces, oil-feed interfaces, and machined datum faces identified separately
Acceptance criteria
No base-metal red rust on external functional surfaces; cosmetic white corrosion limits defined separately, such as ≤5% affected area on non-functional zinc-coated surfaces
Post-test checks
Visual inspection, photo record, critical dimension check, thread/oil-port review, and rotation or locking check where applicable
Report contents
Part number, lot number, material batch, coating batch, chamber calibration status, exposure duration, sample orientation, photos before and after test
</tr></thead><tbody> </tbody></table>This structure prevents three common sourcing problems. First, suppliers cannot test specially prepared samples and present them as production evidence. Second, laboratories cannot judge different surfaces against different unwritten standards. Third, buyers receive reports that can be tied to a real lot, coating batch, and approval decision.
It also makes commercial comparison fairer. A supplier quoting a low price with 96 h screening, no coating-batch traceability, and no packaging validation is not equivalent to a supplier quoting 240 h or 480 h with traceable coating data and PPAP-style reporting.
For export programmes, ask the supplier to identify coating chemistry and any restricted substances used in plating, passivation, preservatives, lubricants, labels, bags, cartons, or corrosion inhibitors. REACH (EC) No 1907/2006 is relevant for EU-bound products, and similar substance-control expectations may apply elsewhere. Corrosion protection, regulatory compliance, and packaging should be specified together. Separating them creates approval risk later.
Buyer verification workflow: from sample selection to corrective action
A sourcing engineer does not need to run the salt spray chamber. The buyer does need to control how evidence is generated, reviewed, and connected to approval. Use the following workflow for camshaft phaser procurement.
1. Confirm the part scope. Decide whether the test covers one OE-referenced design, a full product family, a shared coating process, or each coating variant. For aftermarket references, use a generic format such as OE 06A107065 only where the programme already provides that cross-reference. Do not combine different phaser designs under one report unless material, coating, geometry, and process route are genuinely comparable.
2. Freeze the sample condition. Samples should come from production-intent machining, heat treatment, assembly, washing, coating, preservation, and packaging steps. Prototype hand-treated parts can overstate corrosion resistance because they may receive extra cleaning, thicker coating, or more careful handling. State that tested samples must be within drawing tolerance before exposure and must not receive additional rust oil unless that same oil is used for regular shipment.
3. Select the exposure duration. For mild logistics exposure, 96 h may work as a screening test. For winter-road markets in the EU, UK, Canada, and northern US states, buyers often request 240 h or more. For long storage, sea shipment, or aggressive handling, 240–480 h plus packaging validation may be more appropriate. The final duration should follow the drawing, customer-specific requirement, coating system, and internal warranty target. If a supplier wants to reduce 240 h to 96 h, ask for technical justification—not only a price reduction.
4. Define inspection zones. Separate functional areas from cosmetic areas. Functional external zones may include bolt seating surfaces, oil-feed interfaces, machined datum faces, threaded holes, sensor-related features, timing interfaces, exposed edges, and locking pin access areas where applicable. Cosmetic surfaces can have different limits if they do not affect installation, sealing, rotation, or oil flow.
5. Require photo evidence. Photos should show the same orientation before and after exposure. Include close-ups of edges, stamped areas, machined faces, oil ports, threaded features, and corrosion initiation points. A practical report uses at least four overview photos plus close-ups at about 1–2x or equivalent resolution for each suspect area. The images should let an engineer who did not attend the test judge the result.
6. Link the report to the lot. The test report should state material batch, coating batch, heat-treatment lot, assembly date, packaging date, inspection date, and laboratory identification. This supports traceability under the supplier’s quality system and helps determine whether a later nonconformance is isolated or systemic. For approval lots, request the same lot code format that will appear on carton labels or shipment documents.
7. Review corrective actions. If red rust appears before the required duration, do not accept “retest passed” as the full answer. Ask for root cause evidence: coating thickness, pre-treatment control, cleaning residue, edge coverage, chamber validity, salt solution concentration, drying marks, packaging abrasion, and storage condition before testing. Containment may include sorting current stock, quarantining the affected coating batch, checking coating thickness on retained samples, and submitting a new lot after corrective action.
8. Set revalidation triggers. Retesting should be required after changes in coating supplier, cleaning chemistry, heat treatment, material source, machining process, assembly lubricant, rust preventive, packaging method, or manufacturing location. Annual revalidation is also common. For high-volume orders, buyers may request periodic evidence every 6 or 12 months, or after a defined volume such as 10,000–30,000 pieces, depending on risk.
Buyers can compare available camshaft phaser families through our catalog or the engine components section when product grouping is needed for RFQ preparation.
Failure modes: why “no corrosion” is not a usable acceptance rule
Many corrosion specifications fail at the acceptance line. “No corrosion” sounds strict, but it is often impossible to apply consistently. Zinc-based and other protective coatings may form white corrosion products before base-metal red rust appears. A usable rule defines the surface type, defect type, inspection method, and permitted level.
A practical acceptance list may include:
No base-metal red rust on functional external surfaces after the specified exposure.
No flaking, blistering, peeling, or coating delamination visible at normal inspection distance, typically about 300–500 mm under normal inspection lighting.
No corrosion that blocks oil ports, damages threads, affects bolt seating, or interferes with installation.
No corrosion on machined datum faces, sealing-related areas, or timing interfaces unless specifically allowed by the drawing.
White corrosion products allowed only on non-functional areas, within an agreed percentage limit or visual reference standard; for example, ≤5% of a defined cosmetic zone after 240 h if the drawing permits it.
No post-test seizure, abnormal locking pin sticking, restricted phaser rotation, or contamination-related interference where a functional check is specified.
Critical dimensions remain within drawing tolerance after cleaning and inspection; if no special corrosion tolerance is defined, the original drawing tolerance still governs.
Results are documented with before-and-after photos and linked to sample lot and coating batch.
Inspection should happen after the required exposure and any agreed rinse or drying procedure. State whether loose salt deposits may be removed before evaluation and whether magnification is allowed. A common method is gentle rinsing with clean running water not hotter than about 40 °C, drying with clean compressed air or ambient air, and visual inspection without aggressive brushing or polishing. Without those details, two inspectors can judge the same part differently.
Functional checks after exposure
A salt spray chamber does not reproduce engine oil circulation, hot oil chemistry, combustion by-products, or dynamic camshaft loading. Still, a simple post-test function check can reveal severe external corrosion, blocked interfaces, or contamination caused by poor protection.
Depending on design, this may include manual rotation within the specified phasing range, visual inspection of locking features, confirmation that external oil-feed holes remain open, and review of threaded or bolted interfaces. If a torque check is required, define the fixture, oil condition, direction of rotation, number of cycles, and maximum permitted abnormal drag. Avoid subjective wording such as “rotates freely.” Full hydraulic response testing should be specified separately because it requires controlled oil temperature, oil pressure, flow rate, torque conditions, and measurement equipment.
Documentation for PPAP and incoming control
For OEM and Tier-1 programmes, salt spray evidence may sit inside production part approval documentation with dimensional reports, material certificates, process flow diagrams, control plans, PFMEA records, capability data, and inspection results.
For aftermarket distributors, the same evidence supports supplier qualification, periodic revalidation, incoming control, and warranty-risk review. A practical incoming plan may start with certificate review for each shipment, then sample visual inspection, with third-party retest reserved for new suppliers, engineering changes, repeated nonconformities, or high-risk markets. Driventus supports custom manufacturing projects where corrosion validation is aligned with buyer drawings, sample approval procedures, packaging requirements, and destination-market expectations.

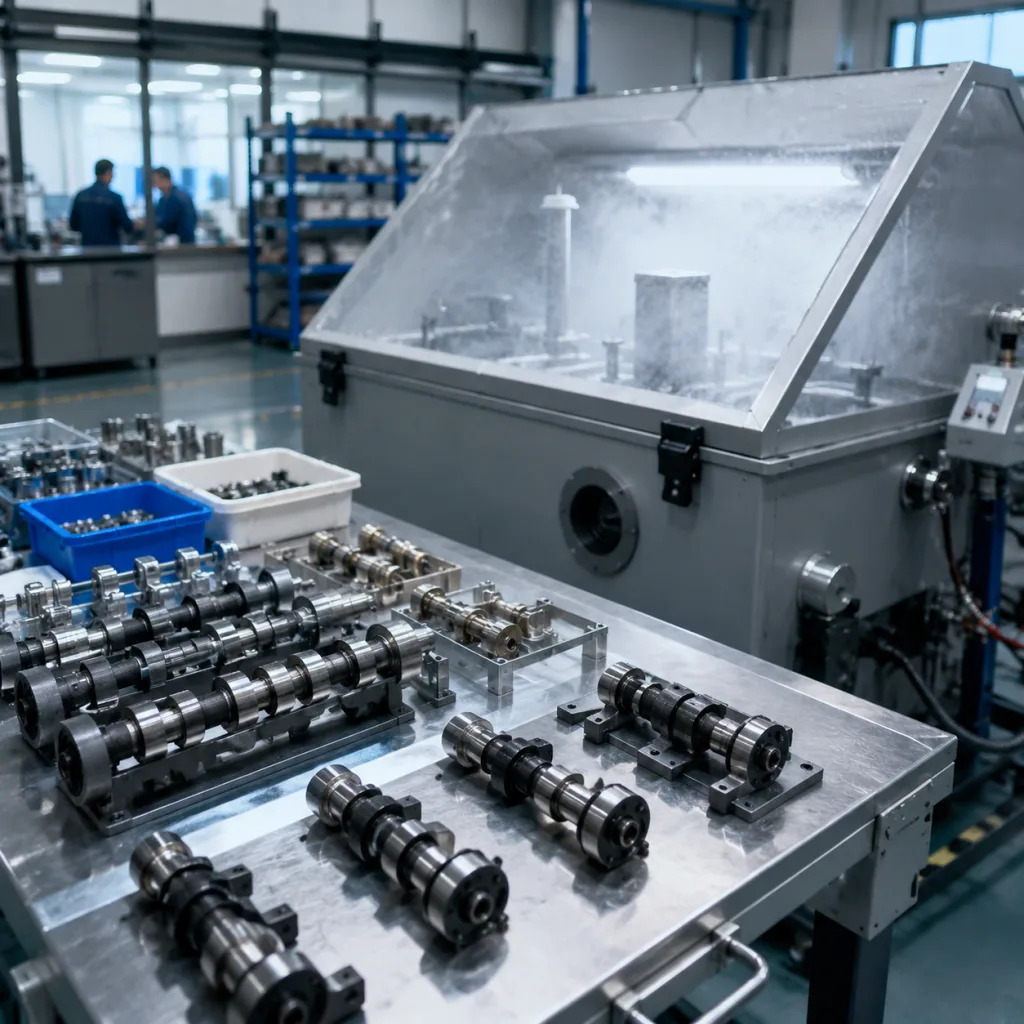

Severity matrix: matching duration, coating, sampling, and logistics risk
There is no single camshaft phaser salt spray test standard that fits every programme. ISO 9227 defines the laboratory exposure method. The buyer, drawing, or validation plan defines severity and acceptance.
Choose duration according to market exposure, coating system, warranty risk, storage route, and test purpose: screening, approval, or revalidation.
Programme condition
Typical buyer approach
Procurement note
General aftermarket, moderate climate
96 h neutral salt spray screening
Useful for lot comparison and supplier screening, but not severe-market validation
EU/UK/Canada winter-road exposure
240 h neutral salt spray or drawing-specific requirement
Define functional surfaces, red rust limits, and post-test checks clearly
High-corrosion logistics or long storage
240–480 h plus packaging validation
Include VCI, bag, carton, pallet storage, humidity exposure, and abrasion review
OEM/Tier-1 service supply
Customer drawing or validation plan governs
Align with PPAP, IATF 16949:2016 controls, traceability, and change management
New coating or new supplier approval
Initial validation with production-intent samples
Request coating thickness data, pre-treatment records, and sample traceability
</tr></thead><tbody> </tbody></table>Coating selection should be discussed early. Different steel components in the phaser assembly may use different protection systems, such as zinc-based plating, phosphate, black oxide with oil, passivation, e-coating, or other corrosion-control methods depending on the design and drawing. The buyer does not always need to prescribe the chemistry. The supplier should still disclose enough information to confirm performance, compatibility, and substance-control requirements. Where coating thickness is critical, require measured values by zone rather than one nominal statement. Ask for minimum, maximum, and average thickness on external steel surfaces, edges, and recessed areas, with the measurement method identified.
Sampling also needs a rule. For initial supplier approval, test samples should represent at least one normal production lot and one coating batch. A practical minimum is 3 finished assemblies per part number or worst-case family, plus retained samples from the same lot in case of dispute. Where the phaser family includes multiple designs, coatings, or material combinations, define whether worst-case samples are acceptable or whether each variant needs separate evidence.
For ongoing production, many buyers require annual revalidation, engineering-change revalidation, or retesting after any change in coating supplier, cleaning chemistry, heat treatment, machining process, assembly lubricant, rust preventive, packaging, or manufacturing site.
Cost and lead time should be visible in the RFQ. A 96 h exposure consumes about 4 calendar days in the chamber before inspection and reporting. A 240 h exposure consumes about 10 days. A 480 h exposure consumes about 20 days. With sample preparation, queue time, inspection, and corrective review, buyers should allow about 1–2 weeks for 96 h, 2–3 weeks for 240 h, and 4–6 weeks for 480 h validation when third-party testing is required. If a supplier quotes immediately with no test lead time, confirm whether the evidence came from an old part, a different coating batch, or a non-production sample.
MOQ and price logic should match the validation level. For catalogue aftermarket parts, suppliers may support lower MOQs when existing salt spray data and packaging are already validated. For custom coating, private-label packaging, or part-family PPAP, expect sample charges, possible tooling or fixture cost, and a higher pilot MOQ because coating-batch setup, laboratory testing, and documentation are fixed-cost activities.
Do not isolate coating from logistics. If parts are shipped by sea or stored for long periods, packaging matters as much as the surface treatment. Salt spray on unpacked parts does not replace transport simulation, humidity exposure, condensation testing, warehouse ageing checks, or carton-abrasion review. A corrosion-resistant coating can still fail if parts rub through the protective layer during transit, if VCI protection is incompatible, or if cartons absorb moisture before final delivery.
Supplier Q-and-A before the requirement is approved
Before finalising the RFQ, use supplier questions to test whether corrosion resistance is controlled in production or treated as a one-time laboratory exercise.
Which ISO 9227 method is used, and is the chamber externally calibrated or otherwise verified?
What chamber conditions are recorded: NaCl concentration, pH, temperature, collection rate, loading density, and exposure start/finish time?
Are tested samples taken from normal production, pilot production, or special trial batches?
What surface treatment is used on each steel component in the camshaft phaser assembly?
How is coating thickness measured, recorded, and linked to the production lot?
What cleaning process is used before coating and after machining?
How are edges, stamped areas, oil ports, and machined faces protected from early corrosion?
Are oil residues, preservatives, rust inhibitors, or assembly lubricants compatible with REACH (EC) No 1907/2006 requirements for the destination market?
What packaging method is used to prevent abrasion, condensation, and storage-related corrosion?
What corrective-action process is used if red rust appears before the required duration?
Can the supplier provide lot traceability from raw material to final packing?
What changes trigger revalidation, and how will the buyer be notified?
What MOQ, sample quantity, price impact, and lead time apply for 96 h, 240 h, and 480 h evidence?
The answers should flow into the RFQ, drawing notes, control plan, inspection plan, or supplier quality agreement. If a supplier can provide only a generic pass certificate without sample condition, lot number, chamber details, and photos, the evidence is weak. A stronger submission includes the test standard, revision, chamber verification, photos, acceptance criteria, sample traceability, coating-batch record, and a signed conclusion against the buyer’s exact requirement.
Driventus manufactures camshaft phasers and related engine components in Taizhou, Zhejiang, with process controls structured around IATF 16949:2016 and ISO 9001:2015. Salt spray requirements can be added to RFQ documents, control plans, PPAP-style submissions, and inspection reports when buyers specify duration, sample condition, acceptance criteria, reporting format, and revalidation rules. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Frequently asked questions
No. ISO 9227 defines accelerated salt spray methods. It helps compare corrosion resistance under controlled laboratory conditions, but it does not directly predict years in service. Use it with functional, dimensional, thermal, hydraulic, and packaging validation.
Many buyers use 96 h for screening and 240 h or more for winter-road or higher-risk markets. The final requirement should follow the drawing, customer validation plan, coating system, storage route, and warranty exposure. Remember that 240 h testing usually means about 2–3 weeks including sample preparation, chamber time, inspection, and reporting.
For sourcing approval, test finished production-intent assemblies when possible. Individual parts can be tested during coating development, but assembled samples better represent handling, cleaning, edge coverage, final washing, preservation, and packaging conditions. For initial approval, a practical minimum is often 3 finished assemblies per part number or worst-case family.
If you are defining a corrosion validation plan for camshaft phaser sourcing, Driventus can review drawings, target markets, coating expectations, sampling levels, MOQ, lead time, packaging risk, and reporting requirements before quotation. Share your RFQ details or [request a quote](/contact.html).
