Camshaft for Hyundai i30 OE Equivalent: Buyer Checks
Procurement teams buying replacement valvetrain parts for Korean passenger cars usually need more than a broad fitment claim. In a **camshaft for Hyundai i30 OE equivalent** sourcing project, the real questions are dimensional accuracy, base material, lobe hardness, runout control, surface finish, and batch-to-batch consistency. Those factors directly influence installation time, valve timing stability, wear rate, and warranty exposure across distributor and repair-chain channels.
For the Hyundai i30 platform, buyers should confirm the exact engine code, production year, fuel type, and intake or exhaust side before requesting pricing. A true OE-equivalent camshaft should match the original part’s critical geometry within defined tolerances and come with supporting inspection records, material control, and traceability. For practical RFQs, buyers should also state expected annual volume, target price level, sampling quantity, packaging format, and required ship window, because those commercial inputs affect machining batch size, MOQ, and lead time just as much as the drawing does. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Start with the decision: what makes a camshaft OE-equivalent for Hyundai i30
For buyers, OE-equivalent should mean the part matches the original where function is won or lost: geometry, hardness, finish, and process control. It is not a styling claim.
For a camshaft for Hyundai i30 OE equivalent programme, the first decision is simple: can this shaft be installed as intended and deliver stable service life without creating timing, lubrication, or wear issues? To answer that, focus on these checks:
Correct application by engine family, displacement, fuel type, and production range
Clear intake versus exhaust cam identification
Journal diameter and spacing within drawing tolerance
Overall length, flange geometry, and keyway or trigger feature consistency where applicable
Lobe lift, base circle, and timing profile matched to the target application
Straightness and total indicated runout controlled after heat treatment and finish grinding
Surface hardness and case depth where the process route requires it
Clean oil feed passages and burr-free machined edges
This is where vague language starts to fail. Buyers should ask for target values, not just an OE-equivalent statement. On this part family, practical control points often include journal diameter tolerance around +/-0.01 to +/-0.02 mm, journal cylindricity within 0.005 to 0.010 mm, total indicated runout typically not above 0.03 to 0.05 mm, and journal surface finish around Ra 0.2 to 0.4 um after final grinding. Lobe hardness is commonly controlled around HRC 50-60 for hardened lobe surfaces, depending on material route and follower design.
If the supplier cannot compare against an original sample or buyer-approved drawing, the discussion is still too loose. A useful comparison sheet will usually show 8-12 critical dimensions, lobe profile checkpoints, hardness readings by position, and final runout data by lot.
If your team sources across several engine component groups, it is also useful to review our catalog and the wider engine components range to confirm line coverage.
RFQ deep-dive: the specifications that change price, fitment, and approval time
A weak RFQ creates a predictable problem: the quote arrives fast, but validation drags because the supplier was forced to price around assumptions. For this part family, the RFQ should lock the application and the control points early.
Check item
Why it matters
Typical buyer request
Vehicle/application data
Prevents wrong fitment across similar Hyundai engine variants
Engine code, year range, fuel type, intake/exhaust side

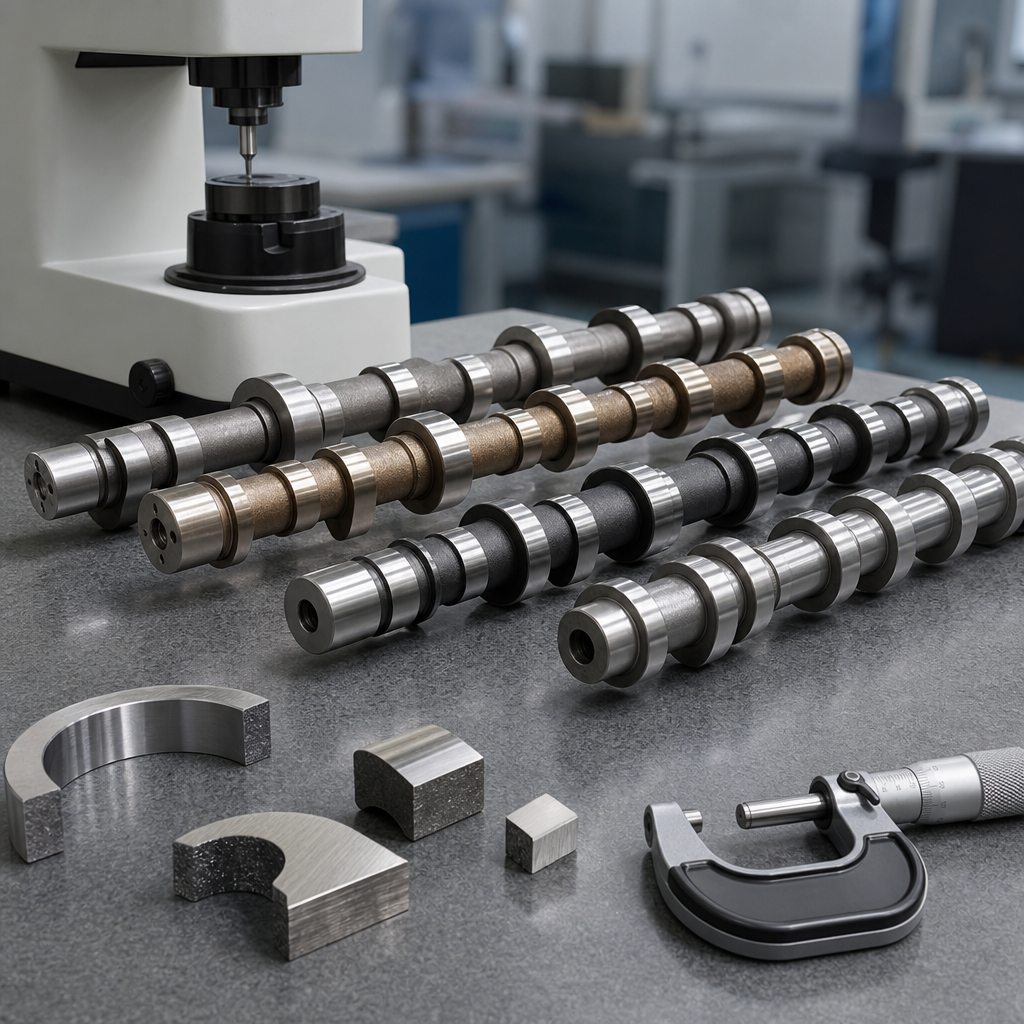

Material grade/process
Affects fatigue strength, core stability, and wear resistance
Chilled cast iron or forged/steel route, per supplier process sheet
Lobe hardness
Helps control scuffing and wear at the follower interface
Hardness test report by batch, for example HRC value by lobe zone
Journal tolerance
Affects oil film stability, bearing fit, and seizure risk
Diameter, cylindricity, and spacing inspection record
Runout
Influences timing stability, vibration, and noise
TIR value from final inspection, commonly max 0.03-0.05 mm
Surface finish
Impacts lubrication behavior and bearing wear
Ra value on journals/lobes where controlled
Traceability
Supports containment in case of claims or mixed stock
Heat number, lot code, inspection date, packing date
Packaging protection
Reduces corrosion and transit damage
Rust preventive oil, VCI bag if required, end protection, compartmented cartons
OE cross-reference if available from the buyer side
Annual volume estimate
Required market compliance documents
Packaging specification for distributor or chain-service channels
Commercial inputs matter more than many buyers expect. Sample orders may be 2-10 pieces. Pilot orders often sit at 50-200 pieces. Repeat production MOQs are commonly around 100-300 pieces per application when dedicated grinding setup is required. If a supplier agrees to mixed-part aftermarket programmes, that can help fill cartons or pallets, but unit pricing usually rises when a single application is released below the normal grinding batch.
Price is usually driven by:
Material route: cast blank versus forged or steel route
Whether rough blank production is in-house or outsourced
Number of grinding operations and profile complexity
Heat-treatment and hardness inspection scope
Final washing, anti-rust treatment, and export packaging standard
Ordered quantity per release and annual forecast stability
If private label packaging is part of the project, define it at RFQ stage. Barcode format, label content, carton drop-test expectations, inner-pack quantity, and pallet height limit all affect landed cost and lead time.
Failure modes first: which validation points actually reduce replacement risk
The cleanest way to review a camshaft for Hyundai i30 OE equivalent offer is to ask what can go wrong after installation, then work backward into the control plan.
If geometry drifts, you can get noise, unstable timing, poor fit, or abnormal journal loading. If hardness is off, wear accelerates. If runout increases, the part may still look acceptable on the bench and fail in service.
That is why an OE-equivalent claim should be backed by process and validation evidence, not just a label. Common validation points include:
Chemical composition verification for each melt or incoming steel batch
Heat-treatment parameter control and hardness mapping
Journal and lobe grinding inspection
Runout measurement on finished shafts
Surface defect checks by magnetic particle or another suitable inspection method where included in the control plan
Trial assembly or fixture-based fitment verification
Corrosion-protection verification for export storage conditions
A practical aftermarket control plan usually includes incoming blank inspection, first-off machining approval, in-process checks at defined lot intervals, and 100% final visual inspection before packing. On critical dimensions, buyers often ask for a sampling pattern such as first 5 pieces, then every 20-50 pieces during stable production, with final runout and marking confirmation recorded by lot. Hardness mapping may be checked on start-up parts and then by batch. Magnetic particle inspection is often defined by sampling plan or process family, depending on risk.
For quality management, many buyers prefer suppliers working under IATF 16949:2016 and ISO 9001:2015 disciplines, especially for organised aftermarket channels. Material and substance compliance requests may also include REACH (EC) No 1907/2006 for EU supply.
A robust quality system matters because small deviations are expensive here. A runout increase from 0.03 mm to 0.08 mm, or a journal size drift beyond the housing limit, can turn an acceptable-looking part into a warranty issue.
What to request in a PPAP-like aftermarket file
Even when formal PPAP is not required, many buyers still ask for a practical approval file containing:
Dimensional report on critical characteristics
Material certificate
Hardness report
Runout report
First-article photos and marking details
Packaging specification
Lot traceability format
For higher-risk launches, buyers may also request a sample retention plan, control plan summary, process flow chart, and a written deviation rule stating which dimensions require approval before shipment.
Supplier comparison: what separates a usable source from a low-price quote
Two suppliers may quote the same Hyundai i30 application and look similar on paper. The difference usually appears later: one can repeat the part with stable quality, and one cannot.
For import managers and category buyers, supplier capability should be checked at both product level and factory level. A low unit price does not offset unstable machining, incomplete traceability, or weak containment discipline.
Areas worth checking during qualification:
In-house versus outsourced casting, forging, grinding, and heat treatment
Control of cam profile grinding equipment and calibration intervals
Gauge capability for journals, lobe profile, and runout
Batch identification through machining, washing, and packing stages
Incoming material segregation and non-conformance handling
Preservation method for sea freight and mixed-climate warehousing
Responsiveness on engineering changes and label updates
The best comparison questions are direct. How many profile grinders are allocated to this part family? Are master gauges calibrated internally or by third party? What Cp/Cpk target is used on journal diameter? How are nonconforming blanks segregated before grinding?
On stable programmes, many buyers look for Cpk >= 1.33 on key journal dimensions and evidence that runout gauges, micrometers, and profile checking equipment are calibrated on a fixed schedule.
Commercial capability matters too. A supplier that can support samples may still struggle with replenishment. Confirm:
Standard MOQ per application and whether mixed-part orders are accepted
Typical sampling lead time, often around 2-4 weeks if tooling is ready
Typical production lead time, often around 30-45 days after approval and deposit for standard programmes
Capacity per month for the relevant machining line
Response time for 8D or claim investigation, for example 48-72 hours for initial containment feedback
Where the buyer needs special box dimensions, pallet patterns, anti-rust specification, or confidential marking, these can usually be handled through custom manufacturing. That is often relevant for multi-country distributors that need one physical part with different commercial packaging.
Driventus exports engine and powertrain components to more than 60 countries and operates under IATF 16949:2016 and ISO 9001:2015 management systems. For procurement teams, that helps reduce receiving defects, approval delays, and claim handling time.
Order workflow: a practical sequence from application check to repeat supply
For this replacement category, the buying process should move in a fixed order. When teams skip steps, problems usually surface at pilot stage or after the first market release.
A practical sequence is:
1. Confirm Hyundai i30 engine code, year, fuel type, and cam position. 2. Share any buyer-side OE reference or original sample. 3. Review dimensional, hardness, surface finish, and runout data. 4. Confirm MOQ, target price band, and repeat-order lead time. 5. Approve package format for your warehouse and customer channel. 6. Place a pilot order before volume rollout.
If an OE reference is supplied by the buyer, it should be listed in the format OE 06A107065 only when that reference is already part of the sourcing brief. Buyers should not assume interchangeability from visual appearance alone, especially where multiple Hyundai engine variants use similar-looking valvetrain parts.
For ongoing supply, ask the supplier to define:
MOQ by application
Standard lead time for repeat orders
Sampling lead time for first approval
Pilot-order quantity and acceptance criteria
Warranty claim feedback route
Document pack included with each shipment
It also helps to align price logic before nomination. In this part family, pricing is usually lower when the buyer can commit to a stable annual forecast and release in carton or pallet multiples. Lead time tends to shorten when the supplier already has approved tooling, established blank stock, and fixed packaging artwork. First orders with new private labels, uncertain annual volume, or low-quantity split releases usually carry a higher unit price and a longer approval cycle.
As a working benchmark, buyers often ask for three commercial scenarios in the quotation:
Sample price for 2-10 pieces
Pilot price for 50-200 pieces
Mass-order price at the normal MOQ or annual forecast level
That structure makes supplier comparison more honest. A low sample price does not always translate into a competitive replenishment price. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Frequently asked questions
At minimum, request a dimensional report on critical characteristics, material certification, hardness results, runout data, application confirmation, and packaging specification. For larger programmes, add the traceability format, first-article approval records, sampling frequency, and any agreed compliance documentation for your target market.
No. Visual similarity does not confirm journal tolerance, lobe profile, hardness, straightness, surface finish, or runout. Approval should be based on measured dimensions and process documentation, especially for organised aftermarket distribution where warranty containment matters.
Yes, provided carton size, label data, barcode format, corrosion-protection requirements, and inner-pack quantity are agreed during RFQ or sample approval. This is common for distributors, importers, and multi-location service groups.
If you are qualifying a camshaft for Hyundai i30 OE equivalent supply programme and need application review, technical data, MOQ guidance, or sample support, you can [request a quote](/contact.html).
