A camshaft for Ford Transit replacement program needs more than a catalogue match or a similar-looking shaft. Procurement teams have to confirm lobe geometry, journal dimensions, heat treatment, oil-feed alignment, sensor trigger features, and packaging protection before approving a supplier. Transit applications span several engine families, production years, emissions calibrations, and regional specifications, so one assumed fitment can create warranty exposure across a fleet repair chain or distributor network. Driventus manufactures camshafts and related engine components in Taizhou, Zhejiang for B2B aftermarket and OE-service channels, with emphasis on dimensional repeatability, traceable materials, and validation evidence that supports incoming inspection and batch approval. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only. This guide explains how buyers can specify, evaluate, and source replacement camshafts for Transit applications without claiming vehicle-maker approval or relying on catalogue descriptions alone.
Replacement Scope and Fitment Control
Transit camshaft demand is typically driven by high-mileage fleet repairs, timing-drive failures, lubrication problems, or engine rebuild programs. For importers and wholesalers, sourcing should start with a clear application scope: engine code, fuel type, valve-train layout, emissions region, camshaft position, and production year range.
Each replacement camshaft should be checked against an original sample, a technical drawing, and the buyer's confirmed catalogue data. If an OE part-number cross-reference is used, it must come from the customer's approved database and match the exact application record. A generic reference such as OE 06A... or OE 11251... is not enough on its own, and Driventus does not invent or imply brand-owned numbers.
Key fitment controls include:
Camshaft position: intake, exhaust, or combined shaft depending on engine design
Journal count and journal diameter sequence
Lobe count, lobe height, base-circle diameter, and phase angle
Oil-feed hole position and chamfer specification
Timing gear, sprocket, or reluctor interface
Thrust face width and axial location
Sensor trigger pattern where applicable
Surface finish on journals and lobes
For buyers building a Transit-focused range, our catalog and engine components range can be used as a starting point before sample confirmation.

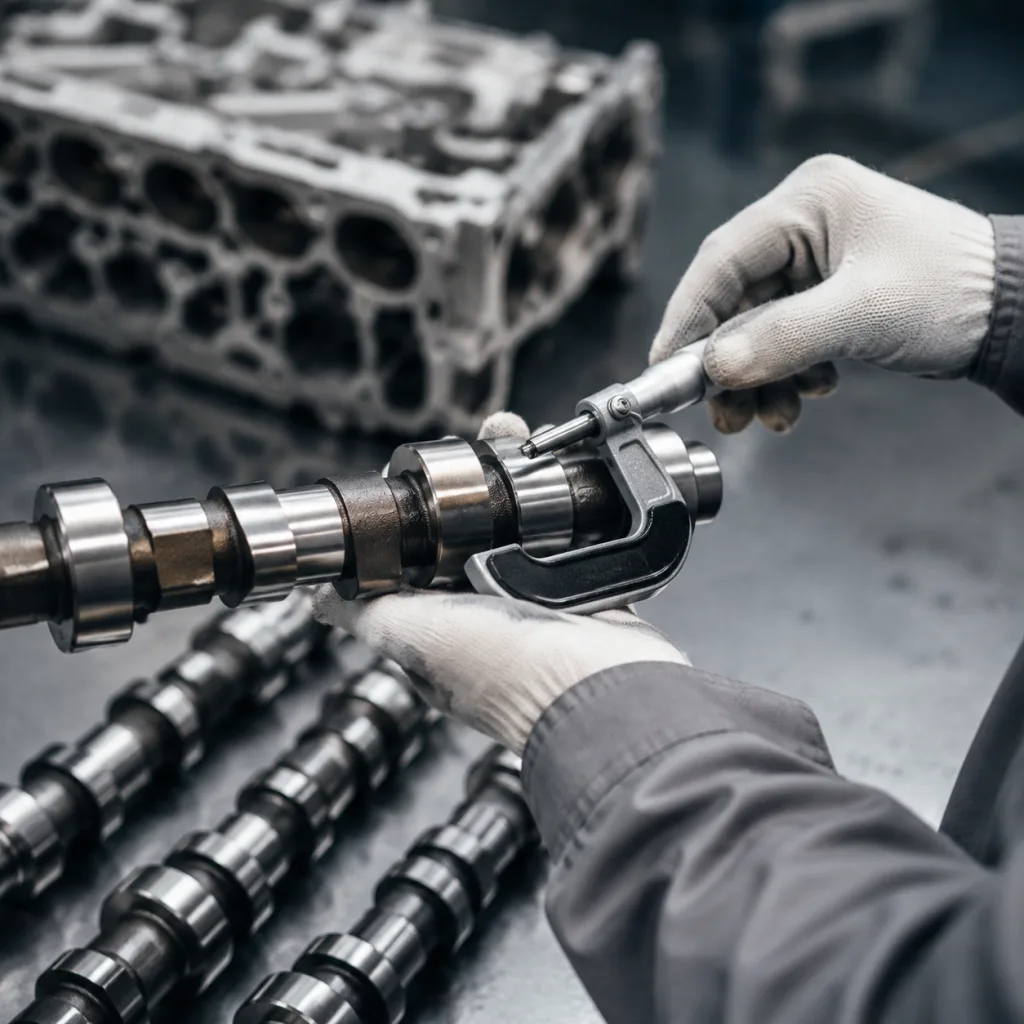

Dimensional Match for OE-Equivalent Performance
OE-equivalent performance depends on functional geometry, material condition, and process capability, not visual similarity. Small deviations in lobe lift, base circle, or timing angle can affect valve opening, emissions behaviour, idle stability, turbo response, and valve-train wear.
Typical inspection items for a camshaft for Ford Transit replacement order are listed below. Final limits should come from the drawing, sample reverse-engineering report, or customer specification.
Check item
Procurement relevance
Typical verification method
Journal diameter
Controls oil film and bearing clearance
Micrometer, roundness tester
Lobe lift and base circle
Controls valve event and engine breathing
Cam profile measuring machine
Runout
Reduces bearing load and timing variation
V-block and dial indicator, CMM
Surface hardness
Supports wear resistance
Rockwell or Vickers hardness test
Case depth or hardened layer
Confirms durability after grinding
Metallographic section on sample batch
Oil hole position
Prevents lubrication mismatch
CMM and functional fixture
Gear or sprocket interface
Controls timing drive fit
Go/no-go gauge, spline or keyway gauge
Surface roughness
Reduces scuffing risk
Roughness tester
</tr></thead><tbody> </tbody></table>A qualified supplier should provide first-article inspection reports, batch inspection records, and material traceability. For distributor programs, sampling can be aligned with ISO 2859-1 when the buyer already uses that system, but acceptance levels should be defined in the purchase agreement rather than assumed.
Materials, Heat Treatment, and Wear Resistance
Camshafts operate under repeated contact stress, boundary lubrication during start-up, and temperature cycling after shutdown. Material selection and heat treatment therefore need to match the engine design and the buyer's durability target. Depending on the application, replacement camshafts may use chilled cast iron, ductile iron, alloy steel, or assembled shaft construction.
For replacement programs, Driventus commonly evaluates these production controls:
Chemical composition verified by spectrometer analysis
Microstructure review for graphite form, carbide distribution, or hardened layer condition
Heat-treatment records by furnace batch
Journal and lobe grinding control after hardening
Magnetic particle inspection where crack risk is relevant
Anti-corrosion protection for sea freight and warehouse storage
Packaging separation to prevent lobe-to-lobe impact during transit
Hardness alone does not prove durability. An overly hard surface with poor microstructure, insufficient case depth, or grinding burn can still fail in service. Buyers should request the hardness range, case-depth evidence where applicable, and surface-finish data for functional areas. Driventus can also support custom manufacturing for private-label or application-specific camshaft programs when a distributor supplies samples, drawings, or measured data.
Validation Testing Before Bulk Approval
Replacement camshafts should be validated before a standing purchase order is released. The required depth depends on order size, warranty exposure, and whether the part is new to the buyer's range. A practical plan moves from document review to physical inspection, then to assembly or engine-level confirmation where risk justifies it.
Recommended validation sequence:
1. Confirm application list, engine-code coverage, and any buyer-supplied OE cross-reference. 2. Inspect incoming samples against the drawing or master sample. 3. Measure cam profile, runout, journal dimensions, and oil-feed positions. 4. Review material, hardness, and heat-treatment records. 5. Conduct trial assembly with bearings, followers, timing components, and seals. 6. Run functional testing where commercial risk requires it. 7. Approve packaging, labelling, carton strength, and corrosion protection.
For fleet repair chains, repeatability matters as much as first-sample approval. A camshaft that fits one engine but varies across later batches can increase labour claims and dispute costs. Driventus' quality system is built around IATF 16949:2016 and ISO 9001:2015 principles for process control, traceability, corrective action, and documented inspection. These certifications do not replace the buyer's approval process, but they provide a recognised framework for supplier evaluation.
Compliance and Documentation for Import Programs
A camshaft is not normally an emissions-control device by itself, but it operates inside an emissions-calibrated engine system. Buyers serving the EU, UK, US, Canada, Australia, or Brazil should keep documentation showing that the replacement part is intended to restore original mechanical function rather than alter calibration.
Relevant compliance and documentation points include:
IATF 16949:2016 and ISO 9001:2015 certification status for the manufacturing site
Material declarations where required by customer or market rules
REACH (EC) No 1907/2006 substance communication for EU supply chains
RoHS review where the buyer's internal policy applies to service parts
Packaging marks, country of origin, and batch traceability
Fitment disclaimer and independent aftermarket status
Warranty terms tied to correct installation and lubrication-system condition
Vehicle emissions regulations such as ECE R-83 are relevant to the wider vehicle type-approval context, but aftermarket camshaft suppliers should not claim that a replacement part independently approves a vehicle. The stronger procurement position is to maintain material records, inspection data, clear application control, and accurate fitment disclaimers.
Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Sourcing Checklist for Buyers
For a camshaft for Ford Transit replacement project, buyers should request enough information to compare suppliers on technical evidence rather than price alone. A low unit cost can become expensive if the shaft has incorrect lobe phasing, weak hardness control, poor oil-feed alignment, or inadequate packaging.
Procurement checklist:
Confirm engine application range and customer-supplied cross-references
Provide original sample, drawing, or measured master data where available
Request first-article inspection report before purchase order release
Check lobe profile measurement, not only overall dimensions
Confirm heat-treatment process, hardness range, and surface finish
Review supplier certification against IATF 16949:2016 and ISO 9001:2015
Define carton quantity, anti-rust period, and pallet requirements
Agree batch marking and traceability format
Set inspection sampling and claim-handling procedure in writing
Confirm lead time, MOQ, and forecast flexibility for repeat orders
For distributors, the strongest approach is to approve one reference at a time, monitor first batches, and then expand into related Transit engine variants after field feedback and inspection data are stable. For OEM-service or Tier-1 programs, supplier audits, process-flow review, PFMEA, control plan, and PPAP-style documentation may be required depending on the contract.
Frequently asked questions
Fitment should be verified by engine code, model year range, camshaft position, journal dimensions, lobe profile, oil-feed layout, timing interface, and sensor trigger pattern where applicable. Catalogue data should be supported by sample measurement or a customer-approved drawing.
Yes. Driventus supports B2B private-label and custom manufacturing programs for camshafts and related engine components. Buyers can provide samples, drawings, packaging requirements, and forecast volumes for technical review.
Useful documents include a first-article inspection report, material record, hardness data, heat-treatment record, surface-finish results, batch traceability plan, packaging specification, and certification evidence for IATF 16949:2016 and ISO 9001:2015.
For a measured review of Transit camshaft fitment, sampling, MOQ, and lead time, send your application list and target volumes. Driventus can prepare a technical quotation when you [request a quote](/contact.html).
