Intake Manifold Salt Spray Test Standard Guide

Start with the right question: what standard was used, and what did it actually prove?

For most corrosion screening on intake manifold components, suppliers cite ISO 9227, Corrosion tests in artificial atmospheres - Salt spray tests, or ASTM B117, Standard Practice for Operating Salt Spray (Fog) Apparatus. Both are established neutral salt spray methods used across automotive supply chains. In either case, buyers should expect the report to show the operating window: 5% NaCl solution by mass, chamber temperature around 35 C, fog collection within the standard range, and pH typically around 6.5 to 7.2.

That still does not tell you whether the result is commercially useful. These standards define the test environment and procedure. They do not, by themselves, define what counts as an acceptable intake manifold assembly.

A supplier can accurately say testing followed ISO 9227 or ASTM B117 and still provide a weak approval package if the report leaves out:

• What defect threshold counted as failure
• Which surfaces were excluded from judgment
• Whether the sample was a production assembly, a loose bracket, or a coupon
• Whether the tested build matches the quoted part number and revision

Before you treat a report as meaningful, confirm four basics:

• Test method used: ISO 9227 or ASTM B117
• Exposure duration: commonly 96, 240, 480, 720, or 1,000 h depending on coating system and customer requirement
• Sample scope: full manifold, coated bracket, insert, bolt set, or coupon only
• Acceptance basis: internal drawing note, customer spec, or agreed corrosion rating

Where coating durability matters, many buyers also check whether the supplier runs production under IATF 16949:2016 and ISO 9001:2015. That matters because repeatability in pretreatment, coating thickness, bath control, passivation chemistry, curing temperature, and rack orientation often decides whether lab performance can be repeated in serial supply.

For plated or coated metal subcomponents attached to a manifold, salt spray review usually focuses on:

• Mounting brackets
• Steel inserts
• Hose pipe unions
• Fasteners
• EGR-related metal interfaces where applicable

For polymer manifolds, the plastic body is usually not the main corrosion concern. The attention goes to metal attachments and any coated aluminium interfaces.

This also affects cost. Moving from basic zinc plating to zinc-nickel, higher coating thickness, duplex coating, or e-coat on support brackets usually raises piece price and often adds 7 to 20 days to first-sample timing if a new sub-supplier or coating line must be qualified. MOQ can shift as well: a standard plated bracket may sit at 300 to 500 sets, while a custom color, passivation, or thickness-controlled outsourced coating process may require 1,000 to 3,000 pcs per batch to stabilize unit cost.

Failure mode review: what makes a corrosion report weak or non-comparable?

The most common buying mistake is to focus on the hour figure and ignore the build behind it. Corrosion reports often look acceptable until you check the details.

Minimum document checklist

Ask the supplier for:

• Laboratory name and test date
• Standard named in full: ISO 9227 or ASTM B117
• Salt concentration, chamber temperature, fog collection rate, and pH range used under the selected method
• Sample photographs before and after exposure
• Identification of material and coating system
• Coating thickness data where relevant, for example 8-12 um zinc, 12-20 um zinc-nickel, or paint film build such as 20-35 um e-coat
• Description of edge masking, scribed areas, or uncoated machined surfaces
• Clear acceptance criteria for red rust, white rust, blistering, base metal attack, or coating delamination
• Statement of whether evaluation covered function-critical sealing and mounting areas

A stronger report also shows the part number, drawing revision, sample quantity, and any deviations from standard procedure. For PPAP-style approval, ask for at least 3 samples from one production lot. For higher-risk programmes, 5 samples across 2 lots is a better screen.

Where reports usually fail

Weak reports tend to break down in predictable ways:

• The tested item is a coupon or loose bracket, not the full assembly
• The finish tested is not the finish quoted for production
• The report says "passed 480 h" without stating the acceptance criteria
• Edges, threads, hidden faces, or sealing surfaces are excluded without explanation
• Sample photos are missing or too generic to confirm configuration
• The revision level is absent, so the document can be reused across unrelated parts

That matters because an intake manifold is not a flat coupon. Corrosion often starts at mixed-material junctions, sharp edges, threaded inserts, bracket welds, or cavities that retain condensate. If a supplier only submits coupon data for plated hardware, you still do not know how the assembled part behaves.

For sourcing, request a report tied to the actual part number or drawing revision. If the project includes a cross-reference such as OE 06A107065, the report should state which configuration and revision level were tested for that fitment. It should also state whether inserts were press-fit before testing, whether fasteners were assembled to nominal torque, and whether machined faces were bare or protected.

Sample selection deserves the same scrutiny. Useful process evidence includes:

• Samples pulled from serial production rather than hand-built pilot parts
• Coating thickness measured at 3 to 5 points per part
• At least one sample sectioned after test to inspect underfilm attack around inserts or edges
• Post-test functional checks recorded within 2 to 24 hours after chamber removal

That is the difference between a real corrosion-control process and a one-off lab certificate.

Spec deep-dive: how to read duration, finish system, and acceptance criteria together

Exposure time on its own is a poor buying shortcut. A longer test does not automatically mean a better manifold. It usually means a different finish system, a different severity target, or a different customer requirement.

</tr></thead><tbody> </tbody></table>Treat these as market reference ranges, not universal rules. OEM and Tier 1 programmes often use their own duration targets, rating methods, or post-exposure inspections depending on climate exposure and the coating supplier's validation data.

The report should therefore connect three things clearly:

• The finish system
• The duration used
• The acceptance threshold

A credible supplier will not stop at "passed 480 hours." They will define what defect threshold was allowed and how the sample was rated. In automotive programmes, visual corrosion ratings are often paired with adhesion checks, torque tests, or functional verification after exposure.

For intake manifold sourcing, convert vague language into measurable limits. Typical examples include:

• No red rust on significant visible surfaces after the specified duration
• No blistering larger than agreed class on coated brackets
• No coating delamination at edges beyond an agreed creepage limit such as 1-2 mm from a scribe, where scribe testing is specified
• No pitting on sealing faces that exceeds flange flatness or gasket compression tolerance
• No thread seizure after test; gauge or mating fastener must run through full engaged length
• No insert movement beyond drawing tolerance, for example positional shift not exceeding 0.10-0.20 mm where relevant to assembly

If paint or advanced coatings are involved, buyers often ask for supporting data such as adhesion, hardness, or abrasion performance under the relevant internal spec. Salt fog is one input to approval, not the whole file.

There is also a direct commercial effect. A supplier quoting 240 h NSS may price lower than one quoting 720 h NSS because the second source is using a thicker or more complex finish. When comparing quotes, ask for a breakout by finish system. A 3-8% component-level price delta can be reasonable if it removes warranty exposure or avoids a second validation loop later.

Related reading

clutch kit·2026-07-02

Clutch Kit Skoda Replacement: How B2B Buyers Approve the Right Kit

Read more ==>

camshaft·2026-07-02

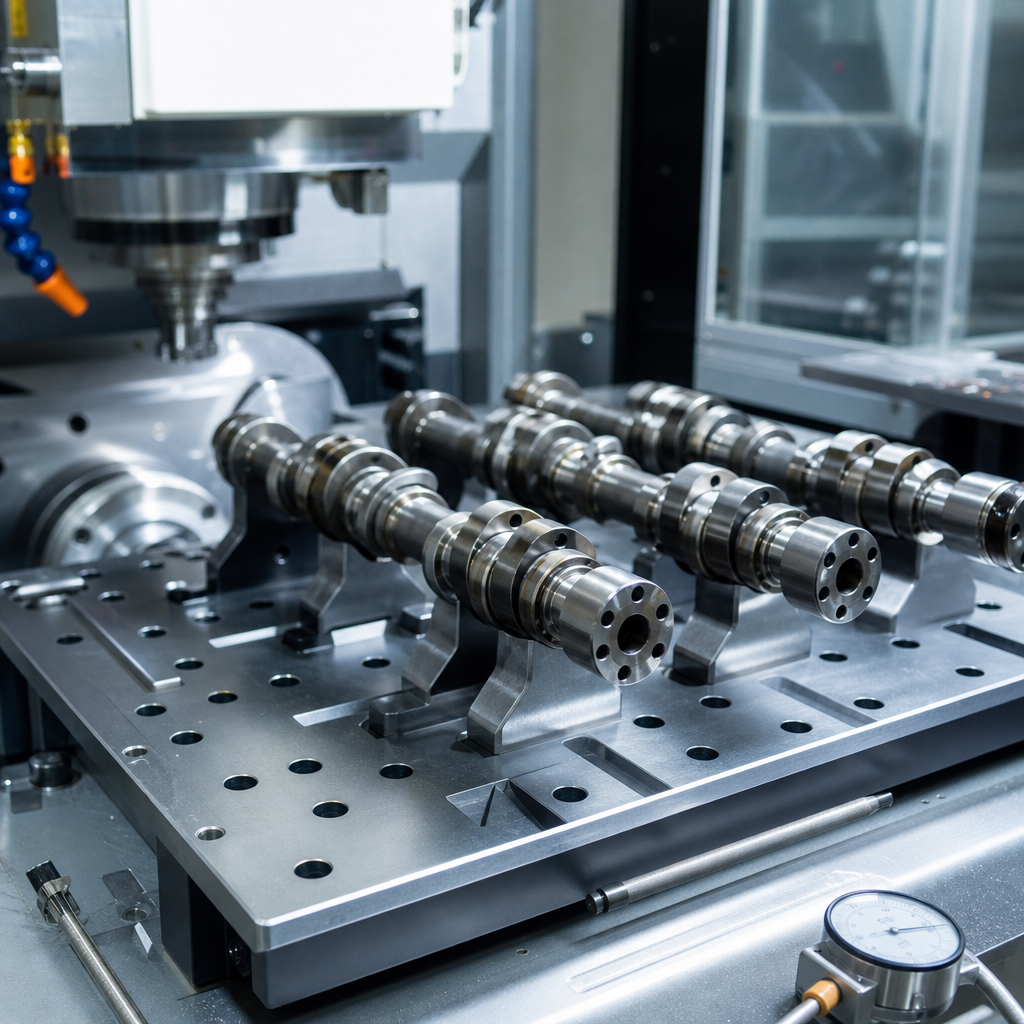

Camshaft Infiniti Wholesale: How B2B Buyers Reduce Risk
