Selecting a hub assembly wheel bearing for fleet service, aftermarket distribution, or OE-support programmes is less a catalogue exercise than a risk-control decision. Buyers need consistent dimensional accuracy, fatigue strength, sealing performance, and batch traceability. A low-cost unit that misses runout limits, loses grease, or produces unstable ABS signals can quickly raise warranty costs and damage customer confidence.
For procurement teams, the core questions are practical: which hub unit generation fits the vehicle and service model, which technical checks should be requested before approval, and how should suppliers be compared beyond piece price? This guide explains the main hub unit configurations, the specifications that matter most in purchasing, and the validation evidence worth requesting during supplier qualification. It also highlights where documentation such as PPAP-style records, material declarations, and process controls supports import decisions for EU, UK, US, Canadian, Australian, and Brazilian markets.
In active sourcing, buyers should also define commercial guardrails early: annual volume, target MOQ, acceptable sample lead time, production lead time, and the tolerance band they will accept on critical dimensions such as flange runout, wheel pilot diameter, bolt-circle position, and encoder signal stability. For many aftermarket programmes, the difference between a stable supplier and a problematic one is not a few cents of unit price, but whether the factory can repeatedly hold micrometre-level grinding and assembly tolerances across 1,000-10,000 piece lots.
Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Start with the buying decision: what exactly is in the hub assembly wheel bearing?

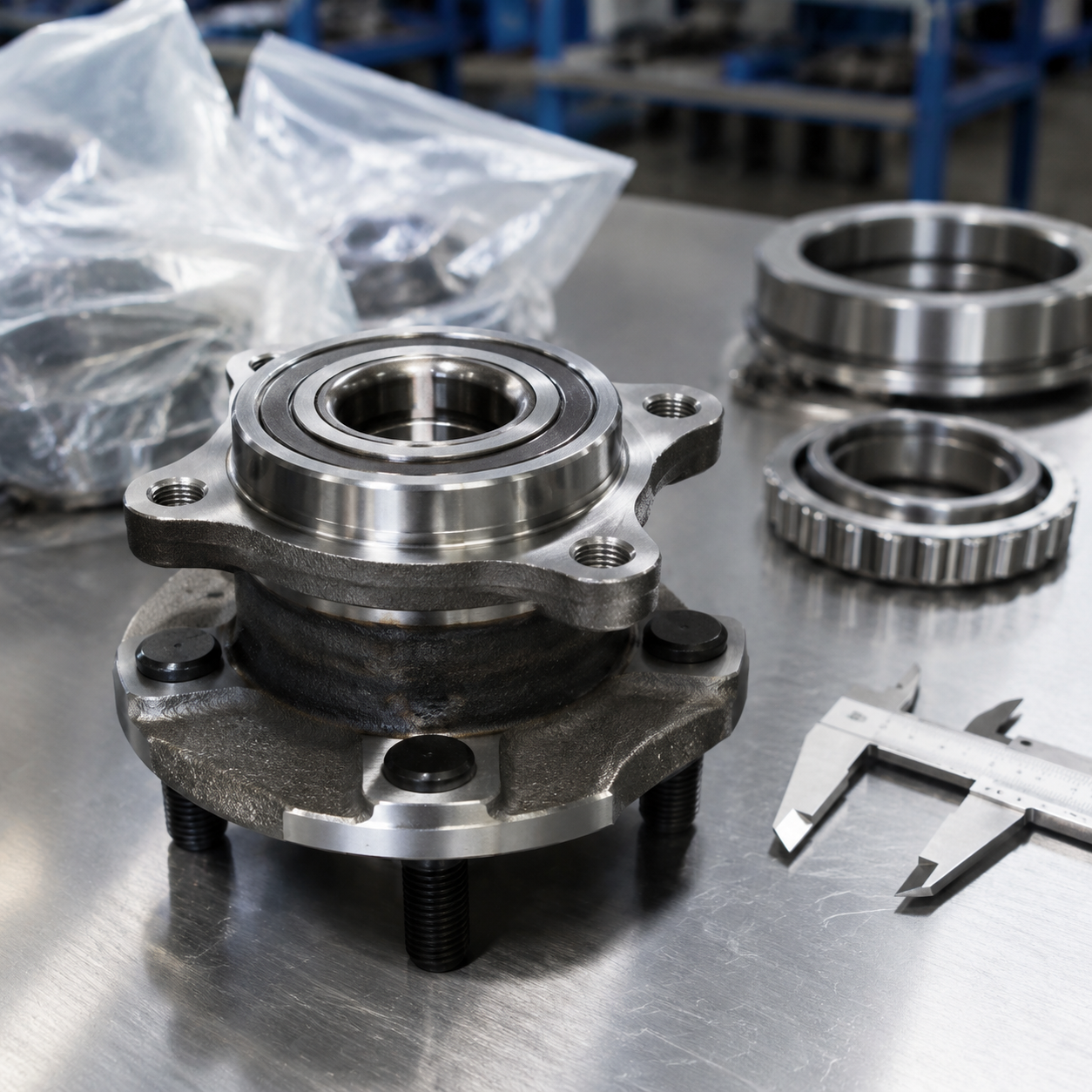

A hub assembly wheel bearing is a pre-assembled wheel-end module: bearing elements plus the installation-critical parts that decide whether the unit fits, seals, and sends the right signal once installed. Depending on the application, that can include the hub flange, wheel studs or bolt holes, mounting flange, seals, grease fill, ABS encoder ring, and sometimes an integrated sensor.
That sounds straightforward. In sourcing, it rarely is.
The reason buyers choose the assembly format is not just convenience. It is control. A complete unit reduces workshop variation, limits press-fit mistakes, and gives distributors and fleet service networks a more repeatable part to install across many sites.
Typical scope of supply may include:
Hub and bearing pre-assembled unit
Integrated flange and mounting points
Factory-installed seals and grease fill
ABS tone ring or magnetic encoder where required
Studs, nuts, or axle hardware depending on application
Protective cap, circlip, or snap ring where the OE design requires it
Batch code and traceability marking
Before RFQ, the application file should confirm:
Vehicle platform and axle position
Driven or non-driven wheel location
Sensor type and connector orientation
Mounting geometry and bolt pattern
Wheel pilot diameter, flange offset, and overall stack height
Load rating and service environment
OE cross-reference where available, such as OE 06A107065 only when specified by customer data format
This is where many programmes go wrong: the part number is treated as the product definition. It is not. A sourcing file for a hub assembly wheel bearing should lock measurable acceptance points, including:
Hub pilot diameter tolerance, often within ±0.02 to ±0.05 mm depending on application
Mounting face runout limit, commonly ≤0.03-0.05 mm on finished assemblies
Wheel flange bolt circle positional tolerance, often ±0.05 mm
Stud press-fit retention and protrusion height
ABS encoder pole count, magnetic direction, and air-gap window
Rotational starting torque range after assembly and grease fill
A unit can look correct on paper and still fail in service because the flange offset is wrong, the stud knurl does not match, the encoder polarity is reversed, or the hardware pack is incomplete. Buyers should define installed function, not just outside dimensions.
Commercially, hub assembly wheel bearing programmes usually fall into three sourcing cases:
1. Stock references: stable aftermarket items with MOQ often around 100-300 pcs/part number and lead times of 30-45 days. 2. Made-to-order references: lower-run or slower-moving SKUs with MOQ more commonly 300-1,000 pcs and lead times of 45-70 days. 3. Custom/OE-support references: drawing-controlled parts with tooling confirmation, sample approval, and lead times that may reach 60-90 days for first order.
If you need to compare part families across platforms, start with our catalog and shortlist by dimensions, flange layout, and sensor configuration.
Choose the right hub unit generation by service model, not by appearance
Not every hub assembly wheel bearing should be bought the same way. Generation choice affects landed cost, workshop time, claim risk, and substitution flexibility.
Hub unit type
Typical construction
Main procurement benefit
Main risk if mis-specified
Gen 1
Double-row bearing, separate hub or housing in vehicle assembly
Lower component cost in some programs
More installation sensitivity, greater risk of fitment error
Gen 2
Bearing with integrated wheel hub flange
Faster service installation, improved positional accuracy
Incorrect flange geometry or encoder orientation
Gen 3
Integrated hub plus mounting flange, often ready-bolt module
Reduced assembly time, lower workshop error rate
Higher cost exposure if sensor or seal spec is wrong
</tr></thead><tbody> </tbody></table>A simple way to think about it:
Gen 1 can still make sense when unit price pressure is high and the service network is equipped for press operations.
Gen 2 often suits broad aftermarket distribution because it removes part of the installation variability.
Gen 3 is usually the cleanest service solution when labour cost, branch consistency, and reduced fitting error matter more than the lowest ex-works price.
Typical service implications are practical, not theoretical:
Gen 1 may require bearing press operations with force control that can exceed 20-50 kN, which raises installation error risk.
Gen 2 usually reduces workshop assembly steps and can cut installation time by 15-30% versus separate hub/bearing handling.
Gen 3 units often arrive as near ready-bolt modules, reducing handling time further and helping standardise work across multi-branch service networks.
Before approving a substitution between generations or supplier designs, verify:
Mounting flange offset and stack height
Wheel pilot and stud geometry
Encoder ring pole count and signal compatibility
Static and dynamic load capability
Tightening torque requirements for axle nut or mounting bolts
Corrosion protection level for flange and hardware
Then go one layer deeper:
Nominal bearing contact angle and preload concept
Whether the design uses ball or tapered rolling elements
Flange thickness and bolt-hole chamfer geometry
Axle spline count for driven-wheel applications
Included hardware grade, for example Class 10.9 or 12.9 bolts where specified
The wrong comparison is piece price versus piece price. The useful comparison is total installed cost. A Gen 3 hub assembly wheel bearing that is 8-20% more expensive may still be the better buy if it lowers workshop time, fitment returns, press damage, and ABS-related claims.
Spec deep-dive: the technical points that actually drive field life
Early failures are rarely caused by one headline issue. More often, the problem is stacked tolerances and weak process control: poor raceway finish, unstable preload, marginal sealing, inconsistent grease fill, or an encoder that reads well in a sample but not across production.
Use the technical review to separate a decent-looking offer from a durable one.
Specification area
What to ask for
Why it matters
Bearing steel
Material grade, heat-treatment window, hardness range
Affects fatigue life and crack resistance
Raceway geometry
Roundness, waviness, surface finish data
Influences noise, vibration, and heat generation
Hub flange runout
Radial and axial runout measurement
Critical for brake feel, NVH, and seal life
Internal clearance / preload
Defined process control and end-of-line verification
Excess preload or loose setting shortens service life
Seal design
Lip material, contamination exclusion test data
Protects against water ingress and grease loss
Lubrication
Grease type, fill quantity, temperature range
Supports durability under thermal cycling
ABS interface
Encoder material and signal validation
Prevents intermittent wheel-speed faults
Corrosion protection
Coating thickness or salt spray evidence
Important for coastal and winter-road markets
</tr></thead><tbody> </tbody></table>Ask for numbers, not adjectives. Useful specification windows often include:
Bearing steel: commonly GCr15 / 100Cr6 / SAE 52100 with controlled cleanliness and a hardened raceway typically around HRC 60-64 after heat treatment
Surface roughness: raceway grinding often targeted at Ra 0.10-0.30 μm depending on design
Roundness: critical raceway features often controlled within 1.5-3.0 μm on finished grinding
Hub flange axial runout: frequently specified at ≤0.03-0.05 mm
Wheel pilot diameter: often held within ±0.02-0.04 mm for fit-critical applications
Preload / end-play: should be defined by process window and verified at assembly; buyers should request the supplier's actual acceptance band, not simply "OK"
Grease fill: commonly controlled by mass, often within ±2-5% of target fill quantity per unit
Operating temperature for grease: many wheel-end greases are selected for service ranges around -40°C to 150°C, with short-term peaks above that depending on formulation
Coating thickness: anti-corrosion coatings on non-raceway surfaces may be validated by thickness measurement and salt spray performance, commonly 72-240 hours depending on market requirement and coating system
For ABS-equipped units, treat the interface as its own subsystem. Confirm:
Encoder pole count and polarity pattern
Magnetic ring bonding or insertion method
Sensor output stability across speed range
Air-gap tolerance at installation
Resistance to thermal shock, salt fog, and road contamination
A polished datasheet is not enough. The real question is whether the supplier can hold these values batch after batch. That is why buyers should review dimensional reports, gauge calibration records, and end-of-line test controls under an audited quality system aligned with IATF 16949:2016 and ISO 9001:2015.
Material compliance also matters. For EU-directed supply, ask for declarations relevant to REACH (EC) No 1907/2006 and, where applicable to packaging or substances used in associated components, supporting chemical compliance records.
What good validation looks like: evidence to request before approval
A drawing and a one-page inspection sheet do not tell you much about production risk. Validation records do.
For a hub assembly wheel bearing, the useful question is not "do you test?" but "what do you test, at which stage, against which limit, and on what sample basis?"
Useful validation items include:
Dimensional layout report against approved drawing
Metallographic review of rings, rolling elements, and flange interface
Hardness verification by batch
Rotational torque and noise testing at end of line
Seal integrity and grease leakage evaluation
Corrosion testing for coated surfaces and hardware
Fatigue and durability bench testing under radial/axial load
ABS signal confirmation for integrated encoder designs
Packaging validation for export handling and storage stability
A practical validation pack should separate three stages.
Prototype / initial sample stage
Full dimensional report, often 100% of drawing dimensions on 3-5 pcs
Material certificates for rings, rolling elements, flange, and studs
Hardness map of key raceway and flange areas
Grease specification sheet and fill record
Initial ABS signal check and installation trial
First production approval stage
Process flow chart and PFMEA summary where available
Control plan for grinding, heat treatment, washing, assembly, and packing
Capability data for critical dimensions, ideally with Cp/Cpk on features such as flange runout, bore size, pilot diameter, and stud position
MSA / gauge R&R data for critical measuring equipment
End-of-line test limits for rotational torque, noise, and sensor output
Routine batch release stage
Batch layout or SPC summary for critical dimensions
Lot-linked hardness and metallography verification frequency
Grease fill and seal installation records
Traceability from finished code back to steel heat number, grinding line, and assembly date
Typical test values worth asking about include:
Radial and axial fatigue bench loads and total cycle count
Rotational torque window at ambient condition after assembly
Leakage acceptance after water splash or mud contamination testing
Salt spray hours for flange and stud coating system
Packaging drop or vibration test parameters for export cartons
For braking-system interaction, some buyers also request application-level evaluation where wheel-end runout may affect brake NVH outcomes. In those cases, awareness of related standards such as SAE J2527 for brake dynamometer testing can be useful, even though it is not a bearing standard itself.
For road-vehicle programmes involving emissions-certified platforms, fitment changes should be reviewed carefully against vehicle compliance frameworks such as ECE R-83 where relevant to the platform, although the wheel-end unit itself is not certified under that regulation.
If the project requires revised flange dimensions, alternative sensors, or packaging adaptation, discuss custom manufacturing early so tooling, validation timing, and documentation scope are clear. For a new custom reference, buyers should expect sample tooling or fixture lead time before SOP-ready production, and should lock who pays for validation, destructive testing, and PPAP-style document preparation before order placement.
Compare suppliers like a risk manager: a scorecard for hub assembly wheel bearing sourcing
Many supplier offers look similar online. Few are similar in process maturity.
The strongest sourcing teams compare a hub assembly wheel bearing supplier on three layers at once: technical compliance, operating discipline, and commercial fit.
Use a procurement scorecard with weighted criteria such as:
Process control: heat treatment, grinding, assembly cleanliness, traceability
Certification: active IATF 16949:2016 and ISO 9001:2015 status
Inspection capability: CMM, roundness, roughness, torque, and signal testing
Batch traceability: lot code linked to material and process records
Warranty handling: failure analysis workflow and response time
MOQ and lead time: standard versus made-to-order references
Documentation: PPAP-style package, IMDS support if requested, compliance declarations
A practical comparison also asks:
1. Are critical dimensions controlled in-house or outsourced? 2. Are encoder and seal components validated as a system, not only separately? 3. Can the factory hold consistency across multiple tools, lines, or shifts? 4. Does the packaging protect flange faces, studs, and sensors during sea freight?
A more actionable scorecard might look like this:
Criterion
Example weighting
Technical compliance to drawing/spec
30%
Process capability and quality system
20%
Price and payment terms
15%
Lead time and delivery reliability
15%
Documentation and traceability
10%
Packaging and export performance
5%
Claim response / after-sales support
5%
</tr></thead><tbody> </tbody></table>Commercial comparison should include realistic MOQ, price-break, and lead-time logic:
Existing standard parts: MOQ often 100-300 pcs/SKU
Private-label packing on standard parts: MOQ may rise to 300-500 pcs/SKU depending on carton print and accessories
New or slow-moving references: MOQ often 500-1,000 pcs because setup, grinding, and packaging economics are less efficient at low volume
Sample orders: some suppliers accept 2-10 pcs for validation, but sample unit price is usually higher and freight is rarely economical by sea
Price changes with content. Buyers should check whether the quote includes:
Studs, nuts, snap rings, or axle hardware
An integrated ABS sensor or only a magnetic encoder
Higher corrosion-protection level
Custom carton, label, and barcode requirements
PPAP-style documentation and third-party testing scope
Lead time matters just as much:
Sample lead time: often 7-20 days for stock references, longer for custom builds
Mass production lead time: commonly 30-45 days for regular items after deposit and artwork approval
Peak-season or custom references: may require 45-70+ days
Tooling or drawing-change projects: first production lot can extend to 60-90 days depending on validation cycle
The best supplier is usually not the cheapest bidder. It is the one whose process capability, packaging discipline, and claim response lower the total risk-adjusted cost over the life of the programme.
Failure modes and approval workflow: how buyers avoid the usual mistakes
Most sourcing mistakes in this category are repetitive. The pattern is familiar: photo approval, loose OE cross-reference matching, no sensor validation, then field complaints a few months later.
Common mistakes:
Approving a unit without confirming encoder specification
Comparing offers without flange runout or preload data
Ignoring corrosion protection for winter-road markets
Mixing applications with similar bolt patterns but different offsets
Accepting incomplete traceability on safety-critical rotating parts
Underestimating packaging damage in long-distance export shipments
A practical approval workflow is:
1. Confirm application, drawing, and OE cross-reference scope. 2. Review quotation with full content definition and Incoterms. 3. Request sample inspection report and test summary. 4. Validate critical dimensions, runout, torque, and ABS function. 5. Audit certification and traceability controls. 6. Approve packaging standard and carton/pallet configuration. 7. Run pilot order before annual contract release.
To make that workflow useful, set pass/fail gates.
1) RFQ and data collection
Lock the baseline before comparing quotations:
Drawing revision, 2D/3D file, or approved sample reference
Annual forecast and opening order quantity
Required MOQ by SKU
Target Incoterm, for example EXW, FOB, or CIF
Required documents: material certs, dimensional report, compliance declaration, PPAP-style package if needed
2) Sample review
At sample stage, verify at minimum:
Main dimensions against drawing
Flange axial/radial runout
Wheel pilot diameter and stud position
Turning torque or rotational resistance
ABS signal readout and connector orientation
Coating appearance and packaging protection
A practical rule: inspect 3-10 pcs from the sample lot, not one piece. One good sample proves very little.
3) Pilot order control
Before blanket release, place a pilot order sized to expose packaging and consistency issues. For many import programmes, that means at least 100-300 pcs or one mixed pallet/carton configuration representative of normal shipping.
During pilot review, monitor:
Incoming defect rate
Carton compression or moisture issues after transit
Dimensional consistency between first, middle, and last cartons inspected
Label readability and traceability code logic
Installer feedback on torque procedure and fitment time
4) Contract release and claim handling
After approval, the supply agreement should state:
Accepted drawing/spec revision
Critical tolerance limits
Approved packaging standard
Lead time and on-time delivery target
Claim response expectation, for example initial containment within 48-72 hours and formal analysis within an agreed period
Replacement, credit, or sorting responsibility if a batch issue is confirmed
This structure matters most when the product will be sold across multiple markets or installer networks. A hub assembly wheel bearing can pass basic fitment checks and still create claims later because of signal mismatch, premature noise, or weak corrosion resistance.
For new sourcing projects, Driventus can support sample evaluation, technical review, and supply planning across aftermarket and OE-support channels. To discuss specifications, volumes, or audit documents, request a quote.
Frequently asked questions
Confirm the encoder type, pole count, orientation, and connector compatibility with the target application. Many fitment errors come from sensor mismatch rather than bearing dimensions. A dimensional match alone is not sufficient. Buyers should also ask how signal output is verified at end of line and whether thermal, contamination, or air-gap variation has been validated.
Not always. Complete assemblies usually reduce installation error and save labour, especially for repair chains. Loose kits may still suit some platforms or cost targets, but they demand tighter workshop controls during fitting. For B2B importers, the decision should compare total installed cost, warranty risk, and service repeatability, not only the part price.
Ask for certification copies, dimensional reports, material and hardness data, end-of-line test records, traceability method, compliance declarations such as REACH where relevant, and export packaging specifications. These documents help reduce quality and import risk. For higher-risk or higher-volume programmes, also request a control plan, capability data on critical dimensions, and a PPAP-style first article package.
If you are qualifying a new wheel-end supplier or reviewing an existing range, we can provide technical data, sample support, and manufacturing documentation. Contact the team to discuss your project at /contact.html
