Flex Plate vs INA Alternative: A Practical Buyer Decision Guide
A serious flex plate vs INA alternative review is rarely decided by catalog fitment alone. Buyers need to know whether the part installs cleanly, runs true, survives cyclic load, and can be reordered without quality drift. Unit price matters, but starter noise, converter bolt misalignment, cracking at the crank pattern, and repeat return handling cost far more.
The useful comparison is not brand story versus brand story. It is drawing control versus drawing control, process discipline versus process discipline, and supply reliability versus supply reliability. That means checking runout, tooth form, joining consistency, balance, coating, traceability, packaging, and the documents behind them.
This article is structured as a buyer decision guide rather than a generic feature list. It focuses on what to check first, where low-cost substitutions usually fail, which documents actually reduce sourcing risk, and how distributors or repair groups should weigh commercial trade-offs before approving a new source. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Start with the make-or-break fitment checks
A flex plate is a thin stamped or formed steel drive plate that transfers crankshaft torque to the torque converter while carrying the starter ring gear. Because it works under repeated torsional load, small dimensional errors can turn into vibration, installation difficulty, noise, or early cracking.
So the first question in a flex plate vs INA alternative decision is simple: will the part interchange without forcing assembly or creating NVH risk? Start there before discussing price.
Record both the nominal dimension and the allowed tolerance for each critical feature:
Overall outside diameter: often controlled around ±0.20 to ±0.50 mm depending on part size and drawing method
Plate thickness and material grade: many passenger and light commercial designs use base material in the 2.5 to 4.0 mm range, with thickness tolerance often around ±0.05 to ±0.10 mm
Crankshaft bolt pattern and PCD: hole position is commonly held to ±0.10 mm or tighter on critical patterns
Torque converter bolt circle and hole position: many buyers ask for true position within 0.15 to 0.25 mm to avoid forced assembly
Starter ring gear tooth count and tooth form: tooth count must match exactly; pitch and chamfer quality affect engagement noise
Pilot and centre bore dimensions: bore tolerance is often reviewed in the H11/H12 range unless the drawing requires tighter control
Axial runout and radial runout: incoming limits are often around 0.30 to 0.50 mm TIR, but acceptance should follow the target drawing and application
Ring gear heat-treatment condition: verify hardness range and case condition where specified
Dynamic balance control: define residual imbalance by part diameter and rpm exposure, not by visual judgement
Corrosion protection and packaging: specify VCI bag, oil film, partitions, carton strength, and pallet handling expectations
A part can bolt on and still be wrong. That is why the first pass should be dimensional and process-based, not commercial.
If you manage a broad SKU range, group parts by engine family, transmission interface, tooth count, converter pattern, and offset rather than vehicle application alone. That reduces cross-reference errors and makes RFQ comparisons cleaner.
A useful first-stage RFQ sheet should ask every supplier for: nominal dimensions, tolerance table, material grade, hardness target, runout limit, balance limit, sample lead time, standard MOQ, price breaks at 100 / 300 / 500 pieces, and normal production lead time ex works.

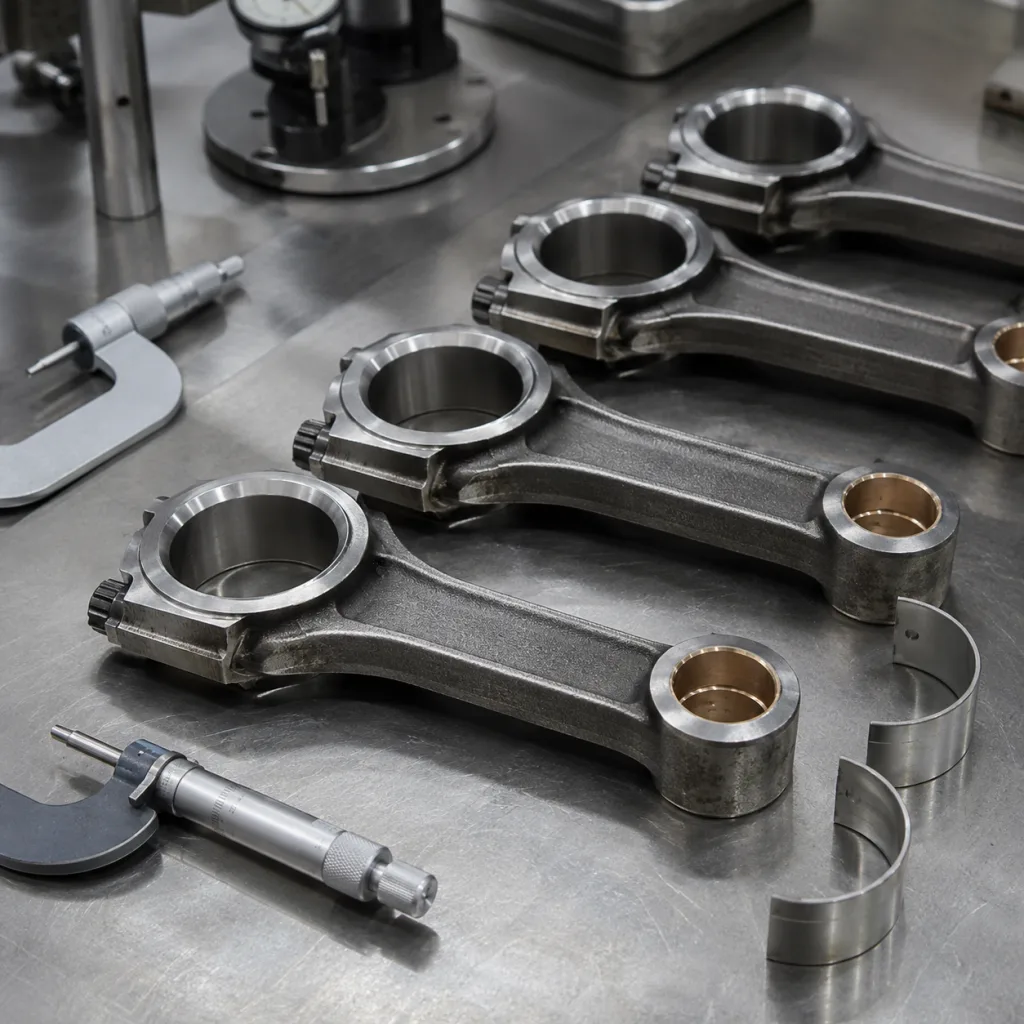

Where fitment programmes extend into wider engine hard-part sourcing, buyers often review related items in our catalog and engine range pages such as /products/engine-components.html.
Use this side-by-side scorecard, not a generic supplier pitch
Helps prevent starter engagement problems and premature tooth wear
Runout control
Inspection record for axial and radial runout with gauge method and sample size
Reduces vibration, wobble, and converter misalignment
Bolt-hole accuracy
CMM report or dedicated fixture report with actual measured data
Critical for assembly fit, clamp load distribution, and repeatable installation
Balance verification
Balance standard or internal limit, correction method, and sample record
Lowers NVH risk and helps protect transmission components
Weld or joining integrity
Process sheet, section check, crack inspection method, and frequency
Poor joining can lead to ring gear movement or separation
Surface protection
Coating type, oil type, film thickness if relevant, and salt-spray target if specified
Important for storage, ocean shipment, and warehouse handling
Traceability
Lot code, date code, material batch linkage, and pack-level identification
Supports containment and root-cause analysis if a defect appears
Quality certification
IATF 16949:2016 and ISO 9001:2015 scope
Shows system control, but does not by itself confirm fitment
Compliance file
REACH (EC) No 1907/2006 declaration where applicable
Common requirement for many EU importers
</tr></thead><tbody> </tbody></table>The point of this table is not paperwork for its own sake. It is to expose whether the alternative source has real production control behind the quote.
A capable supplier can usually explain how the data is generated, not just send a pass/fail sheet. Ask whether runout is checked 100% on fixture or by hourly sampling, whether hole patterns are verified by CMM or hard gauge, whether hardness is checked every lot or every furnace batch, and whether balance correction is done by welded weight, drilled correction, or controlled forming.
That level of detail often separates a validated alternative from a cheap substitute that only looks acceptable in sample form.
For procurement teams screening new sources, the supplier's quality system should also show how incoming material, in-process inspection, nonconforming product control, and final release are handled. Response timing matters too: who answers within 24 hours, who issues containment within 48 hours, and how replacement stock is prioritized if a field issue appears.
Where low-cost alternatives usually fail first
Not every alternative fails visibly on day one. Many problems show up later: during install, after a few heat cycles, or only once repeat orders start drifting from the approved sample.
1. Material and forming drift
Flex plates are commonly made from high-strength steel sheet within a defined thickness range. Variation in sheet thickness, blanking clearance, or press forming can change stiffness and raise stress around the crank bolt pattern and converter holes.
Ask whether the supplier relies on coil certificates alone or also performs incoming micrometer checks by lot. Also ask about die maintenance frequency, burr-height control, and start-up versus in-process inspection frequency.
2. Ring gear problems that show up as starter noise
Starter ring gear performance depends on tooth geometry, concentricity, and hardness consistency. If the ring gear is too soft, wear accelerates. If heat treatment is inconsistent, brittleness and tooth failure become more likely.
A serious supplier should be able to show hardness records and explain whether the ring gear is shrink-fitted, welded, resistance joined, or mechanically fixed. Buyers often ask whether hardness is controlled within a range such as 38-48 HRC, or another drawing-specific band.
3. Balance and fatigue issues hidden by a good-looking sample
A flex plate absorbs torsional pulses in every drive cycle. Dynamic imbalance, weak local forming control, or inaccurate hole positioning can increase local stress and reduce fatigue life.
There is no single public standard that covers every aftermarket flex plate design, so buyers should ask practical questions: how many cycles is the part validated for, in what rpm band, and is testing only for initial design approval or repeated after major process changes?
4. Sample approval that does not survive mass production
This is one of the most common failure modes in aftermarket sourcing. A supplier can produce an acceptable first sample from a freshly adjusted die, then drift after several thousand pieces if press parameters, furnace control, or joining fixtures are not locked.
That is why the safest option in a flex plate vs INA alternative review is usually the supplier with stable production evidence, not the one with the cheapest sample.
Validated alternatives usually show:
A defined control plan with critical-to-fit and critical-to-function characteristics
Lot-based traceability from raw steel to packed carton
Start-up approval and in-process checks such as every 1 hour, every 500 pieces, or every lot
Gauge calibration records for runout fixtures, hardness testers, and hole-pattern gauges
Change-control notification covering tooling repair, material source change, and heat-treatment parameter change
For buyers developing private-label programmes, custom manufacturing may include customer-specific packaging, laser lot coding, carton consolidation, and drawing-based inspection plans.
Ask for these validation documents before approving any new source
If a supplier cannot support the quote with part-specific evidence, the risk stays with the buyer.
A proper submission pack should go beyond a catalog image, fitment list, or general certificate set. The documents should tie back to the actual part, the actual sample, and ideally the actual production lot.
Recommended supplier submission pack:
Dimensional drawing with critical characteristics identified and revision number clearly shown
Ballooned inspection report with actual measured results, not only pass/fail marks
Material certificate linked to production lot
Hardness report for ring gear where applicable, including test location and sample quantity
Axial and radial runout inspection record with fixture or method description
Bolt pattern and PCD inspection report
Balance inspection method and acceptance limit
Coating or oil protection description with packaging hold-time expectation, for example 60 to 180 days indoor storage if specified
Packaging specification for export handling, including units per inner pack, carton gross weight, and pallet pattern
REACH (EC) No 1907/2006 declaration if required for destination market
Quality certificates: IATF 16949:2016 and ISO 9001:2015
Sample retention and traceability procedure
Warranty or claim handling flow with response timing
If the supplier offers OE cross-reference support, confirm that the reference is used only for fitment identification, not as a claim of vehicle maker approval. If a customer enquiry includes an OE-style identifier, use it carefully, for example OE 11251…, and approve only after dimensional review.
For larger programmes, also check whether the supplier can support first-article approval, barcode labelling, mixed-carton rules, and pallet configuration suitable for EU, UK, US, Canada, Australia, and Brazil import channels.
A realistic sample-to-production path usually looks like this:
Stocked sample: typically 3 to 7 days
New sample from existing tooling: often 2 to 4 weeks
New tooling sample: often 4 to 8 weeks depending on die complexity and ring gear tooling
Mass production after approval: commonly 30 to 45 days, or longer if material booking and heat treatment are constrained
That timeline is more useful for launch planning than a single headline lead time.
What changes for distributors, importers, and repair networks
The right sourcing decision depends on who carries the downstream cost.
For a repair network, the biggest concern is first-time installation success. Technicians do not care that a part was cheaper if the converter holes need persuasion, the starter engagement sounds wrong, or the vehicle comes back.
For a distributor or importer, the issue is broader: repeatability across monthly mixed-SKU orders, packaging survival in transit, claim handling speed, and how quickly a supplier can isolate an affected batch.
That is why a lower unit price does not automatically mean a lower landed cost.
Lower purchase price, weaker controls: higher risk of returns, workshop labour claims, and urgent resupply
Higher documentation level: easier onboarding with large distributors and repair chains
Stable tooling and process control: fewer supersession issues across repeat orders
Export-ready packaging: lower transit damage and cleaner warehouse handling
Traceable batch coding: faster containment if a field issue appears
In practical sourcing reviews, buyers usually compare commercial bands such as:
MOQ from stock programme: often 20 to 50 pieces per SKU
MOQ for standard production: often 100 to 300 pieces per SKU depending on tooling setup and ring gear procurement
MOQ for private-label packaging: often 300 to 500 pieces per SKU because of carton and label minimums
Indicative lead time from stock: about 7 to 15 days ex works
Indicative production lead time: about 30 to 45 days ex works after deposit or artwork approval
Annual capacity review: ask for monthly output by part family, not only total factory capacity
Price logic should be explicit. A unit cost may drop at 100 / 300 / 500 / 1,000 pieces, but the landed-cost decision should also include sample charges, tooling amortization, pallet efficiency, freight mode, duty, claim rate, and payment terms.
A part quoted 3-5% lower can still cost more overall if the defect rate, packaging damage rate, or replenishment speed is worse.
So ask suppliers to state in writing: standard MOQ, MOQ for branded cartons, sample cost policy, tooling charge policy, lead time start point, claim-credit timing, and whether emergency replenishment can ship under the same batch traceability rules.
How Driventus fits into a drawing-based sourcing process
Driventus supports flex plate sourcing as a drawing-based aftermarket manufacturer, not as a catalog-only reseller. The goal is to help procurement teams compare alternatives on measurable criteria and move from sample approval to repeatable supply with fewer surprises.
Typical support scope includes:
Application and drawing review before quotation
Sampling with dimensional inspection records
Production under certified systems aligned with IATF 16949:2016 and ISO 9001:2015
Batch traceability from raw material through finished goods release
Export documentation support for international shipments
Private-label and specification-based programmes
In practical terms, buyers usually need answers to both technical and commercial approval questions. That may include confirmation of tooth count, plate thickness, bolt-pattern data, runout limits, hardness record availability, packaging method, and sample timing before PO release.
For repeat programmes, buyers may also request lot coding on part or pack, barcode labels, mixed-SKU pallet rules, and pre-shipment inspection records.
A useful supplier discussion in any flex plate vs INA alternative review usually covers:
Whether the part is produced from existing validated tooling or requires tooling adjustment
What the standard sample lead time is for inspected pieces
What MOQ applies for neutral packing versus private-label packing
What inspection records are supplied with first articles and repeat orders
What claim-containment and replacement process applies if a fitment issue is reported
Buyers reviewing alternatives can also consolidate related components through our catalog. Where a programme needs drawing-based changes, packaging adaptation, or branded aftermarket supply, Driventus can discuss custom manufacturing.
Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Frequently asked questions
Start with the crank pattern, converter bolt circle, tooth count, overall offset, and runout. These dimensions decide basic interchangeability. Then review the material specification, plate thickness tolerance, ring gear hardness, joining integrity, and balance control. Ask for actual measured data, not only a fitment claim.
No. IATF 16949:2016 and ISO 9001:2015 indicate system discipline, but they do not prove that a specific flex plate matches your target application. You still need drawing review, tolerance confirmation, inspection records, sample validation, and clear lead-time and claim-response commitments.
If you supply into the EU or to customers that require substance declarations, yes. Request a REACH (EC) No 1907/2006 statement covering the materials, coatings, corrosion-prevention oils, and relevant packaging inputs used for the part. Importers should also verify whether the declaration is updated after material or coating changes.
If you are comparing current supply against a validated alternative, Driventus can review drawings, fitment data, and programme requirements with your team. Use this page to [request a quote](/contact.html).
