Cylinder Head Skoda Supplier: What Buyers Should Verify

Fitment Data Buyers Should Collect

A Skoda cylinder head should be sourced against the engine code and service part reference, rather than the model name alone. Before requesting samples, collect the engine code, year range, displacement, valve count, fuel system, turbo or naturally aspirated variant, emissions standard, production date break, transmission market if relevant, and the current OE cross-reference from your EPC or repair data. For vehicle families sold across Europe, Asia, the Middle East, and Latin America, the same commercial model may use different engine variants or carry different service parts by production date.

A supplier should confirm the following before quoting:

• Casting number and revision level
• Bare, machined, or assembled supply state
• Deck height and combustion-chamber volume
• Valve seat angle, seat width, and guide specification
• Camshaft, tappet, hydraulic lifter, and valve-train layout
• Coolant and oil gallery layout
• Head-bolt pattern, dowel locations, and thread specification
• Injector, glow plug or spark plug, sensor, and accessory mounting points
• Deck surface finish, roughness target, and flatness tolerance
• Pressure or vacuum leak-test method and acceptance limit
• Cleaning process for oilways, coolant passages, and machining chips
• Packaging requirement for machined faces and protruding components

The enquiry should also state whether the cylinder head is intended for repair-market replacement, engine rebuilding, wholesale stock, or an OEM/Tier-1 programme. A repair-market buyer may need a ready-to-install assembled head with valves, springs, seals, collets, and retainers, while a rebuilding customer may prefer a machined head that allows final assembly with local components. A distributor building catalogue coverage may also need stable cross-reference data, EAN or customer barcodes, country-of-origin marking, and packaging labels in multiple languages.

When any of these details are missing, the risk is a part that looks right but fails at installation or after thermal cycling. Small differences in coolant galleries, valve-seat depth, cam carrier compatibility, injector or plug position, or sensor location can cause leakage, poor compression, valvetrain noise, diagnostic faults, or installation delays. For procurement teams, that usually means rework, returns, warranty claims, and slower replenishment. A disciplined technical file lets the buyer compare suppliers on the same basis and helps the cylinder head Skoda supplier confirm the correct programme before samples, pricing, and production capacity are discussed.

Quality Evidence and Audit Points

A supplier should be able to show how the process is controlled, not only how the part is measured at final inspection. For cylinder-head programmes, ask for evidence of process control under IATF 16949:2016 and ISO 9001:2015, plus material declarations where REACH (EC) No 1907/2006 is relevant. Strong suppliers can connect the drawing, revision history, control plan, inspection method, production batch, and shipment record without relying on informal explanations.

Before a factory audit, request these documents and records:

• Current certificates for IATF 16949:2016 and ISO 9001:2015
• Material traceability by melt, heat, or casting batch
• Aluminium alloy specification and incoming material control records
• First article or sample inspection report for critical features
• Dimensional inspection report for deck face, cam bores, guide bores, valve seats, threads, and datum locations
• Hardness or heat-treatment record where applicable
• Pressure-test or vacuum-test record for leak tightness
• Valve-seat runout, guide clearance, and installed-height data for machined or assembled heads
• CMM, air gauge, thread gauge, and torque-tool calibration status where applicable
• Control plan, inspection frequency, and sample acceptance criteria
• Nonconforming product procedure and corrective-action record
• Final cleaning and packing inspection checklist

During an audit, buyers should walk the actual production route. Check how castings are identified, how CNC machining programmes and fixtures are controlled, how first-piece approval is recorded, and how operators respond when dimensions trend toward the tolerance limit. For cylinder heads, important audit points include deck flatness control, combustion-chamber consistency, guide bore alignment, seat concentricity, thread quality, plug installation, and cleanliness of oil and coolant passages. If assembled heads are supplied, add checks for spring load, valve protrusion or installed height, seal installation, stem-to-guide clearance, and final leak testing.

A buyer audit should also review storage, packing discipline, rust and moisture control for related steel components, and segregation of finished goods from rework or suspect stock. These points matter because a clean inspection report will not protect a shipment if parts are mixed, scratched, contaminated, or damaged before export. Ask how each carton or pallet can be traced back to the inspection record, machining lot, and casting batch. When a problem occurs in the field, that traceability determines whether the buyer can isolate a defined lot or must quarantine a much larger inventory position.

See our quality system for the controls we apply across engine-component programmes.

Bare, Machined, or Assembled Supply

Not every programme needs the same supply state. The right choice depends on whether the buyer is running its own machine shop, stocking a warehouse shelf, supplying engine rebuilders, or building direct replacement kits for workshops. A clear decision at this stage prevents double work, avoids missing components, and makes quotations easier to compare between suppliers.

</tr></thead><tbody> </tbody></table>A bare casting gives the buyer the most downstream control, but it also transfers machining responsibility to the buyer. This option can make sense when the buyer already has fixtures, CNC programmes, cutting tools, washing equipment, and a proven assembly process. The supplier must still control casting integrity, machining allowance, alloy consistency, heat-treatment condition, and visible defects because shrinkage, porosity, and core-shift problems at the casting stage cannot always be recovered later.

A machined head reduces the buyer’s internal work and is often the practical choice for aftermarket distributors. In this case, inspection should focus on the deck, cam journals or cam-carrier interfaces, valve seats, valve guides, threaded holes, dowel positions, gasket face finish, and passage cleanliness. The quotation should state whether plugs, seats, guides, studs, or other inserts are included, and whether machined surfaces are protected with caps, face guards, corrosion inhibitor, or separated inner packing for export shipment.

An assembled head is attractive for fast-moving repair demand because it reduces workshop preparation time. It also requires tighter control of purchased subcomponents and assembly settings. Buyers should confirm valve material, spring specification, seal type, installed height, retainer and collet fit, valve protrusion, and final leak-test criteria. If the part will be sold as a ready-to-install unit, packaging must prevent impact damage to valves, studs, machined faces, gasket surfaces, and exposed ports.

For standard catalogue work, review our catalog and the wider engine components range. For a programme with specific machining, component, inspection, or packaging needs, custom manufacturing is the more appropriate route.

The sourcing decision should be commercial as well as technical. A machined head reduces internal labour, but it also raises the need for stable machining capability and final cleaning at the supplier. A bare casting can lower unit cost, but only if your own machining line has capacity, controlled fixture repeatability, and stable scrap control. An assembled head can support a higher service level, but it also increases the number of specifications that must be locked before approval.

Related reading

clutch kit·2026-06-02

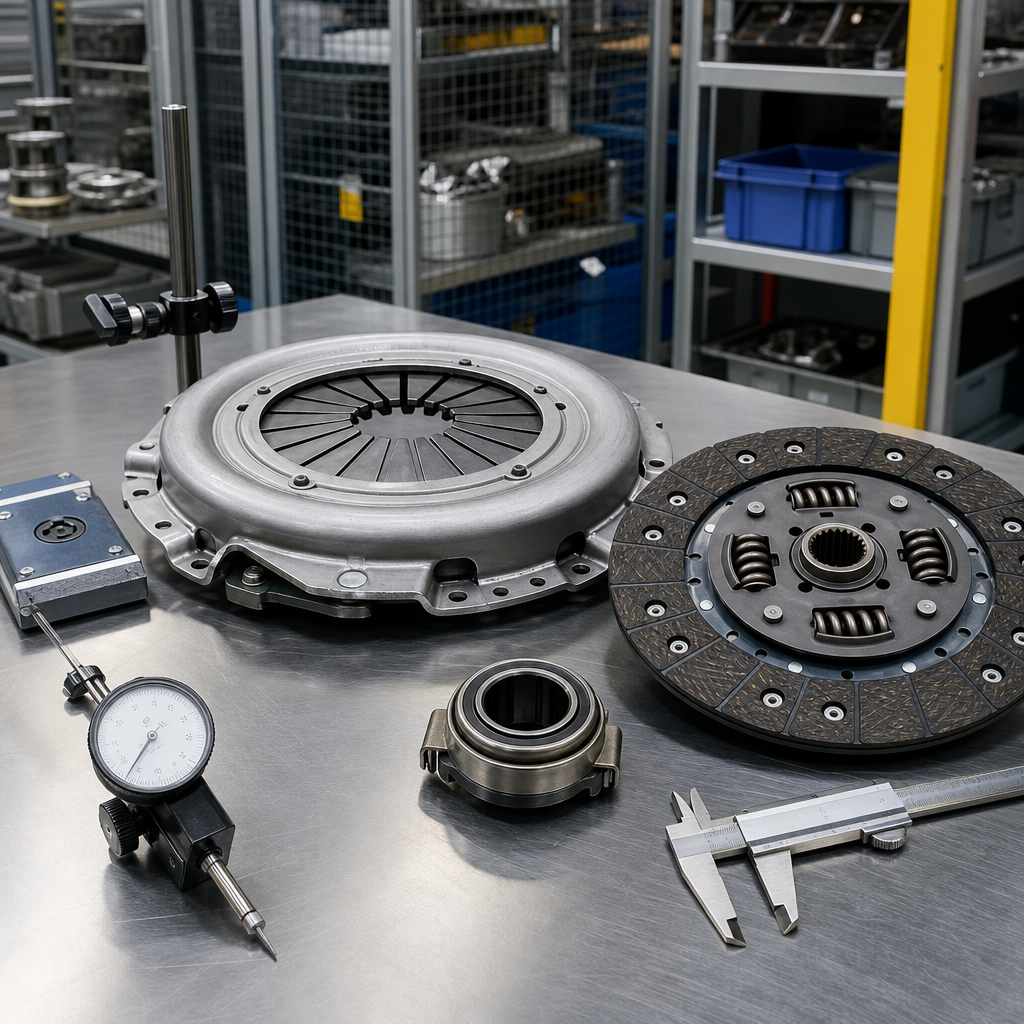

Clutch Kit vs INA Alternative: What Buyers Should Compare
