Connecting Rod vs Federal-Mogul Alternative

Spec deep-dive: the material and machining details that decide interchangeability

Two parts can share a fitment number and still behave very differently in service. The difference usually sits in the production route and in how the supplier controls the bores after assembly.

Material and process route

Forged rods remain the default where cyclic load is high. The forging route helps grain orientation through the beam and cap area, which supports fatigue performance. Some programmes use powder-forged variants. The label matters less than the evidence behind it.

Ask practical questions:

• What steel grade is used?
• How is heat treatment recorded?
• Is hardness tracked by lot, furnace load, or shift?
• How many pieces run per heat-treatment batch?
• Is metallographic control available when requested?

For aftermarket references, buyers typically expect a controlled steel route, defined chemistry, and stable hardness from lot to lot. If a supplier cannot explain that clearly, it is difficult to trust later claims about consistency.

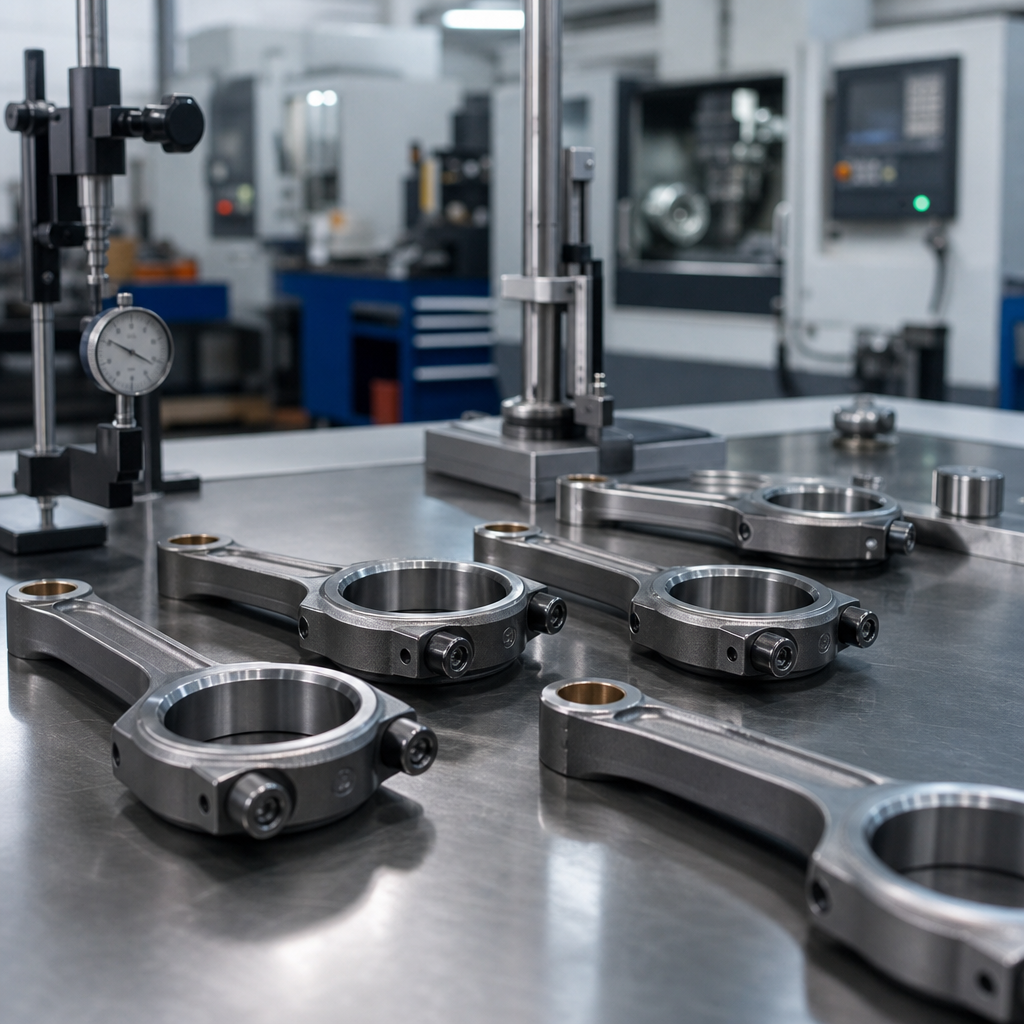

Machining and inspection points

Critical checks usually include:

• Big-end bore diameter after cap assembly and fastener tightening
• Bore roundness and cylindricity
• Small-end bore size and bushing finish
• Centre distance after final machining
• Parting-face quality and cap alignment
• Bend and twist
• Bore surface roughness, often around Ra 0.8-1.6 μm where bearing fit is critical
• Bolt-seat and thread condition if bolts are included
• 100% visual inspection for burrs, nicks, and handling damage

The process order matters more than many catalogues admit. A meaningful route is typically: rough machine, heat treat, split where applicable, assemble cap, tighten bolts to spec, then finish hone. If the housing bore is checked before final bolt load, the reported result may not reflect the assembled condition.

Typical tolerance checkpoints that affect interchangeability are:

• Big-end bore: often 0.01-0.03 mm depending on design
• Centre-to-centre length: commonly ±0.02-0.05 mm
• Small-end bore: commonly 0.005-0.015 mm
• Bend/twist: often 0.05-0.10 mm per 100 mm
• Weight spread within one production lot: tight enough to avoid buyer-side resorting

A credible alternative should also trace back to both forging lot and machining lot. If problems show up in the field, that traceability is what turns a vague complaint into a solvable root-cause investigation.

Suppliers working under IATF 16949:2016 and ISO 9001:2015 should be able to explain control plans, calibration, non-conformance handling, and lot identification in a structured way. You can review the Driventus quality system and our catalog for the relevant engine-component scope.

Failure-mode lens: which documents expose risk before the first order

Documentation is not paperwork for its own sake. It is the fastest way to see where a proposed alternative may fail.

For a standard aftermarket programme, buyers usually request:

• Dimensional inspection report against the drawing or approved sample, ideally with actual values
• Material certificate or internal metallurgy summary with chemistry and hardness reference
• Hardness results by batch
• Weight report for total rod weight and end-weight values where applicable
• Crack-detection results if magnetic particle inspection or other NDT is used
• Packaging specification and corrosion-protection details
• Country-of-origin confirmation
• REACH (EC) No 1907/2006 declaration for applicable materials and substances

For tighter-control projects—especially private label or OE-service supply—the document pack often expands to first-article approval, process flow, PFMEA summary, control plan, and PPAP elements by agreement.

The more useful question is not only *what* document exists, but *how* the data was produced. A report based on 5 pieces per 500-piece lot plus 100% visual inspection tells a very different story from a certificate that shows only pass/fail with no sampling logic.

A practical pilot-order pack often includes:

• 1 marked sample linked to drawing balloon numbers
• 1 dimensional report with actual readings
• 1 packaging photo set showing wrap, labels, and pallet condition
• 1 lot-traceability example from raw material to finished-goods label
• 1 corrective-action contact path with response time such as 24-48 hours for quality claims

For buyers in the EU, UK, US, Canada, Australia, and Brazil, documentation readiness is often a proxy for supply reliability. If a supplier cannot produce stable records before launch, claims handling after launch usually gets slower, more expensive, and less clear.

If you are comparing several engine-part families at once, it can help to review the wider engine components range to see whether sourcing can be consolidated.

Commercial scenario: when the cheapest quote is not the lowest-cost option

Imagine two offers for the same reference. Supplier A is cheaper on unit price. Supplier B is slightly higher. On paper, A wins. In operation, that may reverse fast.

Buyers normally compare:

• Piece price against an equivalent material route and inspection scope
• MOQ, especially on slower-moving references
• Lead time across forging, machining, inspection, and export packing
• Sampling speed when replacing an incumbent source
• Packaging format and warehouse compatibility
• Claim handling speed for dimensional disputes or field feedback

MOQ and price usually move together. A supplier may quote one level at 100-300 pcs, another at 500-1,000 pcs, and a lower level again at consolidated shipment volume. The important detail is whether MOQ applies per part number, per shipment, or across a combined order. That changes inventory risk immediately.

Lead time should also be broken into stages:

• Sample preparation: around 2-4 weeks if tooling and base forgings already exist
• First production batch: often 4-8 weeks for standard references
• Repeat orders: commonly 30-45 days after deposit or order confirmation
• Custom packaging or private label launch: often adds 1-2 weeks for artwork approval and carton production

Price comparisons only make sense when scope is aligned. A quote that includes bolts, weight matching, anti-rust oil, VCI bag, individual box, and export palletisation is not directly comparable to a bare-part quote packed loose.

A clean landed-cost review separates:

• part price
• bolt inclusion or exclusion
• packaging cost per set or per carton
• inspection or documentation surcharge if any
• freight basis such as EXW, FOB, or CIF
• expected warranty or sorting exposure based on supplier history

For importer-wholesalers, flexible MOQ and reliable replenishment can matter more than a small unit-price gap. For OEM or Tier-1 service parts, engineering response time and document control often matter even more.

Driventus supports B2B buyers with connecting rod sourcing, drawing-based review, and export documentation. The goal is a technically controlled aftermarket alternative, not a generic catalogue substitute.

Step-by-step approval path: how to clear an alternative for volume buying

A sound approval process does not need to be complicated. It does need clear gates.

1. Confirm the OE reference or drawing baseline. 2. Compare the critical dimensions and tolerance windows. 3. Review the material route and heat-treatment evidence. 4. Check weight consistency and the set-matching method. 5. Verify testing, traceability, and quality records. 6. Approve packaging and labelling for your warehouse or customer system. 7. Run a pilot order before releasing normal volume.

Those steps are easier to manage when buyers define approval gates in advance:

• Technical gate: critical dimensions within agreed tolerance, with no unresolved deviations
• Documentation gate: inspection report, material data, origin, and compliance files complete
• Commercial gate: MOQ, unit price, Incoterm, and replenishment lead time approved internally
• Pilot gate: first shipment arrives without significant label error, rust issue, or dimensional rejection

A typical pilot order may be 50-200 pcs, depending on market and application. That quantity is usually enough to check assembly feedback, warehouse handling, return rate, and packaging performance before scaling up.

If the reference is sold in matched engine sets, add one more question: does the lot-to-lot weight spread stay tight enough to avoid manual resorting later? That single issue can erase the value of an otherwise acceptable quote.

This workflow helps buyers separate a genuinely engineered alternative from a low-visibility offer that only appears equivalent.

If you need a review of a specific reference, Driventus can assess drawing data, sample parts, and packaging requirements through its custom manufacturing service. For a direct enquiry, you can also request a quote.
