Connecting Rod for Genesis GV70 Replacement Guide
A connecting rod for Genesis GV70 replacement should be screened like a high-risk engine component, not treated as a broad-fit catalog item. The buying decision usually turns on three points: exact engine-variant match, repeatable machining quality from batch to batch, and traceable proof that the supplier can hold those controls in production. A rod that looks close on paper but drifts on big-end bore geometry, pin-bush finish, cap alignment, or bolt-seat accuracy can quickly turn into bearing distress, oil-film instability, noise, and early bottom-end failure.
For distributors, repair groups, and private-label buyers, the target is OE-equivalent fit with dependable lot consistency. That means more than confirming a nominal size. It means verifying forging quality, machining capability, weight spread, hardness, crack detection, and the quality system behind them under IATF 16949:2016 and ISO 9001:2015. This article focuses on how to evaluate a connecting rod for Genesis GV70 replacement in a procurement setting, what data to request, and where supplier risk tends to show up first.
From a sourcing standpoint, the part should be quoted against an approved drawing, engine code, and defined assembly scope. A credible manufacturer should be able to state nominal dimensions, tolerance bands, gauge methods, inspection frequency, sample size, MOQ, tooling status, sample timing, production lead time, and price-break logic. If those details are missing, supplier comparison is incomplete and the RFQ may look cheaper than it really is.
Decision framework: what must be true before you approve the rod
For this product, interchangeability is not a marketing claim. It is a drawing-and-process question. A connecting rod for Genesis GV70 replacement has to match the intended engine variant on geometry, mass distribution, material condition, and fastener interface.
Start with these checkpoints:
- Center-to-center length matched to the OE drawing tolerance, commonly controlled within about +/-0.02 to +/-0.05 mm depending on design and process route
- Big-end bore diameter, roundness, and housing bore consistency after final honing, with roundness often held within 0.003 to 0.008 mm on finished parts
- Small-end pin bore or bushing ID together with the required surface finish, often specified in the Ra 0.4 to 0.8 um range for pin-running surfaces
- Beam profile and section thickness to support fatigue life under cyclic loading
- Rod bolt seat geometry and cap-to-rod alignment, including serration or parting-face integrity where applicable
- Overall weight and set-to-set weight spread, with piece variation often targeted within +/-2 to +/-5 g for stable engine balance in aftermarket sets

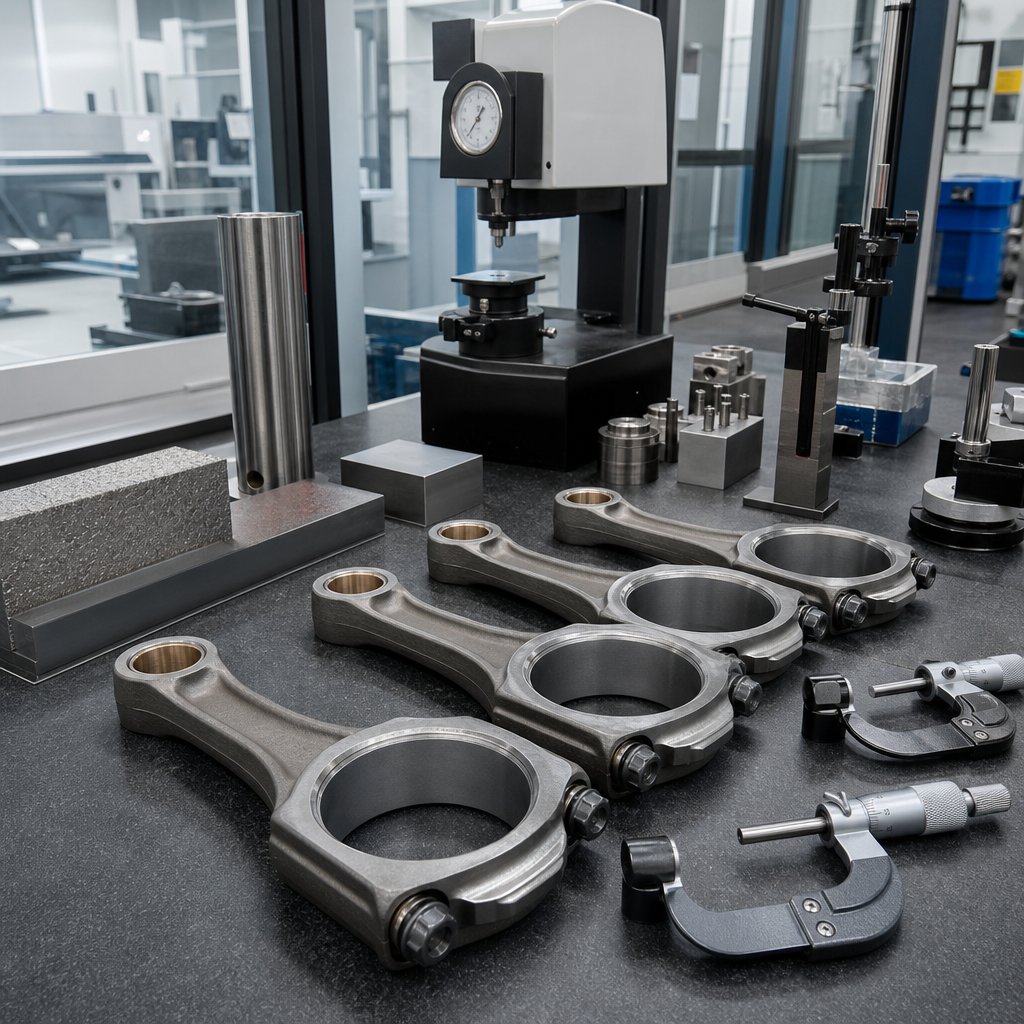

- Material grade, heat-treatment condition, and hardness window, for example forged alloy steel with a controlled hardness band such as HB 241-285 or equivalent per drawing
- 100% crack detection by magnetic particle inspection or an equivalent validated method
The practical question for buyers is simple: can the supplier show a control plan, or only a compatibility statement? If the file stops at nominal dimensions and never shows tolerance bands, inspection frequency, or capability evidence, approval is premature.
It also matters how the offer is scoped. Confirm whether the quotation covers a bare forging-machined rod, a matched rod-and-cap assembly, or a complete service kit with bolts and bushing. The inspection plan and warranty exposure change with each option.
Technical approval should move in parallel with commercial review. Typical aftermarket programs may begin around 100-300 pcs for trial orders, while private-label container programs can move to 500-2,000 pcs per SKU depending on mix, packaging, and inventory strategy. Driventus is an independent aftermarket manufacturer; any brand names mentioned are for fitment reference only.
Spec deep-dive: which dimensions and controls actually decide field performance
A connecting rod lives under alternating tensile and compressive load at very high cycle counts. Small machining drift can create outsized field failures. That is why buyers sourcing a connecting rod for Genesis GV70 replacement should ask for production-control evidence, not just one inspection sheet from one sample.
| Control item | Typical procurement requirement | Why it matters |
|---|---|---|
| Center length | Drawing-controlled, verified per batch, often by dedicated fixture or CMM | Influences piston deck height and compression behavior |
| Big-end bore size | Final-honed to drawing, commonly controlled within +/-0.005 to +/-0.010 mm | Directly affects bearing crush and oil clearance |
| Big-end bore roundness | Micron-level final inspection, often <=0.005 mm target | Protects bearing seating and oil-film stability |
| Small-end bore finish | Honed or reamed to drawing spec, often Ra 0.4-0.8 um | Controls wrist-pin fit and lubrication |
| Parallelism and twist | Checked on dedicated fixtures, often within 0.05 mm/100 mm or per drawing | Prevents side loading and uneven wear |
| Parting-face/cap alignment | 100% or defined sampling after cap assembly | Maintains bore geometry after bolt tightening |
| Weight tolerance | Controlled piece to piece, often +/-2 to +/-5 g | Reduces NVH variation between cylinders |
| Hardness | Batch tested after heat treatment | Confirms fatigue and wear performance |
| Crack detection | 100% inspection | Screens forging and process defects |
| RFQ item | Practical buyer guidance |
|---|---|
| MOQ | State the target, for example 100 pcs for validation, 300-500 pcs for first commercial order, or 1,000+ pcs for price-break review |
| Price basis | Ask for EXW, FOB, and if needed DDP reference separately |
| Sample policy | Clarify whether samples are free from stock, charged then credited, or tooling-backed |
| Lead time | Request separate timing for sample, pilot lot, and mass production |
| Packaging cost | Ask whether unit price includes VCI bag, rust oil, inner box, outer carton, pallet, and barcode labels |
| QC documents | Define whether you require FAI, material cert, hardness report, MPI record, and shipment inspection report with each lot |
| Payment term | State expected basis such as 30% deposit / 70% before shipment or approved account terms |
| Warranty handling | Ask for the supplier's process for lot trace, containment, replacement, and claim response time |
