Connecting Rod for Cadillac Escalade Replacement
Buying a **connecting rod for Cadillac Escalade replacement** is rarely a simple catalog match. For distributors, rebuilders, and reman programs, the rod has to land in a narrow window: OE-equivalent dimensions, stable metallurgy, repeatable machining, and documentation strong enough to support claims, import files, and customer audits. Miss that window and the problems show up fast in oil clearance, bearing crush, piston deck height, rotating balance, or fatigue life.
Most sourcing mistakes fall into two camps. One is the cheap batch that looks acceptable on paper but arrives with uneven bore control, poor cap matching, or weak traceability. The other is overspecifying the part and paying for controls the end market will not reward. The better approach is to define the service target first, then buy to that target with measurable limits.
For GM full-size SUV applications, buyers should expect numbers, not broad promises. Common control points for a replacement rod program include centre-to-centre length tolerance around +/-0.02 to +/-0.05 mm, big-end bore control near 0.01 to 0.015 mm, pin-bore finish around Ra 0.4 to 0.8 um, bend and twist limits typically within 0.05 to 0.10 mm per 100 mm, and piece-weight matching often within +/-2 to +/-5 g depending on program level. Commercially, sample MOQs often start at 20 to 50 pieces, pilot orders at 100 to 300 pieces, and regular production at 500 pieces and above, with sample lead times around 20 to 35 days and mass-production lead times around 35 to 60 days after drawing confirmation and tooling review.
Driventus manufactures connecting rods within an IATF 16949:2016 and ISO 9001:2015 framework for aftermarket and OEM-oriented supply. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.
Start with the fitment decision, not the price list
Cadillac Escalade engines span multiple displacement families and model years, so the first decision point is application certainty. Buyers should start with engine code, production year, VIN-derived data, and OE cross-reference where available. A listing that says the rod fits a broad range of GM truck and SUV engines is not enough for a rotating component.
When sourcing a connecting rod for Cadillac Escalade replacement, the practical review usually comes down to these checks:
- Centre-to-centre length: must match the original design to preserve compression height and deck relationship; buyers usually ask for nominal dimension plus tolerance, often within +/-0.02 to +/-0.05 mm
- Big-end bore diameter and roundness: drives bearing seating, oil clearance, and shell retention; a realistic receiving target is commonly within 0.01 to 0.015 mm with roundness held to a few microns
- Small-end pin bore size and finish: affects pin fit, lubrication, and wear; Ra 0.4 to 0.8 um is a common finished-bore expectation
- Beam section and mass distribution: affects set balance; many rebuild programs want piece-to-piece spread within +/-2 to +/-5 g and matched sets by weight band
- Bolt seat geometry and fastener grade: critical for cap retention under cyclic load; confirm whether bolts are torque-to-yield or reusable equivalents and whether lot certificates are available
- Material route: forged steel or powder metal, depending on the original application; replacement should follow the OE architecture unless a validated substitution is approved
- Heat treatment record: hardness has to stay consistent lot by lot; buyers often request Rockwell or Brinell data with limits shown on the control plan
- Fracture-split or machined cap design: the replacement must mirror the original rod architecture; fracture-split caps should remain matched pairs and never be mixed

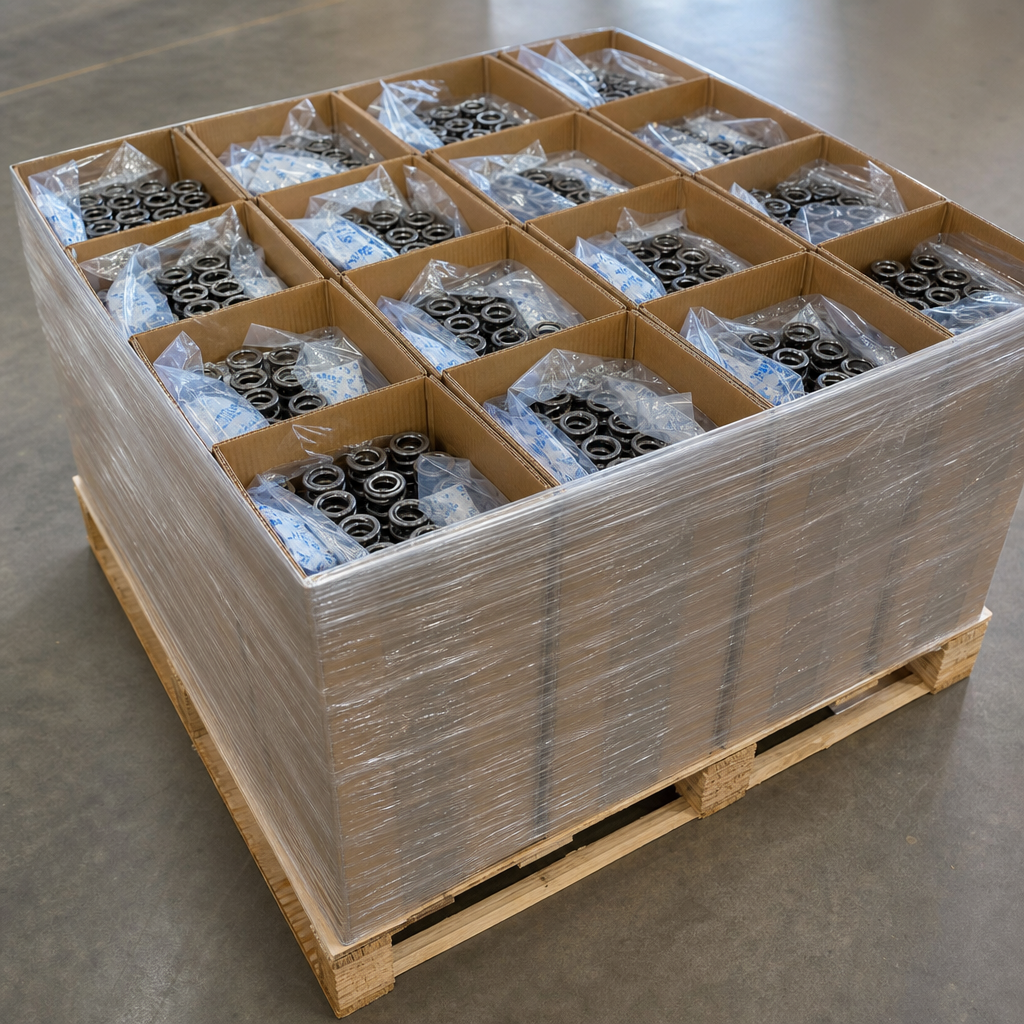

For multi-location repair chains, matched weight bands and clear labeling matter more than many buyers expect. They reduce workshop mix-ups and make it easier to keep rod sets together during high-volume rebuild work. A practical packaging requirement is one rod per corrosion-protected sleeve, cap secured against mismatch, lot number on inner and outer labels, and carton marks showing application code, quantity, gross weight, and purchase order.
Before approving volume supply, many buyers ask for a dimensional summary from 5 to 10 pieces out of the first stable batch rather than approving one golden sample. That gives a better read on whether the supplier can actually hold the tolerance window repeatedly.
Relevant categories can be reviewed in our catalog and in our broader engine components range.
Where OE-equivalence breaks down in real purchasing
A supplier may say the rod is interchangeable because the headline dimensions match. That is only the first layer. In actual field use, OE-equivalence also depends on how the material behaves, how stable the machining process is, and whether the same result shows up lot after lot.
Comparison points that matter
| Control point | Why it matters | Typical procurement check | |
|---|---|---|---|
| Centre length tolerance | Affects piston travel and compression relationship | Drawing confirmation, CMM report, and target tolerance typically +/-0.02 to +/-0.05 mm | |
| Big-end bore tolerance | Controls bearing clearance and oil film stability | Bore gauge data by batch, commonly within 0.01 to 0.015 mm | |
| Twist and bend | Prevents uneven piston and bearing loading | Fixture inspection record, often held within 0.05 to 0.10 mm per 100 mm | |
| Weight variation | Affects NVH and balance in V-engine applications | Piece and set weight grading, usually +/-2 to +/-5 g by supply level | |
| Bolt preload consistency | Influences cap retention and fatigue life | Fastener certificate and torque-angle validation with lot traceability | |
| Surface finish at pin bore | Impacts pin movement and scuff risk | Roughness report, commonly Ra 0.4 to 0.8 um |
| Order stage | Typical MOQ logic | Typical lead-time logic | Buying note |
|---|---|---|---|
| Sample validation | 20 to 50 pcs or available stock quantity | 20 to 35 days if machining only; longer if tooling or forging allocation is needed | Best for drawing confirmation and initial fit check |
| Pilot order | 100 to 300 pcs | 30 to 45 days | Useful for checking batch stability and packaging flow |
| Regular production | 500 pcs+ per item or mixed-model equivalent | 35 to 60 days depending on route and capacity | Usually gives the best unit pricing and most stable planning |
| Private-label replenishment | Based on carton quantity and forecast window | Often tied to print approval and packaging stock | Confirm label data, barcode standard, and carton marks before release |
