Sourcing a camshaft phaser for Infiniti applications is not a catalog-match exercise. Procurement teams need an OE-equivalent unit that preserves the original geometry, oil-control behavior, phasing authority, lock function, and production repeatability expected by the timing system. The phaser operates alongside the timing chain, camshaft, oil control valve, engine oil circuit, and ECU strategy, so small deviations in parked angle, vane leakage, sprocket runout, or oil-port alignment can show up as idle instability, cold-start rattle, emissions drift, or cam/crank correlation faults.
Driventus supplies engine and powertrain parts from Taizhou, Zhejiang, under IATF 16949:2016 and ISO 9001:2015 quality controls. Driventus is an independent aftermarket manufacturer; vehicle and brand names are used for fitment reference only. For buyers evaluating a camshaft phaser Infiniti OE equivalent, the practical question is whether the part matches the original function, mounting points, oil passage layout, parked lock position, and response profile under validation testing. A usable sourcing file should define the target OE reference, engine code, bank position, annual demand, acceptable inspection plan, sample quantity, production MOQ, price basis, and lead-time expectation before tooling or mass production is released. This guide explains what to verify before approving samples, placing a production order, or adding the part to a replenishment program.
Decision rule: when is a phaser truly OE-equivalent?
For a camshaft phaser Infiniti OE equivalent request, OE-equivalent should mean a verified functional replacement, not a part that only looks similar in photos. The supplier should demonstrate that the phaser maintains the correct installed angle, sprocket interface, oil gallery alignment, rotational travel, and lock-up behavior across the intended oil pressure and temperature range. For most sourcing reviews, buyers should ask for a control drawing or inspection sheet rather than accepting only a catalog image.
Core verification points include:
Bore, hub, and bolt-circle dimensions controlled with drawing tolerances, typically ±0.02–0.05 mm on critical locating features and ±0.10 mm on non-critical external dimensions unless the drawing specifies tighter limits
Sprocket tooth count, chain pitch, outside diameter, and face width matched to the target timing set; runout on rotating reference faces should normally be checked to 0.03–0.05 mm TIR on production samples
Oil control valve interface and passage orientation matching the target application, including port count, groove width, feed-hole diameter, and chamfer condition
Lock pin engagement at rest and clean release during oil-pressure actuation, with no sticking after repeated dry rotation and oil-fed cycling
Phasing range and response time measured with defined test oil, oil temperature, supply pressure, and command cycle; buyers should require the actual test conditions on the report
Surface finish on sealing, thrust, and mating areas, commonly Ra 0.8–1.6 μm on controlled machined faces where oil sealing or thrust contact is involved
Corrosion protection on exposed steel features, such as black oxide, phosphate, or equivalent coating validated by salt-spray or humidity checks where the program requires it
Cleaning controls that protect oil ports from machining residue, including post-machining washing, filtered air blow-off, and capped or sealed packaging
If the application references an OE number such as OE 13020-xxxxx or a catalog cross-reference, keep the final part-number mapping under buyer control. Confirm the engine code, model year, production range, intake or exhaust position, and bank location before release, because visually similar phasers may use different parked angles, spline orientation, bolt length, or oil-feed paths. For private-label supply, freeze the approved sample and inspection drawing together; do not approve a price quote that leaves the functional test method undefined.
Failure modes that separate a good sample from a bad one
Before sample approval, request both dimensional and functional data. A phaser can look clean and still fail in the field if leakage, pin drag, vane wear, or contamination control is weak. For high-return SKUs, the most effective way to reduce claims is to validate the phaser against the engine build code, timing layout, and bank-specific installation position rather than relying on a broad model listing. A good supplier response should return a completed application matrix, not only a yes/no compatibility statement.
Check item
What to confirm
Engine application
Engine code, displacement, model year, production range, and regional catalog source
Bank position
Intake or exhaust, left or right bank, and any bank-specific parked angle
Mounting pattern
Bolt count, thread size, pitch circle diameter, dowel position, locating bore, and bolt-length requirement
Oil feed
Port count, orientation, groove layout, passage diameter, edge break, and OCV interface condition
Advance and retard travel in crankshaft or camshaft degrees under defined oil pressure and temperature
Sprocket interface
Chain pitch, tooth count, tooth profile, outer diameter, face width, and axial offset where integrated
Dimensional tolerance
Critical bores, hub height, face runout, concentricity, and assembled axial clearance
OE cross-reference
Match only against verified application data, failed sample comparison, or buyer-approved catalog mapping
</tr></thead><tbody> </tbody></table>Infiniti programs can span multiple engine variants and regional catalogs, so one advertised replacement may not cover every build. Buyers should also confirm whether the oil control valve is supplied separately or as part of the assembly, and whether any connector, solenoid, seal, bolt, or actuator interface affects the final kit configuration. For first samples, request 3–5 pieces: one for dimensional inspection, one for bench functional cycling, one for installation trial, and remaining units for reserve or destructive analysis if a deviation appears. Where the buyer already has a failed OE sample, send it with the RFQ or provide high-resolution photos of the front face, rear oil-feed face, tooth profile, stamping, and bolt pattern with caliper readings.

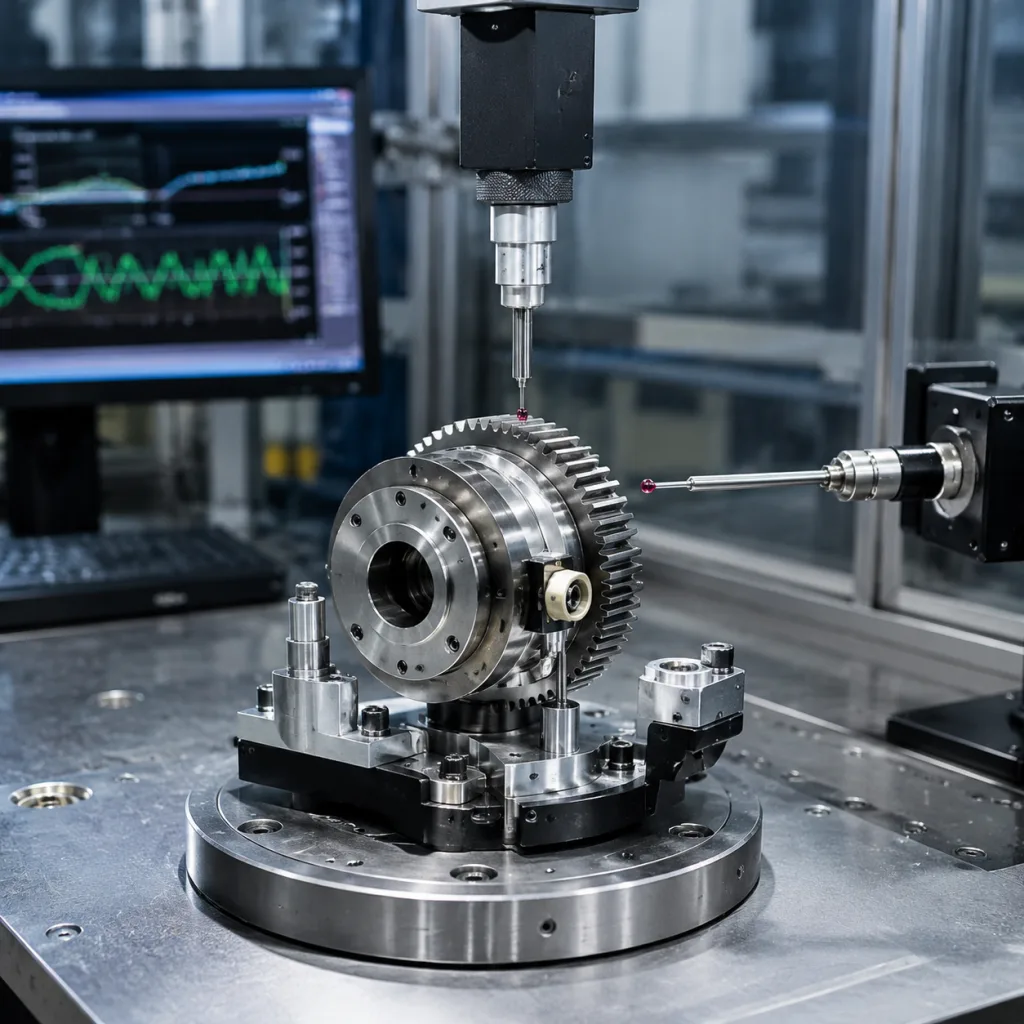

Bench tests that protect the purchase order
Replacement phasers should be tested against the failure modes that usually drive warranty returns: internal leakage, slow response, lock-pin sticking, abnormal noise, timing deviation, and contamination of oil passages. Driventus aligns production controls with IATF 16949:2016 and ISO 9001:2015 process discipline, then verifies parts through dimensional inspection and functional checks appropriate to the application. The buyer should define which tests are required for sample approval, which are lot-release checks, and which are periodic reliability checks.
Recommended validation for this part family includes:
Oil-circuit leak testing at specified pressure, commonly 0.3–0.6 MPa for functional leakage screening unless the application drawing defines another range
Functional phasing response over repeated advance and retard cycles, using stated oil viscosity such as SAE 5W-30 or equivalent test oil at controlled temperature
Lock-pin engagement and release repeatability, checked after cold soak, room-temperature cycling, and hot-oil operation where the test stand supports it
Cold and hot operation noise checks where test conditions are available, especially for cold-start rattle risk and lock-pin seating noise
Material and coating review for wear and contact surfaces, including hardness checks on steel contact parts and coating thickness or adhesion checks where specified
Torque, spring, and return-force checks where the design requires them, with values recorded against the control drawing rather than judged by feel
Residual contamination control, using particle checks or filtered wash inspection for oil galleries when the buyer has a cleanliness standard
Packaging inspection to prevent oil-port contamination and transit damage, including caps, VCI bagging, dividers, and drop-test review for export cartons
A practical approval package normally includes dimensional inspection on 3–10 sample pieces, functional test records, material or coating confirmation, photos of critical faces, packaging specification, and a signed deviation list if any feature differs from the buyer sample. For production release, buyers can request AQL inspection such as Level II with critical characteristics checked 100%, or a part-specific control plan with every lot tested for leak rate, lock function, and angular travel. For Europe-facing supply chains, buyers may also request REACH (EC) No 1907/2006 material declaration support where applicable. If the phaser is used in a system tied to emissions calibration, confirm that the replacement preserves the timing behavior expected by the engine control unit and does not create a repeat risk for diagnostic trouble codes.
Compare supplier claims against replenishment reality
Cam phasers are sensitive to process variation. A unit can pass a visual check yet still create timing deviation if machining accuracy, internal cleanliness, spring preload, vane sealing, heat treatment, or assembly torque drifts between lots. For distributors, importers, and repair-chain buyers, that variation leads to avoidable returns, technician complaints, and fitment disputes that are costly to diagnose.
Driventus operates as a vertically integrated manufacturer, helping keep machining, assembly, cleaning, and final inspection within a controlled production flow. That structure supports replenishment programs where buyers need:
Consistent lot-to-lot phasing behavior, verified by the same oil pressure, oil temperature, and cycle-count conditions used during approval
Repeatable oil-control response and lock function, with leak-rate and release checks tied to a lot inspection record
Stable lead times for scheduled replenishment orders, typically planned around 30–45 days for repeat production after sample approval and packaging confirmation
Clear MOQ logic, where pilot orders may start around 100–300 pieces for available applications, while private-label packaging or new development often requires higher runs such as 500–1,000 pieces depending on tooling, fixture, and carton requirements
Documented inspection records for incoming-quality review, including critical dimensions, functional status, batch number, and packing list traceability
Lower handling risk from uncontrolled subcontracting, because machining, washing, assembly, and final checks can be managed under one production plan
Practical communication when application data needs confirmation, especially where one OE family has multiple bank-specific or market-specific versions
Price should be evaluated against the total supply condition, not only the unit number. Key price drivers include raw material grade, vane and rotor machining complexity, tooth profile, coating, functional test coverage, rejected-piece allowance, packaging type, label format, order quantity, and Incoterms. A low price that excludes leak testing, individual oil-port protection, or carton drop resistance can create higher landed cost through warranty and rework. If your procurement team is building a broader powertrain program, see our catalog and the related engine components category for adjacent items such as gaskets, timing components, tensioners, and pumps.
RFQ checklist: what shortens the quote cycle
A complete RFQ shortens the approval cycle and reduces the chance of receiving a technically similar but incorrect part. Include the engine code, VIN range if available, OE reference, bank position, target market, and any known symptoms if the request is linked to a return analysis or repair program. If you need a private-label or application-specific version, use custom manufacturing to define packaging, labeling, inspection points, and shipment requirements.
RFQ details to provide:
OE cross-reference and application notes, including whether the reference is buyer-verified, catalog-sourced, or taken from a removed sample
Engine code, displacement, model year range, production date range, and bank position
Annual volume, first-order quantity, forecast split, and target MOQ; separate pilot demand from repeat replenishment demand
Target price basis, currency, Incoterms, destination port, payment expectation, and whether tooling or fixture cost should be quoted separately
Target packaging format and label requirements, including neutral box, private label, barcode, QR code, carton quantity, pallet requirement, and country-of-origin marking
Required test reports, inspection data, PPAP-like documents, material declarations, or certificates
Destination market and compliance expectations, including REACH support where applicable and any buyer-specific restricted-substance list
Sample quantity and approval timeline, including whether samples are for bench test, installation trial, catalog photography, or customer seeding
Any comparison sample, failed unit, installation feedback, DTC code, noise complaint, or warranty return description available
Required lead time for samples and mass production; typical timing should be confirmed by SKU, but buyers can plan roughly 7–15 days for available samples and 30–45 days for repeat production after approval
For direct sourcing support, use request a quote and specify whether you need bulk supply, pilot samples, or a controlled replacement program for a recurring Infiniti application. The fastest quotation path is to send the OE number, engine code, bank position, annual quantity, first-order quantity, packaging format, destination country, and required documents in one message.
Q&A: common sourcing questions
How do I confirm OE equivalence for an Infiniti cam phaser? Confirm the engine code, model year range, bank position, mounting geometry, oil passage layout, parked lock position, phasing range, and sprocket interface. Ask for dimensional data with tolerances, leak or functional test results, and sample approval records rather than relying on photos or a generic cross-reference.
Does Driventus supply branded OEM parts? No. Driventus is an independent aftermarket manufacturer; brand and vehicle names are referenced for fitment only. We supply equivalent replacement parts based on verified application data, controlled drawings, sample approval, and production inspection.
What documents should I request before ordering? Request dimensional inspection data, functional test records, material or coating declarations where relevant, packaging specifications, lot traceability details, and application notes. For regulated markets, confirm compliance support before releasing the order, and define whether reports are required for samples only or every shipment.
Frequently asked questions
Confirm the engine code, model year range, bank position, mounting geometry, oil passage layout, parked lock position, phasing range, and sprocket interface. Ask for dimensional data with tolerances, leak or functional test results, and sample approval records rather than relying on photos or a generic cross-reference.
No. Driventus is an independent aftermarket manufacturer; brand and vehicle names are referenced for fitment only. We supply equivalent replacement parts based on verified application data, controlled drawings, sample approval, and production inspection.
Request dimensional inspection data, functional test records, material or coating declarations where relevant, packaging specifications, lot traceability details, and application notes. For regulated markets, confirm compliance support before releasing the order, and define whether reports are required for samples only or every shipment.
If you are sourcing a camshaft phaser Infiniti OE equivalent, send the OE reference, engine code, bank position, annual volume, first-order quantity, target MOQ, destination market, packaging requirement, and required documents through /contact.html. Driventus will review the fitment and available supply options.
