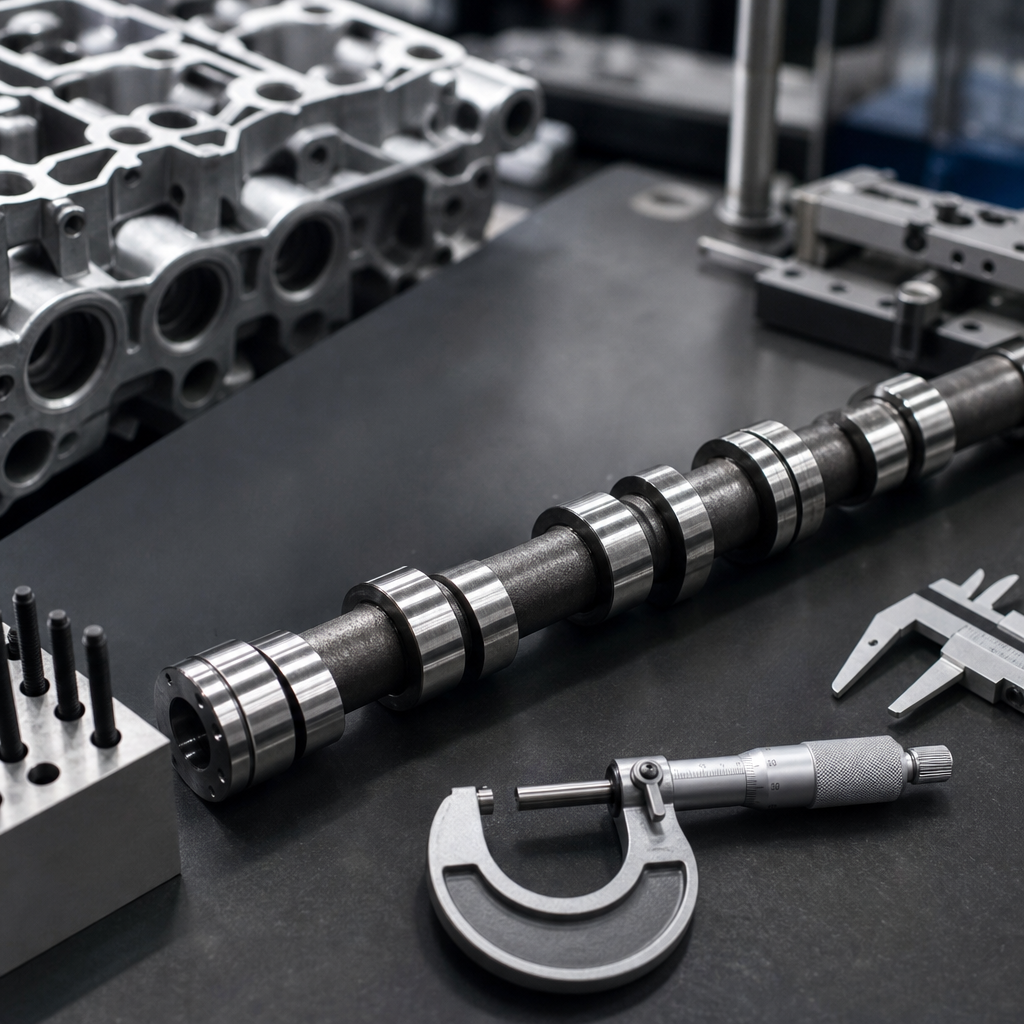

Camshaft for Subaru WRX Replacement: Fitment and Validation

Materials and validation buyers should request

Camshafts for replacement use are commonly supplied in chilled cast iron or forged steel, with a hardened or nitrided surface depending on the engine specification. The right choice depends on the original design, the lobe loading, and the lubrication regime.

Request a validation pack with:

• Material certificate tied to heat number.
• Dimensional report for journals, lobes, and overall length.
• Runout and concentricity data.
• Surface hardness and, where specified, case-depth evidence.
• Cleanliness confirmation for machined oil passages.

A supplier operating under IATF 16949:2016 and ISO 9001:2015 should be able to show controlled inspection records, calibration status, and nonconformance handling. For Europe, ask for REACH (EC) No 1907/2006 material compliance where applicable. If your sourcing team also needs durability proof, define the test cycle, lubricant, temperature window, and acceptance criteria in the purchase specification. Generic wear claims are not enough.

How Driventus supports replacement sourcing

When the part is bought for wholesale, fleet repair, or export distribution, the procurement issue is repeatability. That means the supplier must hold the same geometry, same finish, and same packaging standard across batches.

Driventus supports replacement programmes through our catalog, our quality system, and custom manufacturing when the catalogue item is not enough. For engine-component buyers, the broader range is listed in our engine components page.

Typical buying decision:

• Catalogue replacement: best when the engine variant is standard and the sample matches an existing design.
• Custom manufacturing: best when you need a non-standard trigger pattern, a special coating, or a drawing-controlled revision.
• Mixed programme: useful when you need one part number for multiple markets but still require traceability by batch.

For recurring orders, ask for sample lead time, MOQ, packing standard, and the inspection format before you place the first order. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

Replacement checklist for purchasing teams

Before ordering a camshaft replacement, confirm the root cause of the original failure. A worn lobe, scored journal, or broken drive feature often points to lubrication issues, contaminated oil, or a mismatched valve train. Replacing only the shaft without correcting the cause risks a repeat failure.

A practical purchase checklist:

• Confirm engine code, cam position, and model year range.
• Compare the physical sample against the approved drawing.
• Check bearing journals, lobe lift, and end-play requirements.
• Ask for packaging that prevents rust and edge damage.
• Record batch number, heat number, and inspection date on receipt.

If the supplier cannot document these basics, the offer is not ready for production use. In replacement supply, the lowest cost part is often the one that stays out of the workshop.
