Camshaft for Subaru WRX Aftermarket Replacement

Selecting a camshaft for Subaru WRX aftermarket replacement is less about finding a part that "fits" and more about controlling risk. For importers, distributors, and repair networks, the real question is whether the camshaft matches OE-critical geometry, holds stable valve timing, and comes from a process that can be verified after the sale—not just before it.

That distinction matters on WRX applications. A camshaft listed under a broad vehicle description may still differ in lobe profile, journal finish, heat treatment, or AVCS-related features. When it does, the result is familiar: unstable idle, power loss, premature wear, oil-clearance issues, or fault-code complaints that cost far more than the initial price difference.

Strong sourcing teams therefore review the part the way a warranty manager would. They confirm engine family, model-year coverage, intake or exhaust position, and variable valve timing configuration. Then they check the evidence behind the part: material grade, hardness range, lobe profile data, journal tolerances, shaft runout, surface finish, and batch inspection records.

Commercial terms matter too, but only in context. MOQ, tooling status, sample timing, pilot-order lead time, and production consistency all affect total cost. A low quote with weak documentation is often an expensive purchase in disguise.

Driventus supplies engine components through audited production and documented inspection processes. Driventus is an independent aftermarket manufacturer; brand names are referenced for fitment only.

Start with the make-or-break decision points

For a camshaft for Subaru WRX aftermarket replacement, the first filter should be technical fitment, not catalogue visibility. On turbocharged flat-four applications, the camshaft directly affects valve events, overlap, idle quality, boost response, and how the engine behaves under load. Most aftermarket buyers are not looking for an unknown performance profile; they want OE-equivalent behavior that repeats from batch to batch.

A practical approval review usually covers these points first:

Application mapping: engine code, cylinder head version, model-year range, intake or exhaust side, left/right bank identification where relevant, and AVCS/VVT compatibility
Material specification: chilled cast iron or forged steel route, depending on the original design and service requirement; chemistry should link back to heat or lot records
Lobe profile accuracy: lift, duration, lobe-separation-related geometry, and base-circle consistency against approved drawings or master samples
Journal dimensions: diameter tolerance, roundness, and cylindricity for stable oil-film formation; many programmes expect journal control around ±0.005 to ±0.015 mm depending on feature and design standard
Runout control: excessive shaft runout affects timing stability, noise, and bearing wear; a common checkpoint is ≤0.02 to 0.05 mm TIR at defined measuring points
Surface integrity: lobe and journal finish should support break-in and long-term wear resistance; buyers often request finish records in the Ra 0.2-0.8 μm range depending on feature
Heat treatment validation: hardness range and effective depth should be batch-checked; many buyers look for stable wear-surface hardness around HRC 50-60 when aligned with the approved design
Marking and traceability: part number, batch code, production date, and inspector trace should remain legible through storage and distribution

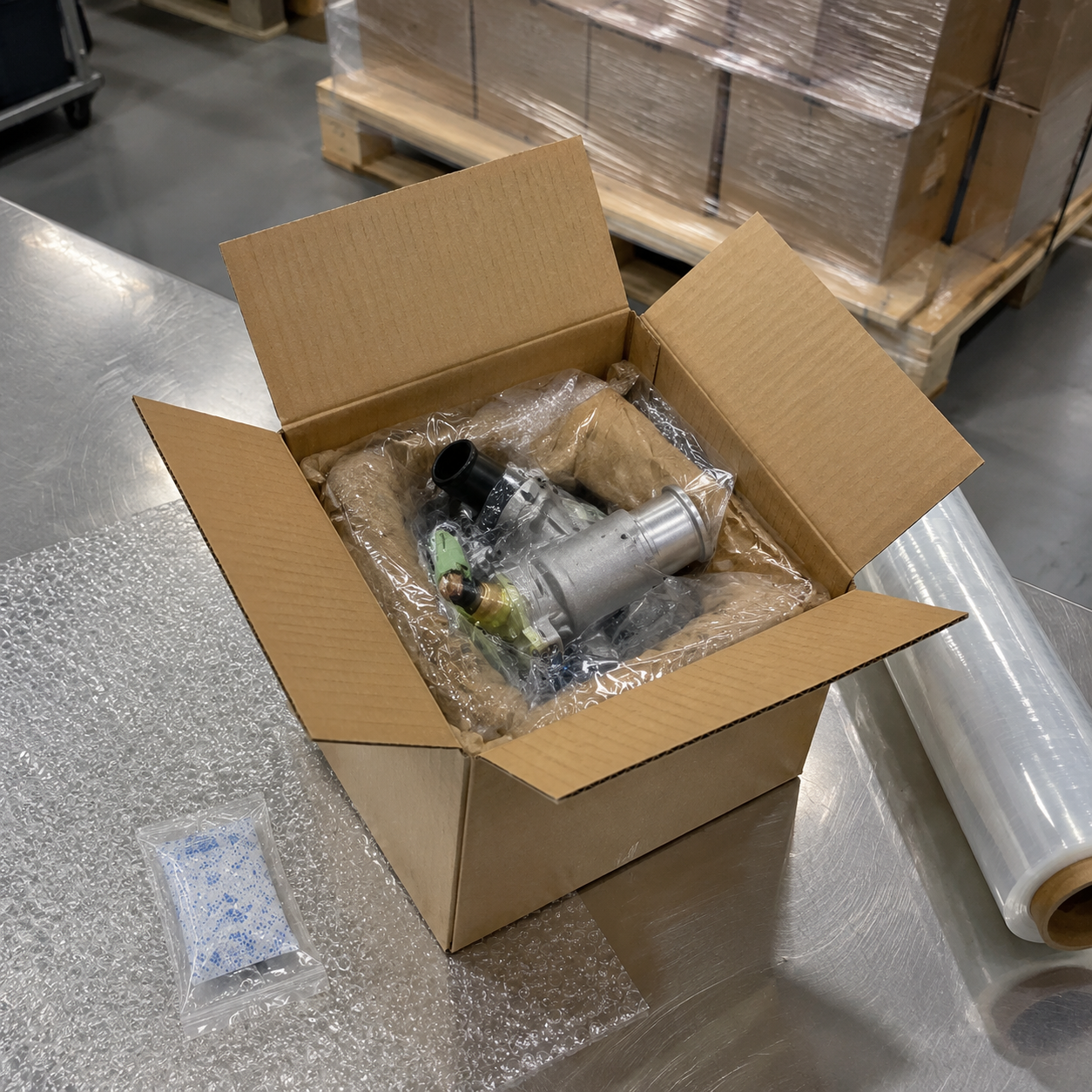

Packaging protection: VCI bag or rust-preventive oil, end protection, partition support, and outer-carton durability for export handling

This early review also helps separate real production programmes from loosely assembled quotations. If the supplier is working from existing tooling and a validated process, sample dispatch may happen in 2-4 weeks. If the part requires new development or modification, sampling often moves into the 4-8 week range before approval is complete.

For buyers managing adjacent product lines, related categories can be reviewed in our catalog and the dedicated engine components range.

What OE-equivalence actually looks like on a WRX camshaft

A replacement camshaft should not be judged by installability alone. The better question is whether it reproduces the intended valve-event geometry within controlled tolerances so the engine behaves as expected after assembly.

Typical checkpoints

</tr></thead><tbody> </tbody></table>This is where many generic listings fail. A part can look correct on paper yet still fall short if VVT trigger features, base-circle consistency, or lobe profile data are missing from the validation package.

Where a buyer uses OE reference lists internally, cross-reference management should stay focused on fitment control and generic technical documentation. If a customer inquiry cites a reference such as OE 06A107065 or OE 11251…, it should be treated as an internal fitment pointer, not as a claim of vehicle-manufacturer approval.

A capable supplier should also be able to show process controls under IATF 16949:2016 and ISO 9001:2015, with control plans covering machining, hardness verification, and final inspection. For a serious WRX camshaft programme, buyers often request a dimensional package with at least 5-10 critical characteristics, first-article data from 3-5 sample pieces, and clear revision control on drawings and fitment lists.

In quotation review, OE-equivalence should tie directly to warranty exposure. A lower price with no lobe-profile record, no runout data, and no AVCS validation usually means higher downstream cost. Many distributors will accept a modest unit-price difference when documentation is stronger and defect risk is lower.

Spec deep-dive: the process controls that decide service life

Service life is shaped less by catalogue language and more by metallurgy, grinding accuracy, and inspection discipline. In a turbocharged petrol application, buyers usually care about three things: resistance to lobe scuffing, resistance to journal wear, and dimensional stability after heat treatment.

Critical process points

Raw material control: verified chemistry and incoming inspection by heat or lot; forged or cast blanks should link to traceable supplier records
Rough machining stability: controlled stock allowance before finish grinding to avoid profile drift after heat treatment
Heat treatment: defined hardness range and case depth where relevant; batch checks should confirm both hardness value and effective hardened layer
Finish grinding: profile precision on lobes and journals using calibrated grinding and measurement equipment
Cleaning and deburring: removal of abrasive residue, burrs, and edge contamination that can damage oil films or mating surfaces
Final inspection: runout, concentricity, profile checks, key feature dimensions, visual condition, and marking traceability

Typical validation activities may include:

Dimensional inspection against drawing or approved sample, often with CMM, form tracer, micrometer, and dial-indicator records
Hardness testing on critical wear surfaces, with batch frequency defined in the control plan such as per lot or per furnace batch
Metallographic review during PPAP or new-project approval to confirm structure and hardened-depth results
Salt-spray or corrosion-packaging verification for export programmes when storage and sea transit may exceed 30-60 days
Bench or engine durability testing when required by the customer, especially for newly localized or re-engineered variants

For regulated export markets, buyers may also request material compliance documents in line with REACH (EC) No 1907/2006, where applicable to substance reporting in supplied articles and packaging materials.

At Driventus, process discipline is supported by an audited quality system, which matters when customers need supplier-qualification records rather than only a price sheet.

A useful supplier conversation here is very specific. Ask how profile grinding is calibrated, how final runout is measured, and how nonconforming parts are segregated. If the answer stays general, the risk usually is not general—it is immediate.

Lead time is tied to process choice as well. Stocked, repeat-build camshafts may ship in 15-30 days after order confirmation, while non-stock or custom-packed orders often require 30-45 days. Private-label boxes, barcode labels, or pallet-specific standards usually add several more days for packaging preparation and release.

Where aftermarket camshaft programmes usually go wrong

Most returns do not start with a dramatic manufacturing failure. They start with a missed detail.

Frequent causes of complaint

1. Wrong engine-code allocation - Vehicle description is too broad - Intake and exhaust camshaft positions are confused - VVT/AVCS configuration is not confirmed - Revision differences by model year are missed during catalog mapping

2. Premature lobe wear - Inadequate lubrication at start-up - Contaminated oil circuit - Mating components such as followers or buckets are not inspected - Surface hardness or finish is inconsistent in low-control supply chains

3. Timing-related drivability issues - Incorrect phasing during installation - Trigger features are not matched to the application - Excessive shaft runout or profile deviation in low-control supply chains - Intake and exhaust cam profiles are mixed within warehouse handling

4. Transit damage and corrosion - Poor packaging support on long-distance shipments - Insufficient anti-rust protection for humid shipping routes - Journal or lobe edges contact carton walls or adjacent parts during transit

For B2B buyers, these are margin problems before they become technical problems. One returned camshaft can trigger freight, claim handling, workshop frustration, and reputational damage across multiple accounts.

A straightforward prevention process is to require four checkpoints before release: fitment confirmation, critical-dimension record, batch traceability, and packaging verification. Some distributors also request installation notes covering lubrication, mating-component inspection, and timing alignment to reduce no-fault returns.

If a customer requires variant-specific dimensions, packaging changes, or private-label supply, Driventus also supports custom manufacturing for approved programmes.

How to compare suppliers without overvaluing the lowest quote

When procurement teams compare suppliers for a camshaft for Subaru WRX aftermarket replacement, the most useful format is a scorecard. It forces price, documentation, process capability, and replenishment reliability into the same discussion.

Suggested supplier comparison criteria

Checkpoint	Why it matters	Typical procurement focus
Overall length	Controls axial fit in the cylinder head assembly	Match to approved drawing or sample, often within ±0.05 mm for critical programmes
Journal diameter	Affects oil clearance and wear	Micron-level tolerance verification, commonly ±0.005 to ±0.015 mm by feature
Lobe lift/profile	Directly affects valve motion	CMM or profile-measurement records; compare actual lift curve to master data
Base-circle size	Influences lash geometry and follower contact	Confirm consistency cam-to-cam and lot-to-lot
Runout	Influences timing consistency and mechanical noise	100% or defined sampling inspection, commonly targeting ≤0.02-0.05 mm TIR
Surface roughness	Important for lubrication and wear	Journal and lobe finish records, often Ra 0.2-0.8 μm
Hardness	Helps prevent premature lobe wear	Material certificate and hardness test report, often checked in the HRC 50-60 range if design-applicable
Trigger/features for VVT	Required for ECU and timing-system compatibility	Visual and dimensional confirmation of slots, pins, dowels, and reference faces

</tr></thead><tbody> </tbody></table>For importers and wholesale groups, it is also worth checking whether the supplier can support other powertrain lines from the same manufacturing system. That can simplify vendor consolidation and reduce audit cost across multiple categories.

In real buying practice, MOQ and pricing logic should be made explicit during quotation. Common aftermarket programmes may start at a trial MOQ of 20-50 pcs for validation orders, while regular production MOQs are often 100-300 pcs per item depending on whether the part is already in rotation, requires dedicated packaging, or needs fresh setup.

Unit price normally changes with three variables:

Order quantity
Tooling or development status
Documentation depth

That means low-volume trial orders usually carry the highest unit cost, stable repeat orders often receive better pricing, and custom variants may include one-time sampling, tooling adjustment, or gauge costs before serial pricing is established.

Lead-time logic should be clarified with the same discipline:

Sample lead time: often 2-4 weeks for existing items and 4-8 weeks for modified or newly developed variants
Mass-production lead time: often 15-30 days for stocked or repeat-build items and 30-45 days for custom or non-stock items
Peak-season risk: machining and heat-treatment bottlenecks can extend delivery if capacity is not reserved in advance

A strong supplier should be able to explain exactly what is included in the quoted price: inspection report, neutral packaging, export carton, palletization, and claim-response terms. If those items are unclear, hidden cost usually appears later through relabeling, rework, or field claims.

Driventus serves aftermarket distributors, OEM/Tier-1 customers, and repair-chain procurement teams with documented production controls across engine and powertrain parts. If you need technical review for a Subaru-fitment camshaft programme, use the fitment data, annual volume, and target market to request a quote.

Frequently asked questions

The main risk is application mismatch combined with uncontrolled lobe or journal geometry. A part may install physically but still create timing, wear, or drivability issues if profile accuracy, runout, hardness, and AVCS-related features are not properly controlled.

At minimum, request fitment mapping, dimensional inspection records, material or lot traceability, hardness data, packaging specifications, and current IATF 16949:2016 and ISO 9001:2015 certificates where applicable. For higher-control programmes, buyers often also request first-article data, runout records, lobe-profile measurement results, and sample approval history.

Yes. Many B2B programmes require private-label or market-specific packaging. It is best to confirm artwork format, carton requirements, corrosion protection, barcode rules, MOQ impact, and any added packaging lead time during quotation and sample approval.

If you are qualifying a camshaft for Subaru WRX aftermarket replacement, send your fitment list, annual volumes, target price, MOQ expectations, and documentation requirements to Driventus. Contact our team here: /contact.html

Request a Quote

Criterion	What to ask for
Certification	Current certificates for IATF 16949:2016 and ISO 9001:2015
Fitment control	Engine-code coverage list, intake/exhaust identification, and revision management
Dimensional validation	Inspection report for journals, lobes, runout, overall length, and VVT-related features
Material traceability	Mill certificate or internal lot-trace records linked to production batch
Testing	Hardness data, metallurgical checks, and durability evidence if available
Packaging	Corrosion-prevention method, inner protection, export carton specification, and pallet standard
MOQ and lead time	Standard MOQ, pilot-order option, sample timing, and production lead time
Claim handling	8D response process, lot-containment procedure, and replacement/credit workflow
